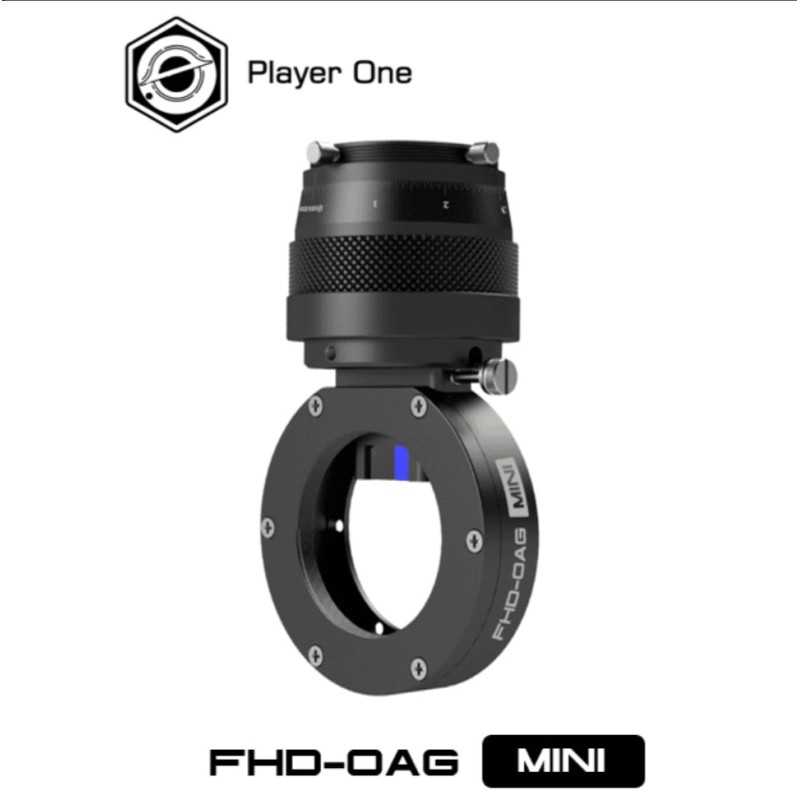

Player One FHD-OAG MINI Off-Axis Guider

Name: Player One FHD-OAG MINI Off-Axis Guider
Brand: Player One
SKU: PlayerOne FHD OAG MINI
Price: 179 CHF
Availability: BackOrder

179.00

Tax included

Available payment methods

PayPal

Secure payment. Additional fees may apply.

PayPal

Bank transfer

Pay comfortably from home. After confirming your order, you will receive all the information required to make a bank transfer.

Bank transfer

Pay in store

Pay directly in our shop in Givisiez, in cash or by card. Your order can be collected after confirmation.

Pay in store

PimPay

A payment system with no fees. Simply top up your PimPay account before completing your purchase. No fees are charged to either the buyer or the merchant.

PimPay

HeyLight

Credit for up to 12 months or payment in 3 instalments. For payment in 3 instalments, the displayed price includes a 3.74% surcharge applied by Astromanie to cover the service fees associated with this payment method.

HeyLight

Usually available from the supplier. Please contact us for more information.

Compact off-axis guider designed for Player One Ares series and planetary cameras. It features an 8 × 14 mm prism, 1.25-inch helical focuser, M42, M48 and M54 connections and a 17.5 mm extension length.

Description
Product Details

Designed for astrophotography guiding, the Player One FHD-OAG MINI diverts part of the telescope's light path towards a guide camera. This allows guiding directly through the main telescope without requiring a separate guide scope.

Its compact design is intended for Player One Ares series and planetary cameras. With an extension length of only 17.5 mm, it can be integrated into an imaging train while keeping the overall system compact.

8 × 14 mm Prism

The FHD-OAG MINI uses an 8 × 14 mm prism with proportions close to a 16:9 format.

With a height of only 8 mm, the prism can be positioned closer to the centre of the optical path, allowing more light to reach the guide camera.

Player One states that this design provides a no-vignetting result with the Xena-M camera.

Compatibility with Different Guide Sensors

Player One illustrates the available field with several guide cameras and sensor formats.

Ceres-M : IMX462 sensor, 1/3-inch format
Sedna-M : IMX178 sensor, 1/2-inch format
Xena-M : IMX174 or IMX249 sensor, 1/1.2-inch format

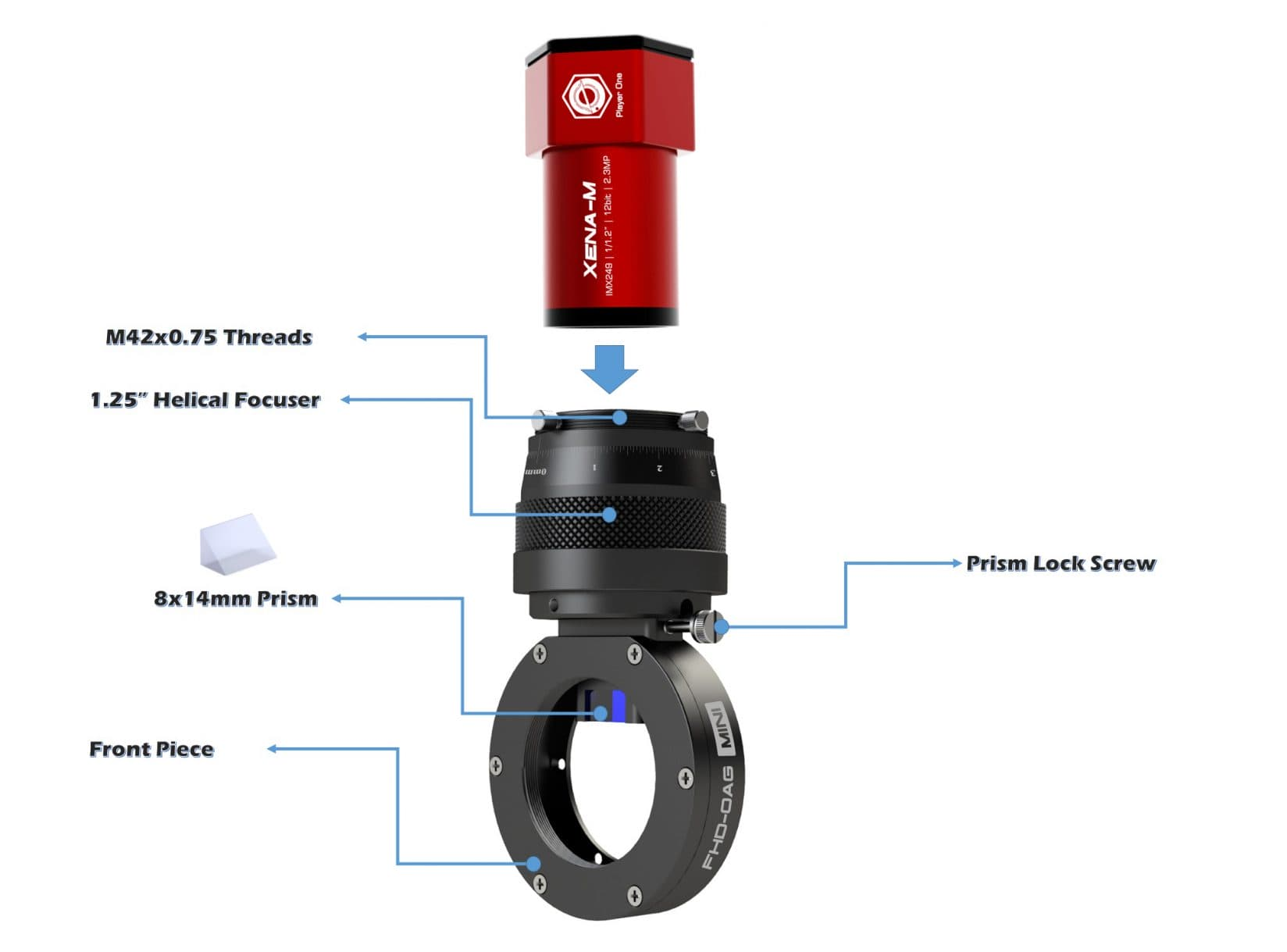

1.25-Inch Helical Focuser

The guide camera is installed in a 1.25-inch helical focuser for precise focusing.

The upper section also features an M42 × 0.75 thread for attaching a compatible guide camera.

Prism Adjustment and Locking

The prism position can be adjusted according to the optical configuration.

A dedicated locking screw secures the prism once the required position has been selected.

Telescope-Side Connections

The modular design of the FHD-OAG MINI provides several telescope-side connection options.

M42 : M48 front piece combined with the supplied M48 male to M42 female adapter
M48 : supplied M48 front piece
M54 : supplied M54 front piece

Player One Accessory Compatibility

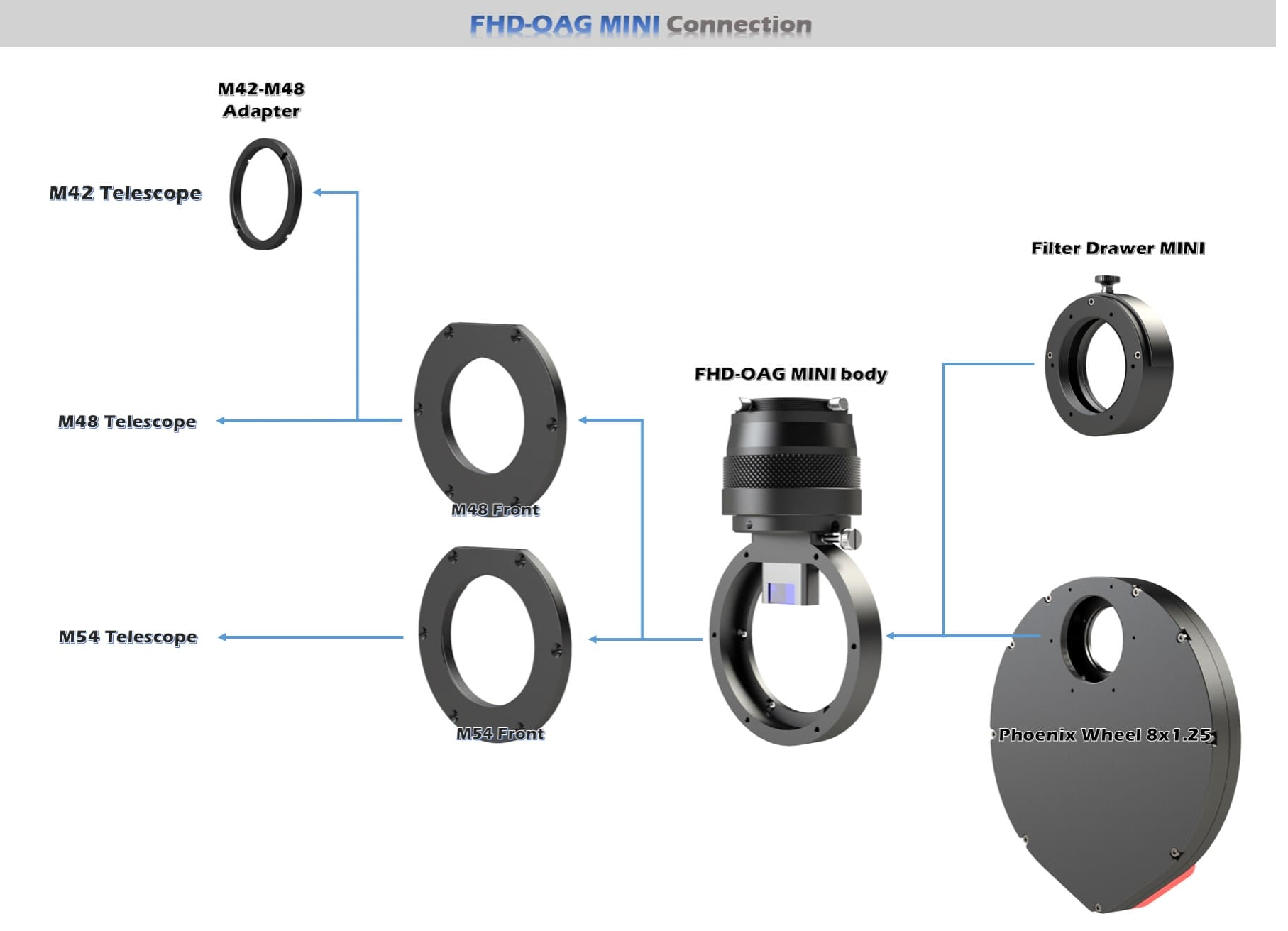

Player One's connection diagram shows integration of the FHD-OAG MINI with several accessories from the range.

Filter Drawer MINI
Phoenix Wheel 8 × 1.25 inch

Compact Construction

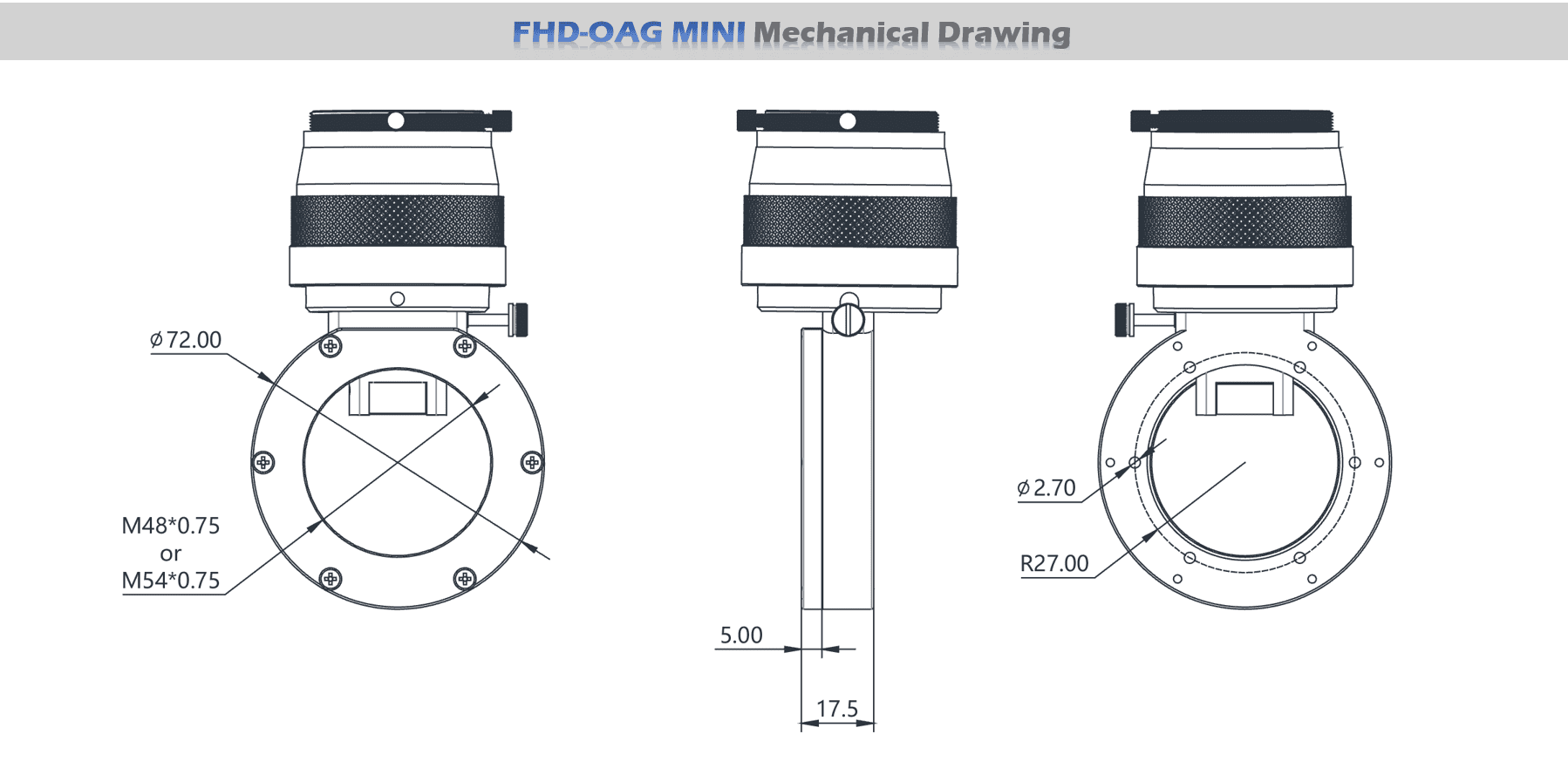

The off-axis guider body is manufactured from 6061-T6 aluminium. The mechanical drawing specifies a 72 mm outer diameter and a 17.5 mm extension length.

This compact design allows off-axis guiding to be integrated with the main camera, guide camera and filter system without unnecessarily increasing the size of the imaging train.
