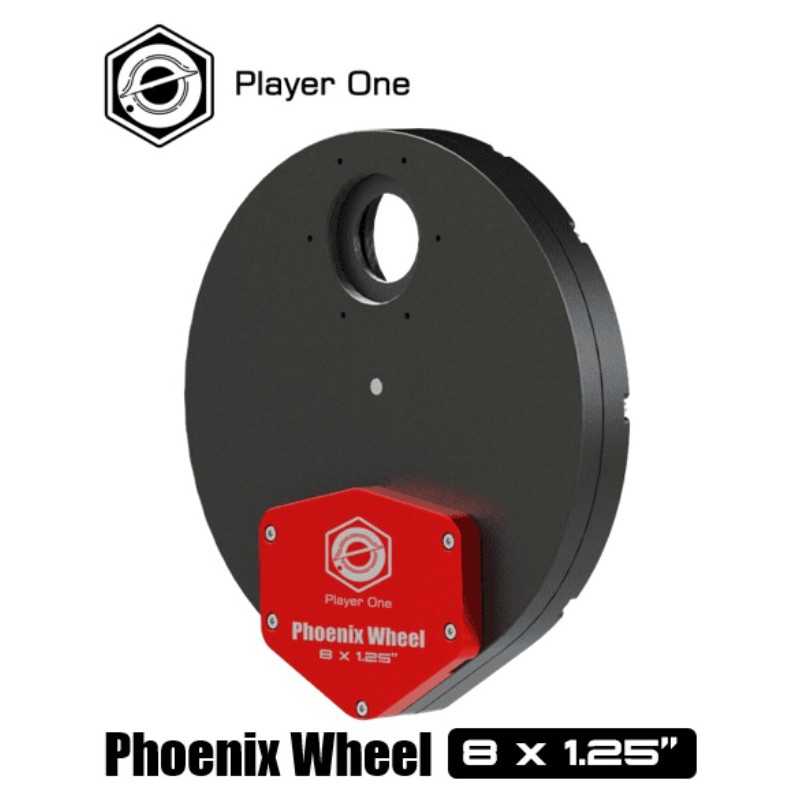

Player One Phoenix wheel 8 x 1.25"
284.00
Tax included
Usually available from the supplier. Please contact us for more information.
Available payment methods
i
PayPal
Secure payment. Additional fees may apply.
PayPal
i
Bank transfer
Pay comfortably from home. After confirming your order, you will receive all the information required to make a bank transfer.
Bank transfer
i
Pay in store
Pay directly in our shop in Givisiez, in cash or by card. Your order can be collected after confirmation.
Pay in store
i
PimPay
A payment system with no fees. Simply top up your PimPay account before completing your purchase. No fees are charged to either the buyer or the merchant.
PimPay
i
HeyLight
Credit for up to 12 months or payment in 3 instalments. For payment in 3 instalments, the displayed price includes a 3.74% surcharge applied by Astromanie to cover the service fees associated with this payment method.
HeyLight
Player One motorised 7-position filter wheel compatible with 36 mm unmounted filters. It features Hall sensor positioning, a hybrid stepper motor and USB Type-C connectivity.
Technical Specifications
- Manufacturer : Player One Astronomy
- Model : Phoenix Filter Wheel 8 x 1.25"
- Type : Motorised filter wheel
- Filter positions : 8
- Mounted filter compatibility : 1.25"
- Body threads : M42 x 0.75 on both sides
- Positioning system : Hall sensor magnetic positioning
- Motor : Hybrid stepper motor
- Data connection : USB Type-C
- Material : Aluminum 6061-T6
- Physical thickness : 21 mm
- Support model : Ares series, Uranus PRO, Apollo PRO planetary camera, guiding camera
Product description:

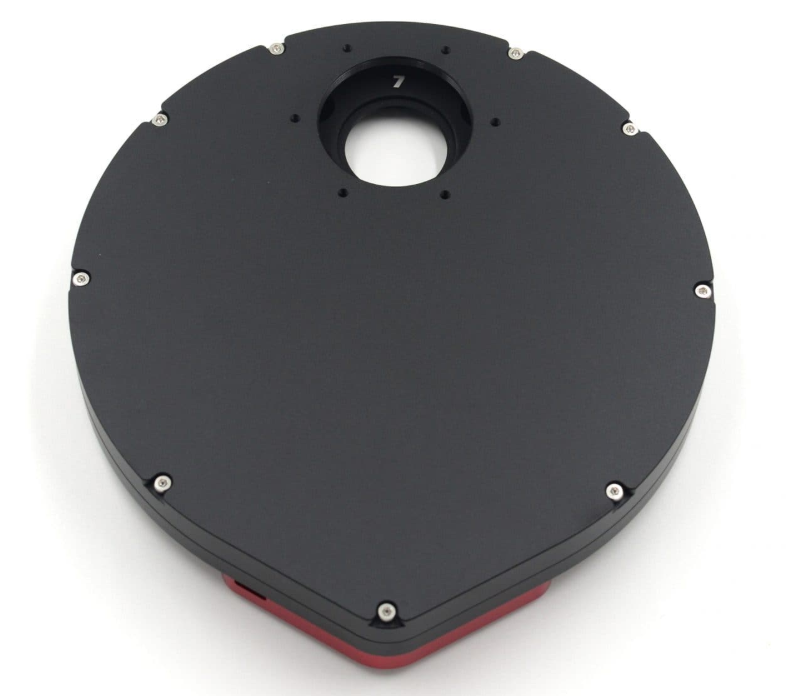

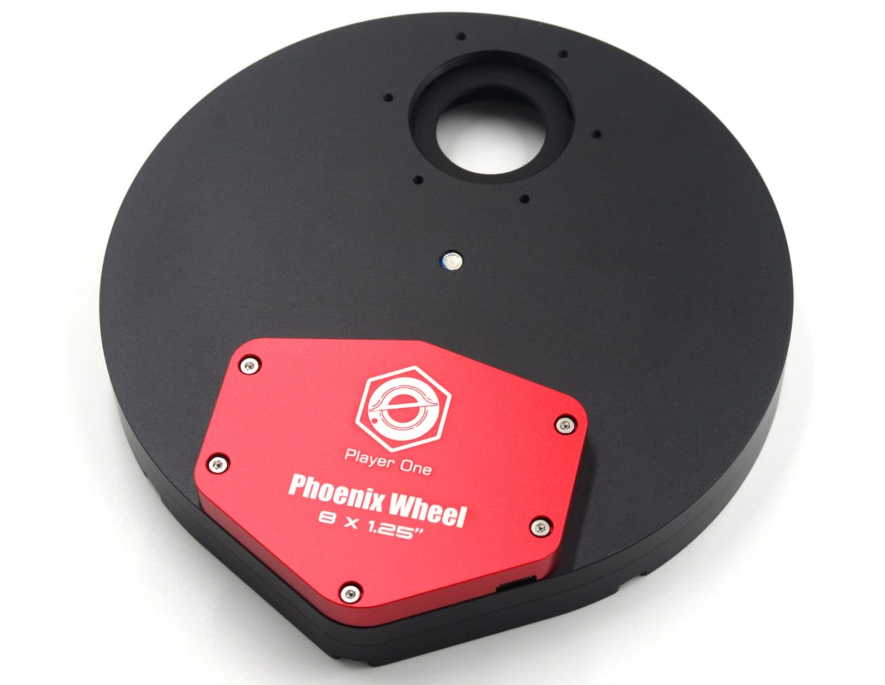

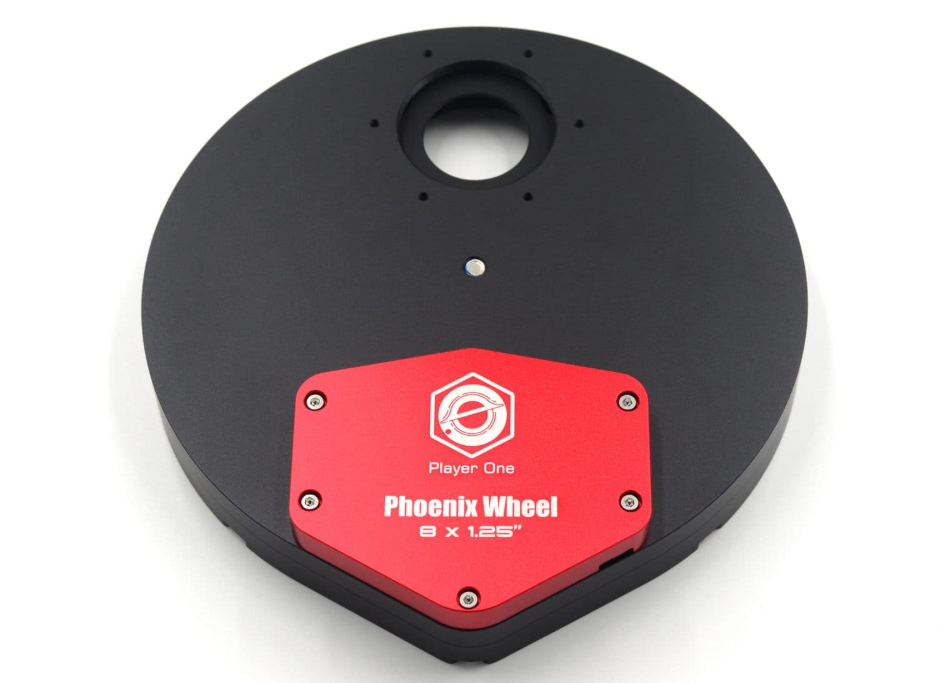

Phoenix Filter Wheel 8 x 1.25"
Support model : Ares series, Uranus PRO, Apollo PRO, planetary camera, guiding camera
Body Threads: M42*0.75 on both sides
Filter size: 1.25"
Material：Aluminum 6061-T6
Physical thickness: 21mm
.png)
.png)
.png)

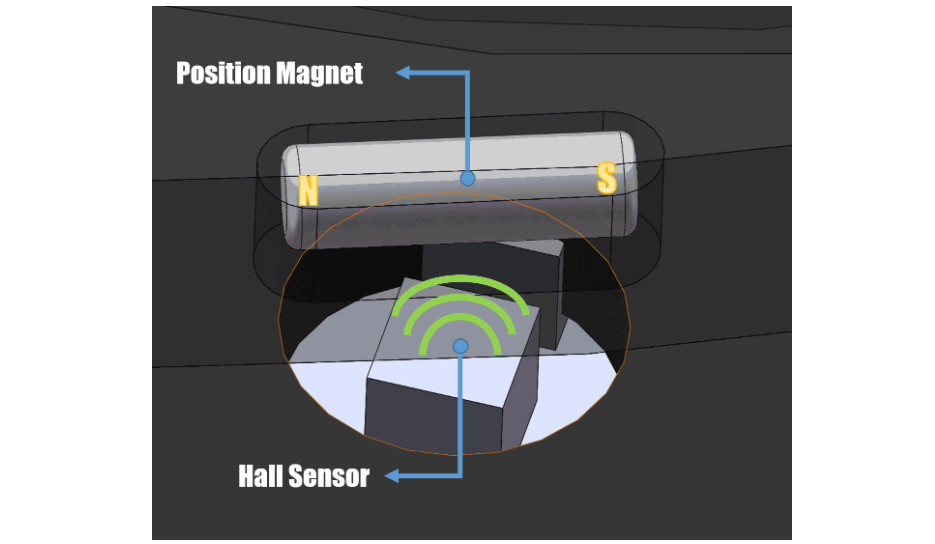

Hall Sensing Technology
Traditional infrared sensor scanning positioning hole to locate position, this way positioning accuracy depends on the size of the positioning hole, the smaller the hole, the higher the accuracy, but the diameter of the hole must have at least 1mm diameter, otherwise it is difficult to manufacture. But if use magnet on filter plate, Hall sensor will detect the center of the magnet, the positioning accuracy is better than infrared sensor.
.png)

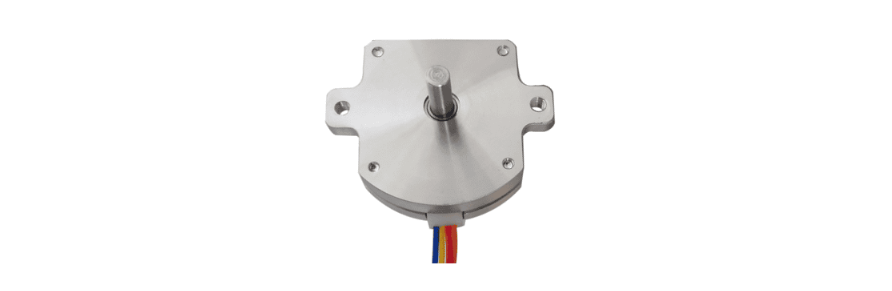

Hybrid stepping motor
This super thin hybrid stepping motor can provide very smooth rotation, almost no vibration when change the filter position.
.png)

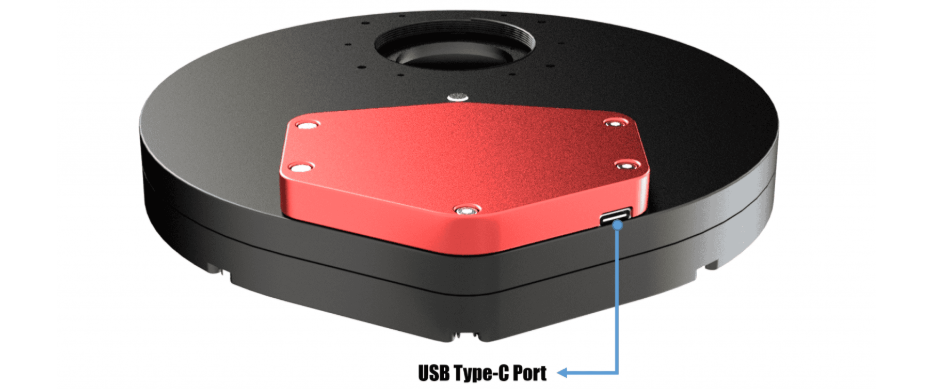

Type-C data port
Using USB Type-C port can reduce the thickness of red piece.
.png)
Support filters

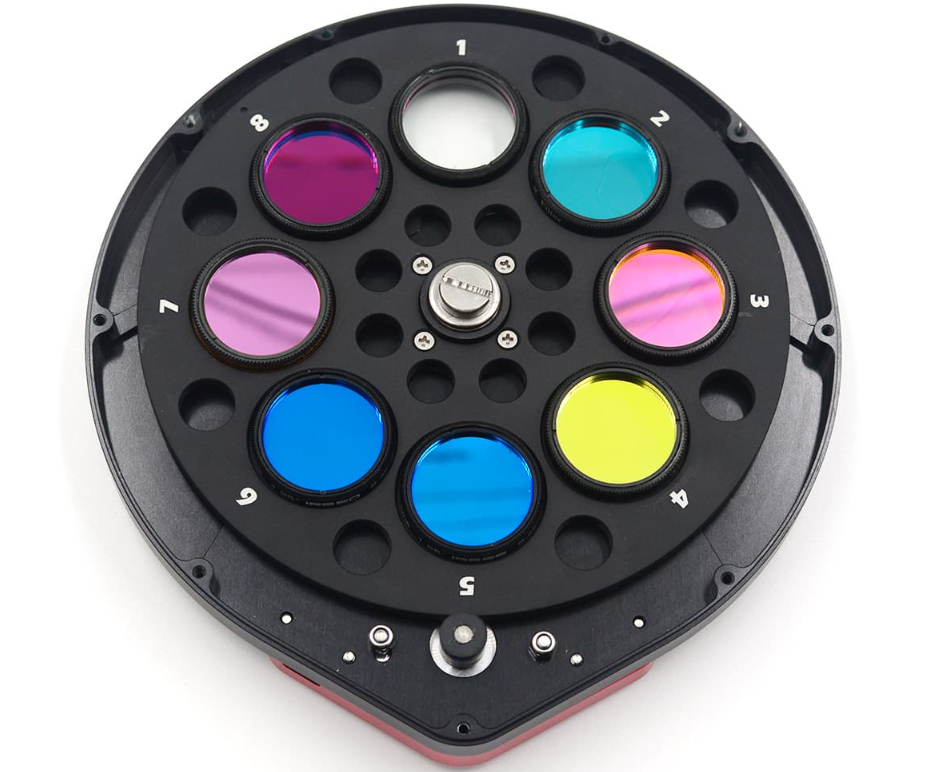

Filter Positions of Phoenix Wheel 8 x 1.25"

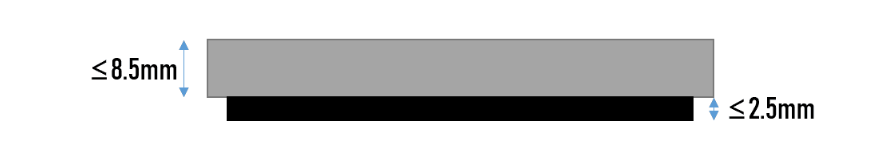

2″ mounted filter need to check the thickness:
.png)
.png)

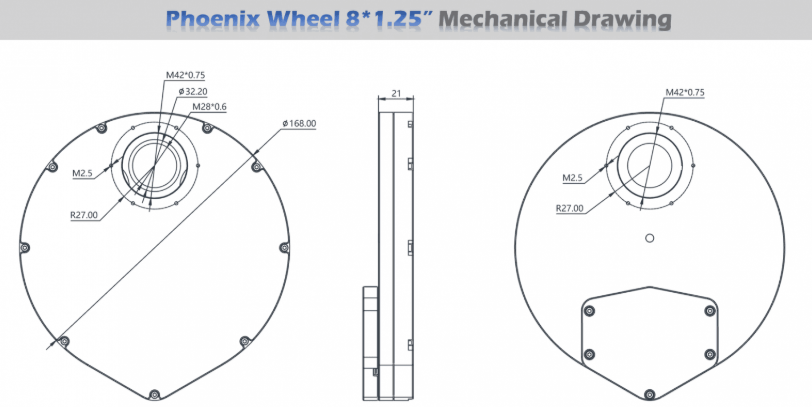

Mechanical Drawing
.png)

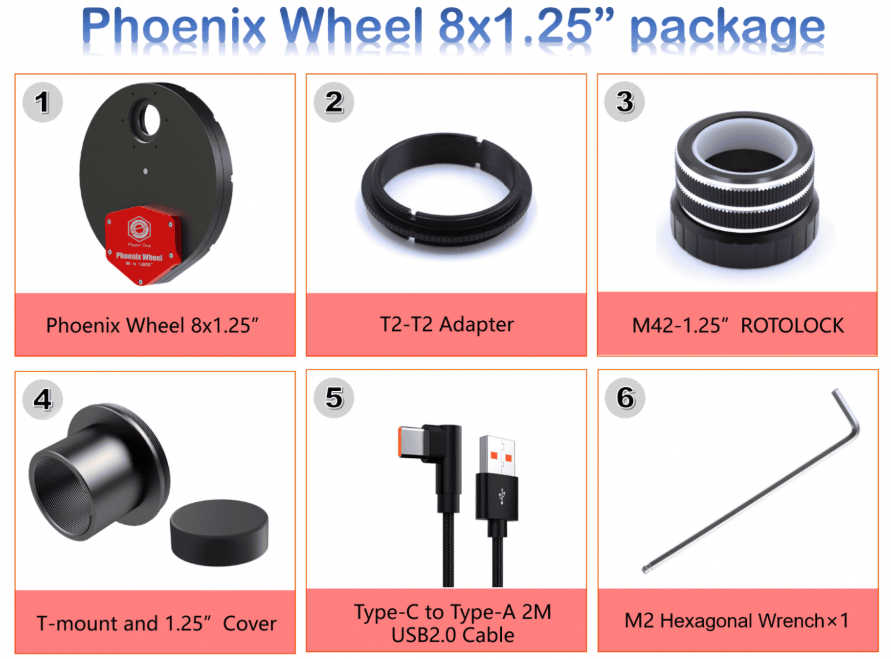

Package List
.png)
PlayerOne Phoenix 8 x 1.25"
