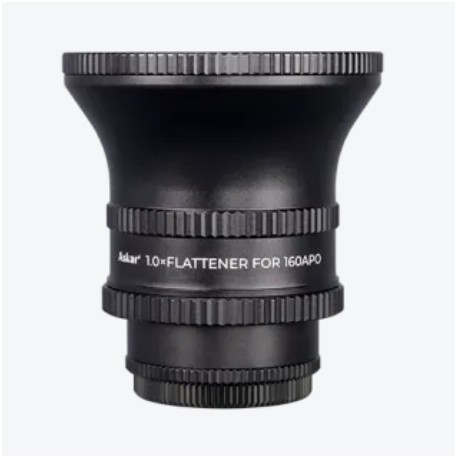

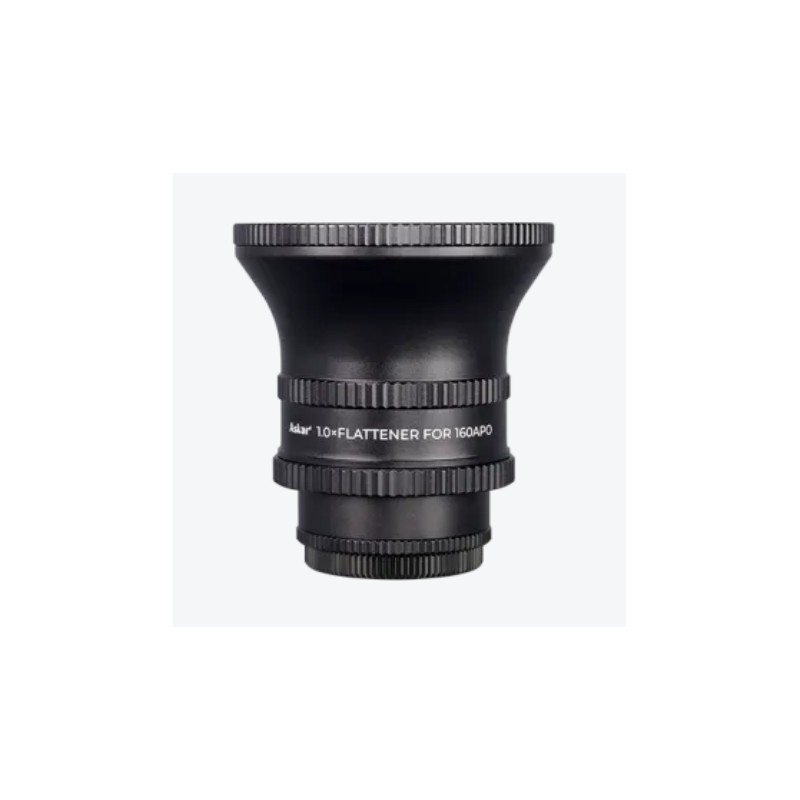

Askar 160APO 1x Full Frame Flattener
1x flattener specifically designed for the Askar 160APO refractor. It preserves the native f/7 focal ratio while providing corrected field and coma correction. Full-frame 44 mm support, standard 55 mm back focus, triplet optical design, and integrated 2-inch filter thread.
Askar 160APO 1x Full Frame Flattener
Description

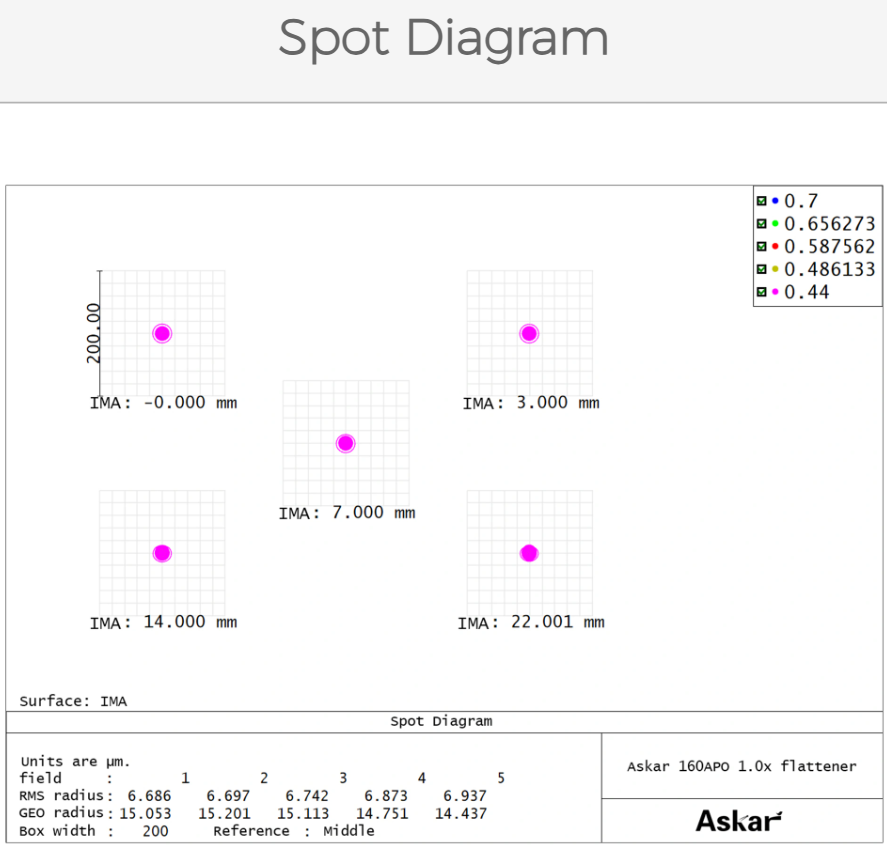

The Askar 160APO 1x flattener is exclusively optimized for use with the Askar 160APO refractor. It does not alter the telescope’s focal length or focal ratio, maintaining a resulting focal length of 1120 mm and an f/7 focal ratio after installation. It provides effective corrected field and coma correction, ensuring fine and consistent star shapes across the entire full-frame sensor.

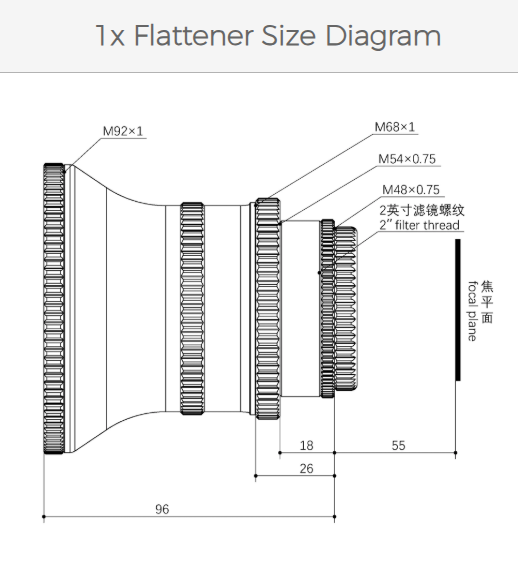

The optical system is based on a triplet design and supports a full-frame 44 mm image circle. A standard 55 mm back focus is measured from the base of the M48 male thread, ensuring compatibility with most astrophotography cameras. The flattener features an M92x1 front thread and is supplied with M68x1, M54x0.75, and M48x0.75 adapters. A built-in M48x0.75 2-inch filter thread is located on the camera side. The entire unit is CNC-machined and protected by threaded metal caps.
Technical specifications
Focal length after installation on 160APO: 1120 mm
Focal ratio after installation: f/7
Optical design: triplet
Supported image circle: 44 mm full frame
Back focus: 55 mm from M48 male thread base
Front thread: M92x1
Camera-side threads: M68x1, M54x0.75, M48x0.75
Integrated filter thread: M48x0.75 for 2-inch filters
Weight: 0.56 kg
Manufacturing: CNC machining
Threaded metal front and rear caps
