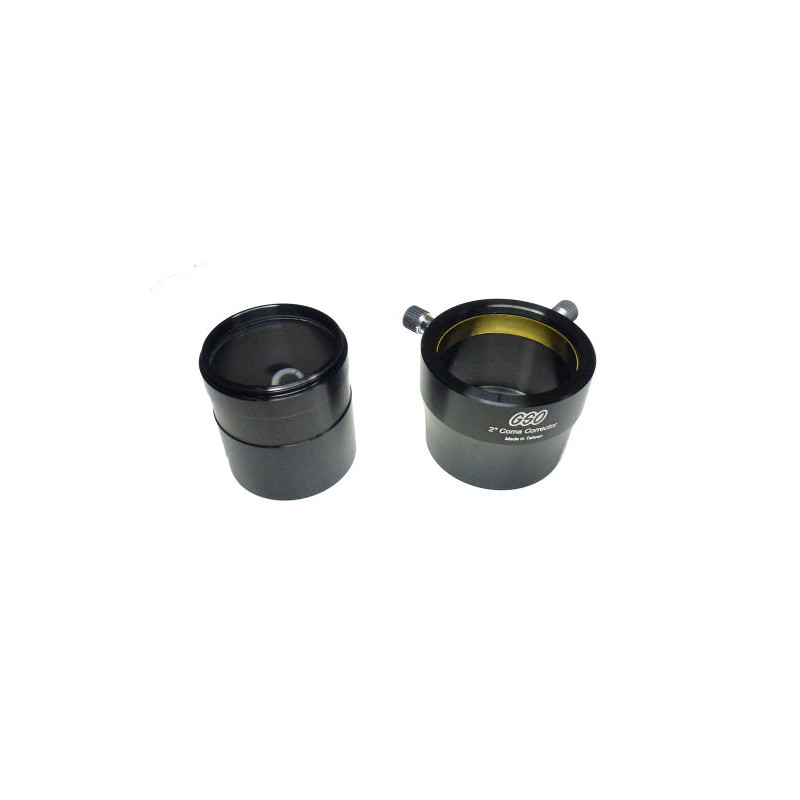

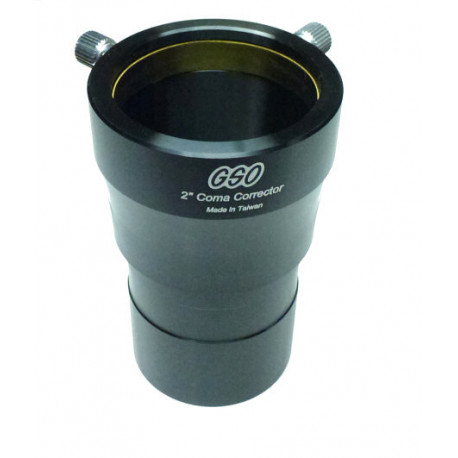

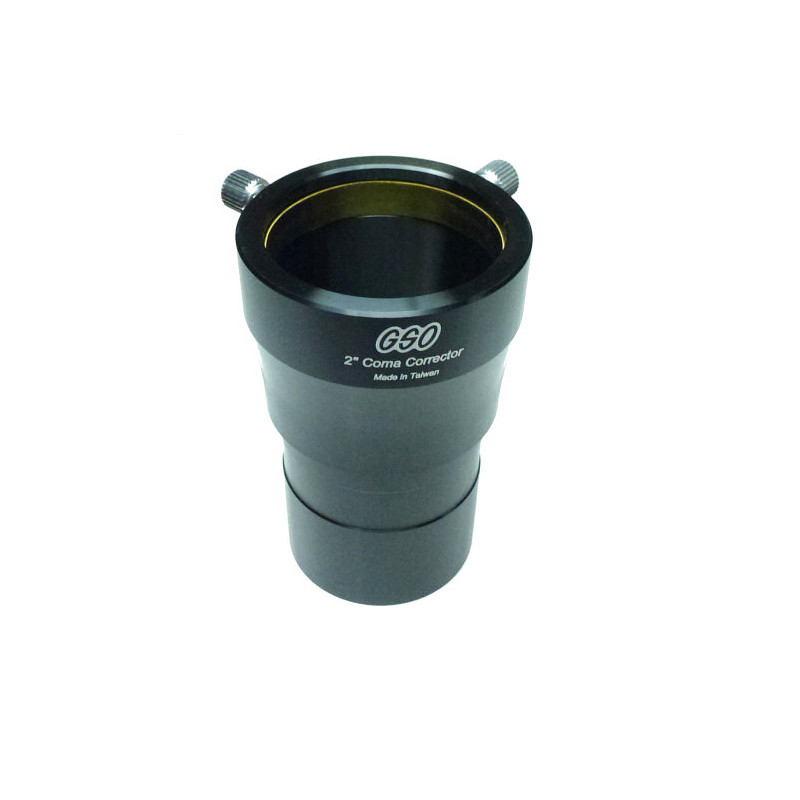

GSO 2" 4-Element Photo-Visual Coma Corrector

GSO 2" 4-Element Photo-Visual Coma Corrector

Description

The GSO 2" photo-visual coma corrector, manufactured in Taiwan by Guan Sheng Optical (GSO), is engineered to improve optical performance in fast Newtonian systems. It uses a 4-element, 2-group fully multi-coated optical design to correct coma and field curvature, ensuring pinpoint stars even at the edges of the field.

Optimized for f/4 telescopes, it performs exceptionally well between f/4 and f/5. The modular design includes a 2" eyepiece holder with dual thumbscrews and a non-marring brass compression ring to protect accessory barrels. For astrophotography, the eyepiece holder can be removed, exposing an M48 thread for direct camera attachment, and an M48-to-M42/T2 adapter is included for use with standard T-rings.

The corrector slightly increases magnification (~1.1x) and requires 75 mm ± 5 mm back focus. For example, when using a Canon/Nikon DSLR (55 mm back focus with M48 T-ring), a 20 mm spacer is needed between the corrector and camera adapter.

Built with precision and coated optics, this GSO coma corrector offers outstanding image correction and excellent light transmission for demanding astrophotographers.

Technical Specifications

Manufacturer : Guan Sheng Optical (GSO)
Type : 2" photo-visual coma corrector
Barrel size : 2" (50.8 mm)
Optical design : 4 elements, 2 groups
Coatings : Fully multi-coated
Compatible focal ratios : f/4–f/5 (optimized for f/4)
Magnification : 1.1x
Back focus : 75 mm ± 5 mm
Clear aperture : 44 mm
Filter thread : M48 x 0.75 (2")
Camera threads : M48 x 0.75 / M42 (with included adapter)
Eyepiece holder : 2" with brass compression ring and dual thumbscrews
Weight : 335 g complete / 220 g without eyepiece holder
Country of manufacture : Taiwan
Included items :

• 2" coma corrector

• M48–M42/T2 adapter

• Dust caps
