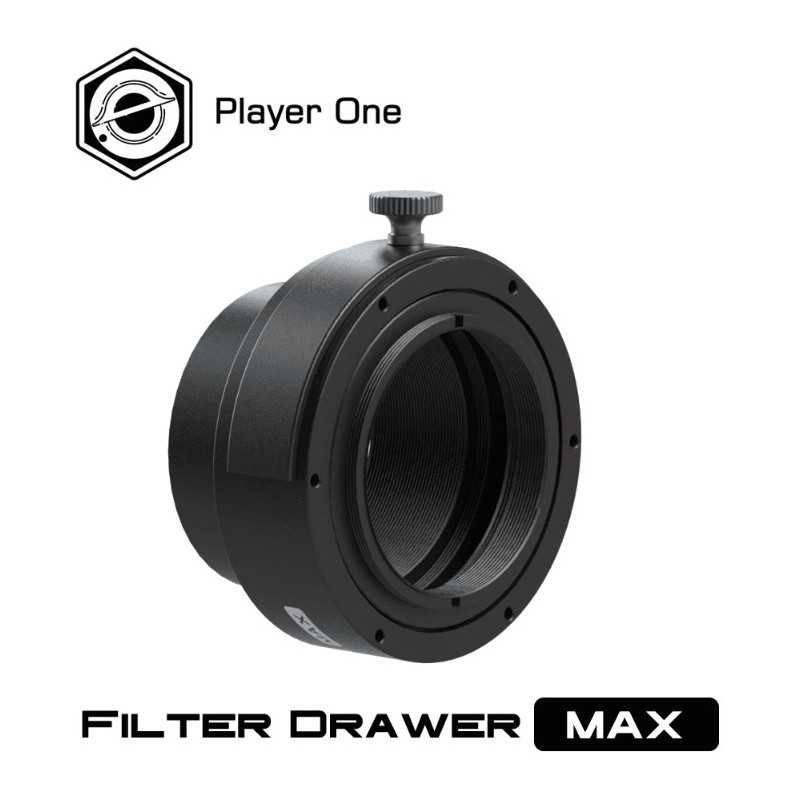

Player One Filter Drawer MAX
124.00
Tax included
Usually available from the supplier. Please contact us for more information.
Available payment methods
i
PayPal
Secure payment. Additional fees may apply.
PayPal
i
Bank transfer
Pay comfortably from home. After confirming your order, you will receive all the information required to make a bank transfer.
Bank transfer
i
Pay in store
Pay directly in our shop in Givisiez, in cash or by card. Your order can be collected after confirmation.
Pay in store
i
PimPay
A payment system with no fees. Simply top up your PimPay account before completing your purchase. No fees are charged to either the buyer or the merchant.
PimPay
i
HeyLight
Credit for up to 12 months or payment in 3 instalments. For payment in 3 instalments, the displayed price includes a 3.74% surcharge applied by Astromanie to cover the service fees associated with this payment method.
HeyLight
Compact filter drawer designed for a threaded 2-inch filter. The Player One Filter Drawer MAX combines a stable three-point locking system, M48 × 0.75 thread, 6061-T6 aluminium construction and a 21 mm extension length.
Designed to integrate a 2-inch filter easily into an imaging train, the Player One Filter Drawer MAX allows filters to be changed quickly without dismantling the complete imaging system.
It supports Player One Poseidon, Zeus, Artemis and Ares series cameras, as well as Uranus PRO and Apollo PRO models.
Manufactured from 6061-T6 aluminium, the Filter Drawer MAX has an extension length of 21 mm.
Stable Three-Point Locking
The drawer uses a metal ball locking system distributed over three points.
This design keeps the drawer securely in position during imaging and provides stable mechanical support for the filter.
Supports 2-Inch Filters
The drawer features an M48 × 0.75 female thread for installing a compatible 2-inch filter.
Filters can be changed simply by removing the drawer and replacing the installed filter.
M2.5 Screw Mounting
Both sides of the Filter Drawer MAX feature six M2.5 screw holes.
On the telescope side, these mounting points allow direct connection to the Player One FHD-OAG MAX.
On the camera side, the screw holes are designed for connection to compatible Player One cooled cameras.
Threaded Connection
In addition to screw mounting, the Filter Drawer MAX also supports threaded connections.
This extends the range of possible configurations and makes the drawer easier to integrate into different imaging trains.
Player One Camera Compatibility
The Filter Drawer MAX supports the following product ranges:
- Poseidon series
- Zeus series
- Artemis series
- Ares series
- Uranus PRO
- Apollo PRO
Technical Specifications
- Manufacturer : Player One Astronomy
- Model : Filter Drawer MAX
- Type : Filter drawer
- Supported filter : 2-inch filter
- Drawer thread : M48 × 0.75 female
- Material : Aluminum 6061-T6
- Extension length : 21 mm
- Locking system : Three-point metal ball locking
- Mounting : Six M2.5 screw holes on each side
- Telescope-side connection : Compatible with FHD-OAG MAX
- Camera-side connection : Compatible Player One cooled cameras
- Threaded connection : Yes
- Compatibility : Poseidon, Zeus, Artemis and Ares series, Uranus PRO and Apollo PRO
Package Contents
- Filter Drawer MAX
- Other items : shown in the manufacturer illustration but not detailed in the supplied text
.png)
.png)
Stable Lock
Filter Drawer MAX using metal bead screw to lock the drawer, 3 point lock can make sure the drawer is very stable in imaging.
.png)
Support filters
Drawer itself has M48*0.75 female thread, can hold a 2″ filter in it.
.png)
Setup with M2.5 screws
On both side of the Filter Drawer MAX, has 6 M2.5 screws holes. Screw holes on telescope side used to connect the FHD-OAG MAX, Screw holes on camera side used to connect cooled cameras.
.png)
Setup with threads
Filter Drawer MAX also support threads connection, this will extend the using range of it.
.png)
Package List
.png)
Player One Filter Drawer MAX
