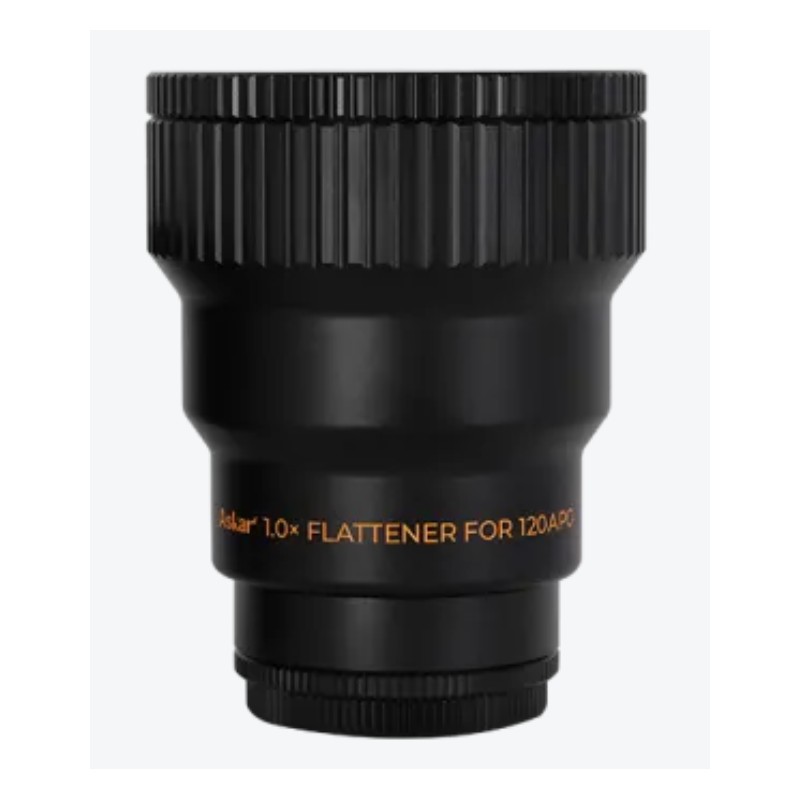

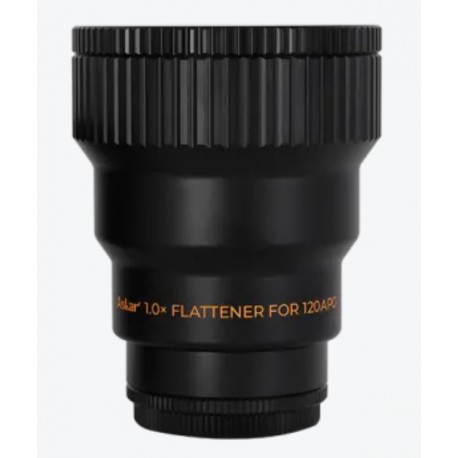

Askar 1x Full-Frame Corrector for 120APO

Askar 1x Full-Frame Corrector for 120APO

Description

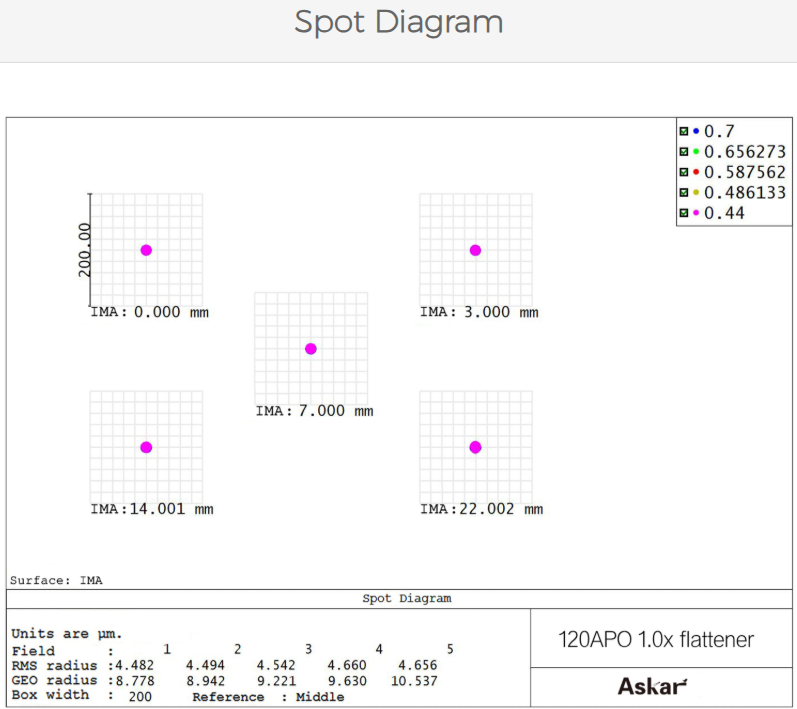

The Askar 1x corrector for the 120APO is an optical accessory specifically optimized for the Askar 120APO apochromatic refractor. Once installed, it maintains the native 840 mm focal length and f/7 focal ratio while effectively correcting field curvature and coma. Its triplet optical design delivers a corrected image circle covering full-frame sensors up to 44 mm, ensuring fine and consistent star shapes across the entire field. The corrector features a standard 55 mm back focus measured from the base of the M48 male thread. The front thread is M84x1. Camera-side adapters M54x0.75 and M48x0.75 are supplied, with the M48 adapter incorporating an internal 2-inch filter thread. The complete assembly is CNC machined and supplied with threaded metal dust caps to protect the optics when not in use.

Technical specifications

• Optical compatibility: Askar 120APO

• Correction factor: 1x

• Focal length after installation: 840 mm

• Focal ratio after installation: f/7

• Optical design: triplet

• Corrected image circle: 44 mm full-frame

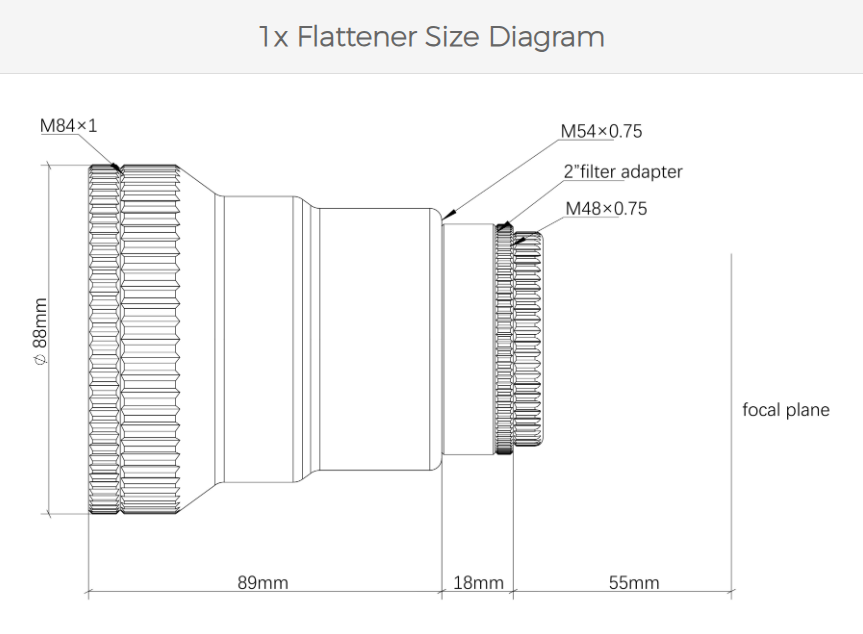

• Back focus: 55 mm from M48 male thread base

• Front thread: M84x1

• Supplied rear threads: M54x0.75, M48x0.75

• Integrated filter thread: 2 inch M48x0.75

• Weight: 0.75 kg

• Manufacturing: CNC machined

• Caps: threaded metal front and rear caps
