Askar 80PHQ 0.76x Reducer

Askar 80PHQ 0.76x Reducer

Description

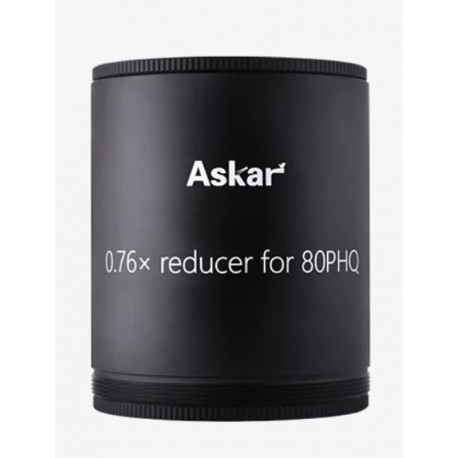

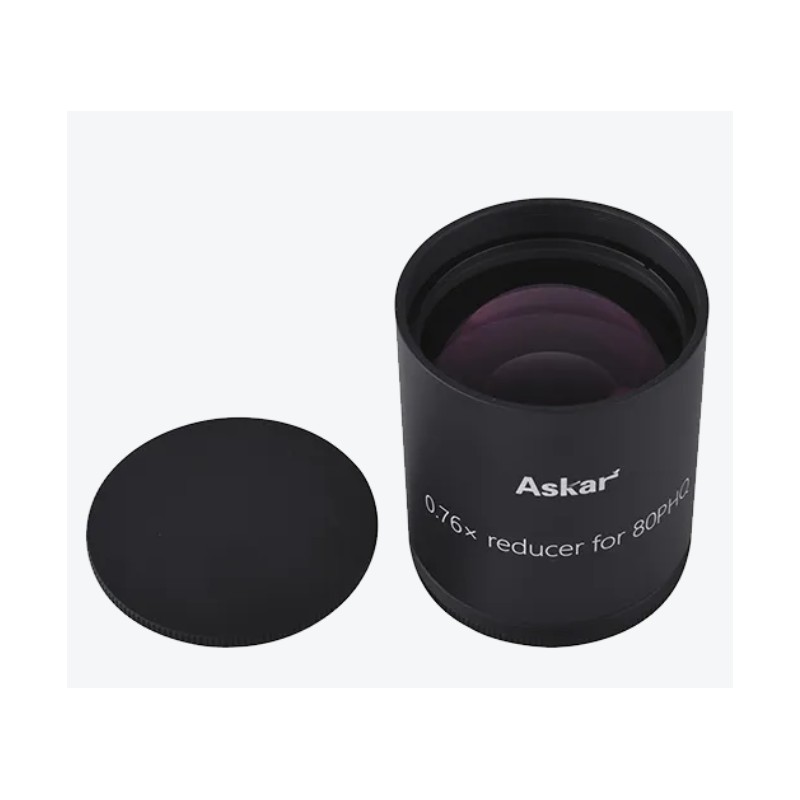

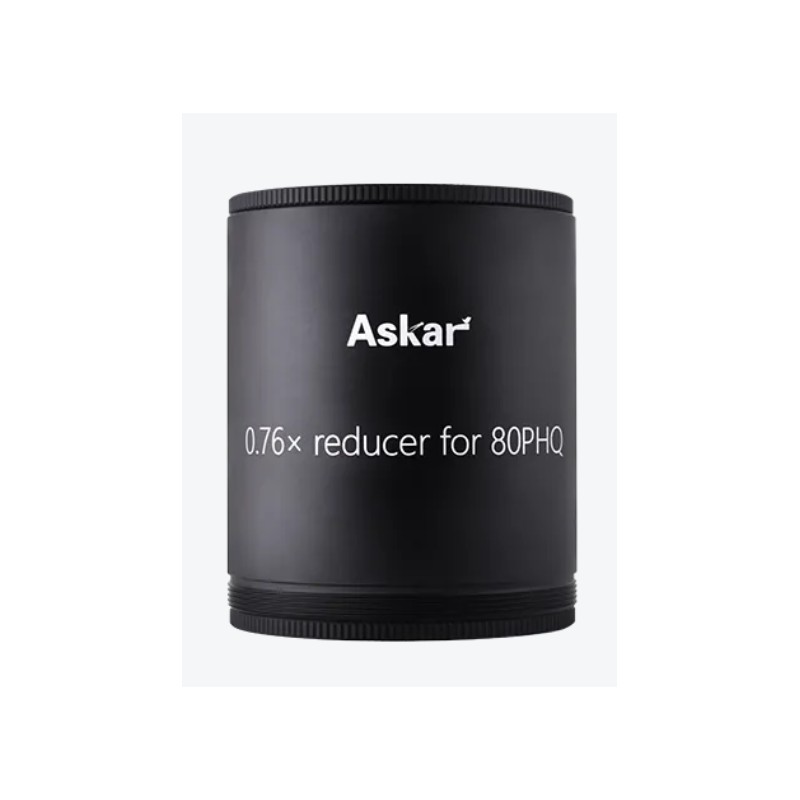

The Askar 80PHQ 0.76x is a 3 inch optical reducer specifically developed for the Askar 80PHQ astrograph. It is based on a triplet optical design and provides a 0.76x reduction factor. When used with the 80PHQ f7.5 astrograph, it delivers a reduced focal ratio of f5.7 and a resulting focal length of 456 mm. This configuration shortens exposure times and improves overall efficiency for deep sky astrophotography.

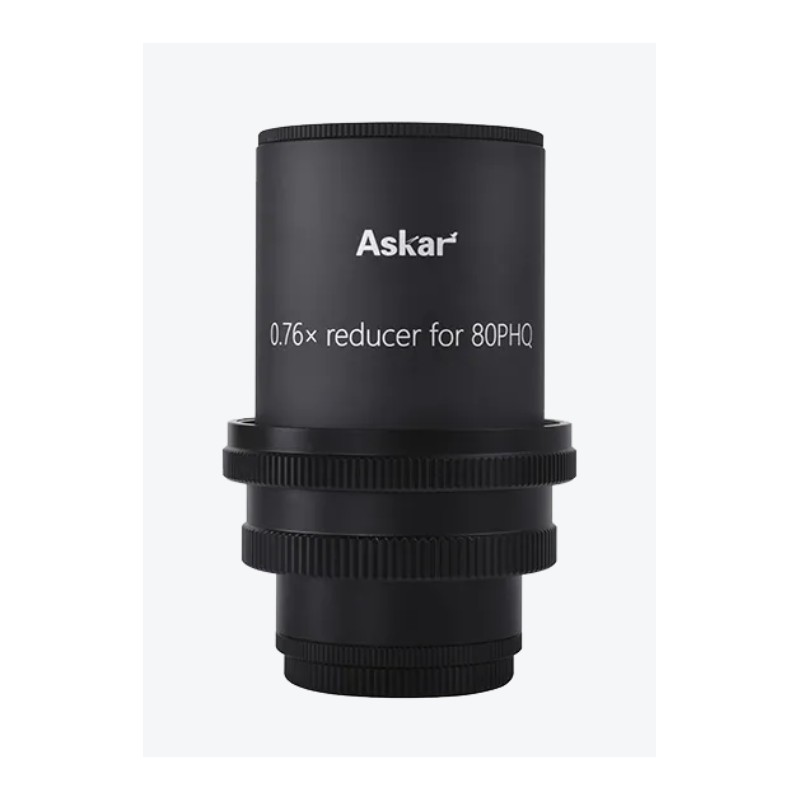

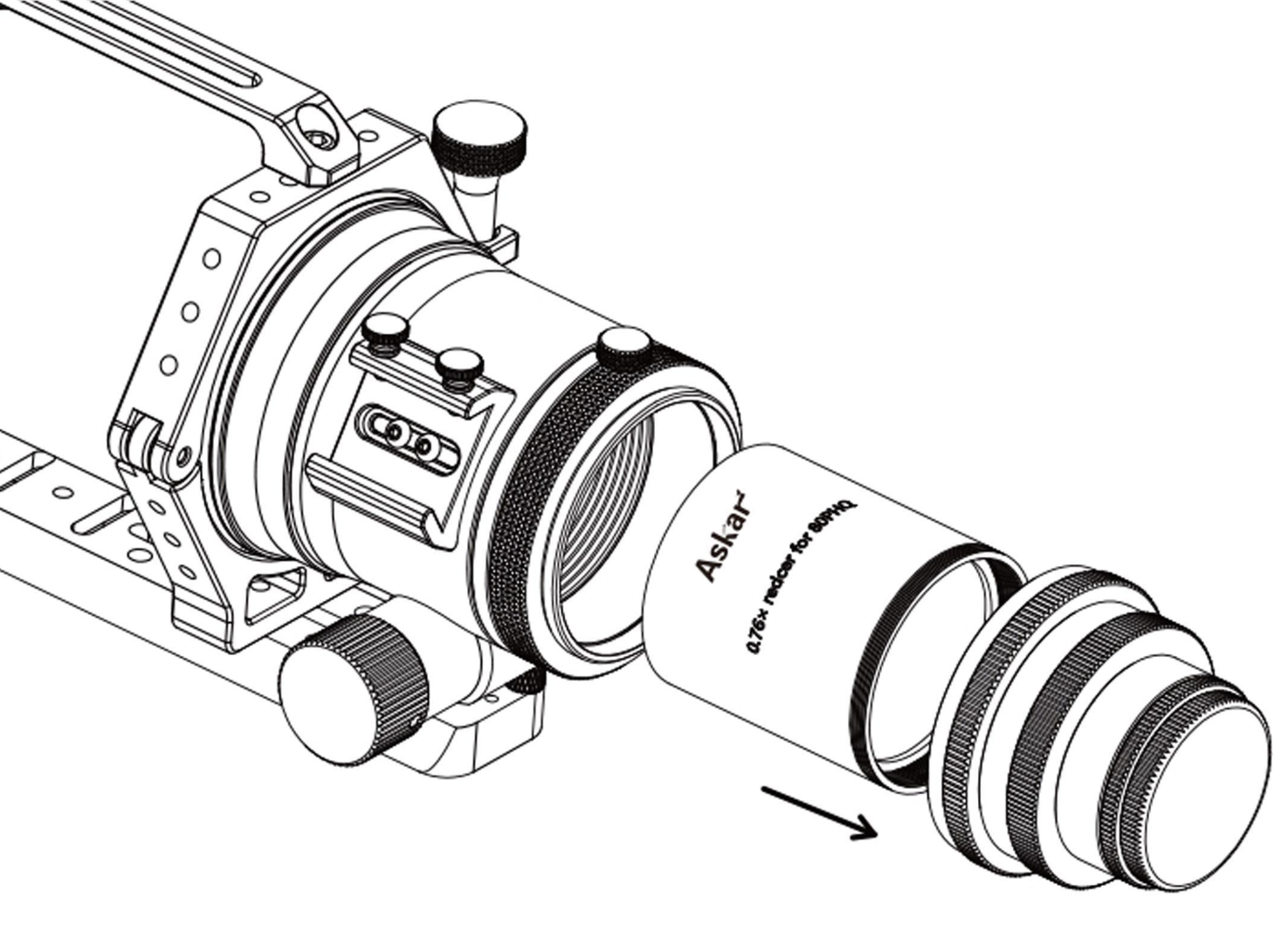

The reducer operates with a standard back focus of 55 mm. It is supplied with a four piece photographic adapter system designed to connect directly to the focuser thread during use. A built in M48x0.75 filter thread allows convenient installation of 2 inch filters within the imaging setup.
The reducer is manufactured using CNC machining to ensure precise mechanical tolerances and a refined finish suitable for demanding astrophotography applications.

Technical specifications

• Compatibility: Askar 80PHQ

• Reduction factor: 0.76x

• Resulting focal length with 80PHQ: 456 mm

• Resulting focal ratio: f5.7

• Optical design: triplet

• Mechanical diameter: 3 inch

• Back focus: 55 mm

• Filter thread: M48x0.75

• Adapters: four piece photographic adapters

• Manufacturing: CNC machining
