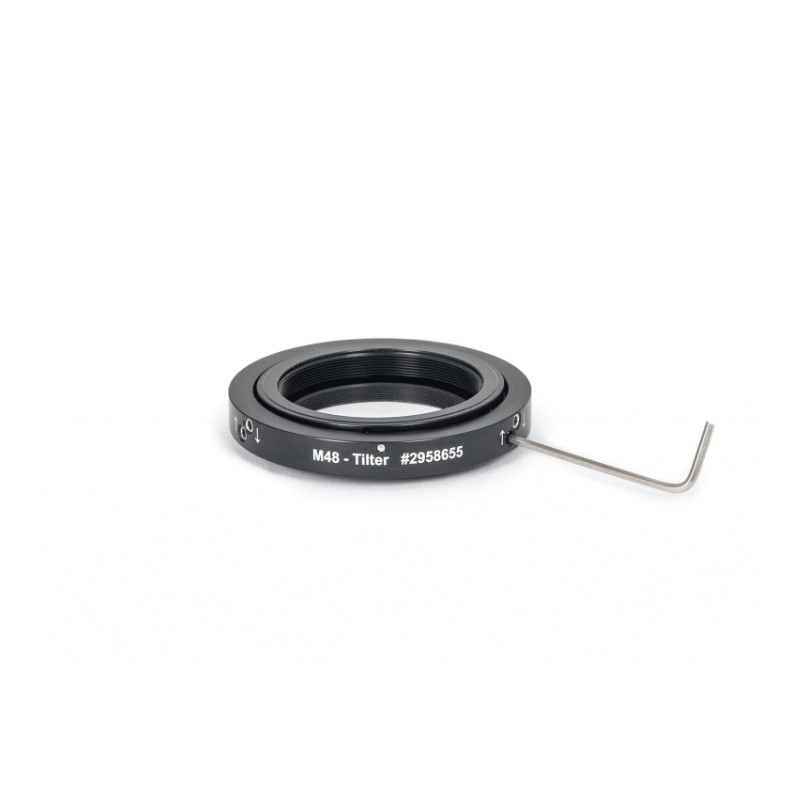

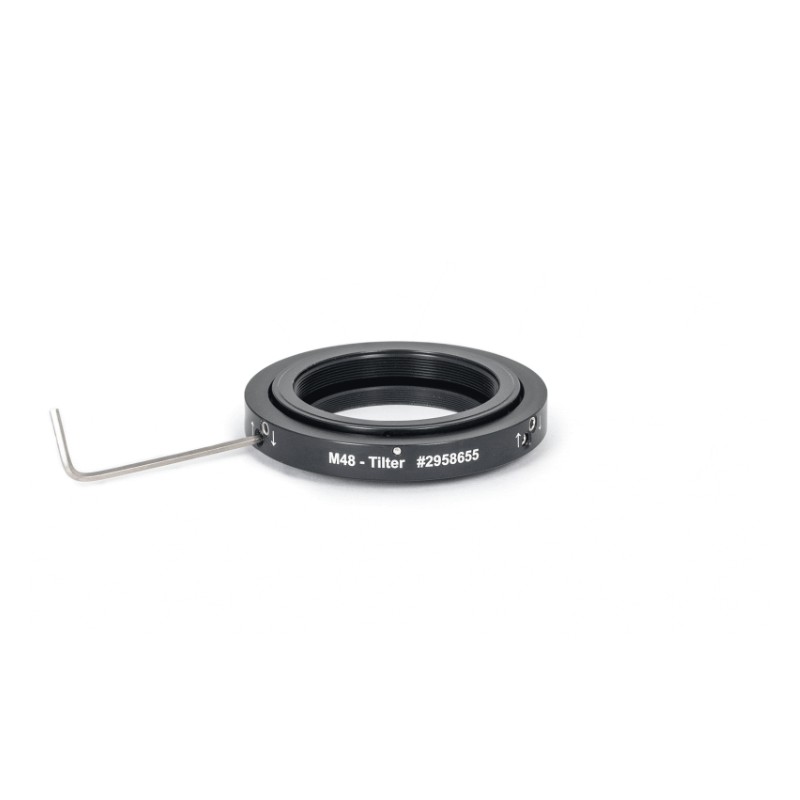

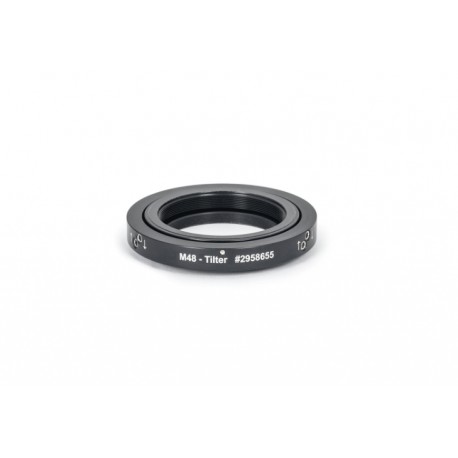

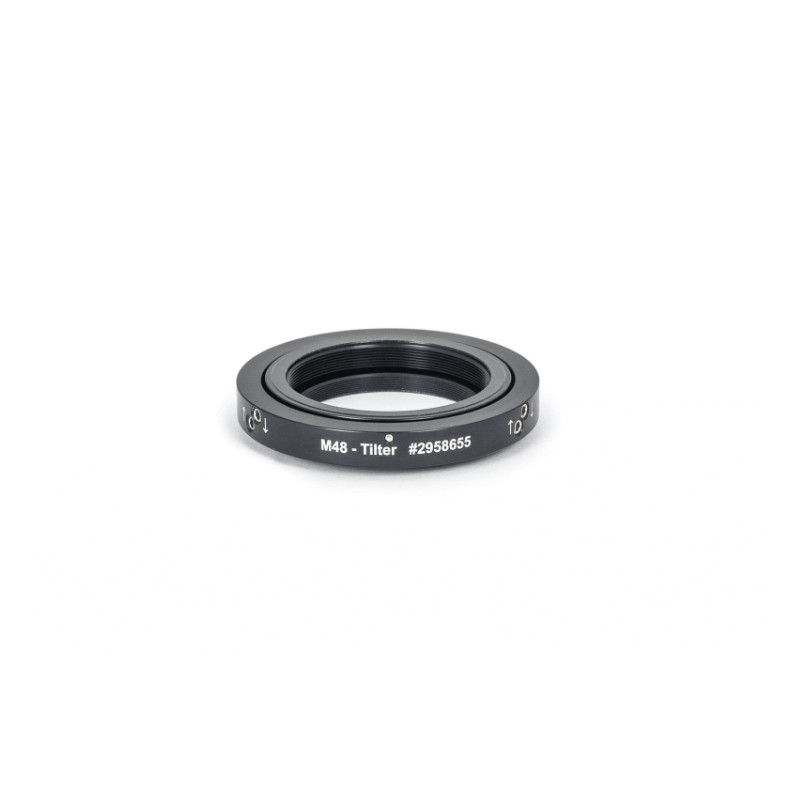

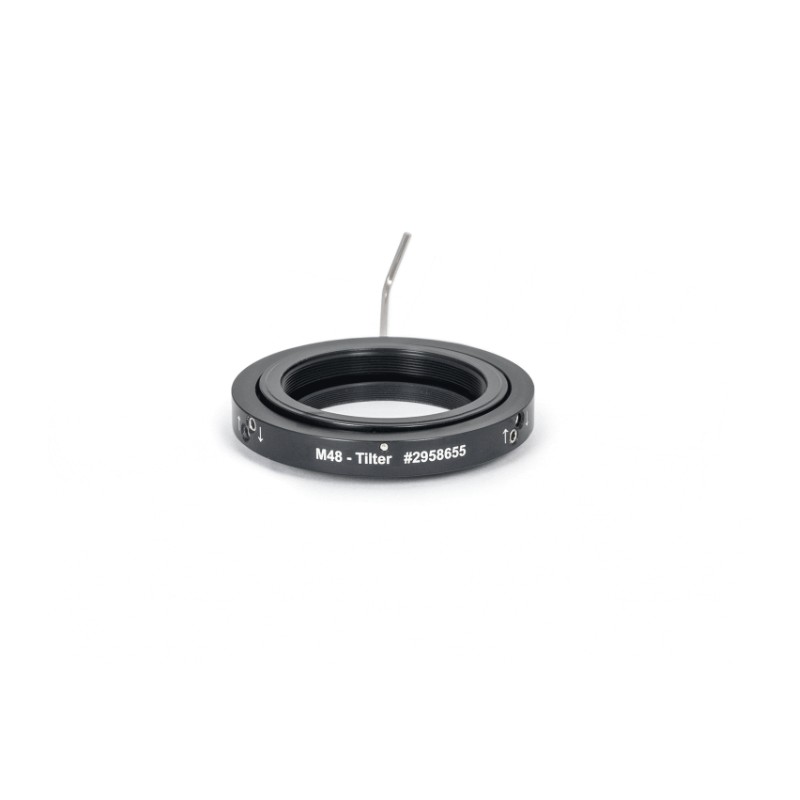

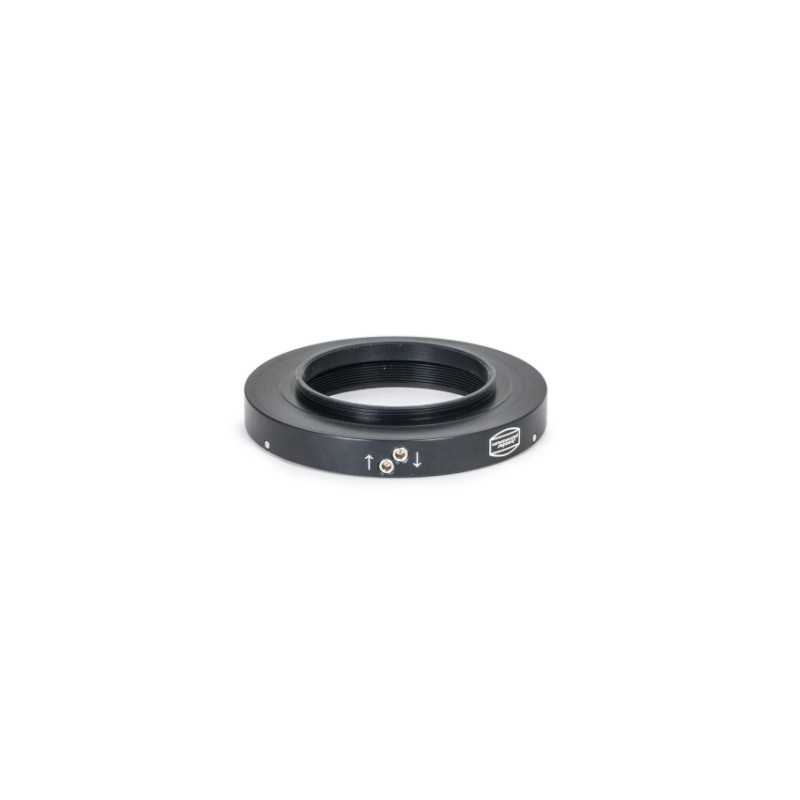

Baader M48 Tilter

Baader M48 Tilter

Description

The Baader M48 Tilter eliminates sensor tilt by offering up to 1° angular adjustment. Featuring M48 threads on both sides, it integrates seamlessly into any M48 imaging train while adding only 9.50 to 10.25 mm of back-focus. Ideal for perfectly aligned astro-cameras and filter wheels.

Specifications

• Adapter family: Baader M48 system
• Type: tilter, 0 to 1° range
• Optical length: 9.50 to 10.25 mm
• Telescope side thread: M48 female
• Camera side thread: M48 male
• Outer diameter: 72 mm
• Net weight: 0.06 kg
• Manufacturer: Baader Planetarium
• SKU: 2958655, EAN 4047825056405

Additional info

Fits any accessory that uses standard M48 threading.
