New DayStar SS60-ds 60 mm H-alpha Double Stack Solar Telescope View larger

DayStar SS60-ds 60 mm H-alpha Double Stack Solar Telescope

Refracteur DayStar SS60-ds

New product

DayStar SS60-ds 60 mm H-alpha Double Stack Solar Telescope

The DayStar SS60-ds is a complete 60 mm H-alpha solar telescope featuring an integrated Double Stack etalon and a fixed internal Quark module. It delivers high-contrast solar views of prominences, filaments, and chromospheric details, ideal for both visual and photographic use.

More details

Available immediately from the supplier. Please contact us for more information.

889.00 CHF tax incl.

More info

DayStar SS60-ds 60 mm H-alpha Double Stack Solar Telescope

Description

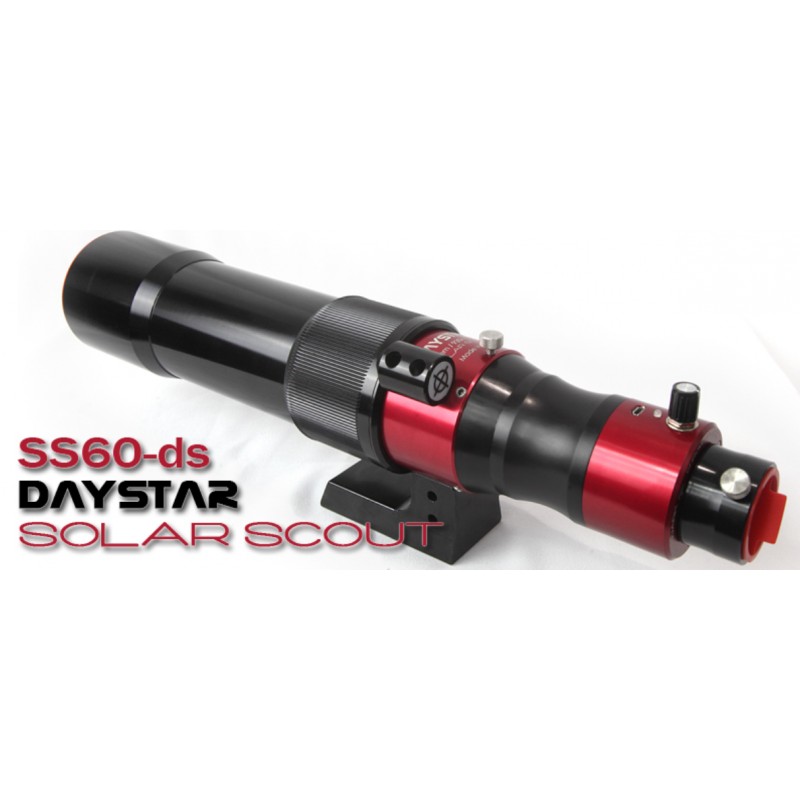

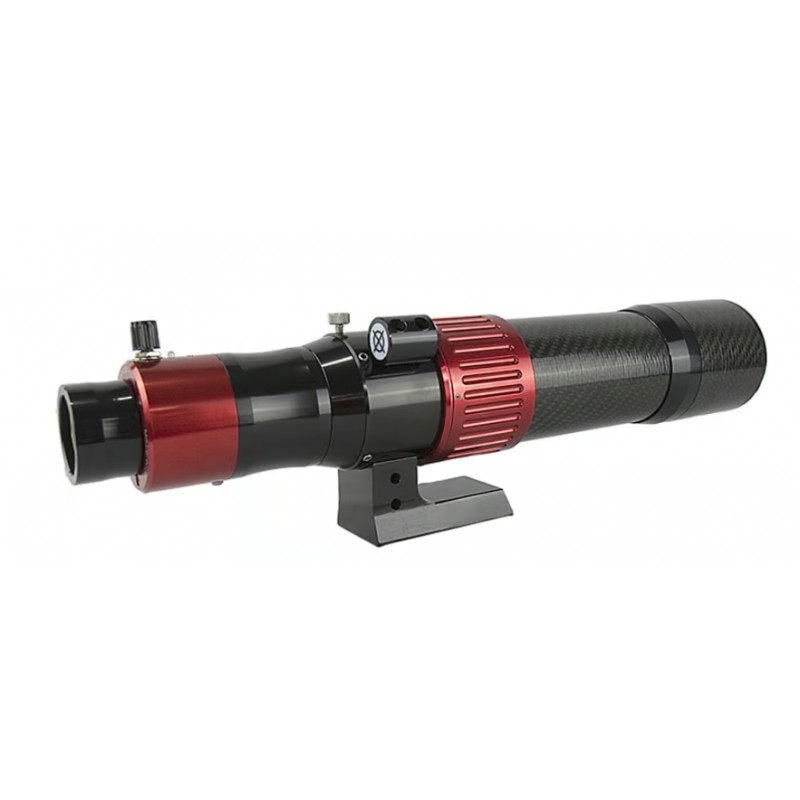

The DayStar SS60-ds is a fully integrated H-alpha solar telescope designed for convenience, precision, and optical excellence. It features a built-in Double Stack Fabry-Perot etalon and an internal Quark H-alpha module, providing exceptional surface contrast and rich chromospheric detail without the need for external stacking.

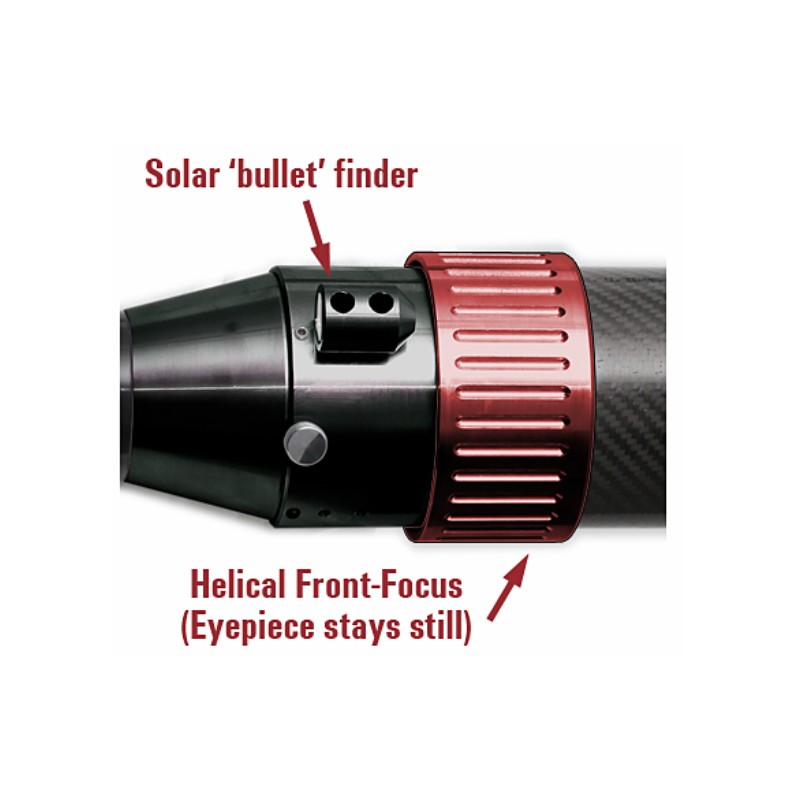

Its 60 mm achromatic doublet objective delivers a 930 mm effective focal length (f/15.5), ensuring detailed, high-contrast images of the Sun’s chromosphere and prominences. The front-position helical focuser provides fine and stable focusing without rotation or image shift, perfectly suited for visual or imaging applications.

The integrated Solar Bullet finder safely projects a bright solar spot onto a white screen for quick, secure alignment. The system maintains precise temperature control through a USB 5 V / 1.5 A power input, ensuring the H-alpha band remains tuned at 656.28 nm. LED indicators show the operational status (warming, ready, fault).

The SS60-ds includes a Vixen/photo dovetail mounting plate, wall power supply, and micro-USB cable. Compatibility with 2" eyepieces and camera adapters is possible with optional accessories.

Among all 40–60 mm H-alpha telescopes, the SS60-ds offers the best value, providing professional optical performance in a compact, portable format suitable for outreach, education, and personal observation.

Technical Specifications

  • Type: Integrated H-alpha solar telescope

  • Optical system: Double Stack (dual Fabry-Perot etalon)

  • Objective: 60 mm achromatic doublet

  • Effective focal length: 930 mm

  • Focal ratio: f/15.5

  • Focuser: Precision helical front focuser (non-rotating)

  • Eyepiece aperture: 16 mm

  • Internal etalon: Built-in Quark module (non-removable)

  • Spectral tuning: ±0.5 Å

  • Indicators: LED (power, warming, ready, fault)

  • Power: USB 5 V / 1.5 A

  • Power supply: 110–240 V AC adapter included

  • Finder: Solar Bullet projection finder

  • Mounting: Vixen/photo dovetail

  • Accessories: Compatible with 1.25" and 2" eyepieces and cameras (optional adapters)

  • Optional battery: 24 mAh portable pack

  • Warranty: 3 years

  • Manufacturer: DayStar Instruments, USA
