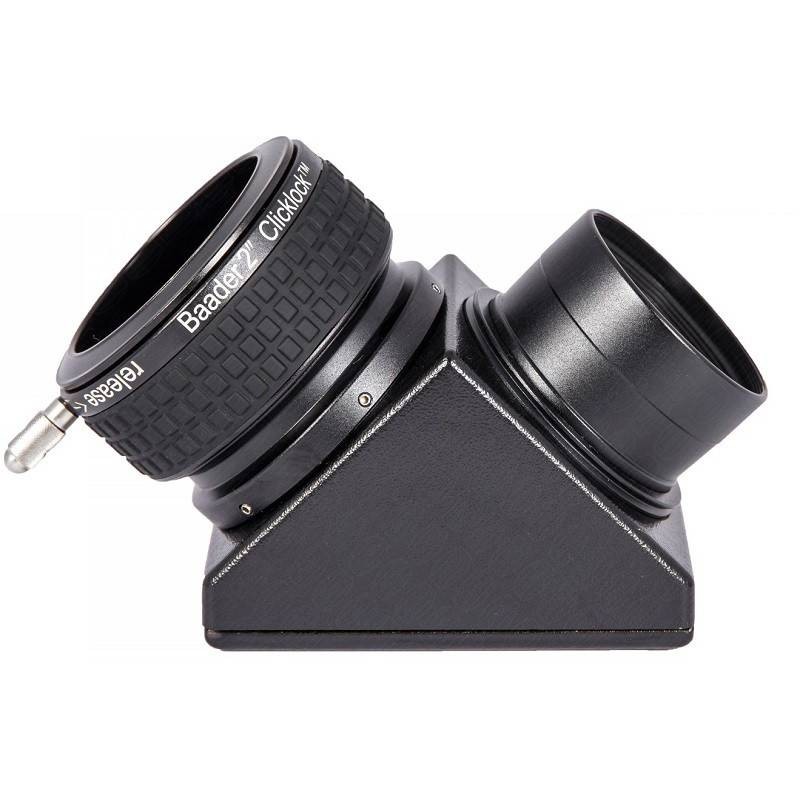

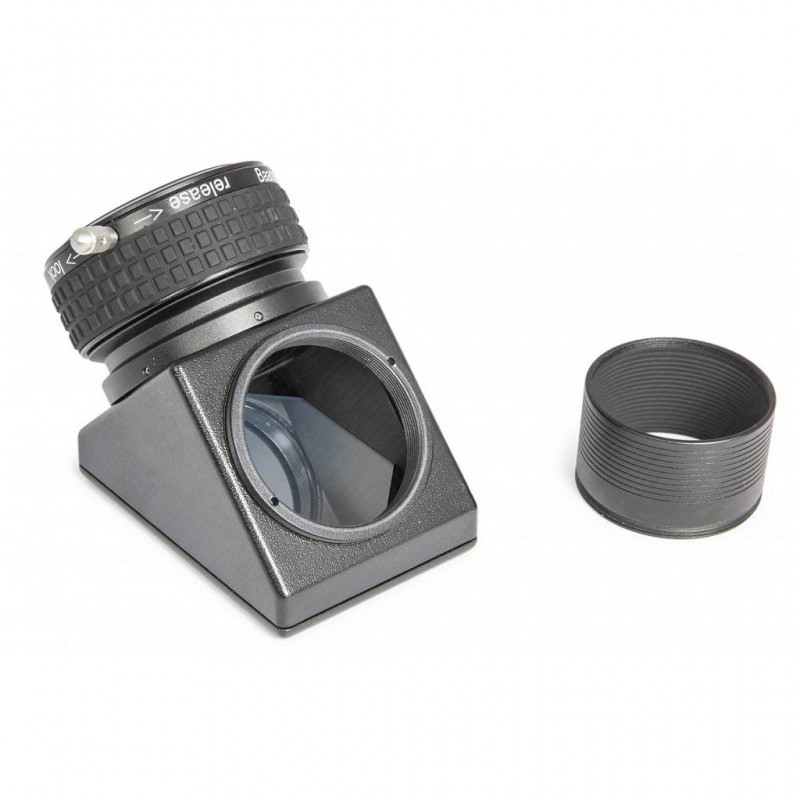

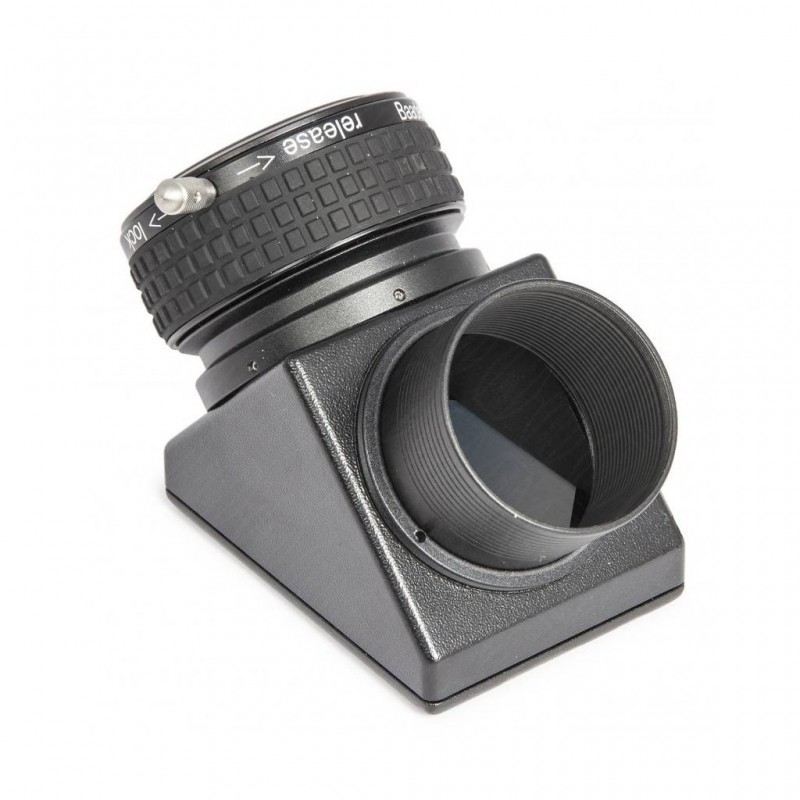

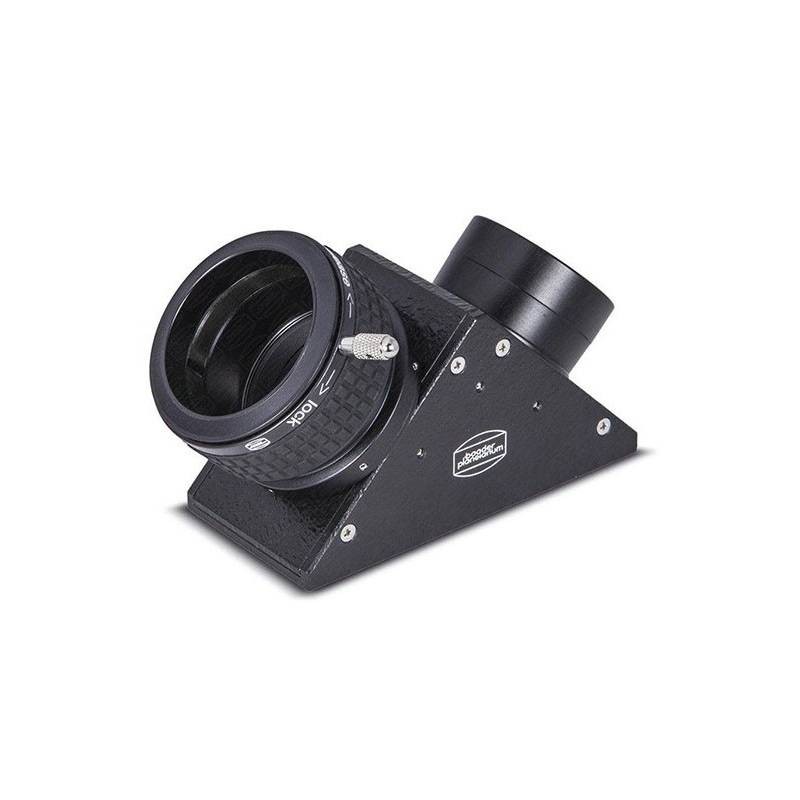

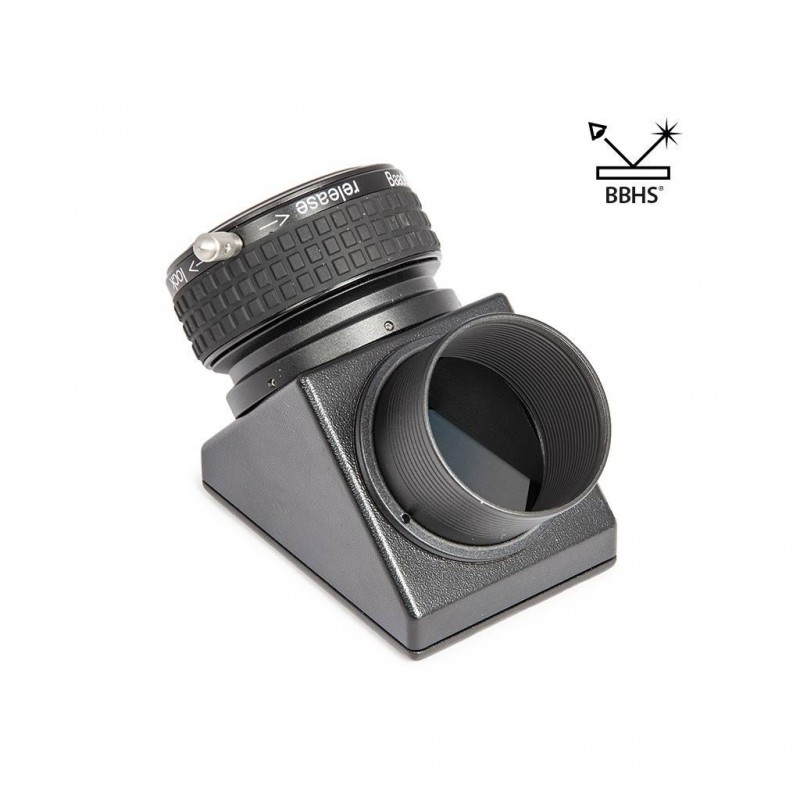

Baader 2" BBHS Mirror Diagonal with 2" ClickLock Clamp

Renvoi coudé Baader BBHS miroir

New product

Baader 2" BBHS Mirror Diagonal with 2" ClickLock Clamp

More details

According to availability at the supplier. Please contact us for more information.

439.00 CHF tax incl.

More info

Baader 2" BBHS Mirror Diagonal with 2" ClickLock Clamp

  • 2" BBHS star diagonal with 2" ClickLock terminal and black case. Provides greatest reflectance over most spectral range from 390 to 2000nm
  • Including Baader 2" Safety Kerf nosepiece with 2" filter thread (#2408156 , € 43) with additional grip and security from inadvertent slipping.
  • Much higher in brilliance than standard dielectric coatings
  • BBHS = Broadband Hardsilver coating with dielectric protective overcoating
  • T-2 BBHS-Sitall zenith mirrors on both sides with T-2 Photo thread
MANUFACTURER Baader Planetarium
SKU (#) 2456115
EAN CODE 4047825033543
NET WEIGHT (KG) 0.45
OPTICAL DESIGN Mirror Diagonal
INNER CONNECTION (LENS SIDED) Thread, M48, M55, 2" (50,8mm)
OUTER CONNECTION (LENS SIDED) Barrel, Dovetail ring, S58, 2" (50,8mm)
INNER CONNECTION (EYEPIECE/-CAMERA-SIDED) Thread, Clamp, M55, 2" (50,8mm)
REFLECTION SURFACE BBHS coated, Dielectrically protected
IMAGE ORIENTATION Erect image, Mirror inverted
OPTICAL LENGTH (MM) 112
CLAMPING SYSTEM ClickLock
DEFLECTION ANGLE 90°
INNER DIAMETER / CLEAR APERTURE (MM) 47.5
