- New

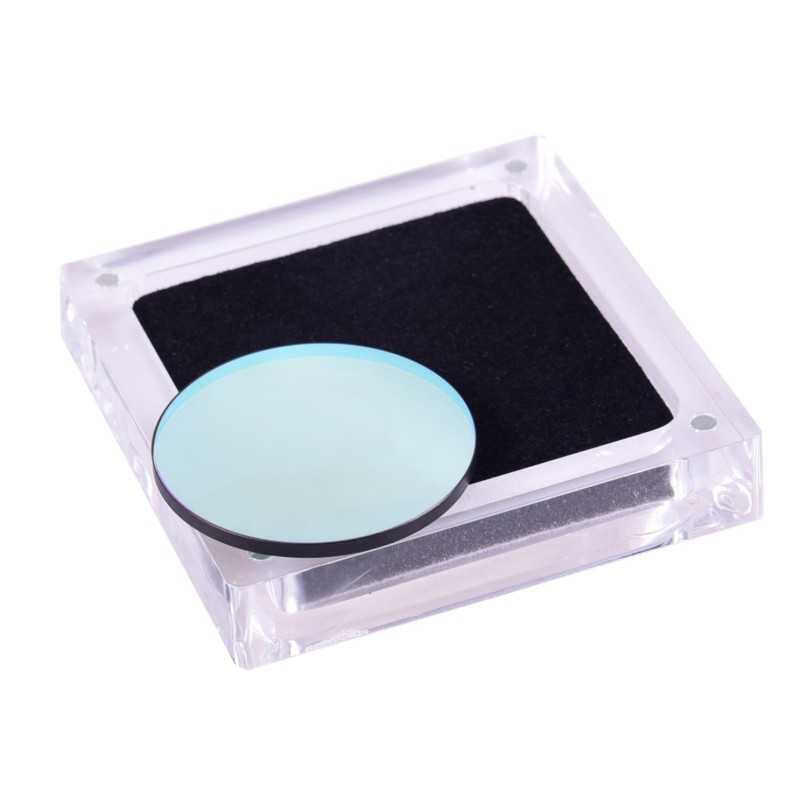

Antlia OIII 4.5 nm EDGE 50 mm Unmounted Filter
329.00
Tax included
Usually available from the supplier. Please contact us for more information.
Available payment methods
i
PayPal
Secure payment. Additional fees may apply.
PayPal
i
Bank transfer
Pay comfortably from home. After confirming your order, you will receive all the information required to make a bank transfer.
Bank transfer
i
Pay in store
Pay directly in our shop in Givisiez, in cash or by card. Your order can be collected after confirmation.
Pay in store
i
PimPay
A payment system with no fees. Simply top up your PimPay account before completing your purchase. No fees are charged to either the buyer or the merchant.
PimPay
i
HeyLight
Credit for up to 12 months or payment in 3 instalments. For payment in 3 instalments, the displayed price includes a 3.74% surcharge applied by Astromanie to cover the service fees associated with this payment method.
HeyLight
The Antlia OIII 4.5 nm EDGE 50 mm unmounted filter provides over 85% transmission at 500.7 nm. Its 4.5 nm narrow bandpass is designed for OIII deep-sky astrophotography, including with fast optical systems down to f/3.
Description
The Antlia OIII 4.5 nm EDGE 50 mm unmounted filter is a narrowband filter designed for astrophotography of deep-sky objects containing OIII emissions. Its 500.7 nm central wavelength and 4.5 nm full width at half maximum effectively isolate ionized oxygen emission to improve image contrast and signal-to-noise ratio.
Antlia specifies peak transmission greater than 85% at 500.7 nm and guarantees transmission greater than 85% within a 1 nm range of the center bandwidth. This allows the filter to maintain high transmission with both long focal ratio instruments and fast optical systems.
Antlia's blue-shift data indicates that 4.5 nm EDGE filters can be used with nearly all optical systems down to f/3 with minimal loss of emission signal.
The filter's steep spectral profile helps minimize halos around bright stars. Its construction uses a single, non-glued optical substrate to eliminate internal reflections.
This 50 mm version is supplied without a filter cell. Like all Antlia unmounted filters, its edge is blackened to reduce internal reflections caused by stray light.
Out-of-band blocking is greater than OD5 from 300 to 1000 nm. Combined with the narrow 4.5 nm bandpass, this blocking performance improves image contrast and reduces interference from unwanted wavelengths.
The filter can be used at both light-polluted and dark-sky locations. Its narrow bandpass also extends useful imaging time when the Moon is present.
It is particularly suitable for imaging OIII emission nebulae, planetary nebulae, Wolf-Rayet nebulae and supernova remnants. The filter is only effective for deep-sky objects containing OIII emissions.
Antlia also states that the filter's optical reliability helps reduce the amount of post-processing required for astronomical images.
This filter is not recommended for solar imaging or night visual observation. It must never be used to look directly at the Sun.
Technical specifications
• Manufacturer: Antlia
• Product: OIII 4.5 nm EDGE 50 mm Unmounted Filter
• Type: OIII narrowband filter
• Format: 50 mm unmounted
• Filter cell: None
• Diameter: 50 mm
• Central wavelength CWL: 500.7 nm
• Full width at half maximum FWHM: 4.5 nm
• Peak transmission: greater than 85%
• Guaranteed transmission: greater than 85% within a 1 nm range of the center bandwidth
• Out-of-band blocking: greater than OD5 from 300 to 1000 nm
• Out-of-band transmission: 0.001%
• Optical substrate: Single, non-glued substrate
• Filter thickness: 3 mm ± 0.05 mm
• Filter edge: Blackened
• Surface quality: 60/40 according to MIL-O-13830
• Transmitted wavefront: Lambda/4 or better
• Parallelism: Less than 30 arcsec
• Fast optical system compatibility: Down to f/3 with minimal emission signal loss
• Application: OIII deep-sky astrophotography
• Objects: OIII emission nebulae, planetary nebulae, Wolf-Rayet nebulae and supernova remnants
• Suitable for light-polluted and dark-sky locations
• Extends imaging time when the Moon is present
• Not recommended for solar imaging
• Not recommended for night visual observation
• Manufacturer warranty: 3 years against delamination
Antlia OIII 4.5 nm EDGE 50 mm
The Antlia OIII 4.5 nm EDGE 50 mm unmounted filter provides over 85% transmission at 500.7 nm. Its 4.5 nm narrow bandpass is designed for OIII deep-sky astrophotography, including with fast optical systems down to f/3.
