Baader Heavy-Duty 8" Double Mounting Plate – 750 mm for 20"–24" Optics (150 kg)
Heavy-duty 8" dovetail bar, 750 mm long, designed for parallel mounting of two optical tubes up to 150 kg on PlaneWave or 10Micron mounts.
Baader Heavy-Duty 8" Double Mounting Plate – 750 mm for 20"–24" Optics (150 kg)
Description:

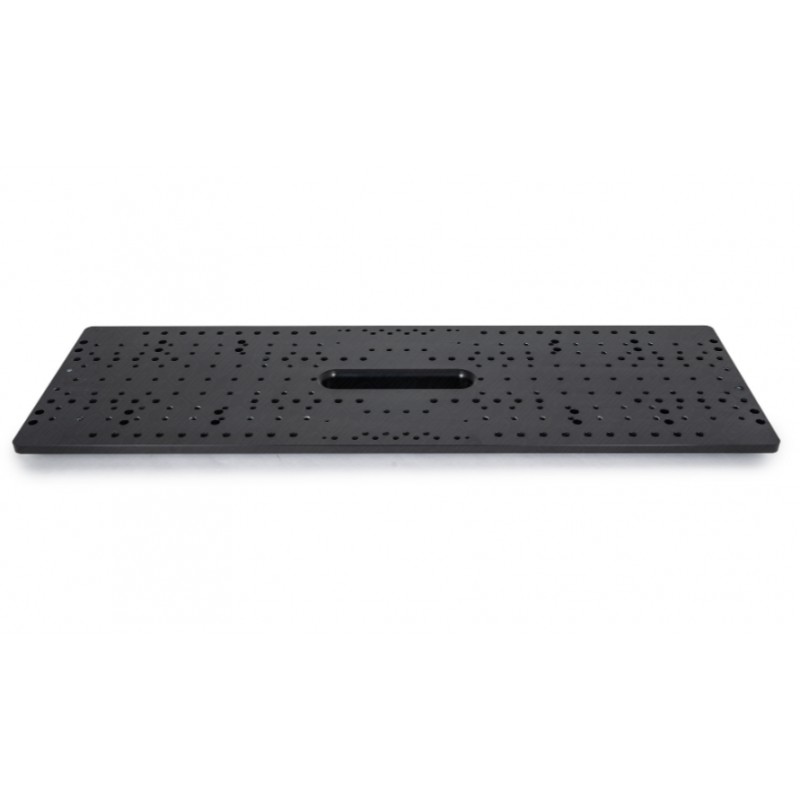

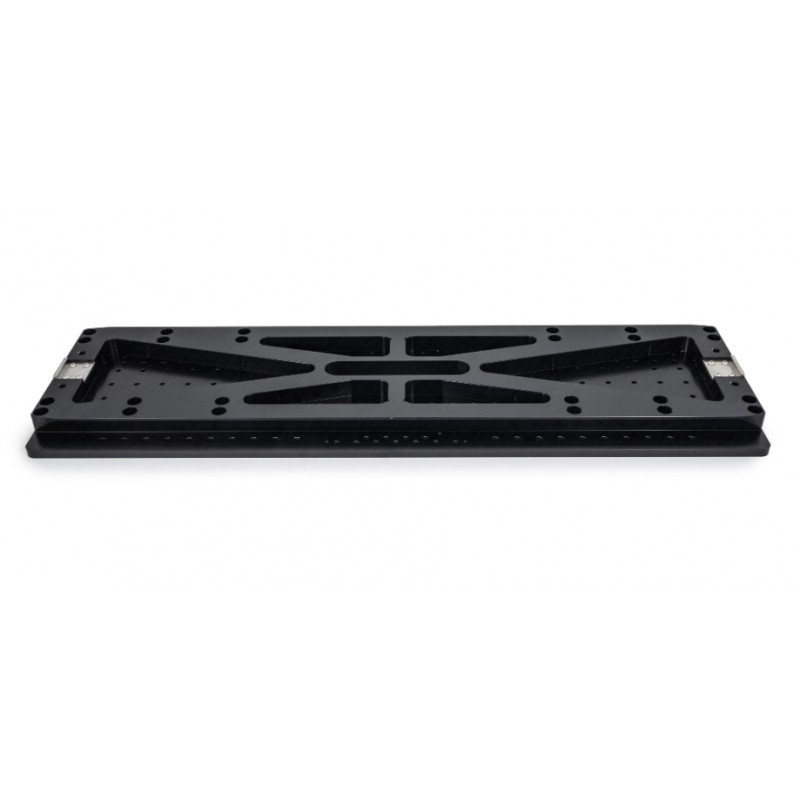

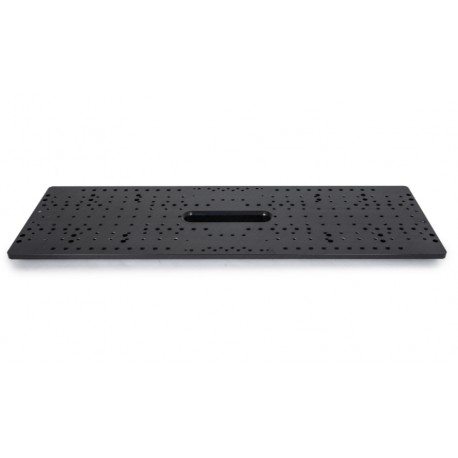

The Baader 8" heavy-duty double mounting plate is built for professional parallel telescope configurations, supporting a total payload of up to 150 kg. With a length of 750 mm and a width of 203 mm (8"), it is the ideal solution for mounting two large OTAs side by side—such as a PlaneWave DeltaRho 500 combined with another refractor or astrograph.
It is compatible with heavy-duty mounts like the 10Micron GM 3000 / GM 4000 and PlaneWave L-500 / L-600 direct drive mounts. The extended length of the plate enables precise balancing and leaves ample room for accessory installation.

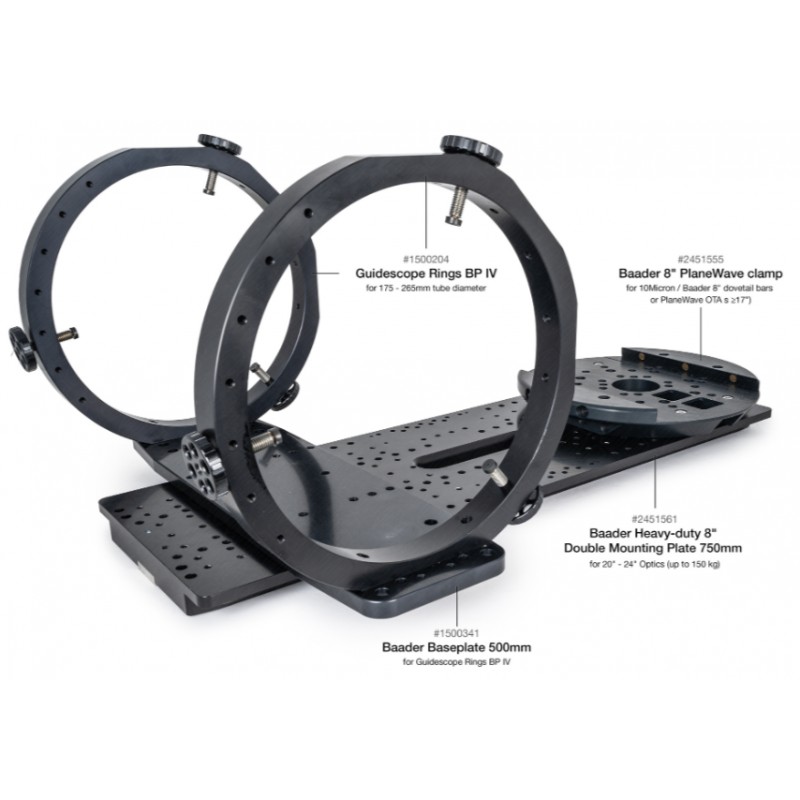

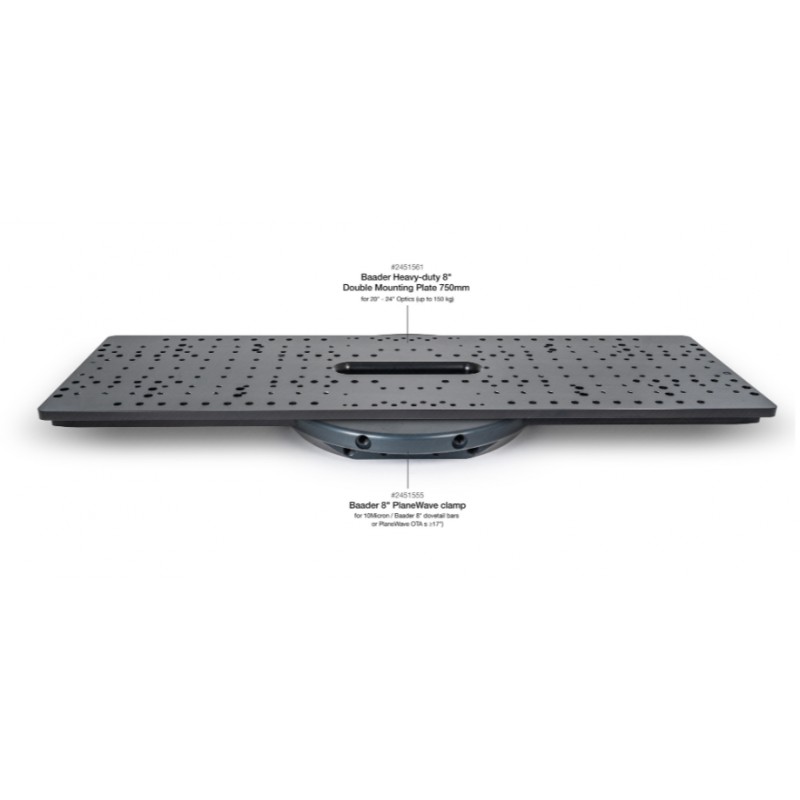

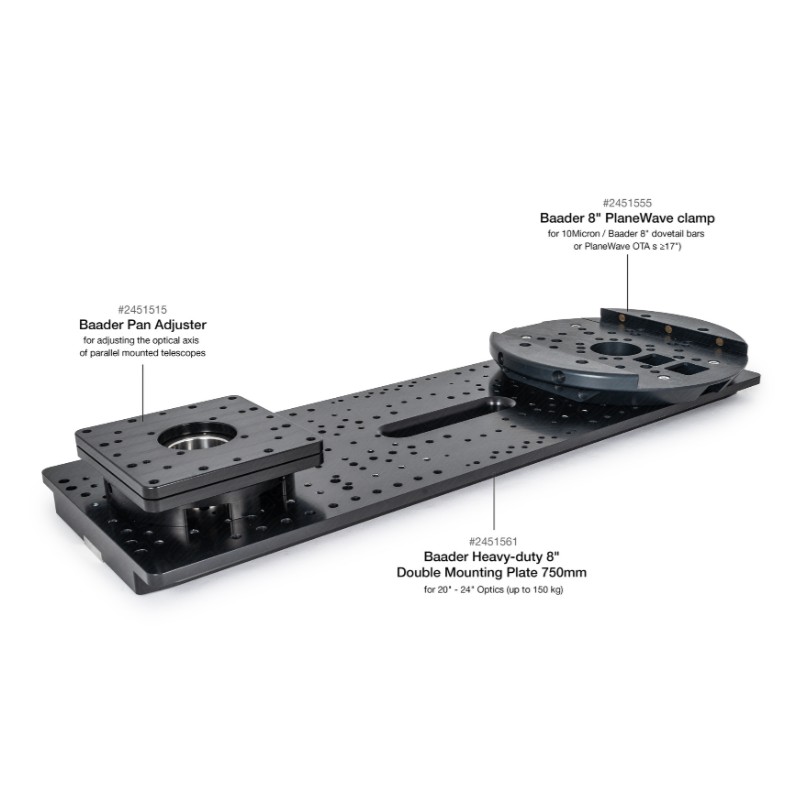

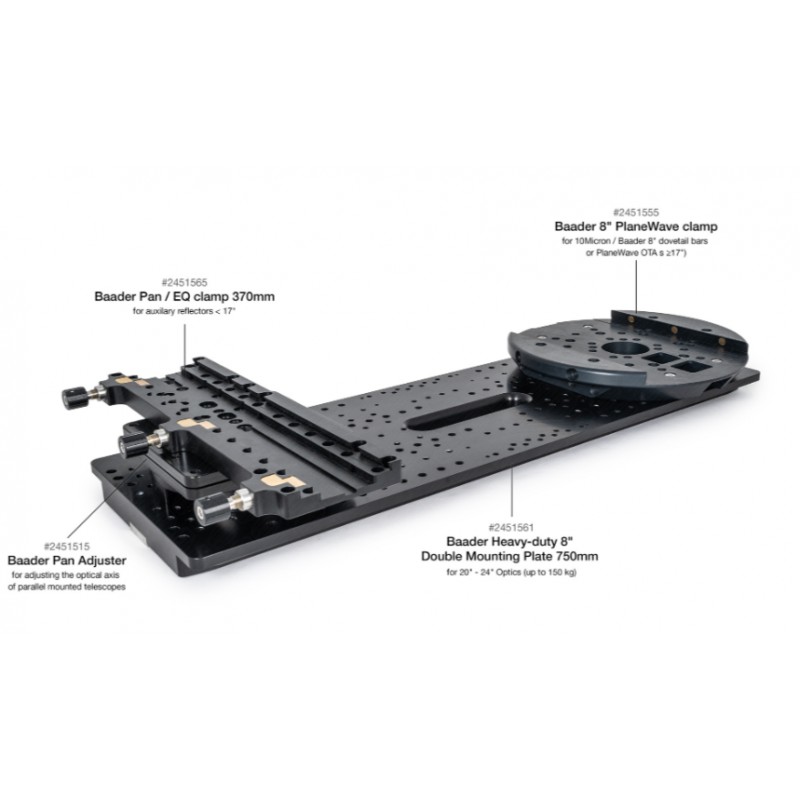

The plate is pre-drilled for attaching a variety of clamps and accessories, including the Baader PAN Adjuster, Baader PAN EQ clamps (190 mm, 230 mm, 370 mm), and the Baader 8" PlaneWave Clamp (#2451555). When used with this clamp, the entire plate can slide laterally for fine-tuning balance on the mount.
Baader provides a comprehensive guide for configuring dual telescope setups, featuring diagrams, practical tips, and real-world application examples.
Technical specifications:
Product name: Baader Heavy-Duty 8" Double Mounting Plate – 750 mm
SKU: 2451561
Type: Dovetail bar
Length: 750 mm
Width: 249 mm
Thickness: 30 mm
Design: 8" (203 mm) standard
Net weight: 8.69 kg
Dual mounting: Yes
Top plate mounting options: Pre-drilled for PAN EQ clamps (190 mm, 230 mm, 370 mm), PlaneWave 8" clamp
Screws included: Yes
EAN: 4047825059772
Manufacturer: Baader Planetarium
