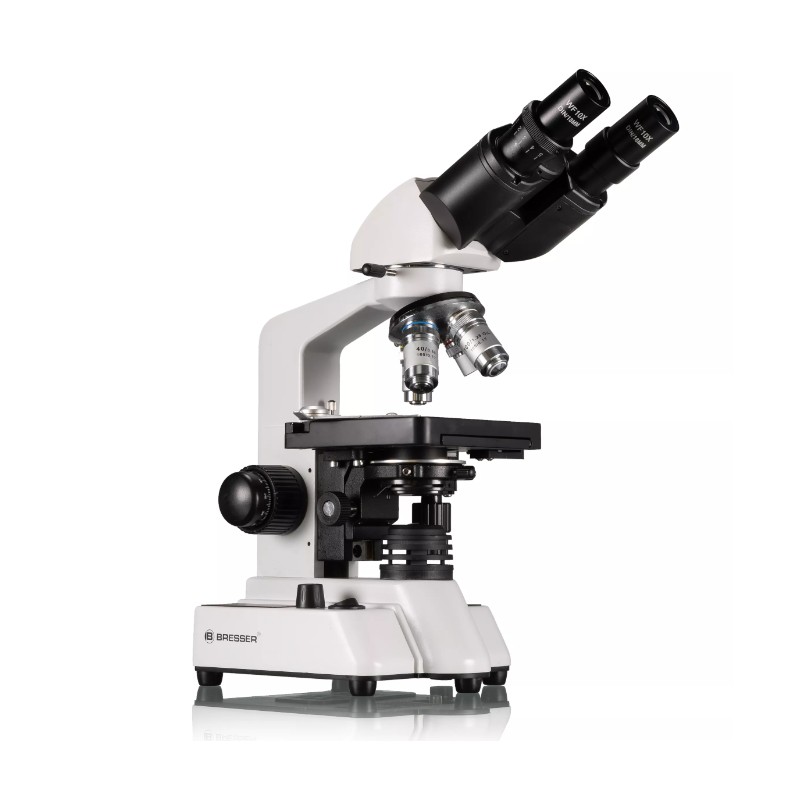

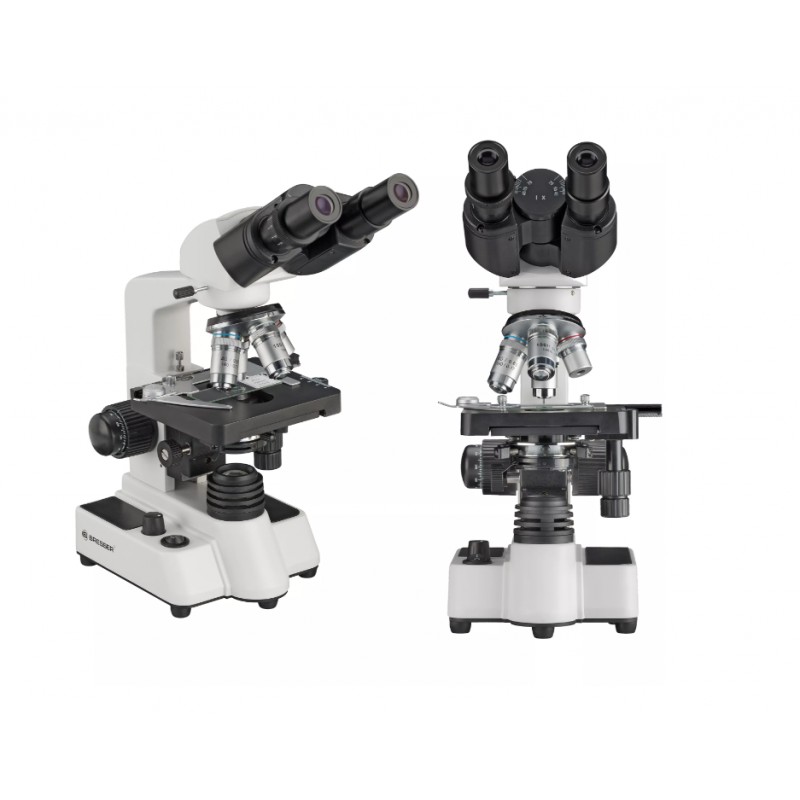

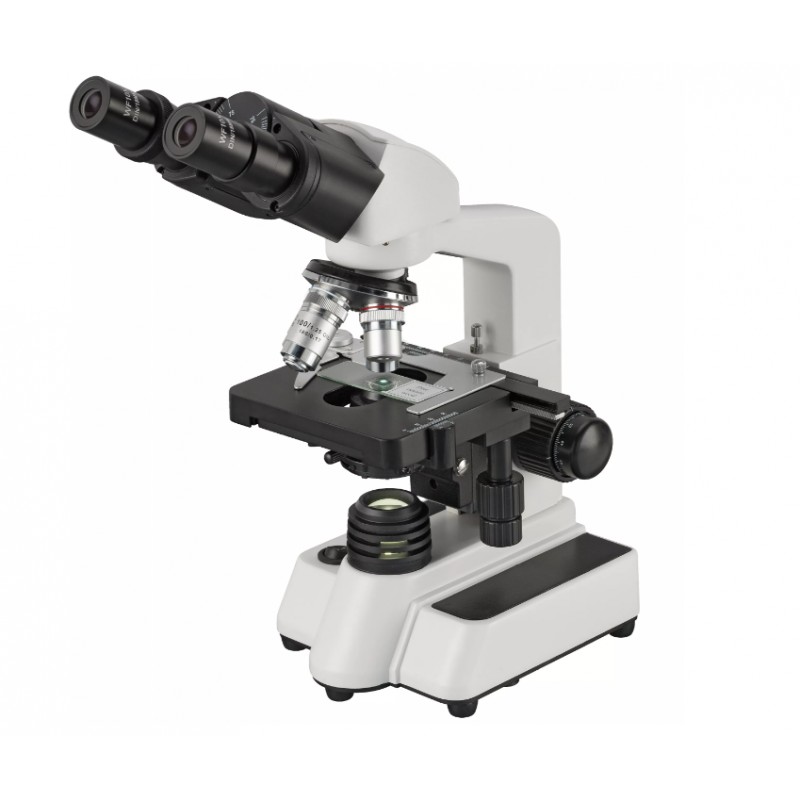

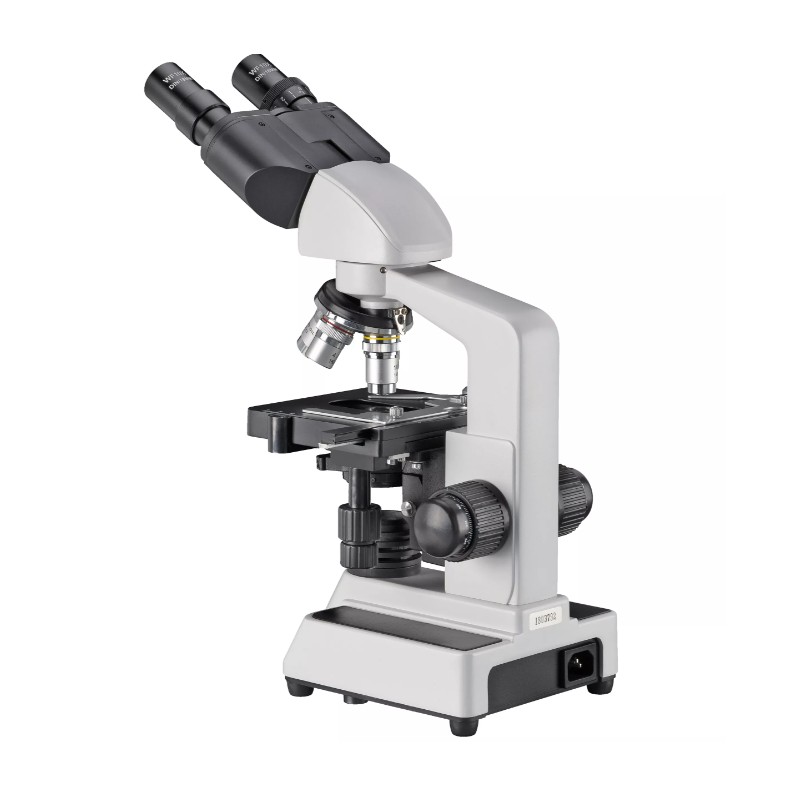

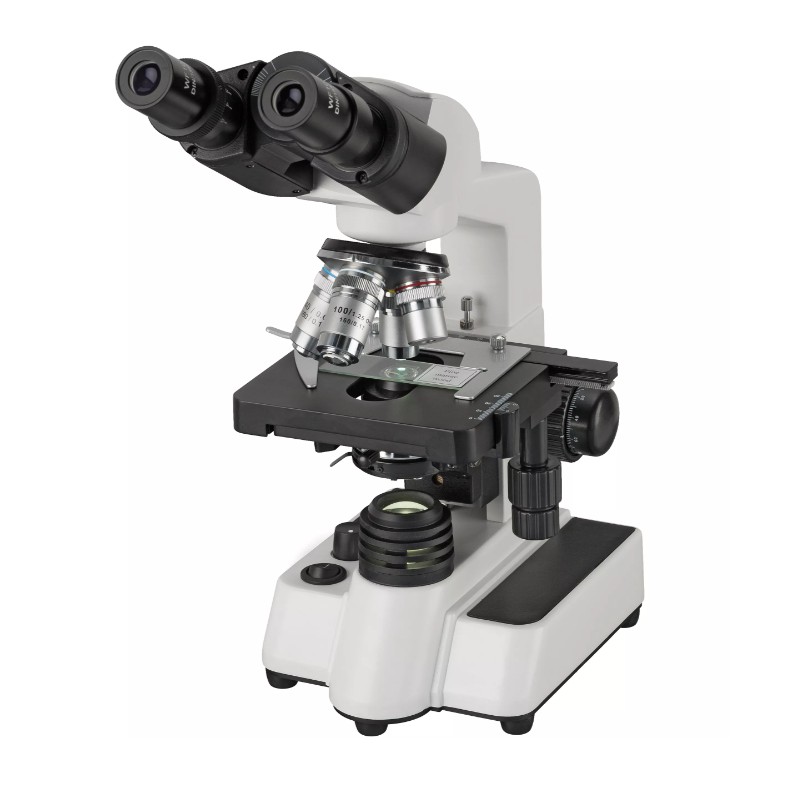

High-performance optics with a small price tag: the popular BRESSER Research Bino microscope includes a wide range of advanced microscopy accessories in an economical set.
Microscope
Featuring 4 DIN objectives and an (exchangeable) pair of eyepieces, the microscope has an extensive 40x-1000x magnification range, making it suitable for a wide range of demanding applications. The microscope also comes with immersion oil to enable oil immersion microscopy with the 100x objective. To prevent damage, the 40x and 100x objectives feature a spring-loaded mechanism.

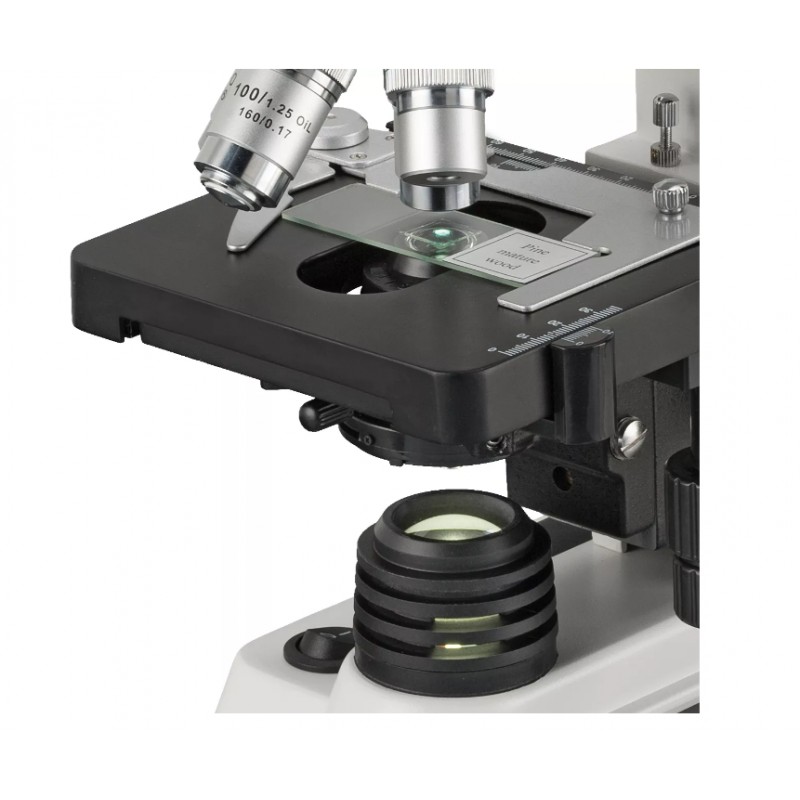

In addition, the Researcher Bino also has a solid metal body, which provides the necessary stability whilst ensuring a compact design. There is also a dimmer for adjusting the bright LED light to the desired brightness. The Abbe condenser is height adjustable and can be centred. It is also equipped with an iris diaphragm. Thanks to the coaxial XY stage, the object can be positioned with absolute precision. Turn the wheel and achieve the perfect focus: The coarse and fine adjustment knob allows you to obtain a razor sharp image of the slide. And for optimal viewing comfort, the binocular attachment can be rotated by 360°. It can also be adjusted quickly in order to set the optimal interpupillary distance and dioptre compensation.
Microscope camera
The microscope also comes with a camera, which allows you to display or save images and videos from your Researcher Bino microscope on your PC in Full HD resolution. The BRESSER MikrOkular Full HD is an eyepiece camera which can be used in place of the microscope eyepiece. By using the camera, you can easily document observations from your Researcher Bino microscope or share them with others – ideal for amateur enthusiasts, schools, students and the workplace!
Permanent specimens and slides with cover slips
The microscope set comes with 25 permanent specimens to get you started with your first observations. These include the following objects:
The microscope set also comes with 50 slides and 100 cover slips (18x18 mm) for examining your own specimens.
Some examples of possible specimens:
MICROSCOPE FEATURES
MICROSCOPE CAMERA FEATURES

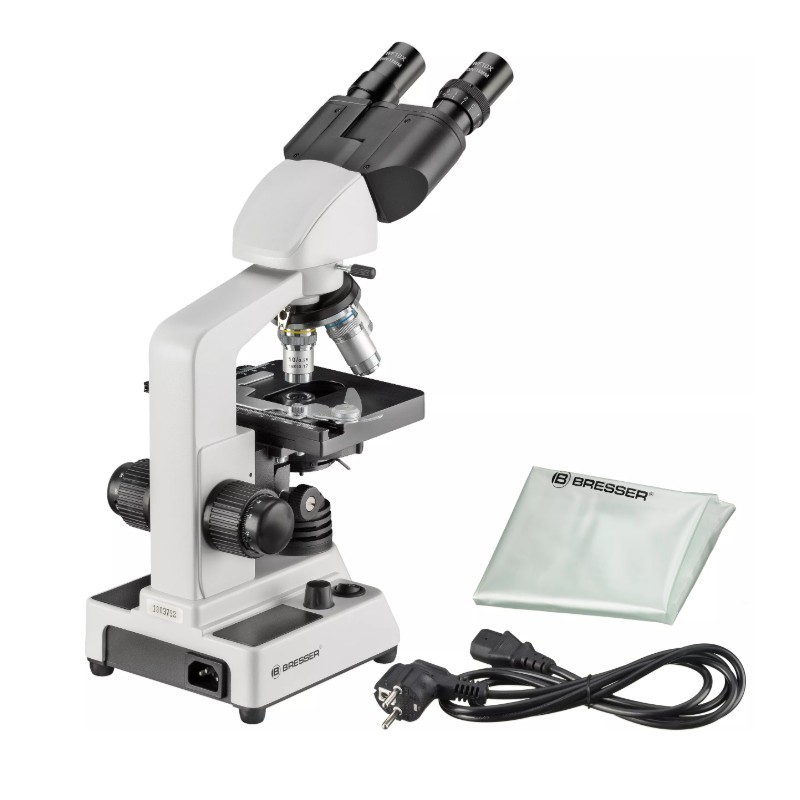

DELIVERY CONTENT
Field of application | |
---|---|
Field of application |
|
Focus group | |
Focus Group |
|
OPTICAL SPECIFICATIONS | |
Optical design | Biological |
Magnification from | 40 |
Magnification up to | 1000 |
ELECTRONICS, HARDWARE & SOFTWARE | |
Data transmission | USB 2.0 |
Lighting5 | Transmitted light |
Dimmer | Dimmable lighting |
Resolution | 1920 x 1080 |
Aspect ratio | 16:9 |
Sensor type | CMOS Color |
Pixel size (µm) | 3 x 3 µm |
Active area | 5.86 x 3,28 mm |
Operating system |
|
System requirements | USB 2.0 Port |
GENERAL TECHNICAL DATA | |
Body material | Aluminium/plastic |
Eyepiece Barrel Diameter | 23.2 mm |
View | Binocular |
XY cross stage | High End XY Stage with single hand operation |
Product series | Researcher |
Extended warranty | 5 years |
DIMENSIONS & WEIGHTS | |
Total length | 280 mm |
Total width | 175 mm |
Total height | 360 mm |
Net Weight total (incl. accessories) | 3.8 kg |
