Antlia LRGBR+ Dark Series Filters – 2’’ Mounted

Antlia LRGBR+ Dark Series Filters – 2’’ Mounted

Description

The Antlia LRGBR+ Dark Series 2’’ filters are designed for full-spectrum astrophotography, covering wavelengths from 390nm to 1000nm. Sensitive to both UV and IR, they maximize signal detection and contrast for deep-sky imaging.
Manufactured from quartz glass with an ultra-low thermal expansion coefficient, they ensure exceptional mechanical strength, optical stability, and long-term durability under demanding environmental conditions.
The set includes an additional R+ filter (700–1000nm) to capture near-infrared signals, taking advantage of high quantum efficiency cameras. During post-processing, users can combine the R and R+ channels to create an enhanced red channel before standard LRGB processing.
The LRGBR+ Dark filters pair perfectly with Antlia SHO 2.8nm and 2.5nm Ultra Narrowband filters, sharing the same quartz substrate and refractive index for optimal parfocality.

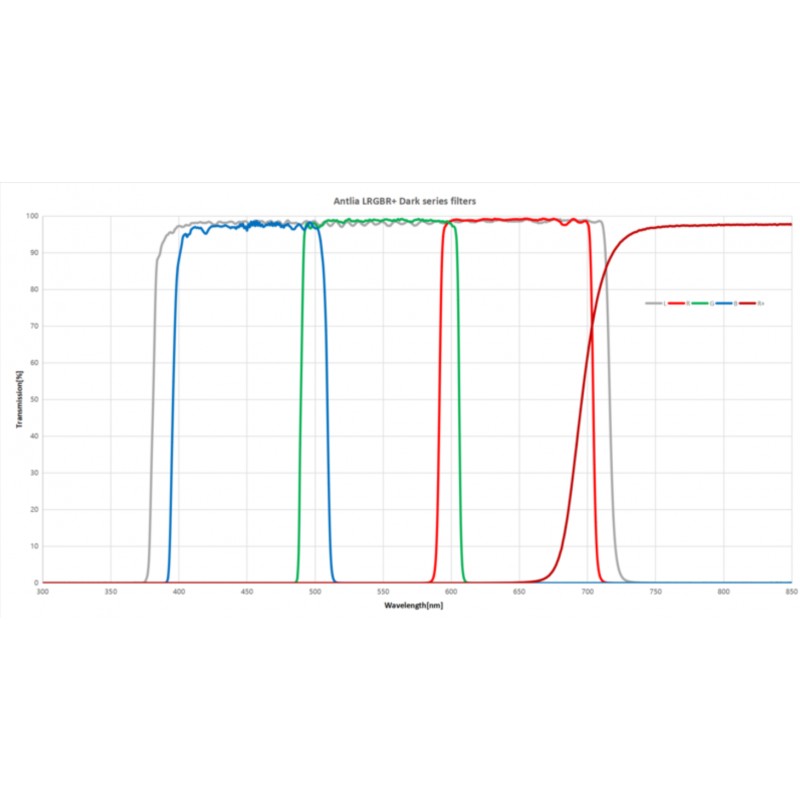

With transmission levels ≥95% for the B filter and ≥97% for L, R, and G, the OD4.5 (0.005%) out-of-band blocking prevents unwanted light and reduces halos around bright stars.

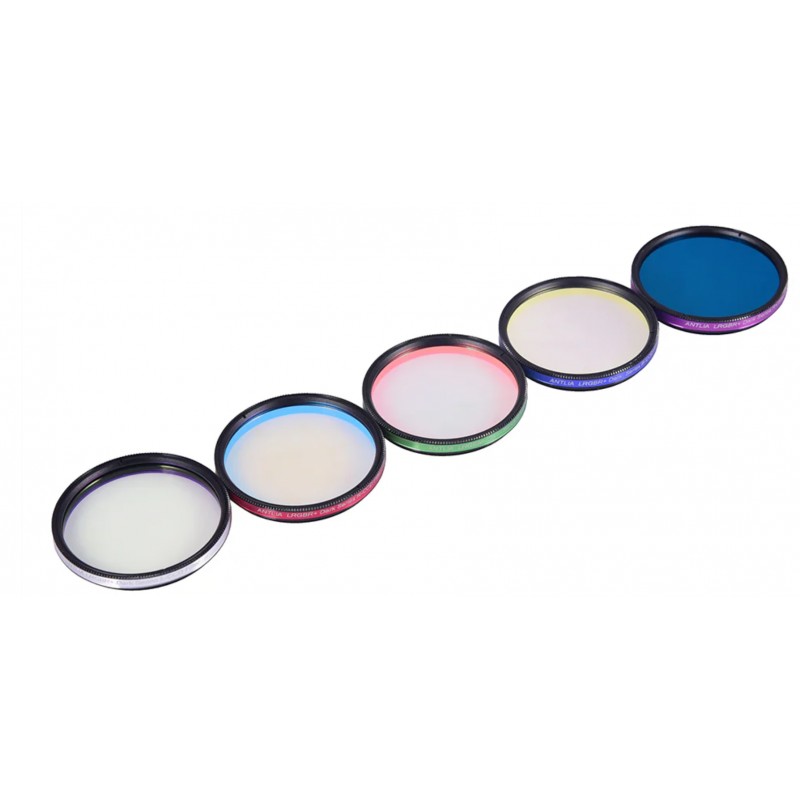

Each filter is finely double-polished, scratch-resistant, edge-coated, and mounted in an ultra-thin black anodized cell with permanent laser engraving to minimize vignetting and maximize the clear aperture.
Not suitable for solar or direct visual observation. Backed by a 3-year warranty against delamination.

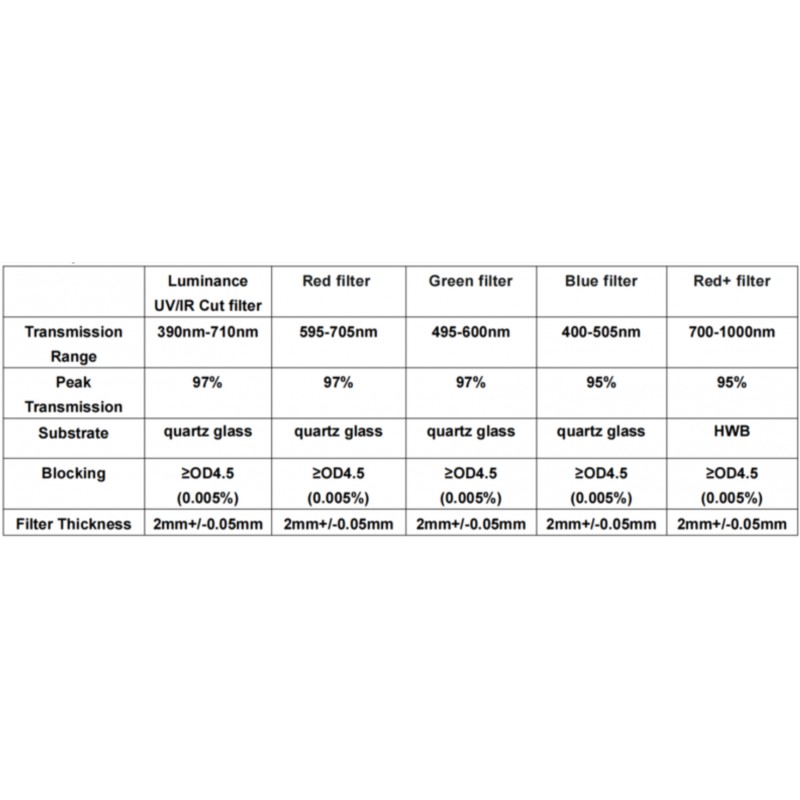

Technical Specifications

• Series: Antlia LRGBR+ Dark Series

• Type: L, R, G, B, and R+ filter set (2’’ mounted)

• Material: Quartz glass

• Spectral range: 390 nm – 1000 nm

• Transmission:

  • B filter ≥95%

  • L, R, G filters ≥97%

• Additional filter: R+ (700–1000 nm) for extended IR response

• Out-of-band blocking: OD4.5 (0.005%)

• Thickness: Standard (identical to Antlia SHO series)

• Polishing: Double-sided for parfocal precision

• Finish: Black anodized, laser-engraved

• Cell: 2’’ (M48×0.75), ultra-thin design

• Durability: Scratch-resistant, thermally stable, easy to clean

• Compatibility: Parfocal with Antlia SHO 2.8nm and 2.5nm Ultra filters

• Warranty: 3 years against delamination

• Not recommended for: Solar imaging or night-time visual observation

• Warning: Do not look at the Sun through this filter (serious eye injury risk)
