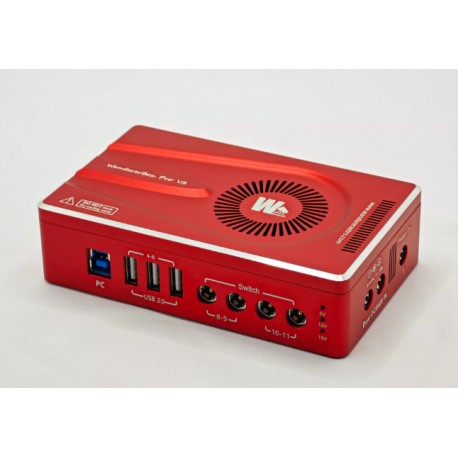

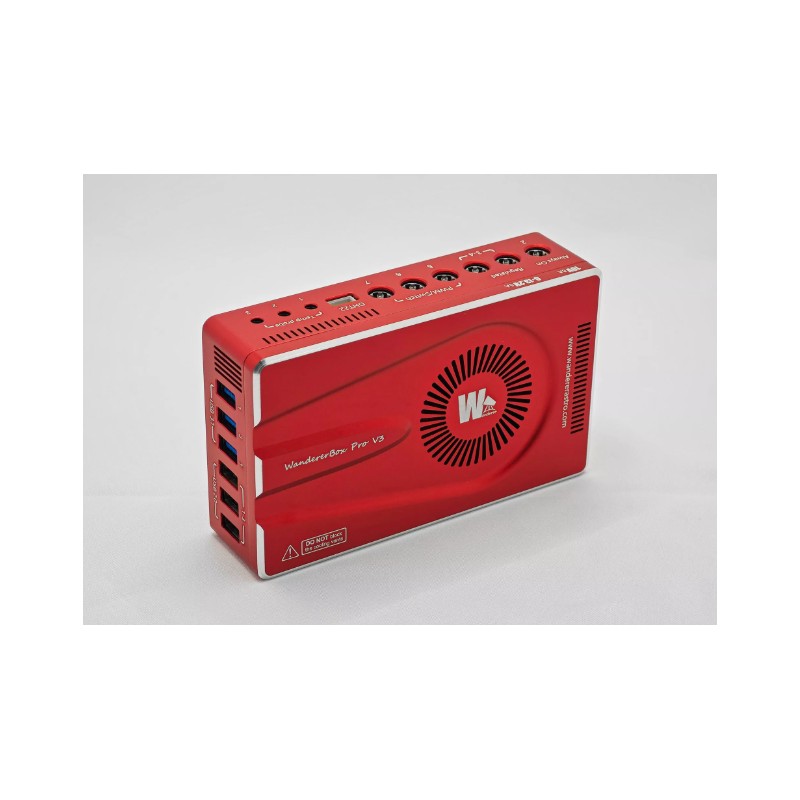

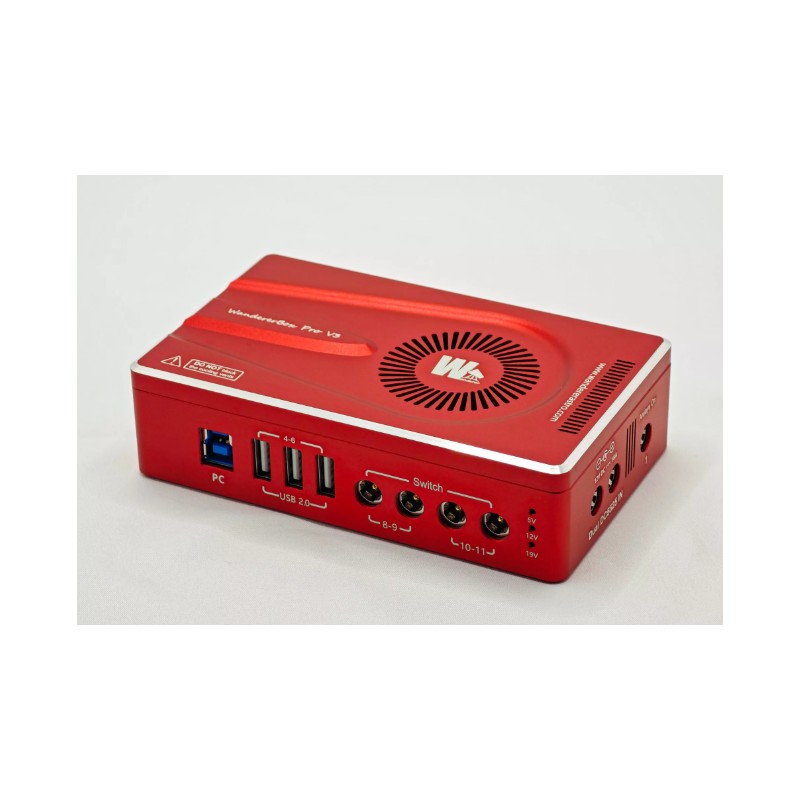

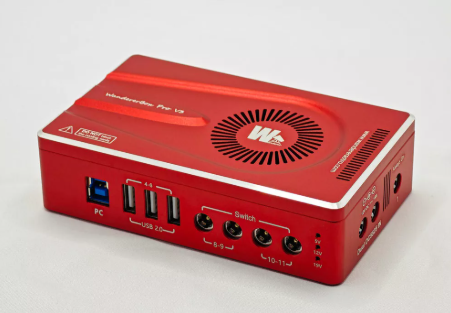

WandererAstro WandererBox Pro V3

Total of 10 Power Output Ports:

• 1 × 19V 6A output port for mini PC

• 2 × 5–13.2V 5A switchable regulated outputs

• 3 × dew heater (switch) output ports

• 4 × 12V switchable DC output ports

• 1 × normally open 12V output

19V 6A Output: DC5525 connector, tested with Intel NUC7 and Intel NUC8, but compatibility with all mini PC brands is not guaranteed.

5–13.2V Switchable Regulated Outputs: DC5521 connectors, adjustable voltage. The two parallel ports share a maximum total output current of 5A.

Dew Heater (Switch) Outputs: DC5521 connectors, three in total, each can be controlled independently. They can adjust the power of the dew heaters or be used as regular switchable outputs.

Ordinary 12V Switchable Outputs: DC5521 connectors, four in total, arranged in two groups. Each group shares a maximum total current of 8A and can be turned on or off individually.

Normally Open 12V Output: DC5525 connector, internally connected directly to the input port, maximum current 10A.

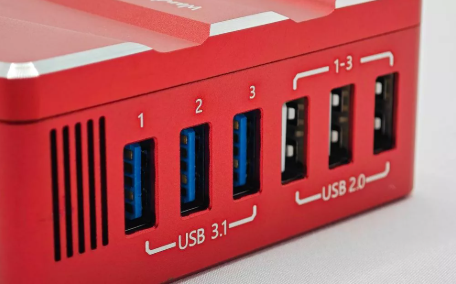

3 × USB 3.1 + 6 × USB 2.0

Maximum continuous current: 6A

All USB ports are switchable.

Three USB 3.1 outputs can be used to connect cameras for high-speed data transfer. Each port can be switched on or off individually.

Six USB 2.0 outputs can be used to connect other devices such as equatorial mounts, WandererCovers, and more. They are divided into two groups of three ports, and each group can be switched on or off.

All USB output ports share a 5V / 6A power supply capacity, sufficient to power a USB dew heater.

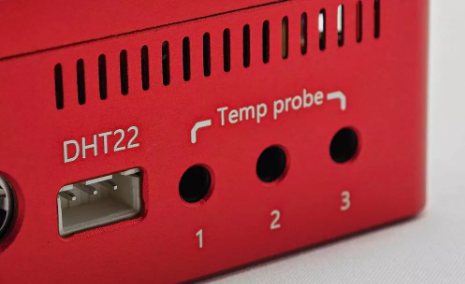

1 × DHT22 temperature and humidity sensor
3 × temperature probes

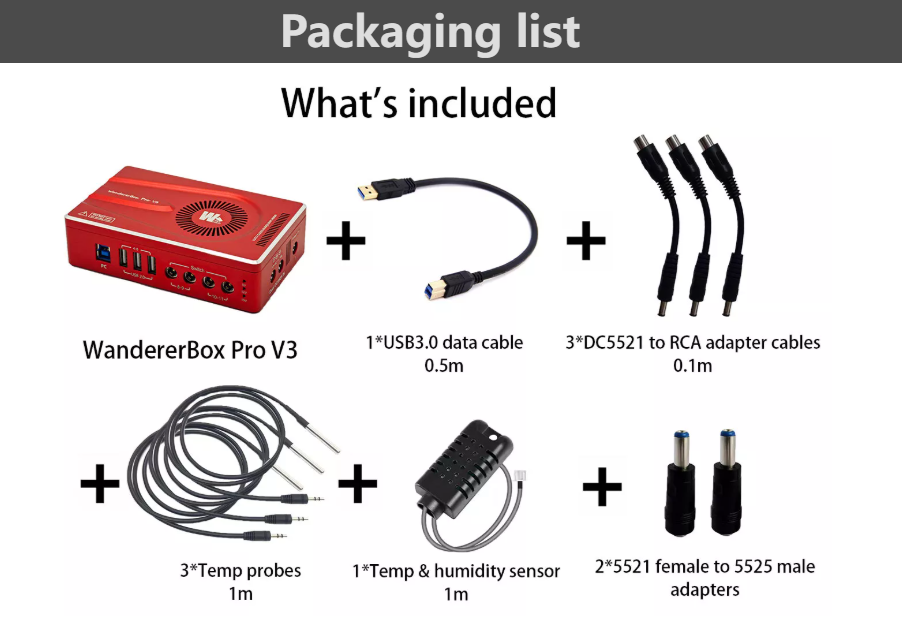

(Standard accessories, no additional purchase required)

Automatic and intelligent dew heater control

1. Manual control: manually adjust the PWM port duty cycle (0–255) to control the power of the dew heater.

2. Constant temperature control: WandererBox maintains the dew heater at a constant temperature set by the user.

3. Dew point temperature difference mode: WandererBox regulates the dew heater temperature to stay at a fixed value above the dew point. This mode saves power, effectively prevents condensation, and avoids overheating, ensuring stable operation and good image quality.

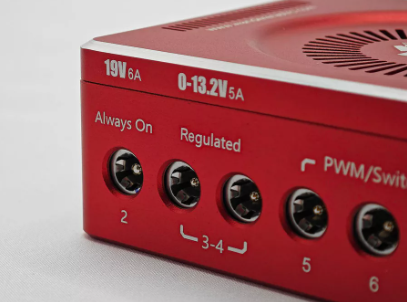

• The 5–13.2V regulator (can be turned off) easily handles input voltage fluctuations and ensures a stable power supply to the camera.
• The adjustable voltage allows compatibility with different devices.
• Long input power cables may cause voltage drops, and the power supply in remote observatories may also be unstable. This DC port maintains a stable set voltage, which is essential for the reliable operation of the camera. Some cameras may experience image readout issues when the voltage drops below 12V or becomes unstable.
• The operating voltage of some devices (such as most DSLR cameras) is not 12V, and the adjustable range of 5 to 13.2V makes this port suitable for most devices.
• This DC port can also be switched on or off as needed.

• The 19V 6A output is specially designed for mini PCs.
  With over 120W of peak power capacity, it supports high-power tasks such as PixInsight processing.
• Full load testing has been successfully performed on Intel NUC 7 i7 and NUC 8 i7 models.
• Compatibility with all mini PC brands, however, is not guaranteed.

• Maximum input current: 18A

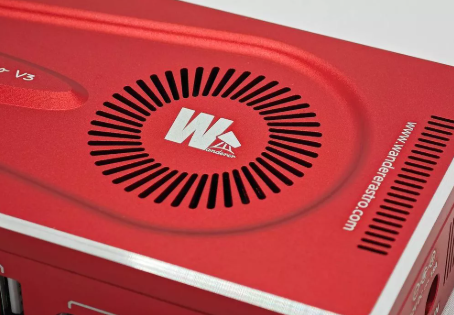

• Powerful heat dissipation is achieved through an automatic cooling fan that activates based on power consumption.
• The small magnetic silent fan operates with almost no vibration.
• The fan only runs when the 19V output port or the 5–13.2V adjustable voltage output port is under high load.
• The high-quality magnetic levitation fan is extremely quiet—significantly quieter than a typical camera cooling fan—and will not affect guiding performance

Input voltage and current monitoring
19 V output current monitoring
5–13.2 V regulator output current monitoring

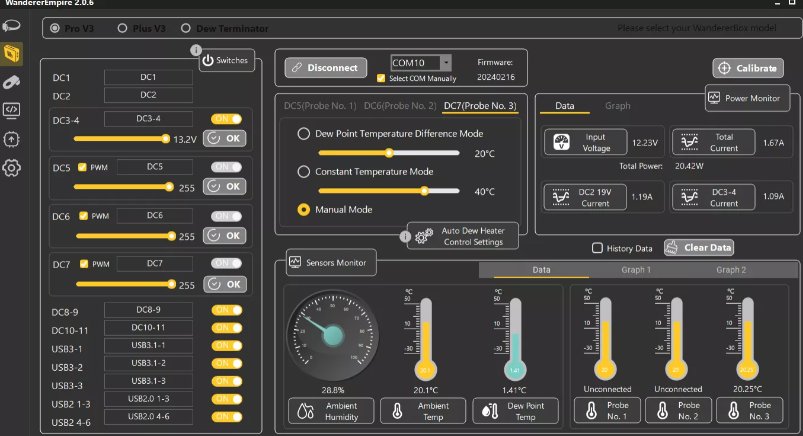

Intuitive display interface: voltage, current, dew point temperature, and other information are clearly displayed and easy to read at a glance.
Note: current values are for reference only and may show slight deviations due to environmental factors.

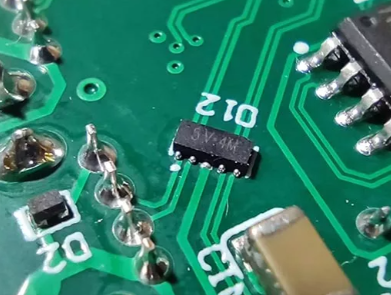

• Electrophoresis protection
• Short-circuit protection
• Overcurrent protection
• Electrostatic discharge protection
• These safety features maximize the protection of the WandererBox and all connected devices.
• The environment of a remote observatory can be harsh, and reliable equipment operation is essential.
• The WandererBox series is specially designed to ensure the safety and stability of your equipment, even under demanding conditions

• 19V, 12V, and 5V power indicator lights

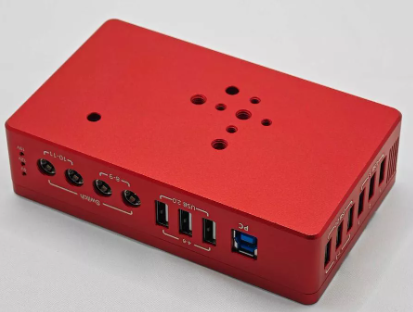

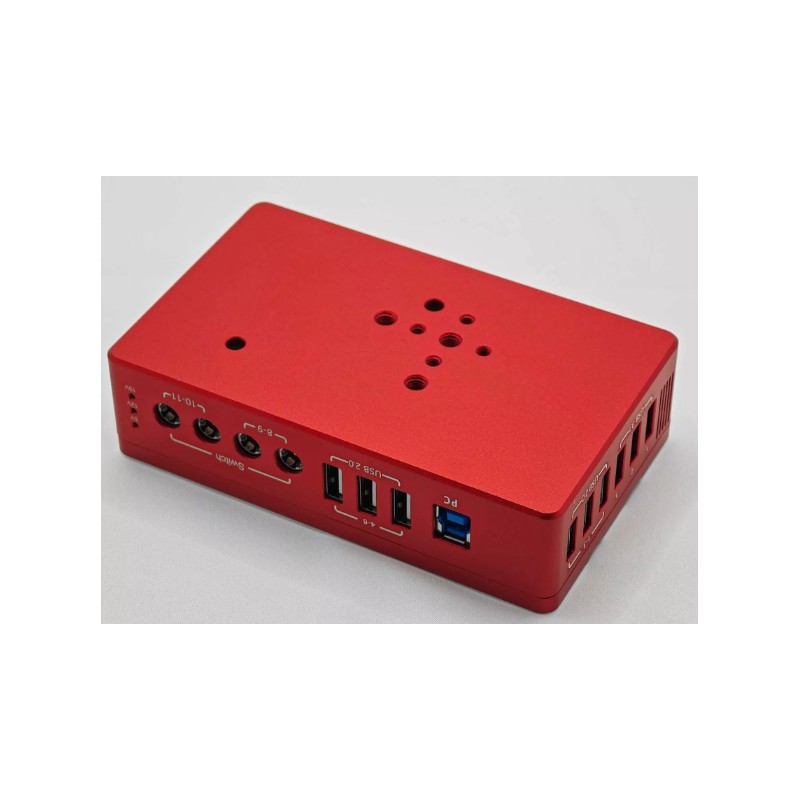

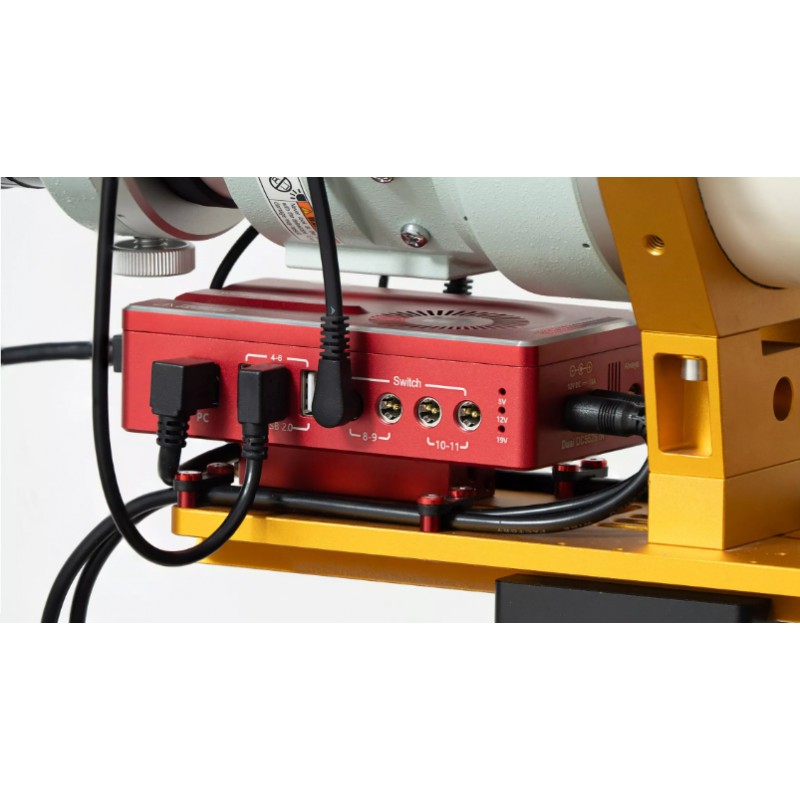

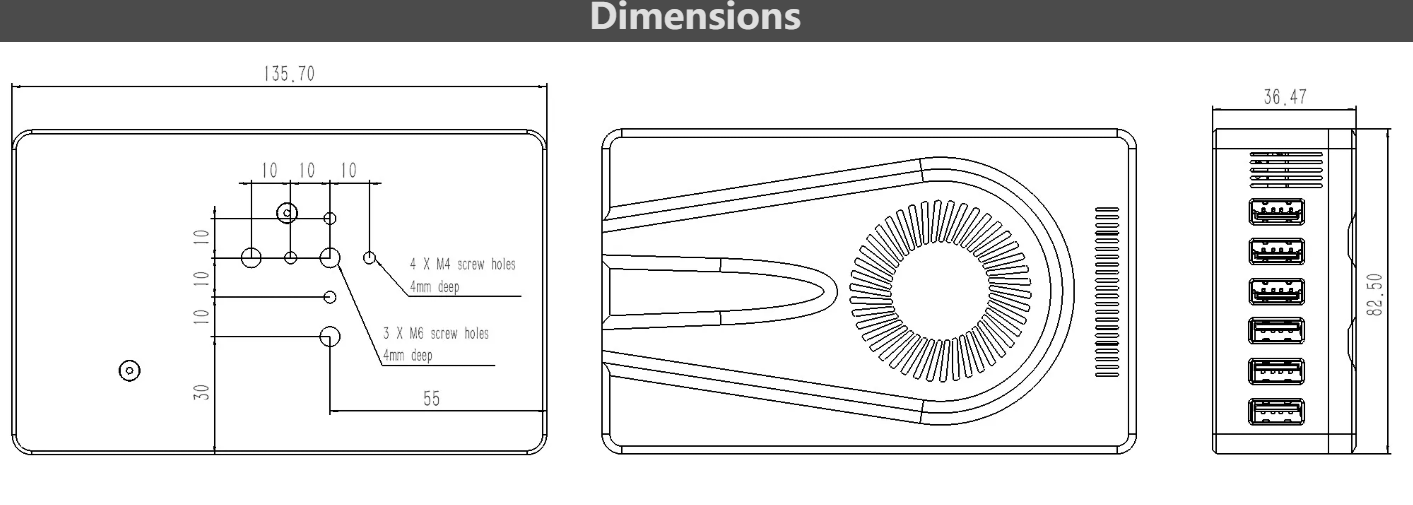

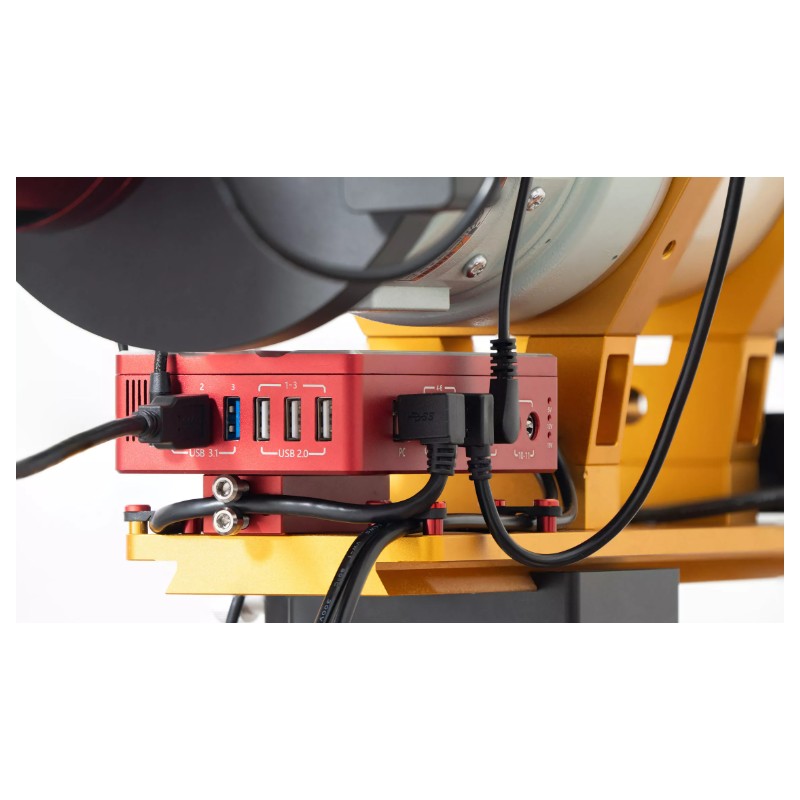

• M6 and M4 threaded holes on the bottom
• You can use our mini dovetail plate to secure the Wanderer Dew Terminator to a dovetail slot. You can also check the Accessories section below.
• It can also be mounted using screws on a dovetail plate or any other structure with mounting holes.

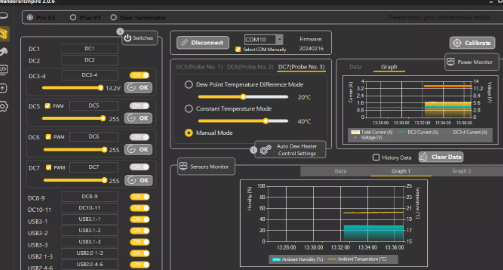

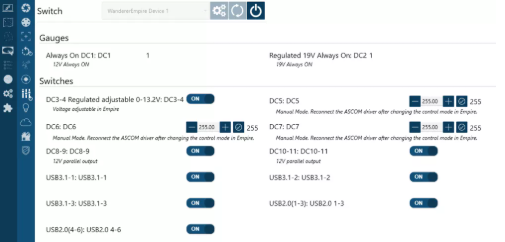

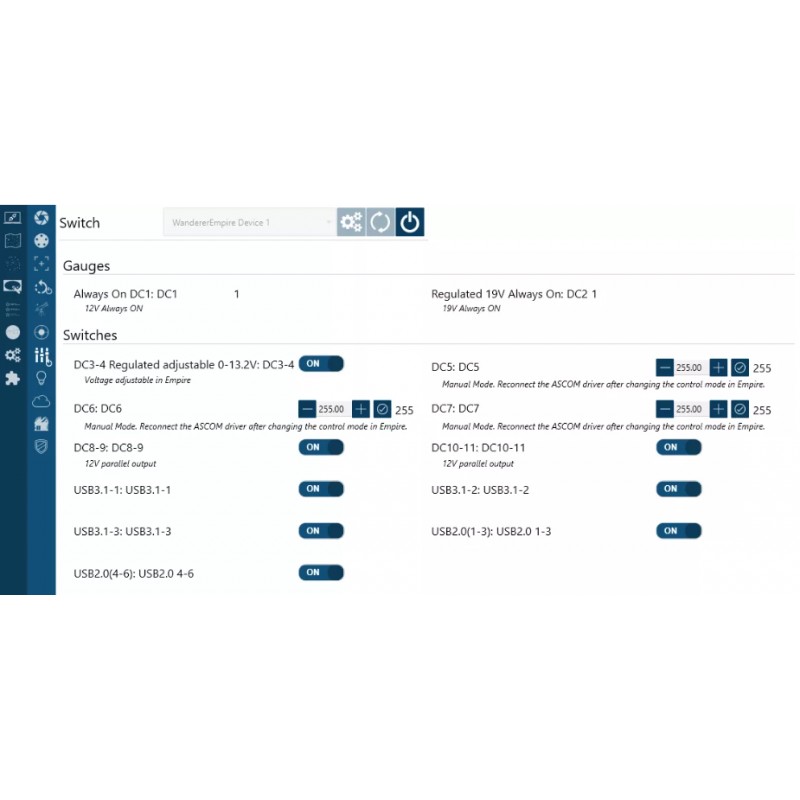

• Powerful customization capabilities
• Switch mode
• Switch name
• USB device name
• Dew heater control mode...

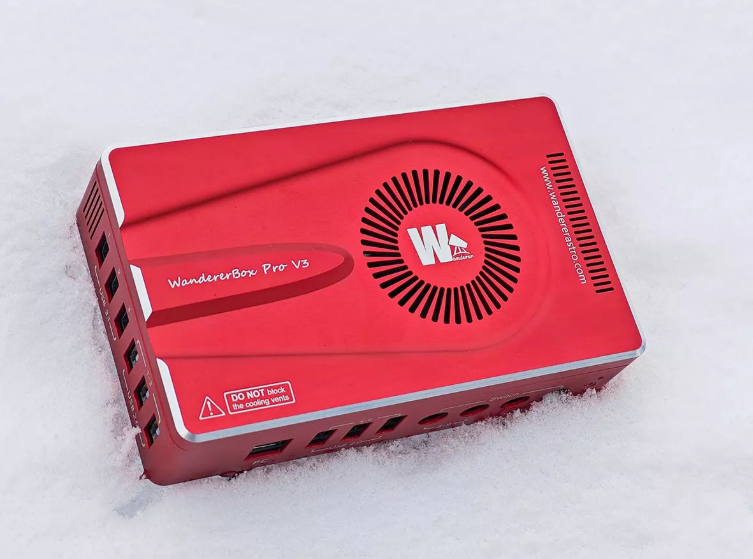

Low temperature resistant design, allowing normal operation in environments as cold as -25°C (-13°F).

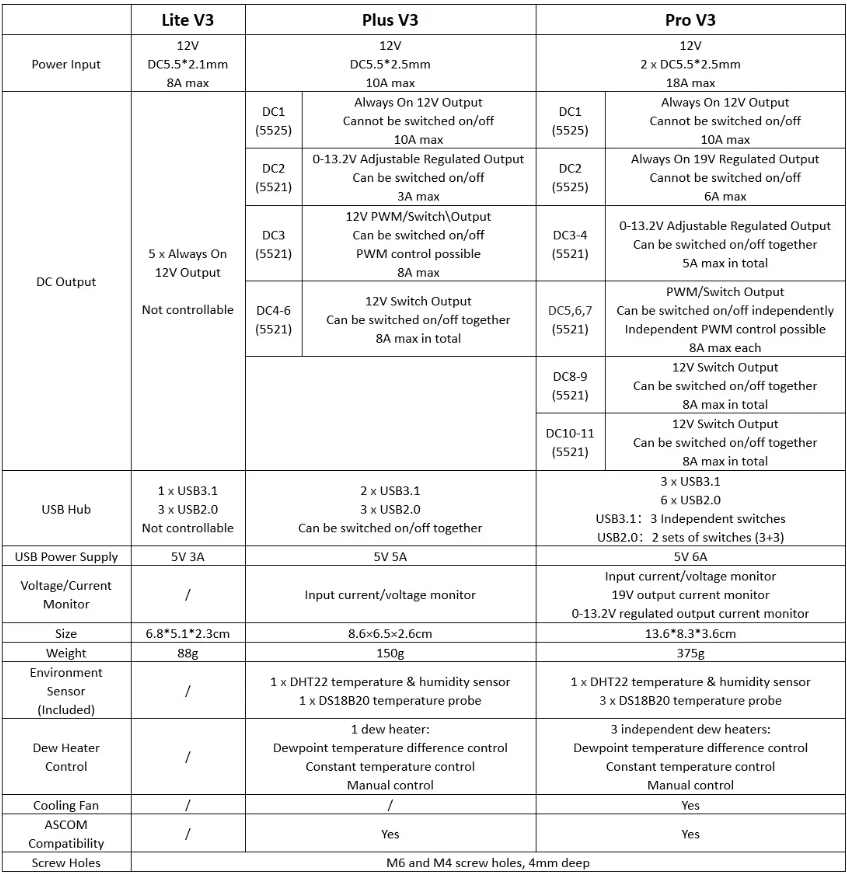

Specifications:
