Ioptron universal dual jaw system
The iOptron universal dual jaw system is a side by side mounting solution designed to hold two optical tubes on a single mount. Adjustable jaw and plate positions allow precise balance control with Vixen and Losmandy compatibility.
Ioptron universal dual jaw system
Description

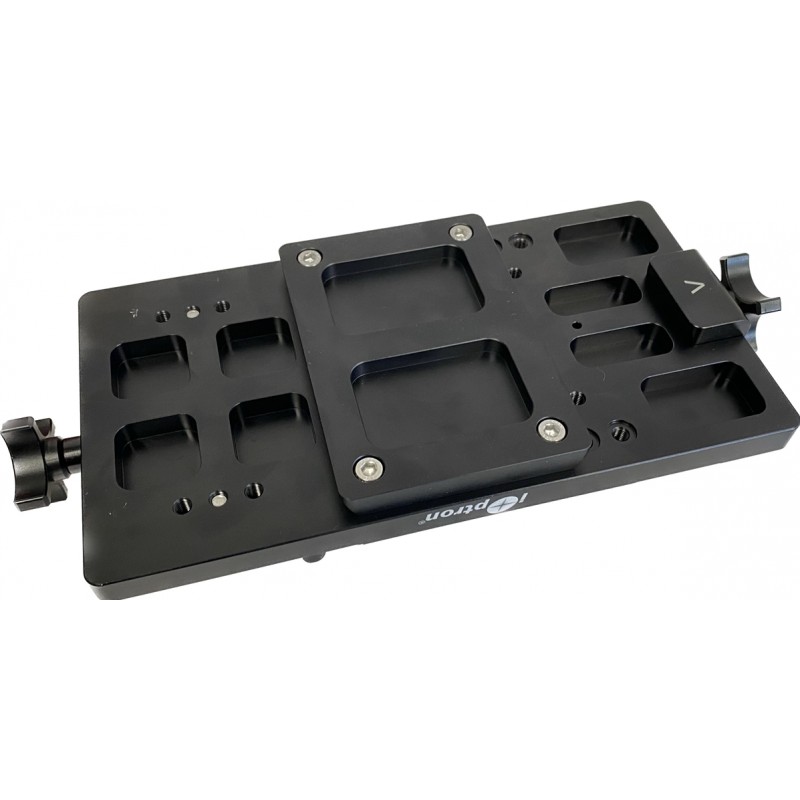

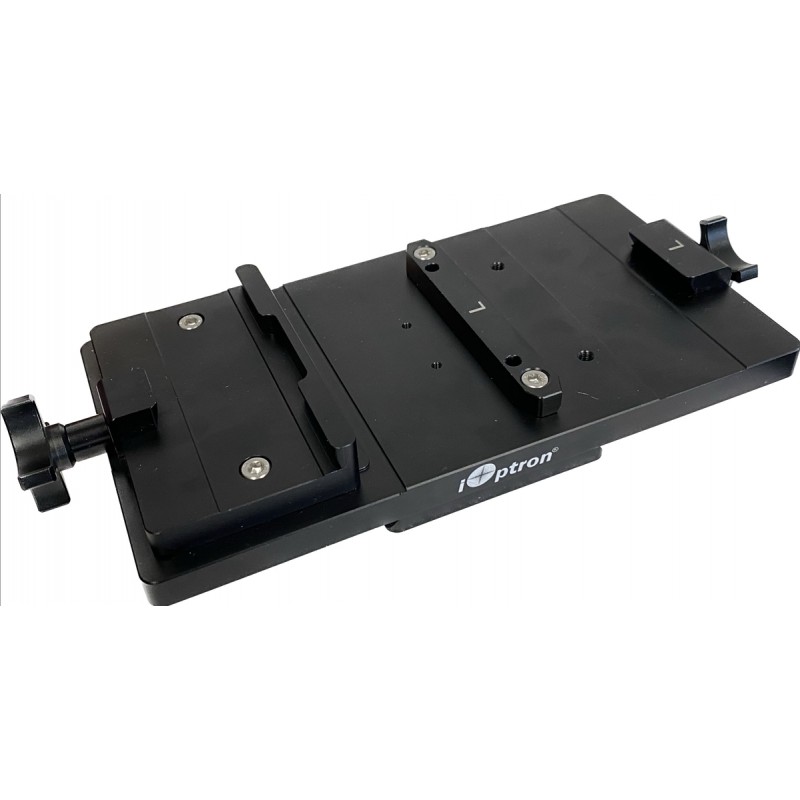

The iOptron universal dual jaw system is a CNC machined side by side mounting solution intended for astronomers who want to operate two optical tubes simultaneously on one mount.

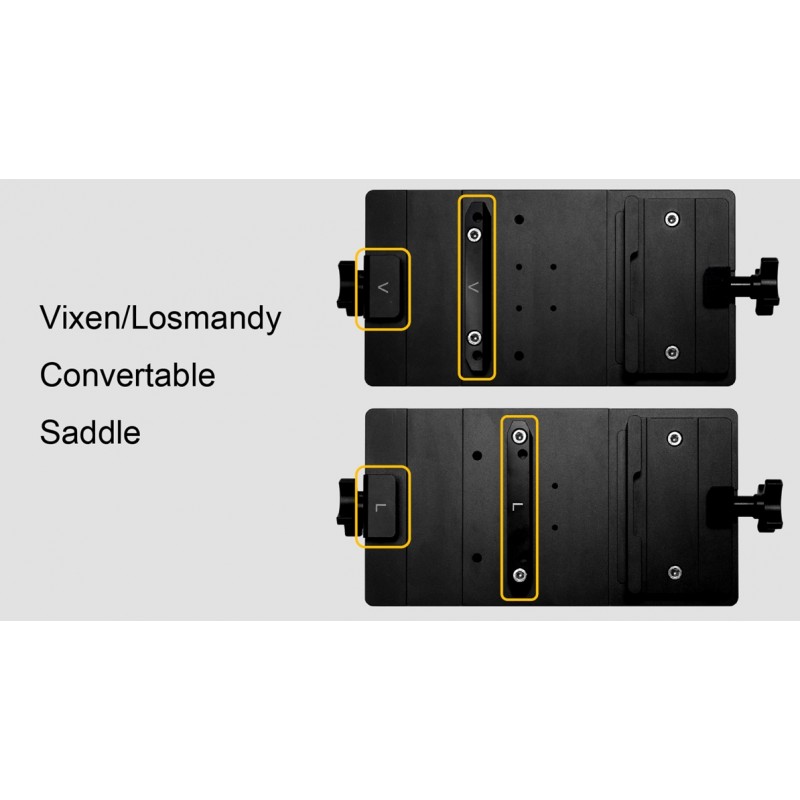

It features a Losmandy style plate with two integrated jaws: one adjustable Vixen jaw and one convertible jaw compatible with both Vixen and Losmandy formats.
Jaw and plate positions can be adjusted independently to fine tune balance, especially when using uneven payloads or additional accessories. This system is suitable for both astrophotography and visual observation.
Technical specifications
CNC machined side by side mounting system
Dual jaw configuration

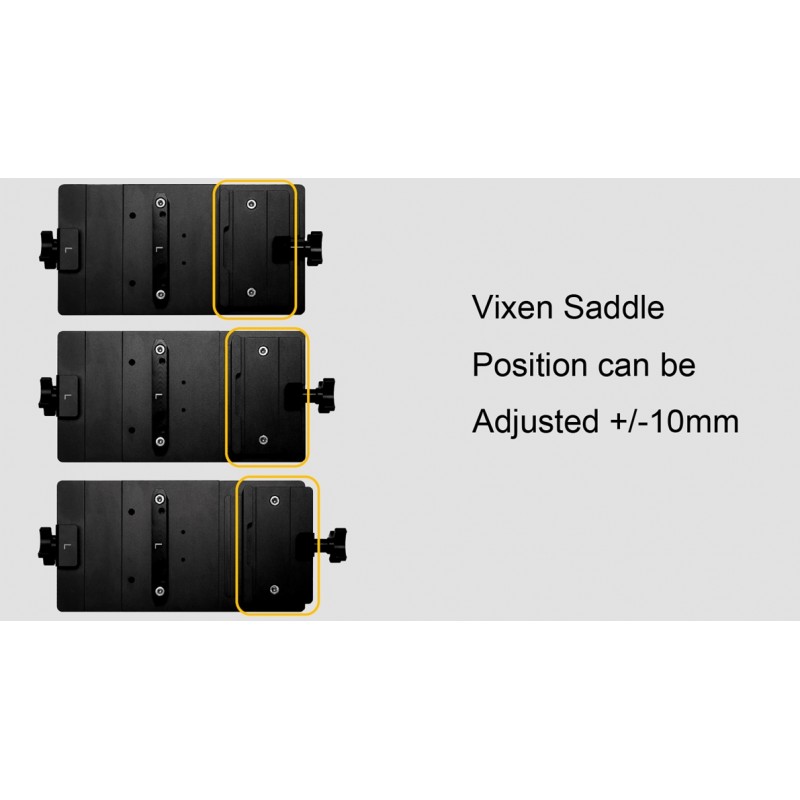

One Vixen jaw adjustable ±10 mm
One convertible Vixen and Losmandy jaw
Dovetail plate compatible with Losmandy saddle

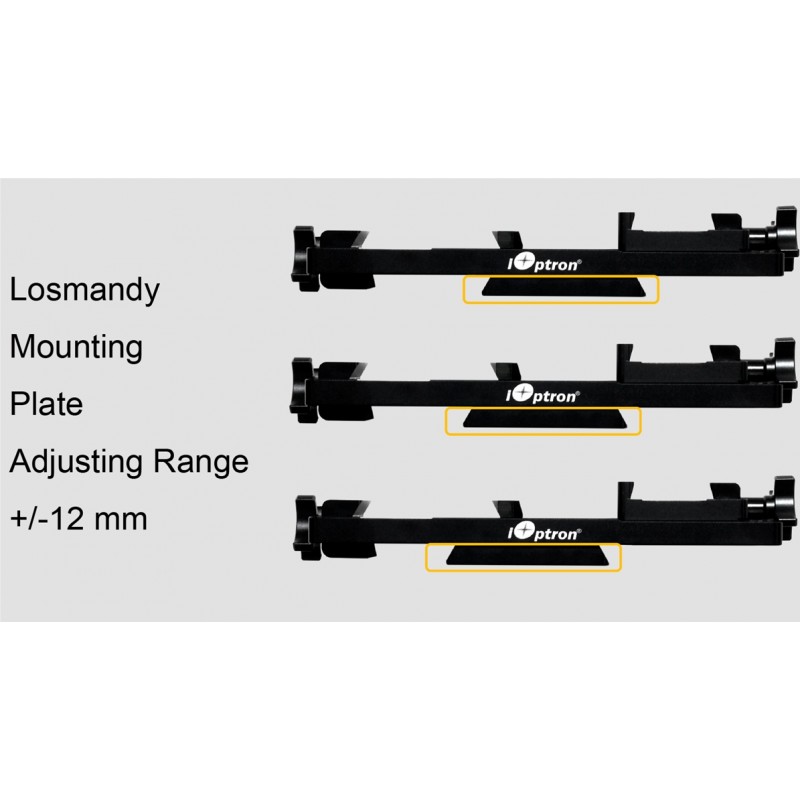

Plate position adjustment range ±12 mm
Independent position adjustment for balancing
CNC machined aluminum construction
Gross weight 3 lbs
