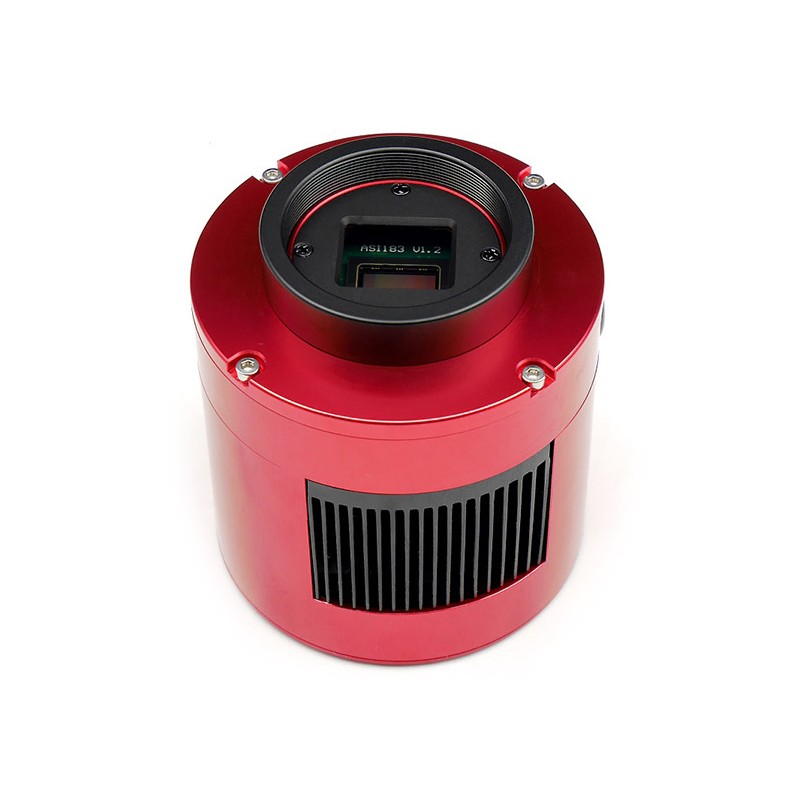

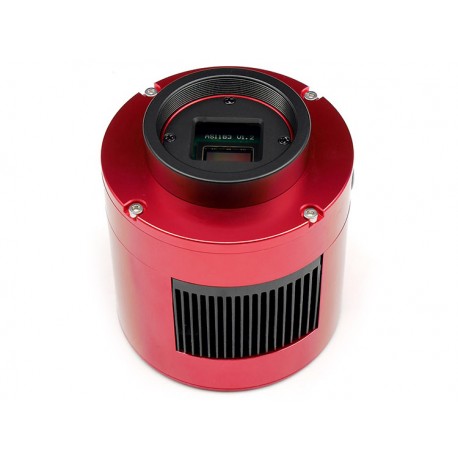

ASI183MC Pro (color) View larger

ASI183MC Pro (color)

ASI183 MC Pro (color)

New product

ASI183MC Pro (color)

More details

1 Item

947.8 CHF tax incl.

More info

ASI183MC Pro (color)

Product Description

ASI183MC Pro

183MM Pro1

Logo-of-183pro

ASI183MC Pro uses Sony’s IMX183CQJ-J sensor. With a high QE-value and low provides excellent image quality at an affordable price. Some of the features include:

  • 2o megapixel sensor with 2.4 μm pixel size. – able to capture19 frames/s frame rate in 12-bit mode with high detail
  • Very low 6e- readout noise – bringing out more details in your images with improved dynamic range
  • Full-well capacity of 15ke– – reduces the risk of oversaturated stars in longer exposures



This back-illuminated, rolling shutter-type CMOS sensor has a diagonal of 15.86 mm and approximately 20.2 megapixels.

IMX183CQJ-4K-Sensor

▶High-Speed and High-Picture-Quality Rolling Shutter-Type Back-Illuminated CMOS Image Sensors

Designed for astrophotography, the Sony IMX183CLK-J (monochrome) and IMX183CQJ-J (color) sensors use high sensitivity back-illuminated structures with high resolution 2.4 μm square pixels.  The optical size is 1 inch.

DDR Memory Buffer

The ASI183 Pro camera includes a 256MB DDR3 memory buffer to help improve data transfer reliability. Additionally, the use of a memory buffer minimizes amp-glow, which is caused by the slow transfer speeds when the camera is used with a USB 2.0 port.

The DDR memory buffer is the main difference between ASI “Cool” and “Pro” cameras.

DDR

DDR memory buffer is the main difference between ASI “Cool” and “Pro” cameras.



Astrophotography Performance

The ASI183 cameras has an impressive list of characteristics suited for astrophotography including a large full well capacity of 15000 e-, small pixel size, 1.6e read noise @ 30dB, and 12 stops dynamic range @ Gain=0. The ASI183 cameras also utilize firmware features to minimize amplifier glow for maximum performance in astrophotography.

183 Gain RN DR FW vs gain



Reliable Mechanics

ASI183 Pro has same mechanics as ASI1600 Pro. There are four screws that seal the sensor chamber. Our camera design has been extensively tested and is very stable even in demanding environments.

Even when used in environments with higher humidity, ASI183 Pro will still work fine without dew problems.



High Speed

Fast FPS and high-speed readout come in handy for many applications in astrophotography such as in

  • solar and lunar imaging,
  • as well as for live viewing or electronically assisted astronomy (EAA)
  • real-time focusing,
  • true lucky imaging of double stars and other small objects,
  • planetary imaging of the major planets in the solar system, and much more.

10Bit ADC
5496×3672    19fps
3840×2160    41.04fps
1920×1080    80.10fps
1280×720      117.30fps
12bit ADC
5496×3672    19fps
3840×2160    36.12fps
1920×1080    70.48fps
1280×720      103.23fps

High QE

Sony’s back-illuminated Exmor R technology, giving it excellent Deep Sky performance. ASI183 QE peak reaches a respectable 84%. In Ha channel, QE is still over 60%.

Having high QE means that more of the light that enters your telescope and reaches the sensor is actually used. With 84% peak Q.E. and no less than ~50% within the visible spectrum, the ASI183 will utilize a high percentage of the light that reaches it, improving your signal quality.

183QE

Dark Current

The dark current of the ASI183 is extremely low, based on our test results.

Dark frame sample @ Highest dynamic range settings(gain=0), 300s, -10°C, bin1. Please check the dark frame to make sure you are fully aware of the performance.

ASI183 Pro Dark Frame

DCvsT-183



USB 3.0 Port & USB2.0 HUB

USB 3.0 Port: Provide 5Gb bandwidth to make it possible for ASI183 Pro to run at 19 fps (12bit, normal mode) or 19 fps (10bit, high speed mode)  at full resolution(20.18Mega).

USB 2.0 HUB: can connect with various accessories, such as filter wheel, guide camera and electronic focuser, so you can better manage your cables. The ASI183 Pro includes two short 0.5m USB 2.0 cables. The integrated USB 2.0 hub is powered by the external power source if you connect one.

183MC Pro2

Cooling System

Thanks to the two stage TEC cooling, ASI183MC Pro can lower the sensor temperature to 40-45 degrees Celsius below ambient temperature, which can greatly reduce dark current generation and sensor noise even during extended exposure times.

*The Delta T 40-45℃ is tested at 30℃ ambient temperature. It might get down when the cooling system is working for a long time. Also, as the ambient temperature falls, the Delta T would also decrease.
Please notice that the camera needs to be connected to an external 11-15v power supply to implement the cooling function. We recommend you use 12V@3A DC adapter (5.5*2.1mm, center pole positive) or lithium battery with 11-15V to power the camera. If you don’t have one, please click here to buy a 12V power adapter. There are 4 different standards for different countries, please make sure you selected the correct adapter when placing the order.



Connecting Diagram

183-Connecting-Drawing

1. M43-T2 adapter

2. EOS-T2 adapter

3. 2”Filter (optional)

4. 1.25” T-Mount

5. 1.25” Filter (optional)

6. M42-1.25” adapter (optional)

7. T2 extender 11mm



Mechanical Diagram

asi294-Mechanical-Drawing

What is in the box?

ASI183 Pro box includes all necessary cables, adapters, and manuals.

深空相机1-英

Spacer thickness: 0.1mm *1+0.2mm *2+0.5mm *1



The best solution of 55mm back focus length

Cooled Color Camera solution

Cooled Color Camera with OAG solution
