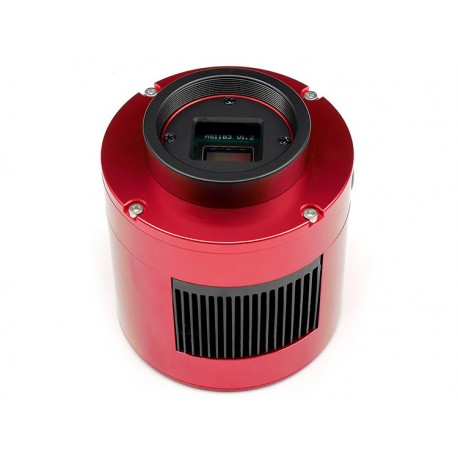

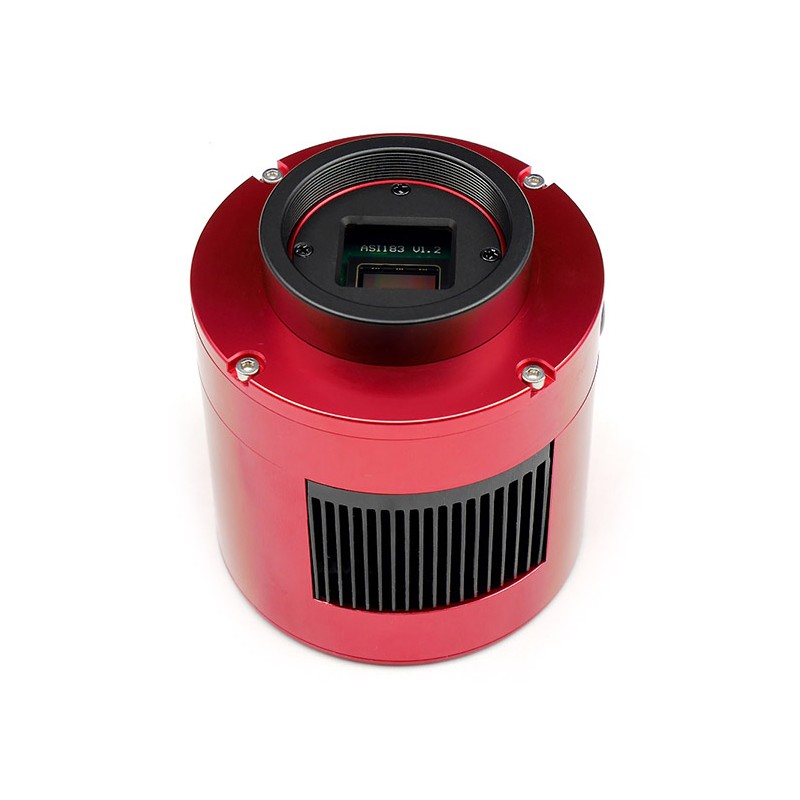

    ZWO ASI183MC Pro Camera

    Cooled 20 MP color camera with Sony IMX183 sensor, 2.4 µm pixels, USB 3.0, 256 MB buffer—ideal for deep sky, planets, and lunar imaging.

    Quantity
    Last items in stock

    Available.

    ZWO ASI183MC Pro Camera

    DESCRIPTION
    The ZWO ASI183MC Pro is a cooled color camera for high-end astrophotography. It features the 1″ Sony IMX183CQJ-J sensor, delivering 20.18 MP (5496 × 3672) with 2.4 µm pixels, offering exceptional resolution and detail-rich captures.

    Dual-stage TEC cooling lowers the sensor by 40–45 °C below ambient, significantly reducing thermal noise for extended exposures. With a low 1.6 e⁻ read noise (at high gain), a 12-bit ADC with 15,000 e⁻ full well, and up to 84 % peak quantum efficiency, it excels in sensitivity, including in near-infrared.

    The ASI183MC Pro handles exposures from 32 µs to 2000 s and captures up to 19 fps at full resolution. A 256 MB DDR3 buffer ensures stable USB data transfer and minimizes amp glow. The camera features USB 3.0, integrated USB 2.0 hub, ST‑4 guiding port, and M42/T2/2″ threads for easy integration.

    TECHNICAL SPECIFICATIONS

    • Sensor: Sony IMX183CQJ-J BSI CMOS color

    • Format: 1″ (13.2 × 8.8 mm), 20.18 MP (5496 × 3672)

    • Pixel size: 2.4 µm

    • ADC: 12-bit

    • Full well: 15,000 e⁻

    • Read noise: ~1.6 e⁻ (high gain)

    • Peak QE: 84%

    • Cooling: Dual-stage TEC (‑40 °C to ‑45 °C)

    • Buffer: 256 MB DDR3

    • Exposure range: 32 µs to 2000 s

    • Frame rate: 19 fps full frame

    • Interface: USB 3.0 + USB 2.0 hub

    • Guiding port: ST‑4

    • Thread: M42 × 0.75, with 1.25″ / 2″ adapters

    • Dimensions: Ø 78 mm

    • Weight: 410 g

    • Cooling power: 12 V DC, 3 A

    Included accessories

    • USB 3.0 cable + 2 USB 2.0 cables

    • 1.25″ & 2″ adapters (T2/M42)

    • Dew cap

    • Backfocus spacer kit

    • Quick start guide
