Baader Flatfield Box 850
WRGB flat-field panel, 850 mm clear aperture, browser-based control, delivers uniform flats for telescopes up to 32" fixed or 30" in rotating domes.
Baader Flatfield Box 850
Description

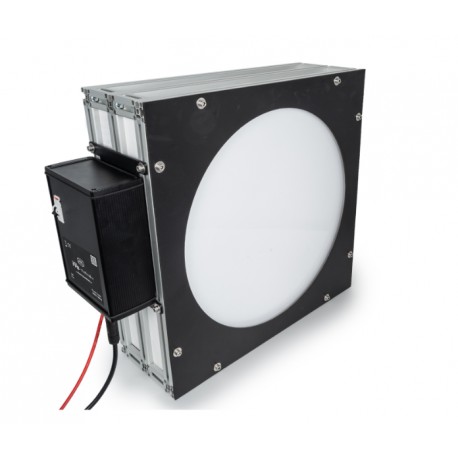

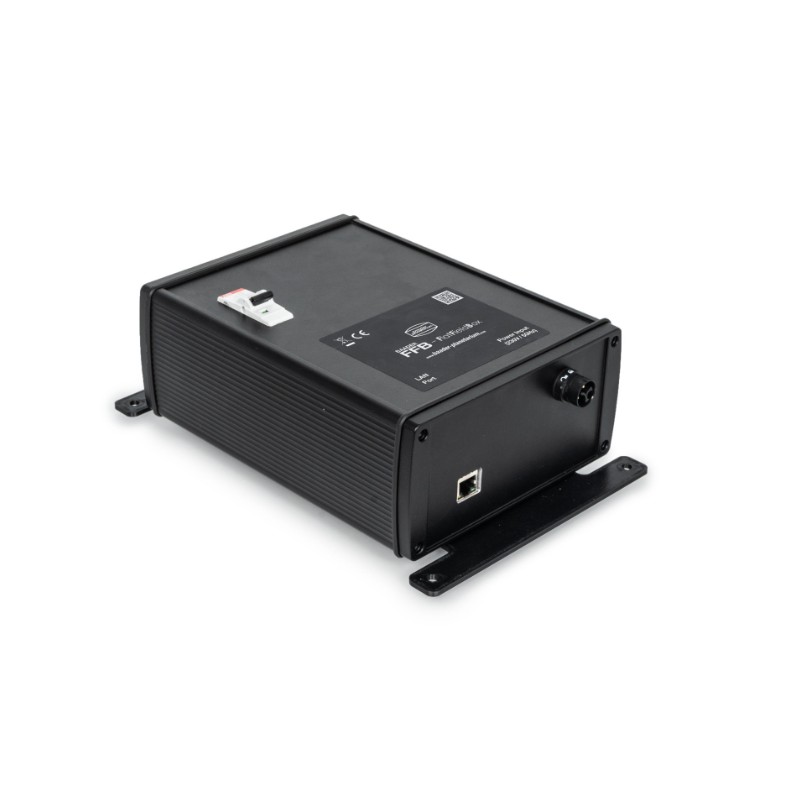

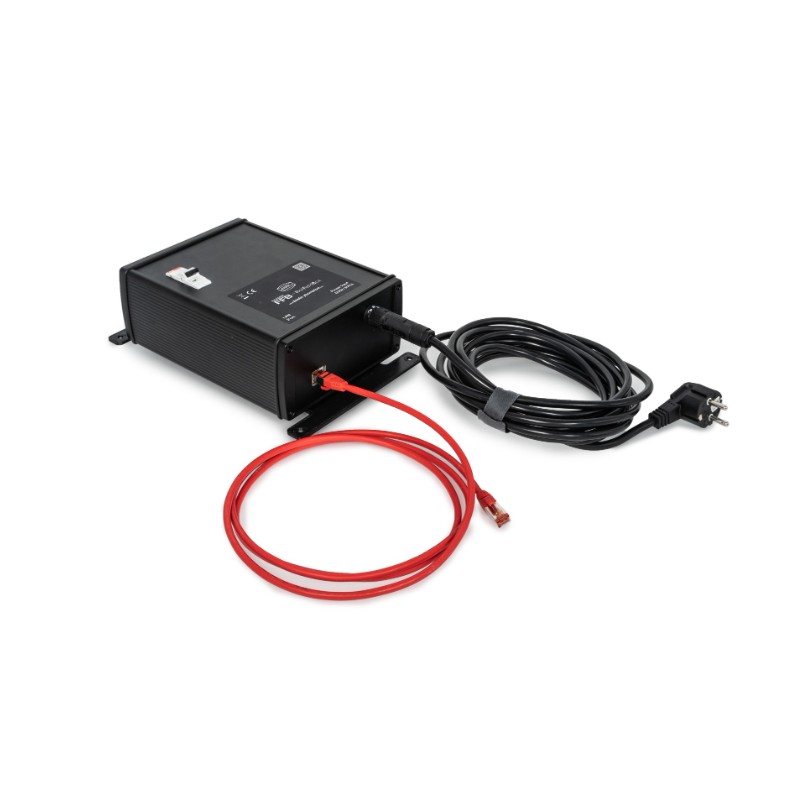

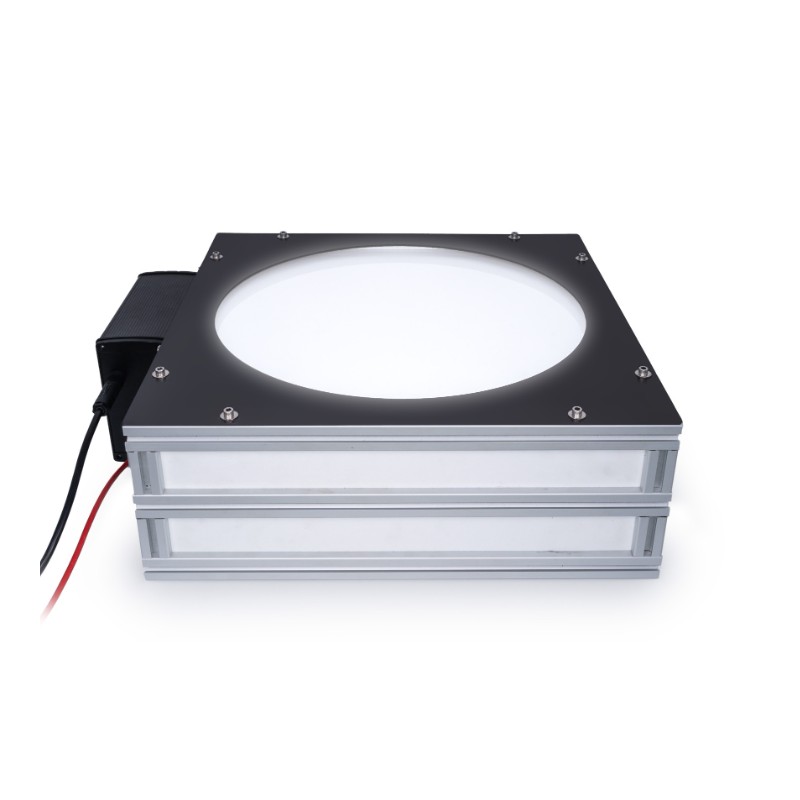

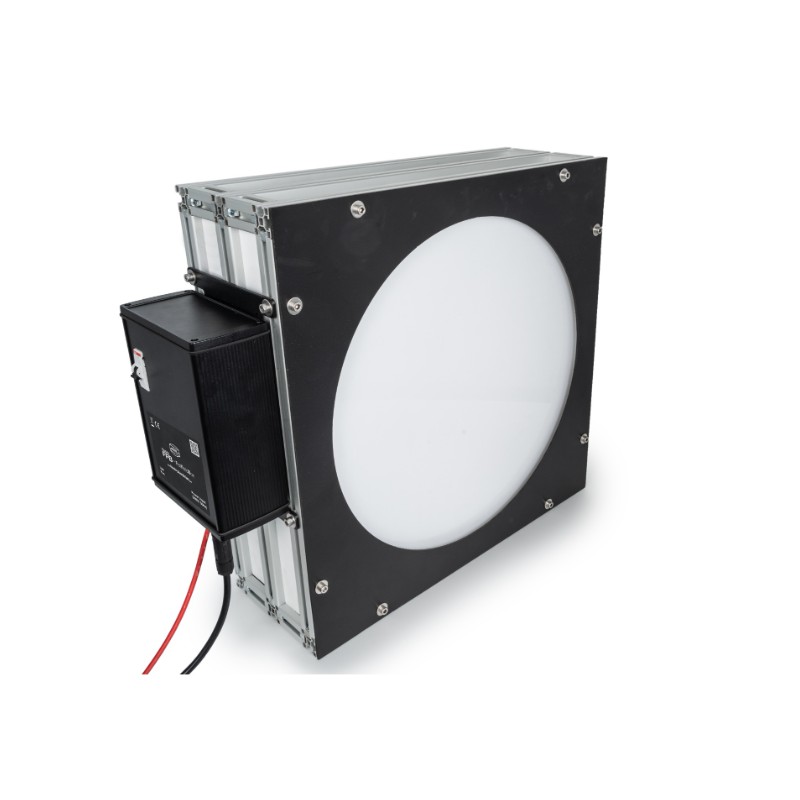

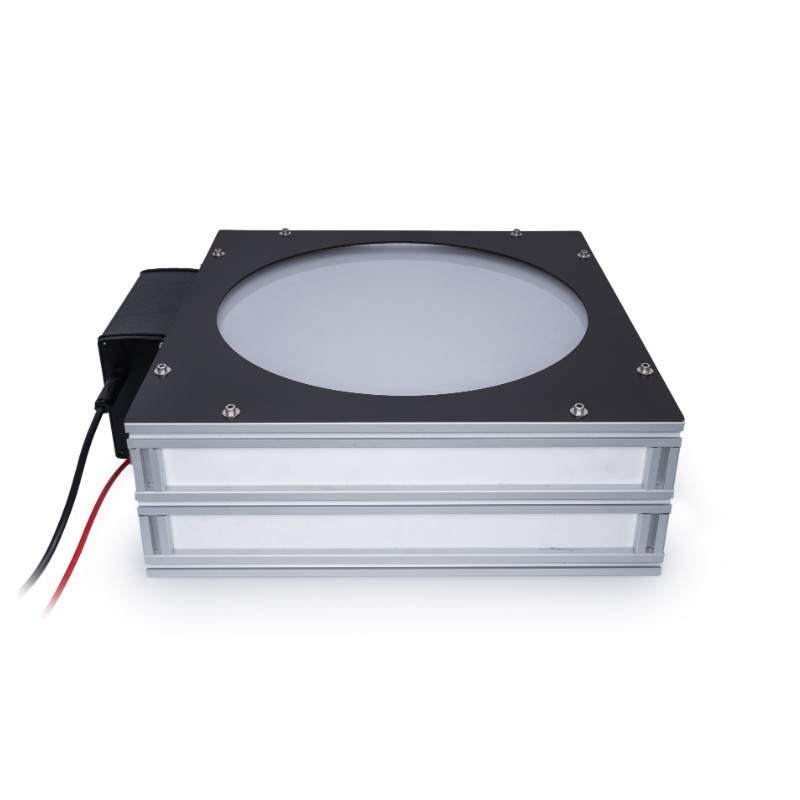

Baader Planetarium’s Flatfield Box 850 removes sky flats for very large instruments. The 942 x 942 x 200 mm enclosure combines a multi-layer infinity-mirror chamber with a dense WRGB LED array, producing gradient-free illumination across the visual spectrum. The side-mounted FlatPowerBox drives the White, Red, Green and Blue channels independently; eight presets are stored and recalled through any web browser. A high-frequency flicker-free driver supports exposures from 1 ms to several s, letting imagers match flat brightness to sensor sensitivity. A rigid Minitech 30 mm aluminium frame supports wall, bench or rotating-dome installation, and the panel can double as adjustable WRGB observatory lighting. Power is 12 V DC with built-in breaker protection.
Specifications
• Clear aperture : 850 mm
• External size : 942 x 942 x 200 mm
• Max telescope fixed : 800 mm (32")
• Max telescope dome : 750 mm (30")
• Illumination : individually dimmable WRGB LEDs
• Exposure range : 1 ms – several s, flicker-free
• User presets : 8 via Web UI

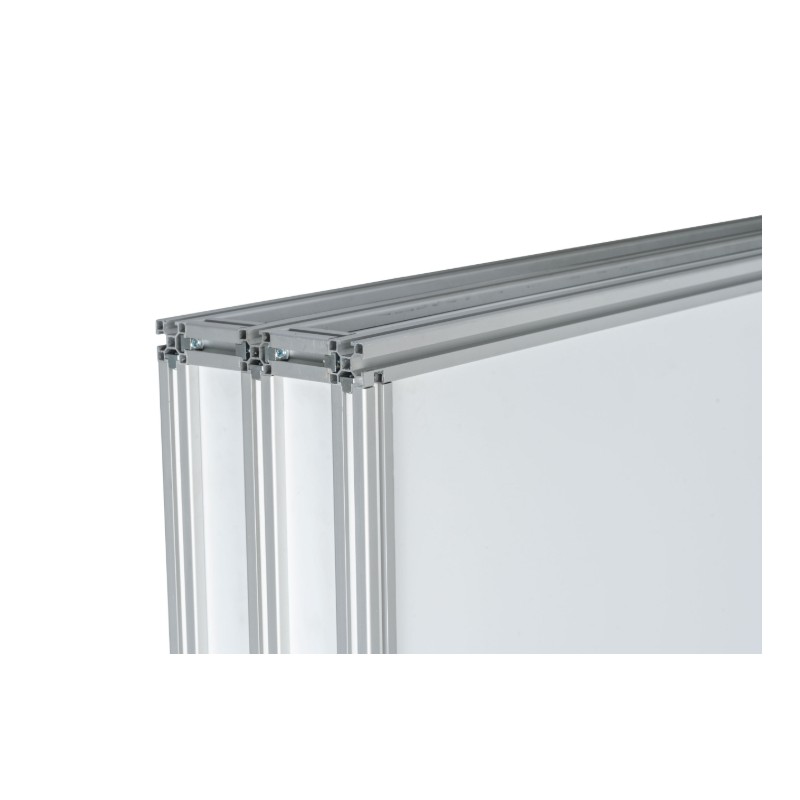

• Frame : Minitech 30 mm aluminium profile

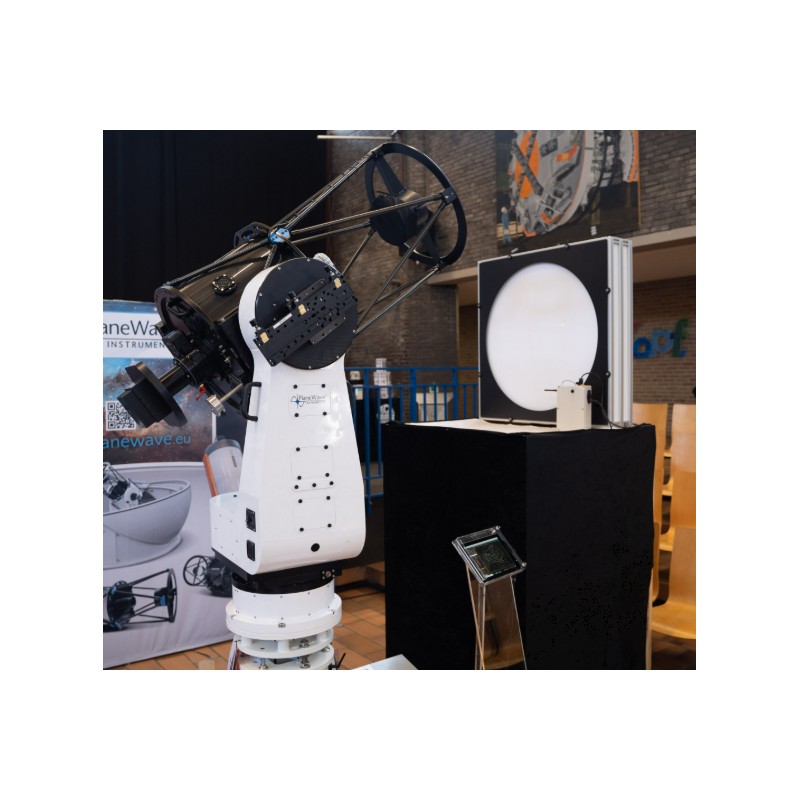

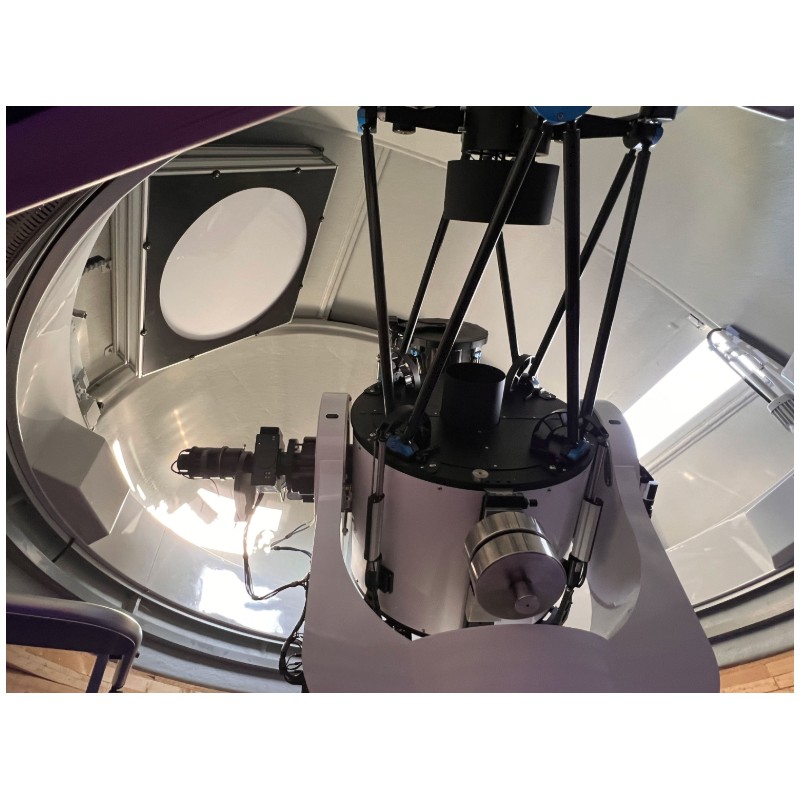

• Mounting options : wall, bench, rotating dome
• Power input : 12 V DC, breaker-protected
• Net weight : app. 30 kg
• SKU 2205185, EAN 4047825058867
• Manufacturer : Baader Planetarium
Additional info
The Flatfield Box series also includes 450 mm, 650 mm and 1250 mm models, all sharing FlatPowerBox control and infinity-mirror design.
