Baader Flatfield Box 650

Baader Flatfield Box 650

Description

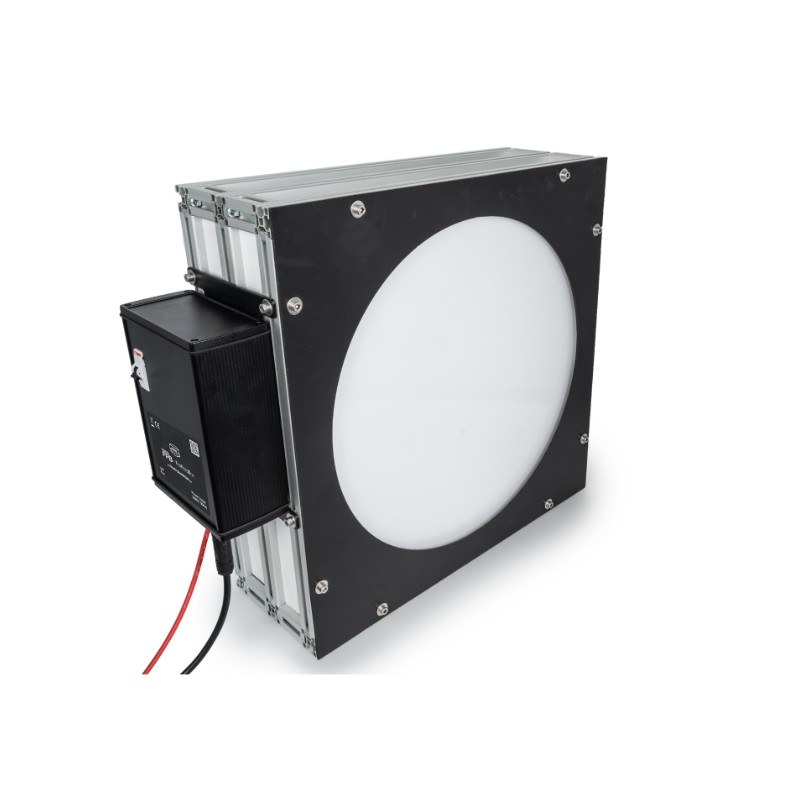

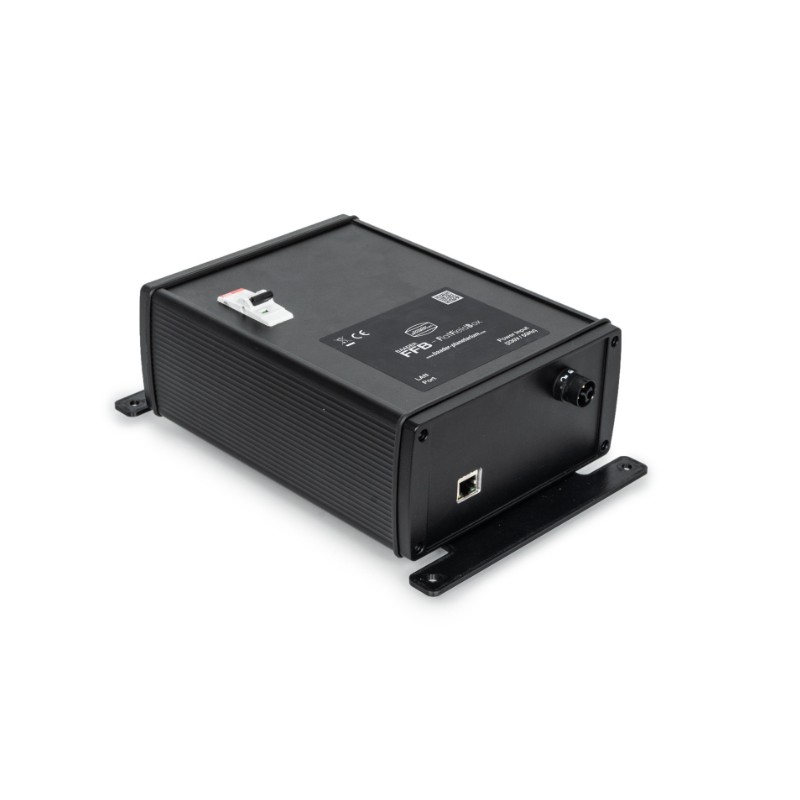

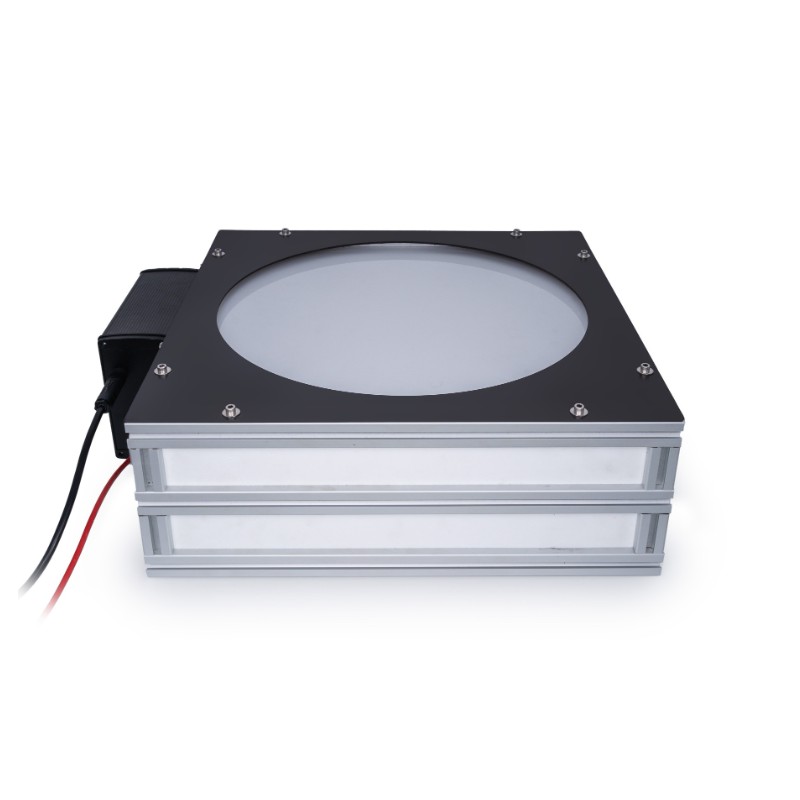

The Baader FFB 650 eliminates sky flats in any observatory setting. Its 742 x 742 x 200 mm chassis houses an infinity-mirror chamber and a dense WRGB LED array, delivering gradient-free light across the visual band. Separate Red, Green, Blue and White channels are managed by the side-mounted FlatPowerBox, with eight user presets stored in non-volatile memory.

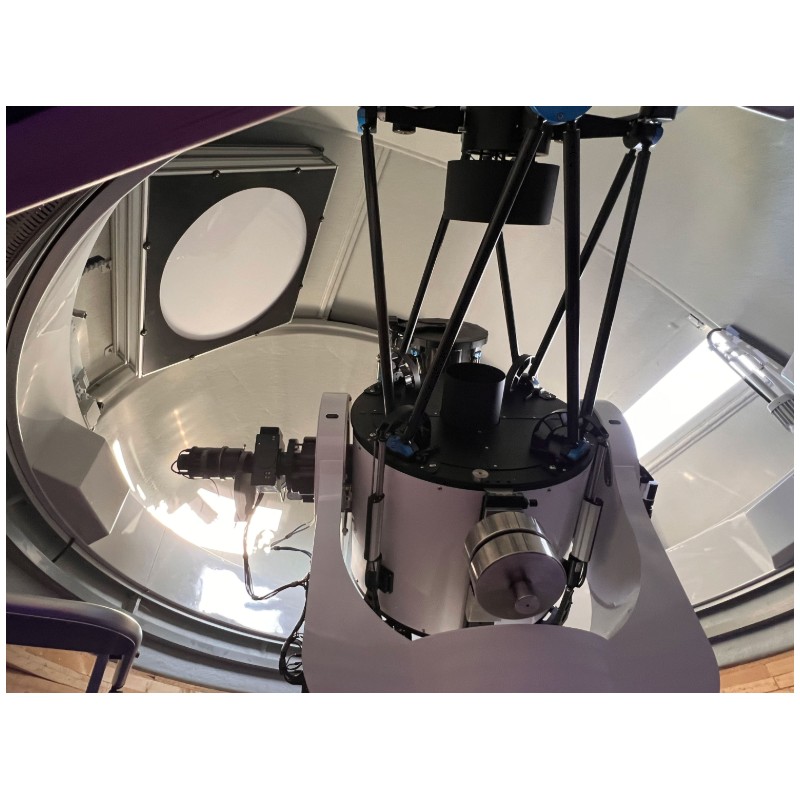

A flicker-free driver enables exposures from 1 ms to several seconds, allowing either ultra-short or extended flats to suit sensor sensitivity. The rigid Minitech 30 mm aluminium frame offers wall, tabletop or rotating-dome installation. When dimmed, the panel provides gentle WRGB lighting for observatory interiors. Power is 12 V DC with breaker protection.

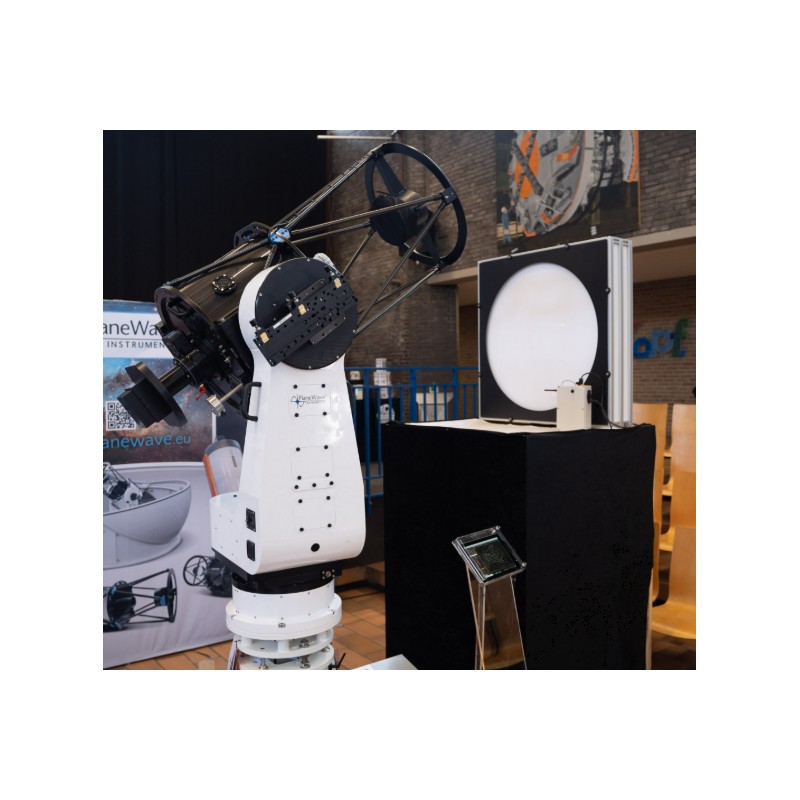

The unit covers instruments up to 600 mm (24") on fixed piers or 550 mm (22") in rotating domes, making it ideal for large astrographs.

Specifications

• Clear aperture: 650 mm
• External size: 742 x 742 x 200 mm
• Max telescope, fixed: 600 mm (24")
• Max telescope, dome: 550 mm (22")
• Illumination: independently dimmable WRGB LEDs
• Exposure range: 1 ms – several s, flicker-free
• User presets: 8, web-based UI

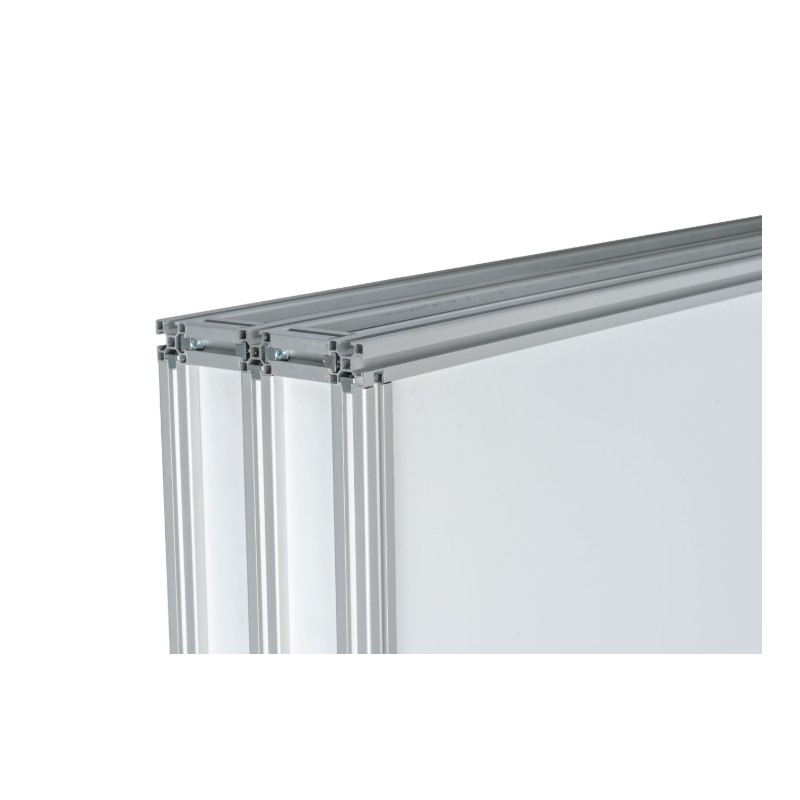

• Frame: Minitech 30 mm aluminium profile

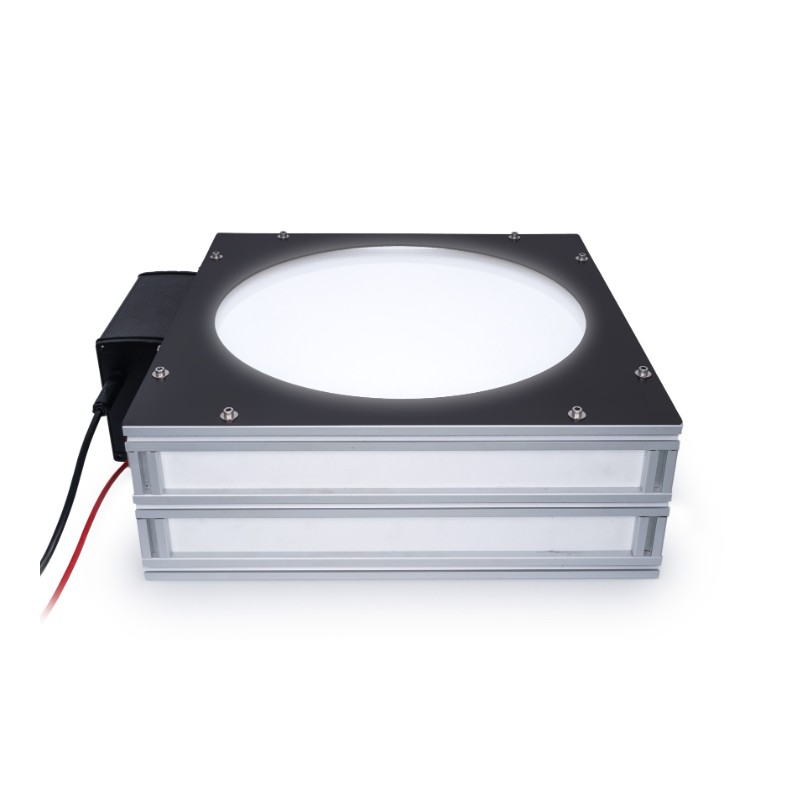

• Mounting options: wall, bench, rotating dome

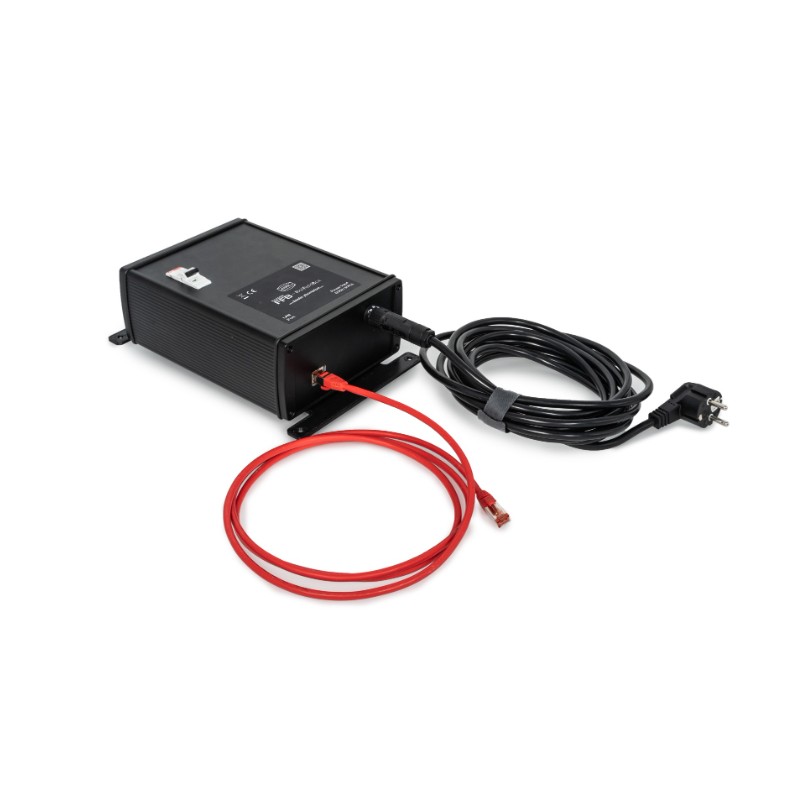

• Power input: 12 V DC, breaker-protected
• Net weight: 19.10 kg
• Manufacturer: Baader Planetarium
• SKU 2205165, EAN 4047825058850
