Baader Flatfield Box 450

Baader Flatfield Box 450

Description

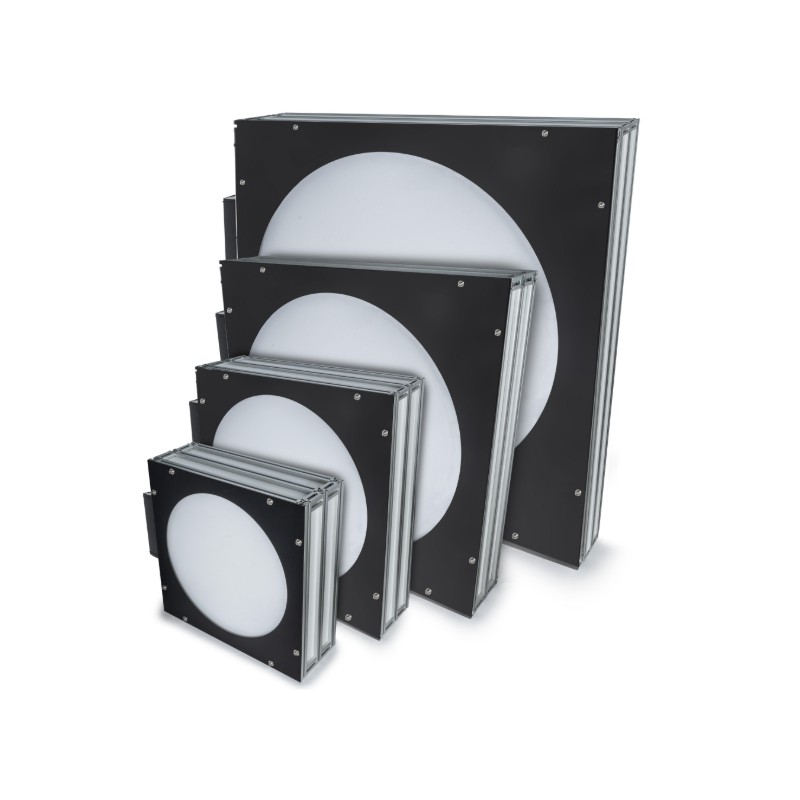

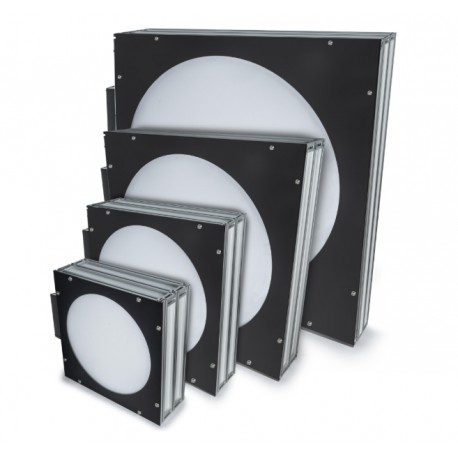

Baader Planetarium’s Flatfield Box 450 eliminates sky flats in any observatory. Four sizes are available — 450 mm, 650 mm, 850 mm, 1250 mm — covering a wide range of apertures.

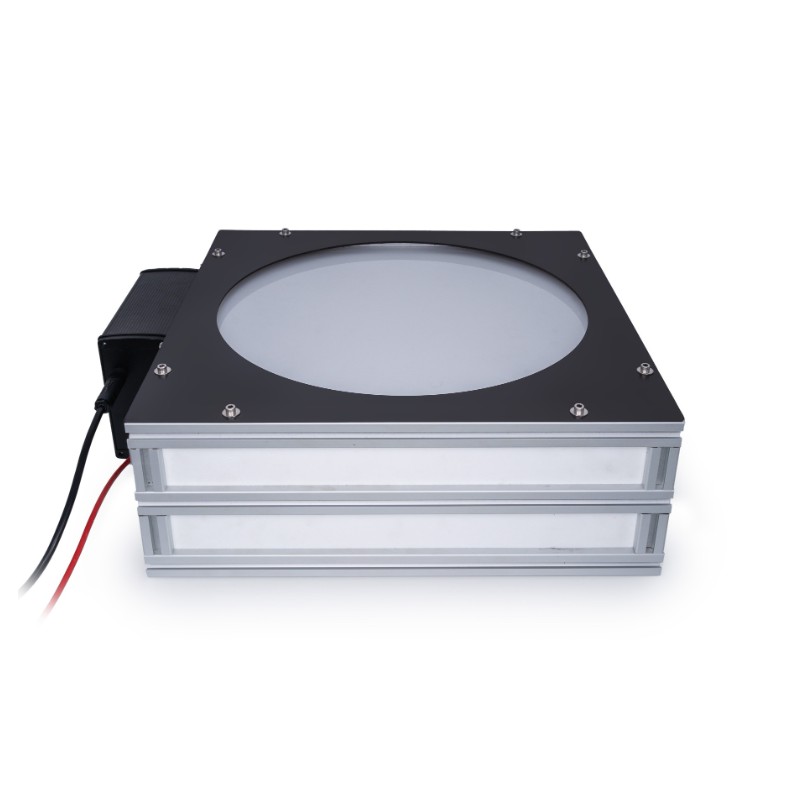

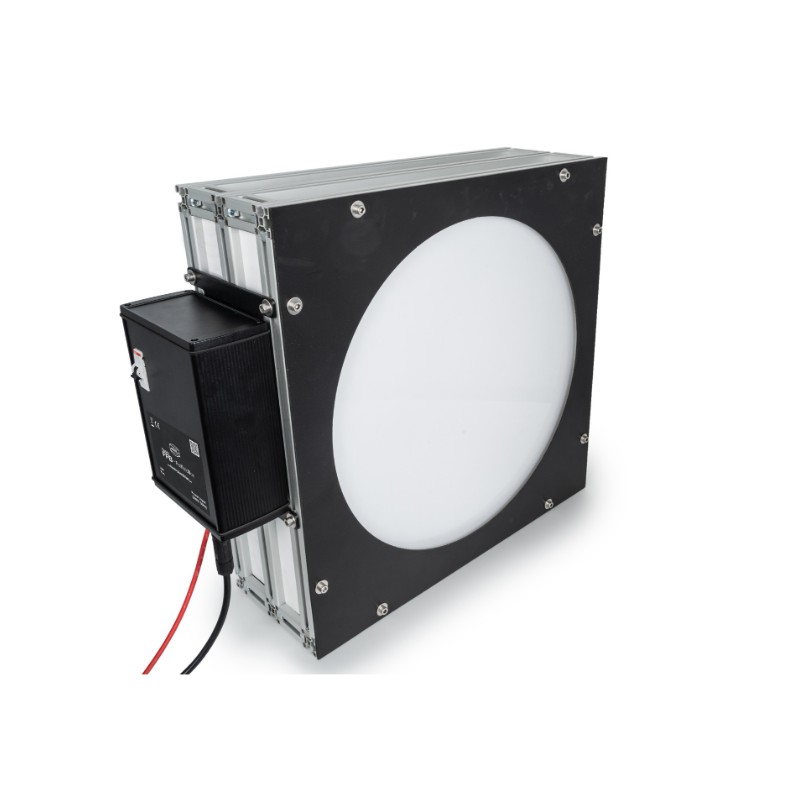

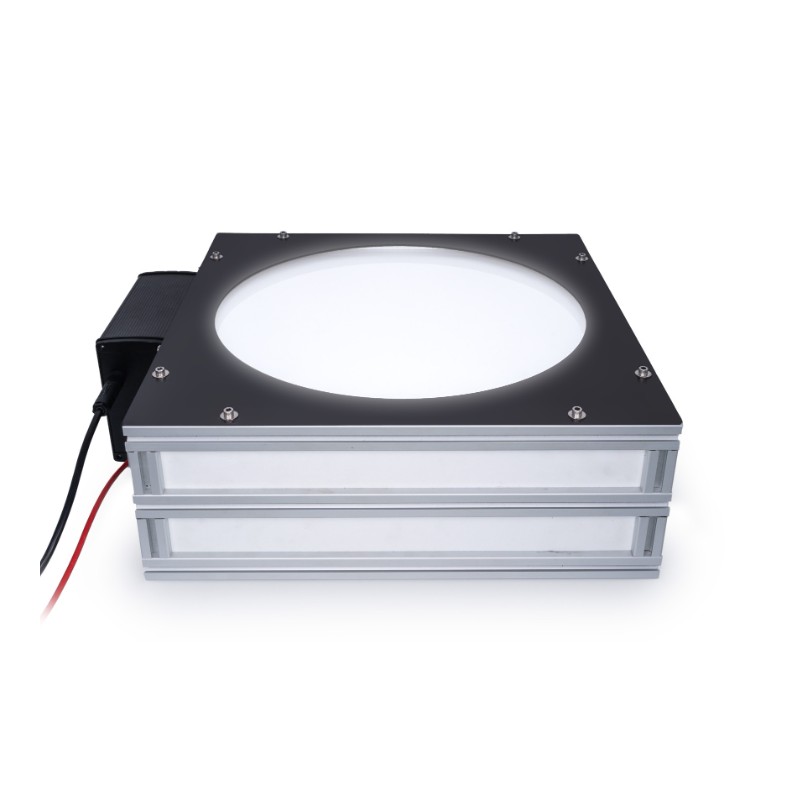

The 542 x 542 x 200 mm enclosure houses an infinity-mirror chamber and a high-density WRGB LED array that deliver gradient-free light across the visual spectrum, free of central dimming. Independent white, red, green and blue channels balance brightness for LRGB, narrowband, one-shot colour and dual-band cameras.

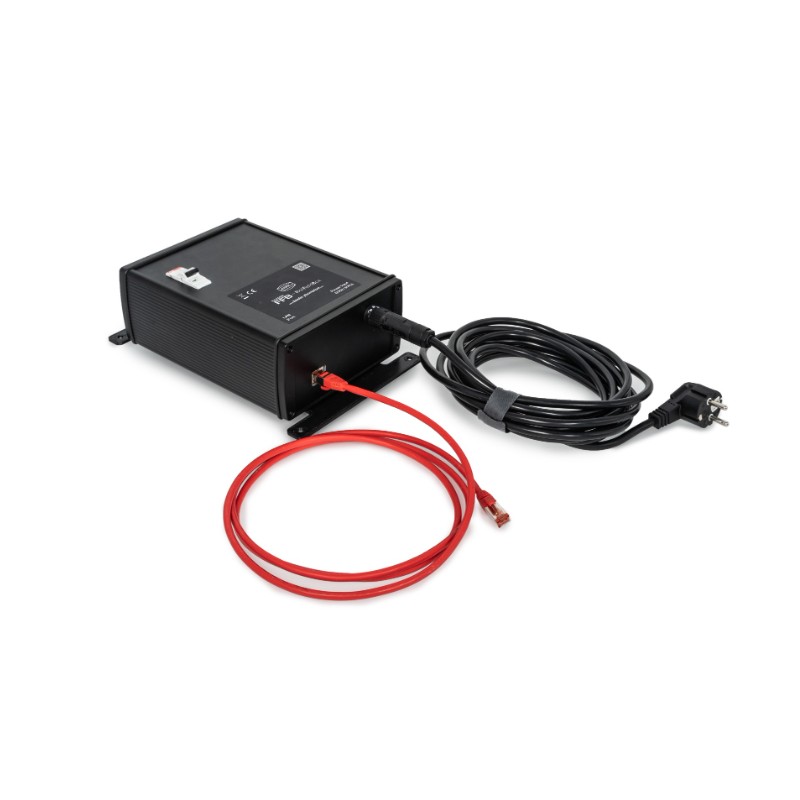

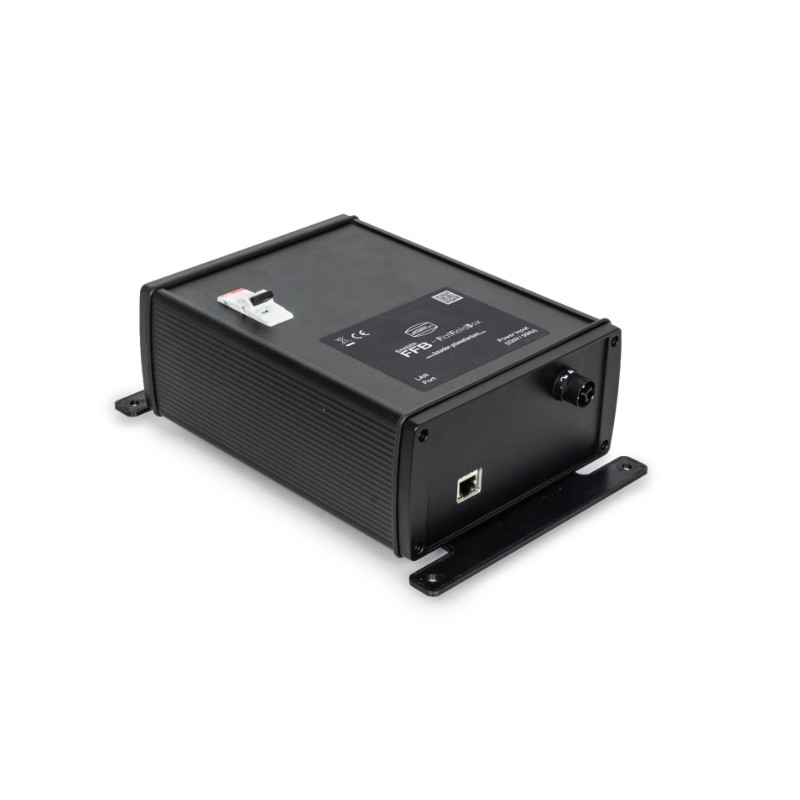

The side FlatPowerBox features a high-frequency flicker-free dimmer, adjustable from 1 ms to several seconds, and stores eight user presets accessible through any Web browser.

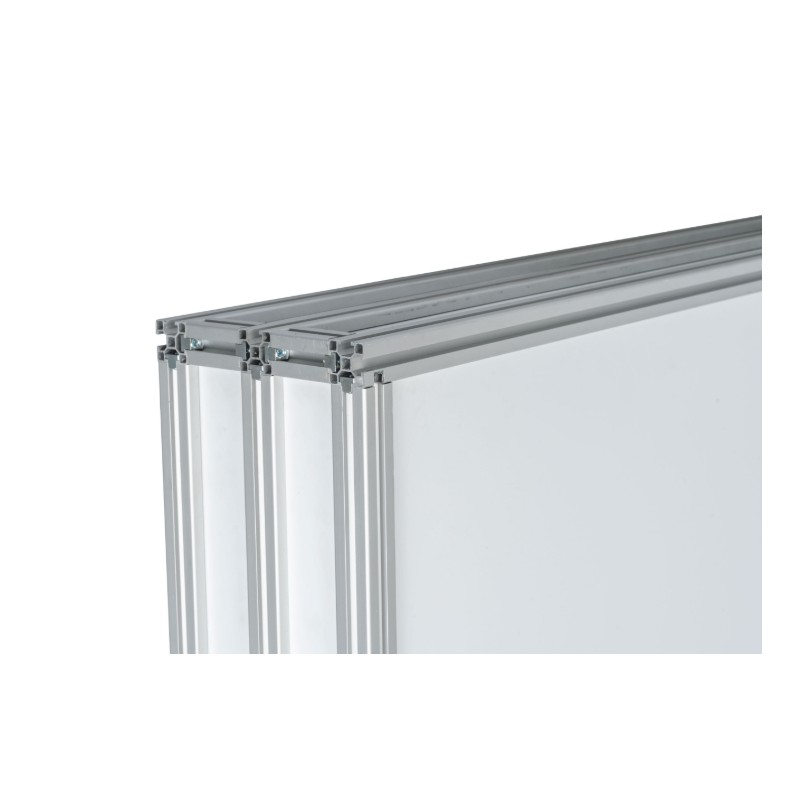

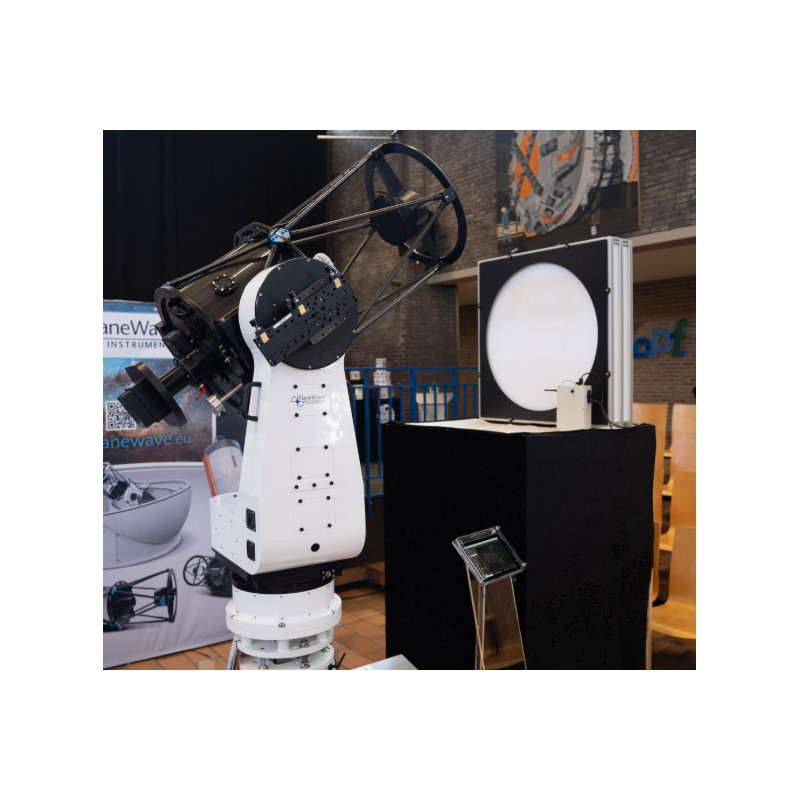

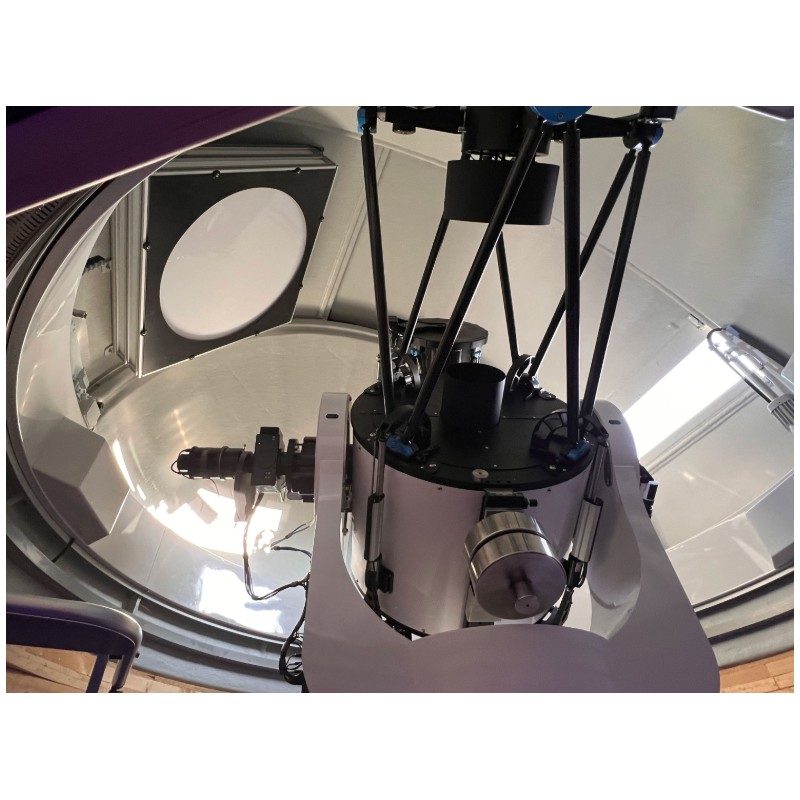

A rigid Minitech 30 mm aluminium frame supports wall, tabletop or rotating-dome mounting. Dimmed operation lets the panel double as WRGB observatory lighting. A breaker-protected 12 V supply ensures safe remote use.

Key features

• Full-area aperture, no central dark spot
• Numerous WRGB LEDs for highly uniform light
• Independently dimmable colour channels for perfectly balanced flats
• Flicker-free driver, 1 ms – multi-second exposures
• Infinity-mirror multi-layer design, minimal edge gradient
• Mount options : wall, bench, rotating dome
• Also functions as adjustable WRGB observatory lamp

Package contents

• Flatfield Box 450 with integrated FlatPowerBox
• 12 V LED power supply with circuit breaker
• Web control access including eight presets

Specifications

• Clear aperture : 450 mm
• External size : 542 x 542 x 200 mm
• Max telescope fixed : 400 mm (16")
• Max telescope dome : 350 mm (14")
• Exposure range : 1 ms – several s, flicker-free
• Presets : 8 via Web UI
• Power : 12 V DC, breaker-protected
• Frame : Minitech 30 mm aluminium profile
• Compatible systems : VIS, LRGB, narrowband, dual-band
• SKU : 2205145
• EAN : 4047825058843
• Manufacturer : Baader Planetarium
• Net weight : ap. 11 kg
