ZWO ASI294MM Pro

Cooled 4/3 monochrome CMOS camera with 11.7 MP back-illuminated sensor and 256 MB DDR3 buffer.

Quantity
Available on request

Rupture de stock

ZWO ASI294MM Pro

DESCRIPTION

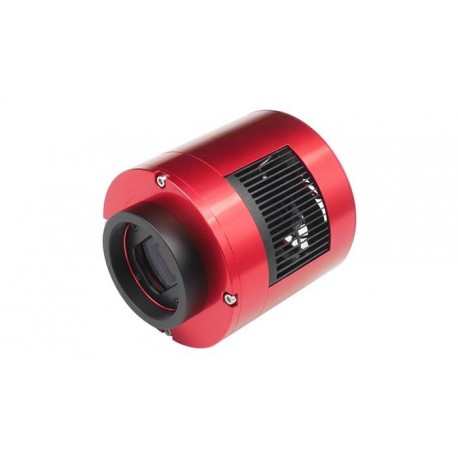

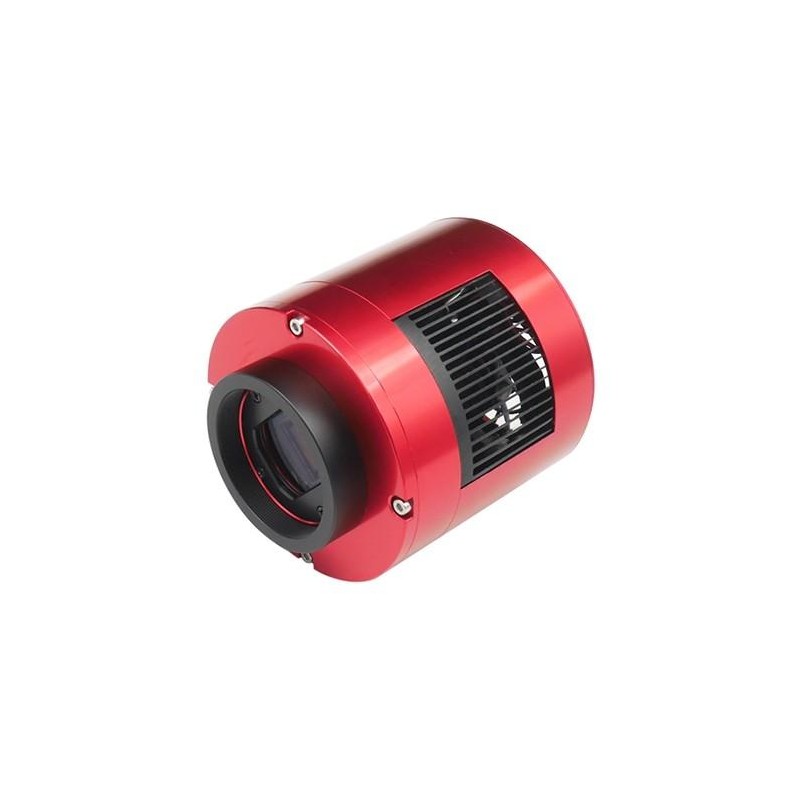

The ZWO ASI294MM Pro is a cooled monochrome camera equipped with a Sony IMX294 back-illuminated 4/3 CMOS sensor offering 11.7 million pixels. It is suitable for both wide-field deep sky astrophotography and planetary imaging. Its 90% quantum efficiency and ultra-low read noise make it an excellent performer. The dual-stage TEC cooling system allows temperature reduction up to -40°C below ambient. Its 256 MB DDR3 buffer ensures smooth data transfer even via USB 2.0. Delivered with several mechanical adapters, a 2-meter USB 3.0 cable, and a padded carrying case. Requires a 12V power supply for cooling.

FICHE TECHNIQUE

  • Sensor: Sony IMX294 monochrome 4/3 CMOS

  • Resolution: 4144 x 2822 pixels (11.7 MP)

  • Pixel size: 4.63 µm x 4.63 µm

  • Sensor size: 19.2 x 13 mm (diagonal 23.2 mm)

  • Exposure range: 0.000032 s to 33 min

  • Max frame rate: up to 179 fps at 320 x 240

  • A/D conversion: 14-bit

  • Cooling: dual-stage TEC (-40°C below ambient)

  • BackFocus: 6.5 mm

  • Buffer: 256 MB DDR3

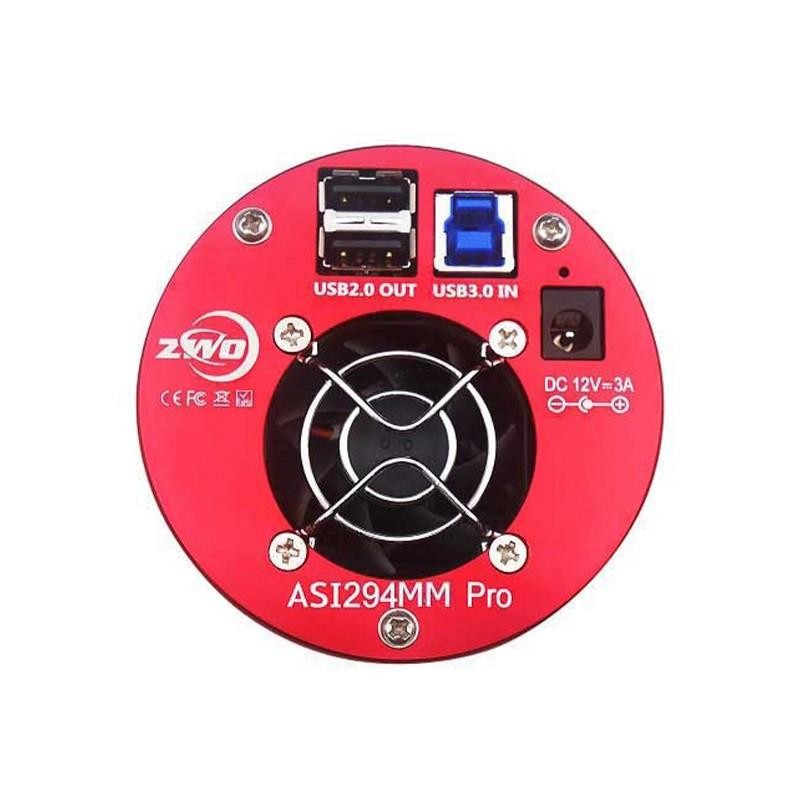

  • Connections: USB 3.0 / 2.0, ASCOM compatible

  • Thread: T2 (M42 x 0.75)

  • Adapters included: 2" / 1.25" / M48

  • Software: Prism 8, FireCapture, SharpCap, OaCapture, ASCOM

  • Power: 12V – 2A or 5A (not included)

  • Dimensions: 78 mm diameter, 86 mm width

  • Weight: 410 g

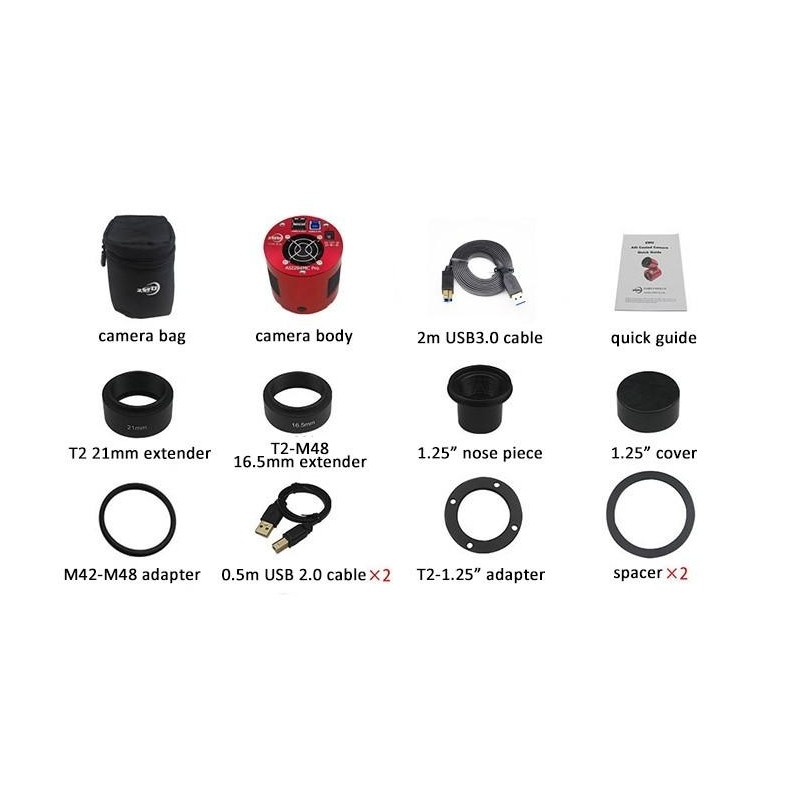

  • Included items: USB 3.0 cable (2 m), extension rings, padded bag

ASI 294MM Pro Mono

Specific References

UPC
060746792862
