Tecnosky 80/480 F6 Apo SLD FPL55 OWL optics refractor

Tecnosky 80/480 F6 Apo SLD FPL55 OWL optics refractor

DESCRIPTION
This apochromatic refractor from Tecnosky's OWL optics series is built around a triplet design using a central synthetic fluorite lens (Ohara FPL55), with FMC anti-reflective coatings and blackened lens edges. It is extremely compact (385 mm with retracted dew shield) and lightweight (3.9 kg), making it perfectly suited for both observing and astrophotography.

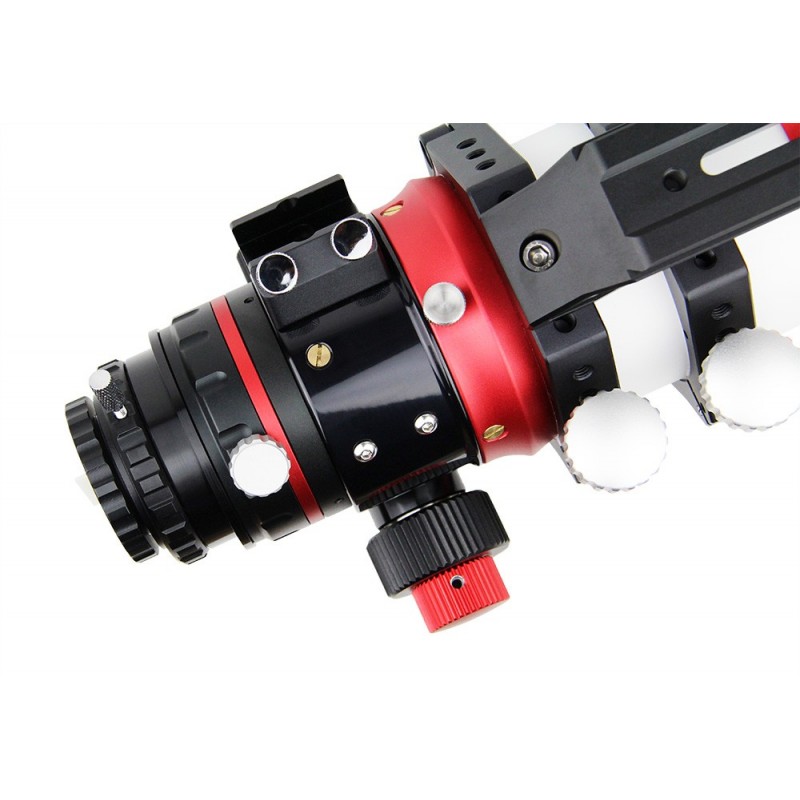

The CNC-machined aluminum tube includes internal baffles and a retractable dew shield. The new 2.5" precision rack-and-pinion focuser is rotatable, features a 1:10 micro-focus knob, and includes a built-in field rotator. Both the 2" and 1.25" adapters feature self-centering Quick-Lock clamps.

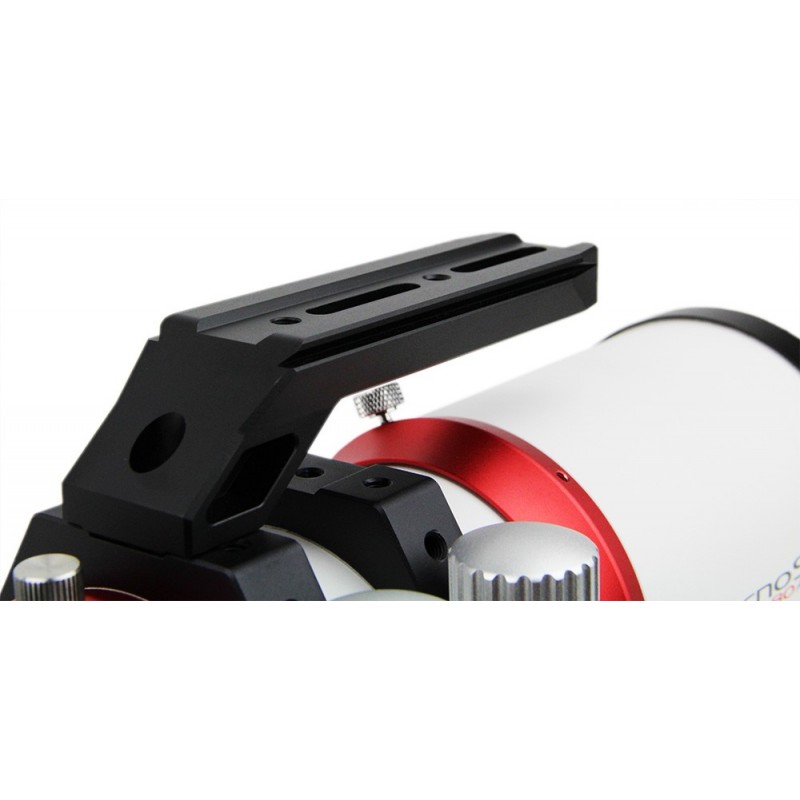

The newly designed raised tube rings allow use of long Vixen or Losmandy dovetails to balance even with heavy cameras. A versatile handle with integrated Vixen dovetail and multiple holes and slots is mounted on top.

Each telescope includes an individual optical certificate with a minimum Strehl ratio of 0.95. Combined with the 0.8x Tecnosky reducer, it becomes an f/4.8 astrograph. Also compatible with 1x and 0.8x full-frame flatteners.

Included accessories: optical tube, CNC rings with multifunction handle, padded hard case.

FICHE TECHNIQUE

• Type: air-spaced apochromatic triplet refractor

• Glass: synthetic fluorite Ohara FPL55 (center lens)

• Focal length: 480 mm

• Aperture: 80 mm

• F-ratio: f/6

• Coatings: FMC on all surfaces

• Certification: Strehl ≥ 0.95 (interferometric)

• Length: 385 mm (dew shield retracted)

• Weight: 3.9 kg

• Dew shield: retractable with locking knob

• Focuser: 2.5" rack-and-pinion, rotatable, 1:10 micro-focus

• Clamping: self-centering Quick-Lock 2"/1.25"

• Tube rings: raised CNC with integrated Vixen dovetail

• Handle: multifunction with Vixen dovetail, slotted and threaded

• Flattener compatibility: full-frame 0.8x and 1x

• Accessories: padded hard case included
