Explore Scientific ED APO 127mm f/7.5 FCD-1 Alu with 2" Rack & Pinion Focuser

Explore Scientific ED APO 127mm f/7.5 FCD-1 Alu with 2" Rack & Pinion Focuser

Description

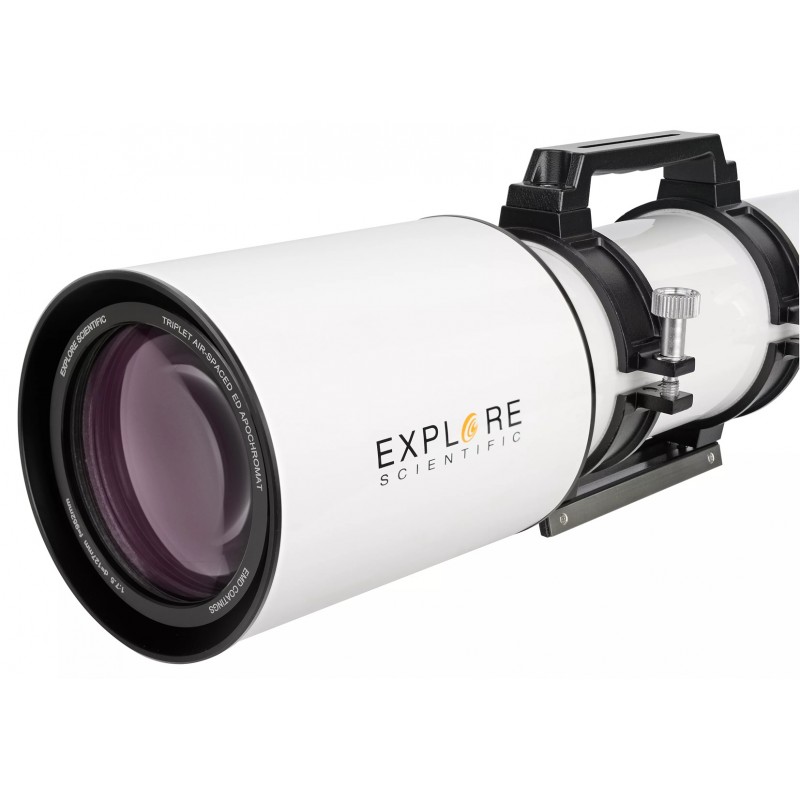

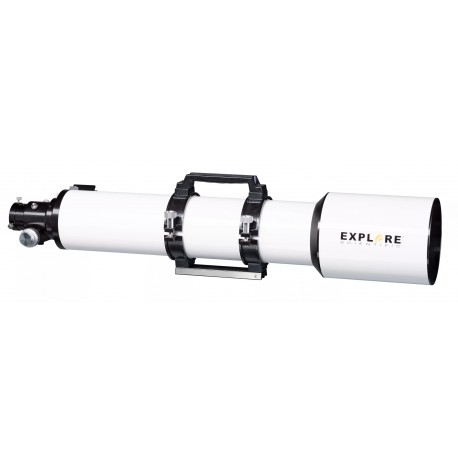

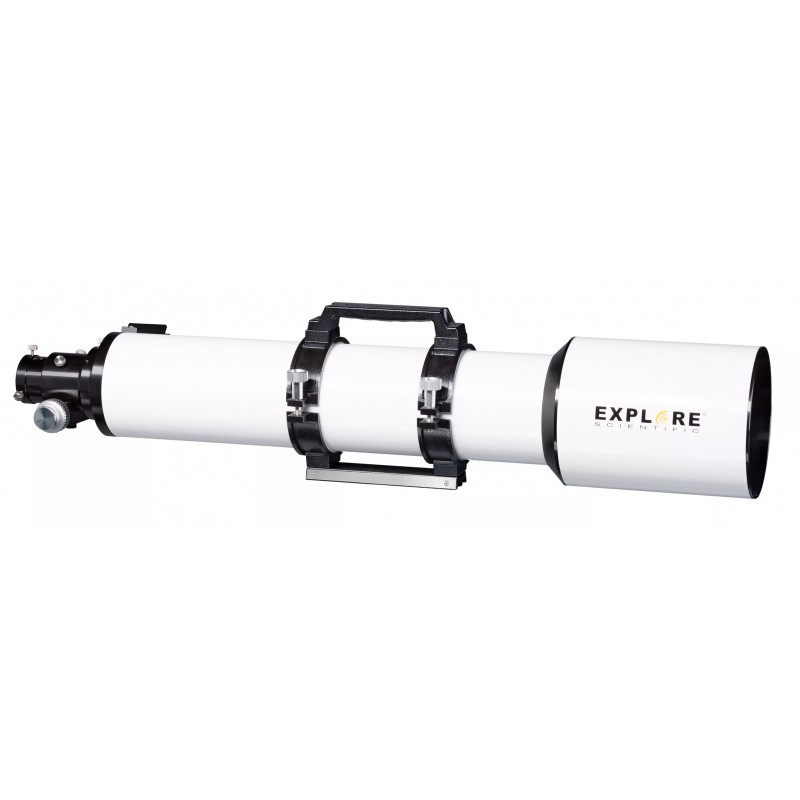

The Explore Scientific ED APO 127mm f/7.5 is a high-performance triplet refractor designed for demanding amateur astronomers. Its air-spaced triplet lens system includes a central HOYA FCD-1 ED glass element, delivering superior chromatic correction and contrast compared to standard ED doublets typically found in this price range.

With a theoretical polystrehl rating exceeding 0.9, the optical performance ensures sharp, color-free images with high contrast across the entire field. Whether you observe planets, the Moon, or deep-sky objects, this instrument delivers excellent results. The f/7.5 focal ratio offers a balanced compromise between resolution, field size, and exposure times for imaging.

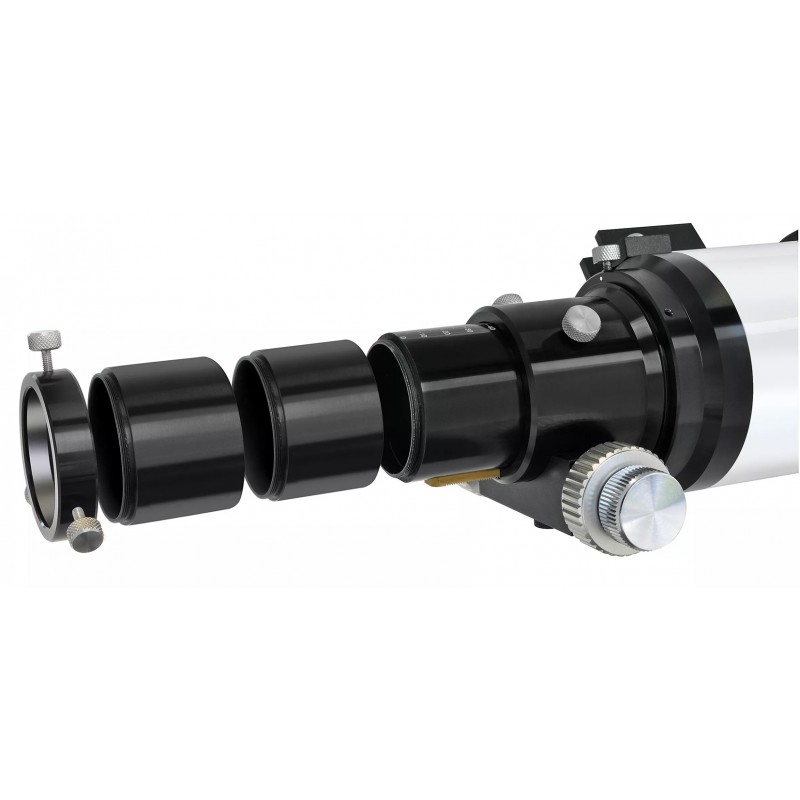

The tube is made of durable aluminum and fitted with a 2-inch rack and pinion focuser with a 10:1 fine adjustment. This provides precise, stable focusing even when using heavy cameras or accessories. A field flattener is available separately to provide a flat field across full-frame sensors.

Mechanically, the telescope features robust tube rings with a Vixen-type dovetail rail, a universal finder shoe, a 2" star diagonal with 99% reflectivity, a dust cap set, and a handle designed to mount smartphones or cameras.

This model belongs to Explore Scientific’s Essential Line, which combines quality optics and solid build with excellent value for money. It’s ideal for advanced users who want a powerful and versatile apochromat at a moderate price point.

Technical specifications

• Optical type: Air-spaced triplet apochromatic refractor

• ED glass type: HOYA FCD-1

• Aperture: 127 mm

• Focal length: 952 mm

• Focal ratio: f/7.5

• Theoretical resolving power: 1.0 arcsecond

• Polystrehl value: > 0.9

• Optical coatings: EMD (Enhanced Multilayer Deposition)

• Focuser: 2" rack & pinion with 10:1 fine focus

• Back focus distance: 165 mm

• Field of view at 24x36 mm sensor: 1.8° x 1.2°

• Tube material: Aluminum

• Tube length: 952 mm

• Optical tube weight (with accessories): 7.7 kg

Included accessories

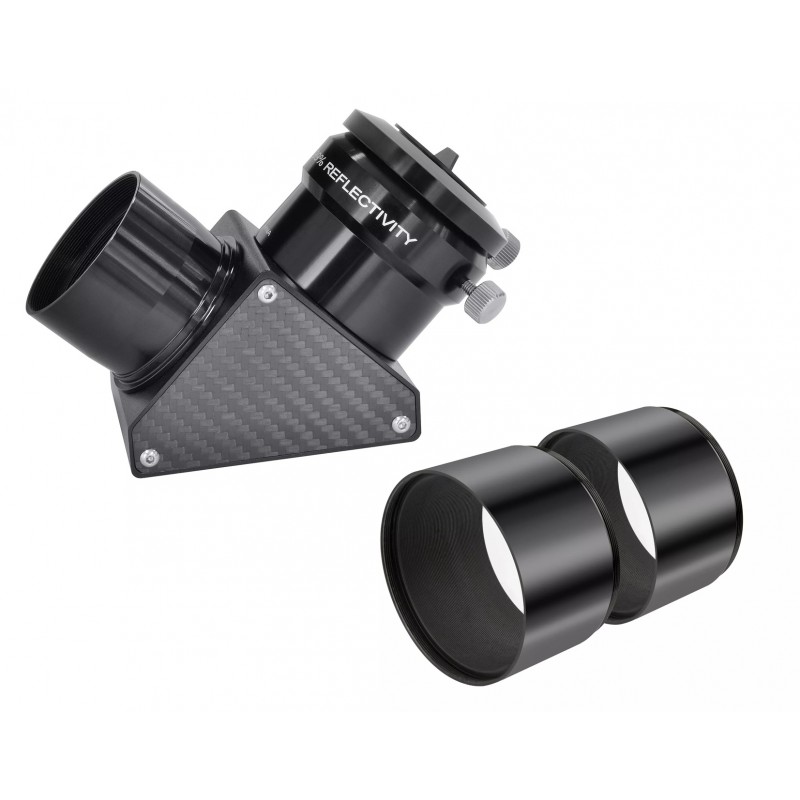

• 2" star diagonal with 99% reflectivity

• Mounting rings with Vixen/EQ5-type dovetail

• Carrying handle with camera or smartphone attachment point

• Dust caps for objective and focuser

• Universal finder shoe

Additional information

• Recommended for: planetary observation, lunar viewing, deep-sky objects, astrophotography

• Target users: advanced amateurs and astrophotographers

• Manufacturer’s warranty: 10 years

• Compatible with EQ5, HEQ5, EXOS-II or similar mounts

• Optional field flattener available
