Explore Scientific ED APO 102mm f/7 FCD-1 Alu 2" R&P Focuser
102 mm f/7 ED apochromatic triplet refractor with Hoya FCD-1 glass, aluminium tube, and 2" rack & pinion focuser with 1:10 reduction. For versatile imaging and observation.
Explore Scientific ED APO 102mm f/7 FCD-1 Alu 2" R&P Focuser
Description:

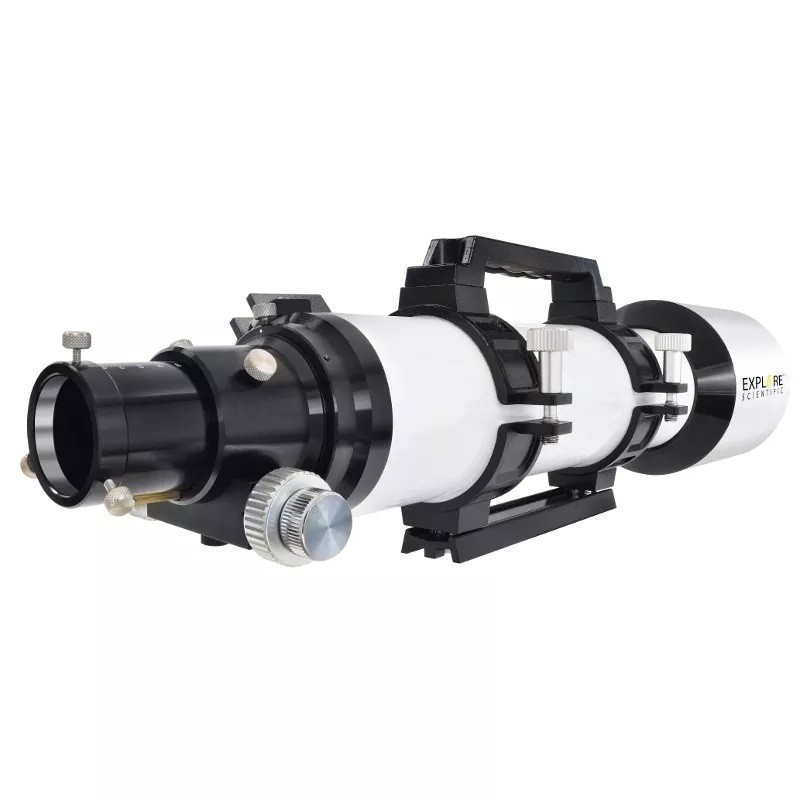

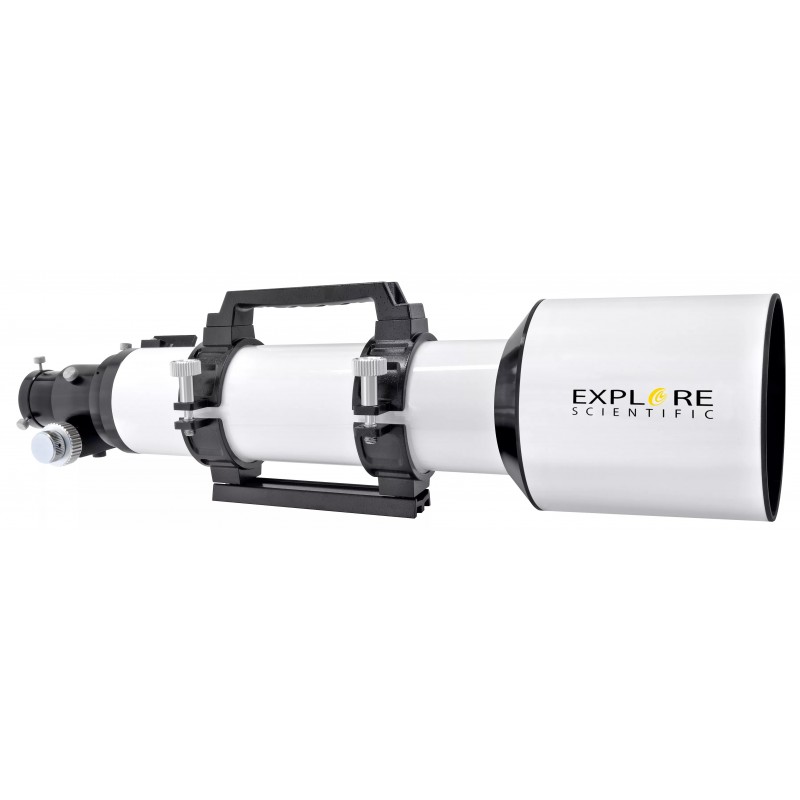

The Explore Scientific ED APO 102mm f/7 FCD-1 is a high-quality apochromatic refractor designed for both astrophotography and visual use. Featuring Hoya FCD-1 ED glass, it delivers well-corrected, high-contrast images far superior to standard achromatic or doublet systems.
The 2" rack and pinion focuser with 1:10 micro-reduction ensures precise focusing, even with heavy accessories. The aluminium tube weighs 4.9 kg and includes a Vixen-style dovetail bar, a 2" mirror diagonal with 99% reflectivity, a 2" to 1.25" adapter, and a mounting handle suitable for camera support.
With its 714 mm focal length and f/7 ratio, this refractor offers a balance between resolution and field of view, making it suitable for deep-sky imaging, as well as high-quality lunar and planetary observation.
Technical specifications:
Optical design: ED apochromatic triplet refractor
Glass: Hoya FCD-1
Aperture: 102 mm
Focal length: 714 mm
F-ratio: f/7
Resolution: 1.3"
Max recommended magnification: 200x
Optical coating: EMD multilayer
Focuser: 2" rack & pinion with 1:10 reduction
Tube material: aluminium
Tube length: 630 mm
Width: 154 mm
Height: 112 mm
Tube diameter: 104 mm
Weight (tube only): 4.9 kg
Dovetail: Vixen-style

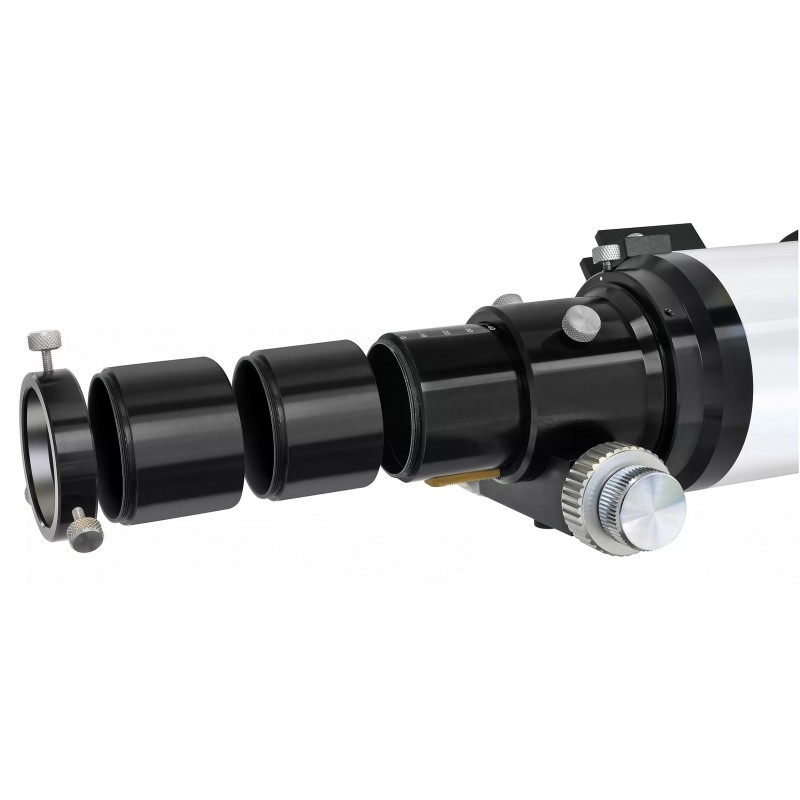

Included adapters: 2" to 1.25"

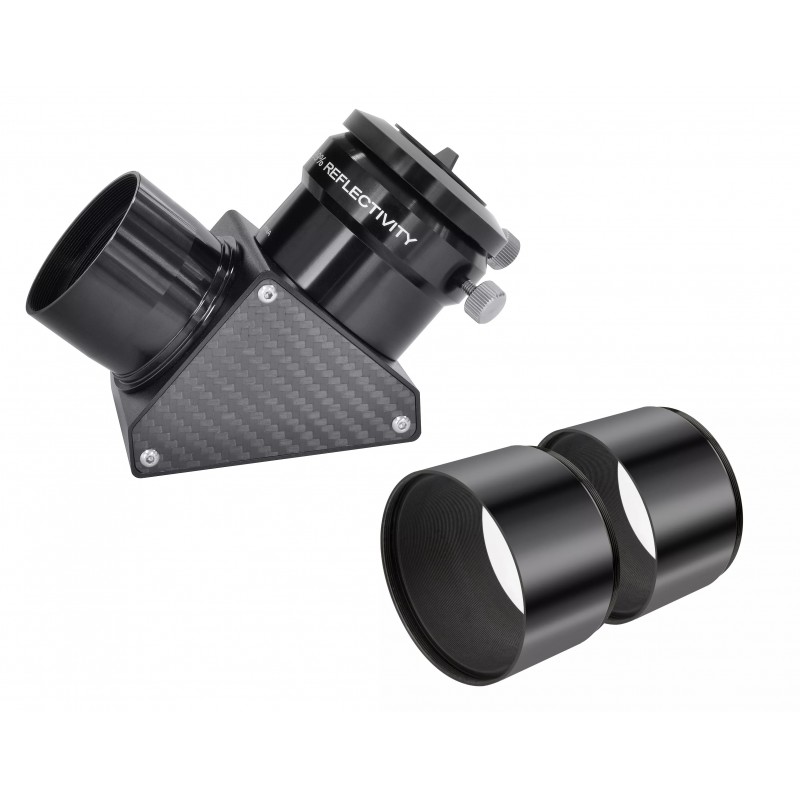

Diagonal: 2" mirror, 99% reflectivity
Handle with camera slot: included
Dust caps: included front and rear
Backfocus: not specified
Rear thread: not specified
Additional information:
Delivered with OTA, 2" diagonal, 2" to 1.25" adapter, dust caps, dovetail bar, and handle with camera slot. Manufacturer warranty: 10 years under Explore Scientific conditions.
