Explore Scientific ED APO 80mm f/6 FCD-100 Alu HEX
80 mm f/6 ED triplet refractor with Hoya FCD-100 glass, aluminium tube and 2.5" HEX focuser. Designed for high-precision astrophotography with modern sensors.
Explore Scientific ED APO 80mm f/6 FCD-100 Alu HEX
Description:

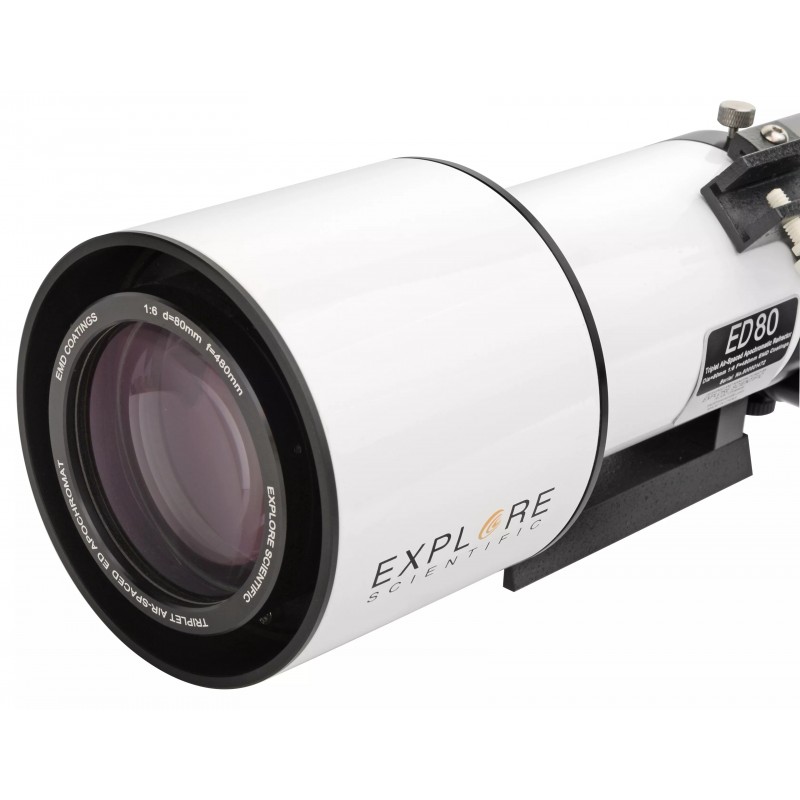

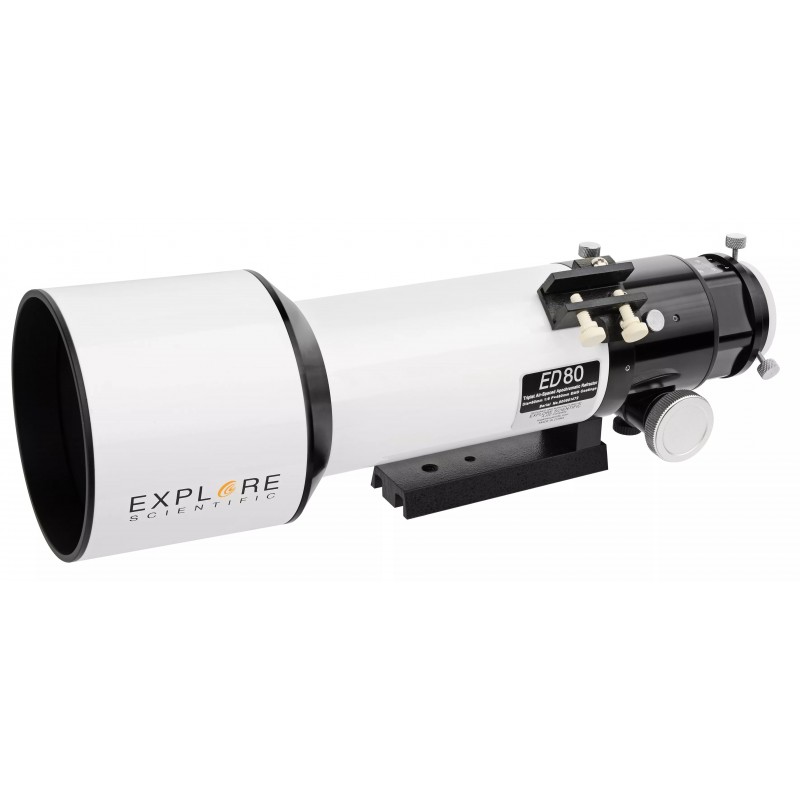

The Explore Scientific ED APO 80mm f/6 FCD-100 is a premium triplet apochromatic refractor for demanding astrophotographers and visual observers. It features high-grade Hoya FCD-100 ED glass for enhanced chromatic correction and excellent clarity, especially suited to modern sensors that are sensitive to blue light.
The aluminium tube combines mechanical strength with low weight (2.6 kg), making it ideal for transport and lightweight mounts. Its 2.5" HEXAFOC focuser with 1:10 reduction ensures smooth and precise focusing, even with heavy imaging setups. The large internal tube and focuser diameter prevent vignetting when used with full-frame sensors.

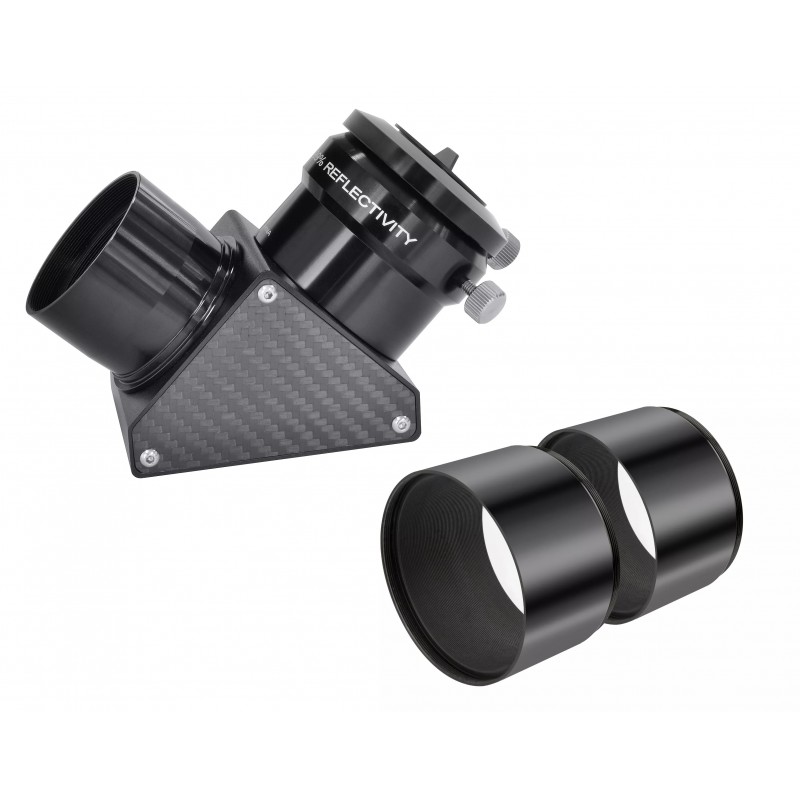

The telescope includes a 2" mirror diagonal (99% reflectivity), a 2" to 1.25" adapter, and dust caps. A finder bracket is provided, but no finder optics are included. It’s ideal for deep-sky imaging, high-resolution lunar and planetary observation.
Technical specifications:
Optical design: ED apochromatic triplet refractor
Glass: Hoya FCD-100
Aperture: 80 mm
Focal length: 480 mm
F-ratio: f/6
Angular resolution: 1.73"
Max recommended magnification: 160x
Optical coating: EMD multilayer
Focuser: 2.5" HEXAFOC with 1:10 reduction
Tube material: aluminium
Tube length: 330 mm
Height: 112 mm
Width: 130 mm
Tube diameter: 90 mm
Weight (tube only): 2.6 kg
Dovetail: Vixen-style
Included adapters: 2" to 1.25"
Diagonal: 2" mirror, 99% reflectivity
Dust caps: included front and rear
Backfocus: not specified
Rear thread: not specified
Additional information:
Delivered with OTA, Vixen dovetail bar, 2" diagonal mirror, 2" to 1.25" adapter, finder bracket (no optics). Manufacturer warranty: 10 years under Explore Scientific conditions.
