Tecnosky 90/540 F6 APO Refractor Triplet FPL55 OWL Series (Ref. TKASLD90O)
1,299.00
Tax included
Usually available from the supplier. Please contact us for more information.
Available payment methods
i
PayPal
Secure payment. Additional fees may apply.
PayPal
i
Bank transfer
Pay comfortably from home. After confirming your order, you will receive all the information required to make a bank transfer.
Bank transfer
i
Pay in store
Pay directly in our shop in Givisiez, in cash or by card. Your order can be collected after confirmation.
Pay in store
i
PimPay
A payment system with no fees. Simply top up your PimPay account before completing your purchase. No fees are charged to either the buyer or the merchant.
PimPay
i
HeyLight
Credit for up to 12 months or payment in 3 instalments. For payment in 3 instalments, the displayed price includes a 3.74% surcharge applied by Astromanie to cover the service fees associated with this payment method.
HeyLight
Tecnosky 90/540 F6 APO Refractor Triplet FPL55 OWL Series (Ref. TKASLD90O)
High-performance triplet refractor with Ohara FPL55 optics, 2.5" rack-and-pinion focuser, retractable dew shield and interferometric certificate. Ideal for imaging.
Tecnosky 90/540 F6 APO Refractor Triplet FPL55 OWL Series (Ref. TKASLD90O)
Description:

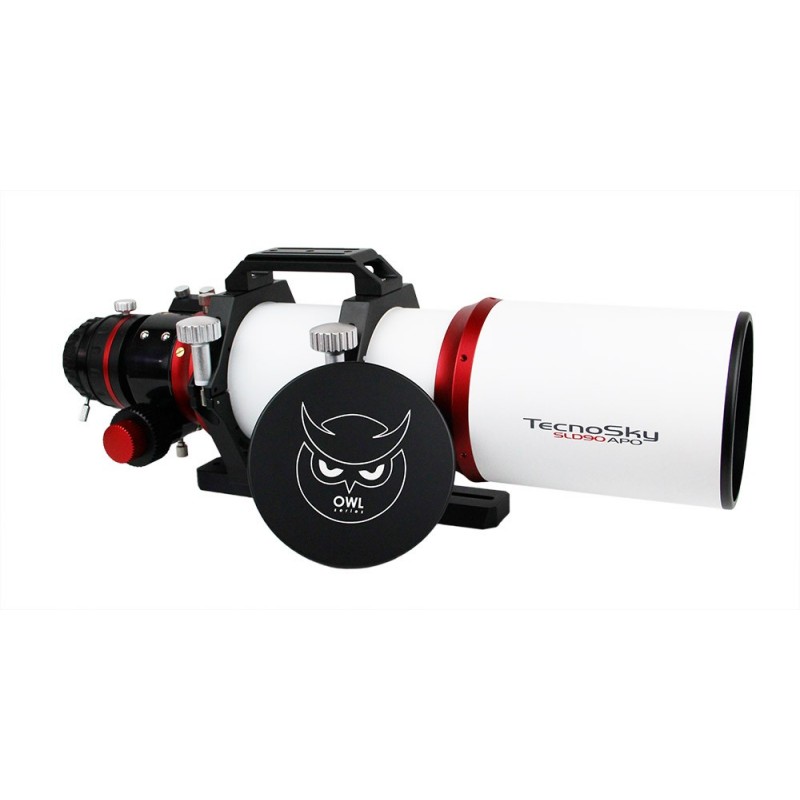

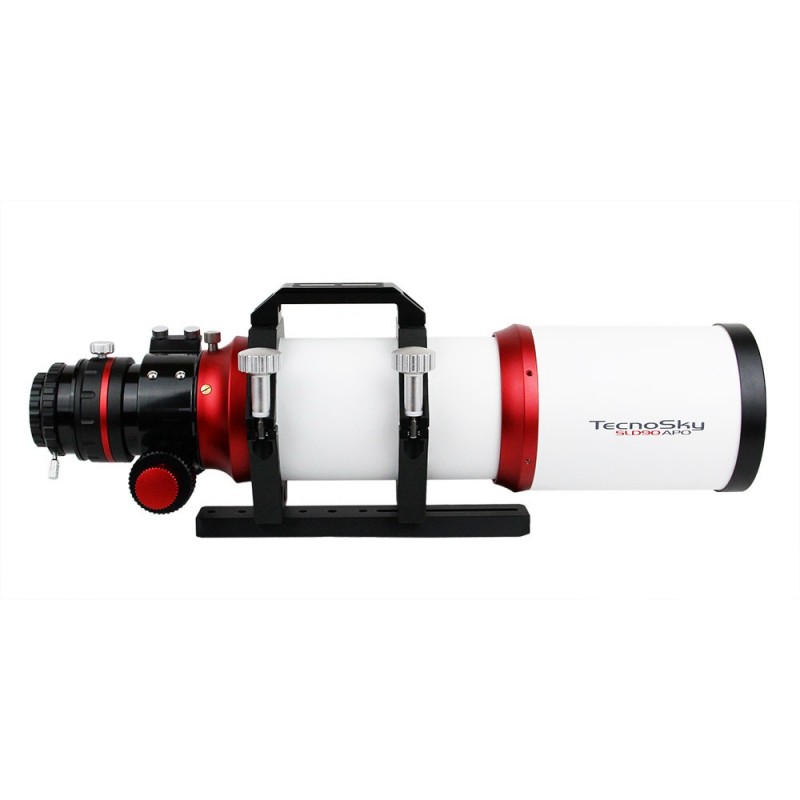

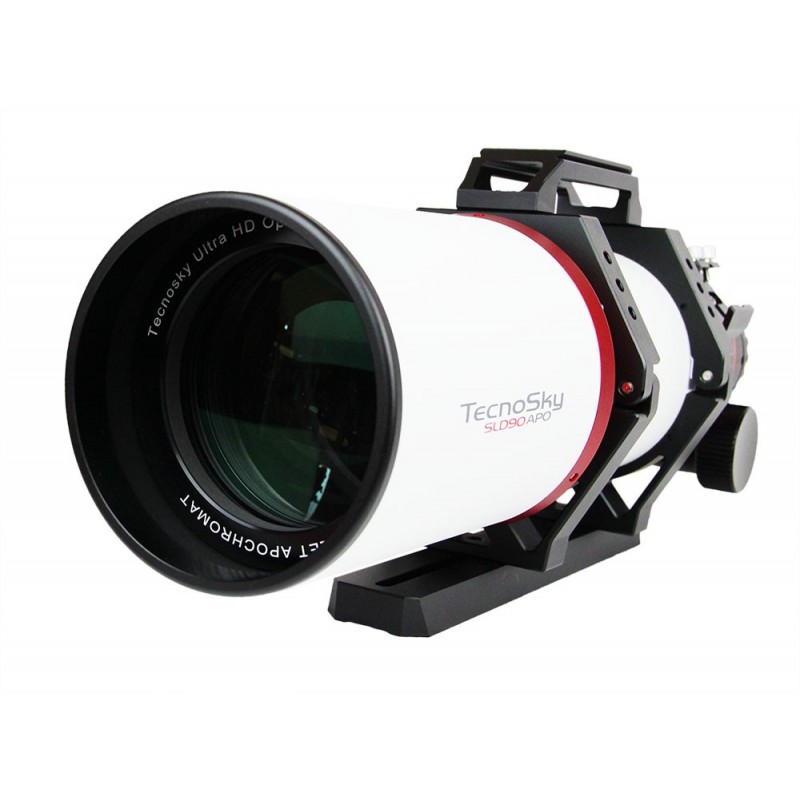

The Tecnosky 90/540 F6 OWL is a premium apochromatic refractor built around a triplet lens made of Ohara FPL55 glass, combined with high-index elements and FMC anti-reflective coatings. Each scope comes with an interferometric certificate showing a Strehl ratio of at least 0.95, confirming its exceptional optical quality.
The black-anodized CNC-machined aluminum tube includes internal baffles for stray light suppression. The retractable dew shield locks in place, and the mechanics are designed for both visual and astrophotographic use. The 2.5" rack-and-pinion focuser offers 1:10 fine focus and includes a field rotator and both 2"–1.25" and 2"–31.8 mm adapters. A graduated scale is printed on the focuser tube for repeatable setup.
The CNC rings with handle and Vixen-style dovetail bar make mounting easy. A custom hard case is included.
Technical specifications:
Objective: air-spaced triplet, central lens made of Ohara FPL55
Coatings: FMC on all optical surfaces
Certified Strehl ratio: ≥ 0.95 (interferometric test included)
Focal length: 540 mm
Aperture: 90 mm
F-ratio: F/6

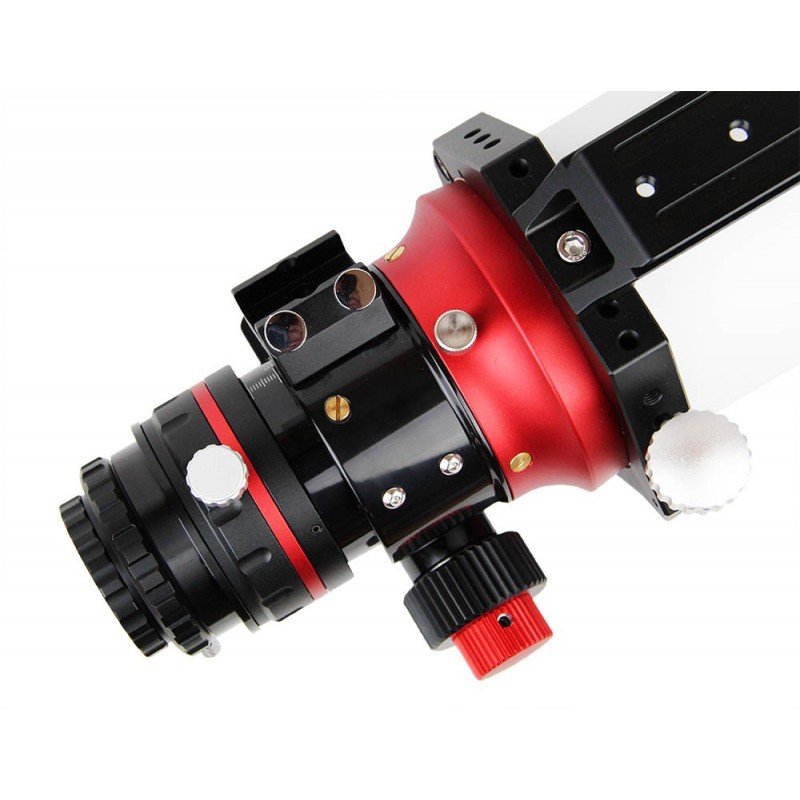

Focuser: 2.5" rack and pinion with field rotator, 1:10 micrometric knob
Adapters: 2" to 1.25" and 2" to 31.8 mm

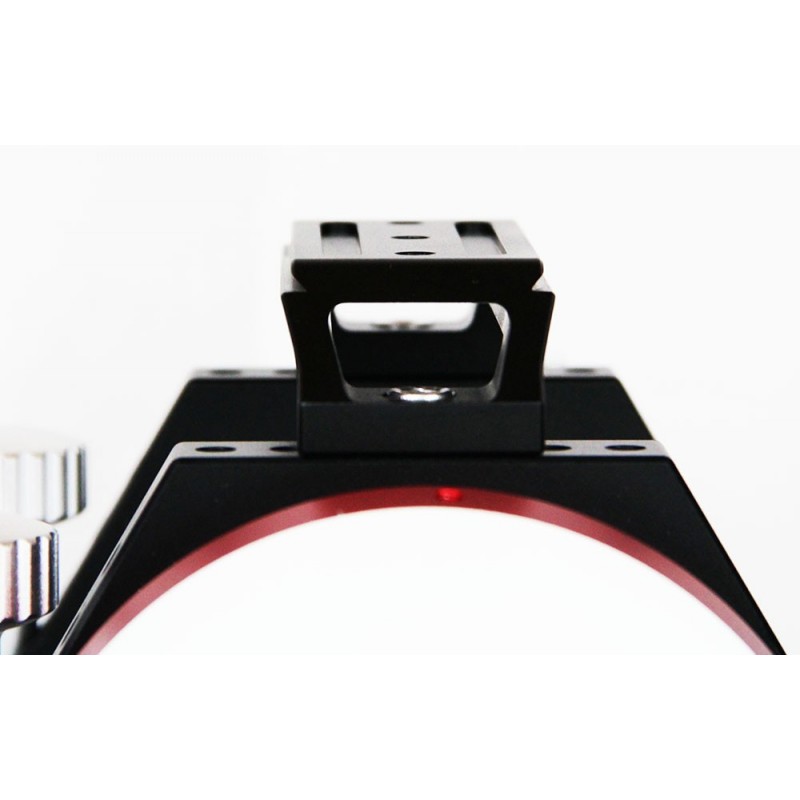

CNC rings with Vixen-type dovetail bar and carrying handle

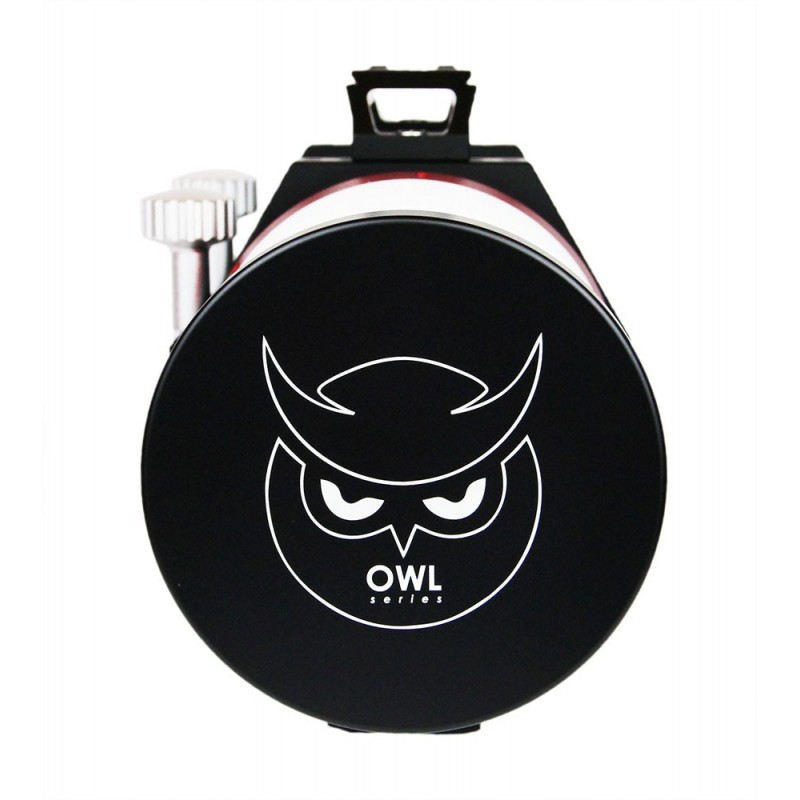

Retractable dew shield with lock
Retracted length: 480 mm, extended: 520 mm
Weight: 4890 g (with rings and dovetail)
Supplied with rigid padded hard case
Additional information:
The scope is compatible with full frame sensors at native F/6, and with the optional Tecnosky 0.8x reducer it becomes a fast F/4.8 astrograph. A versatile instrument combining mechanical quality and high-end optics.
