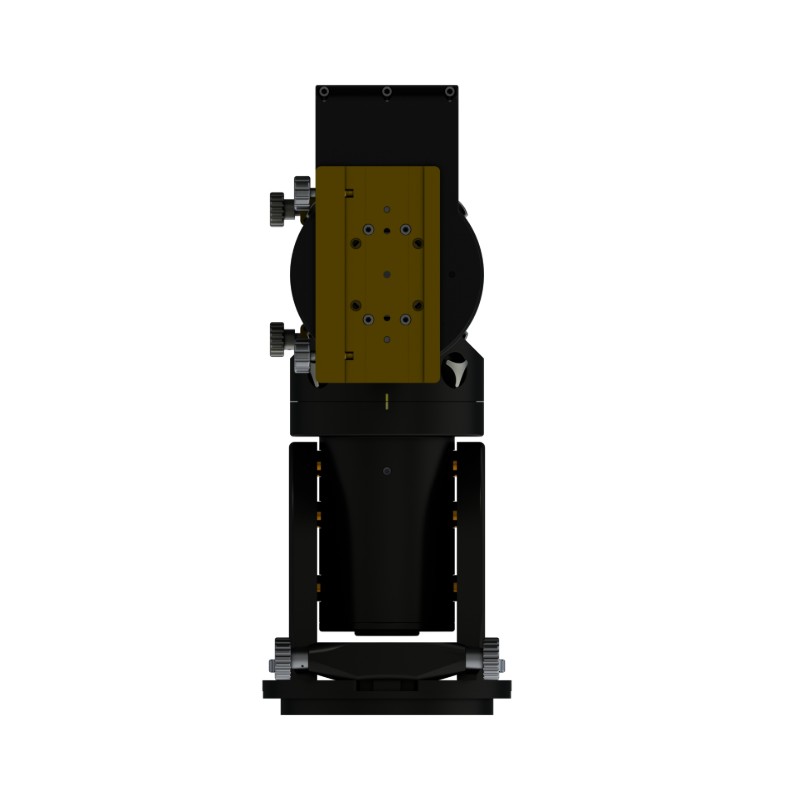

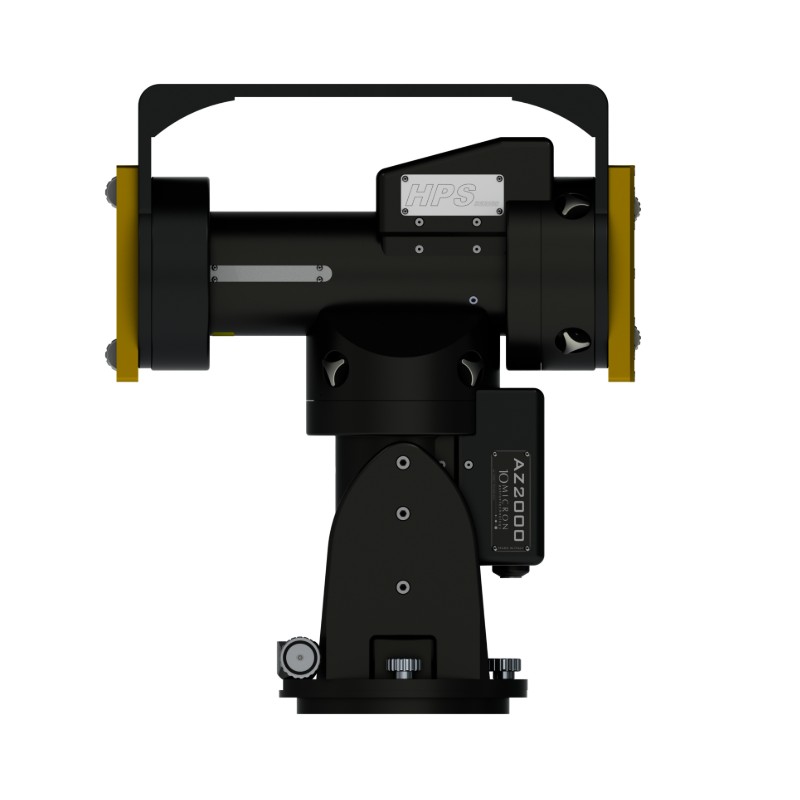

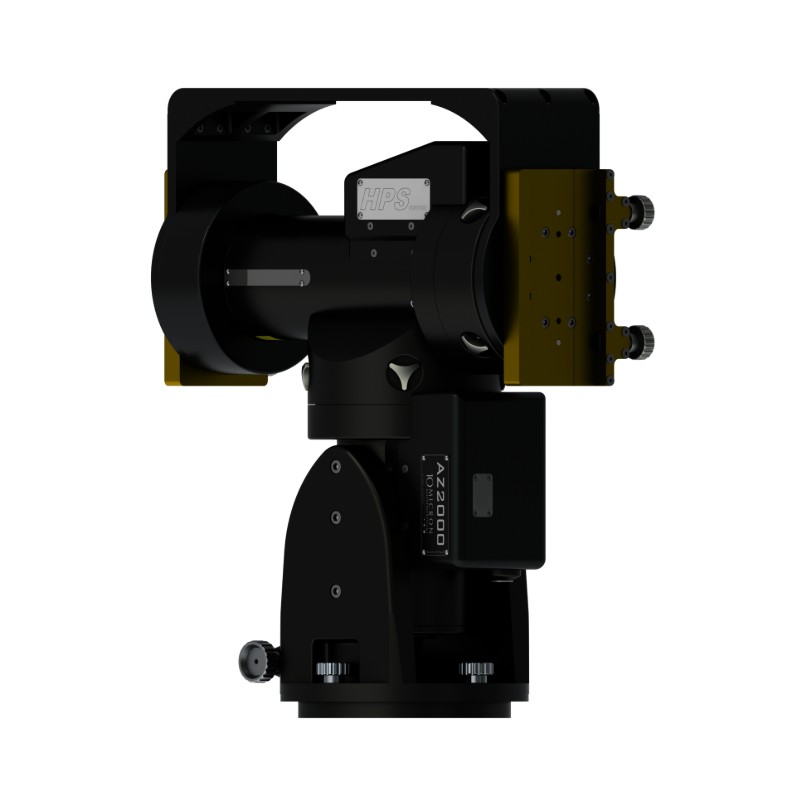

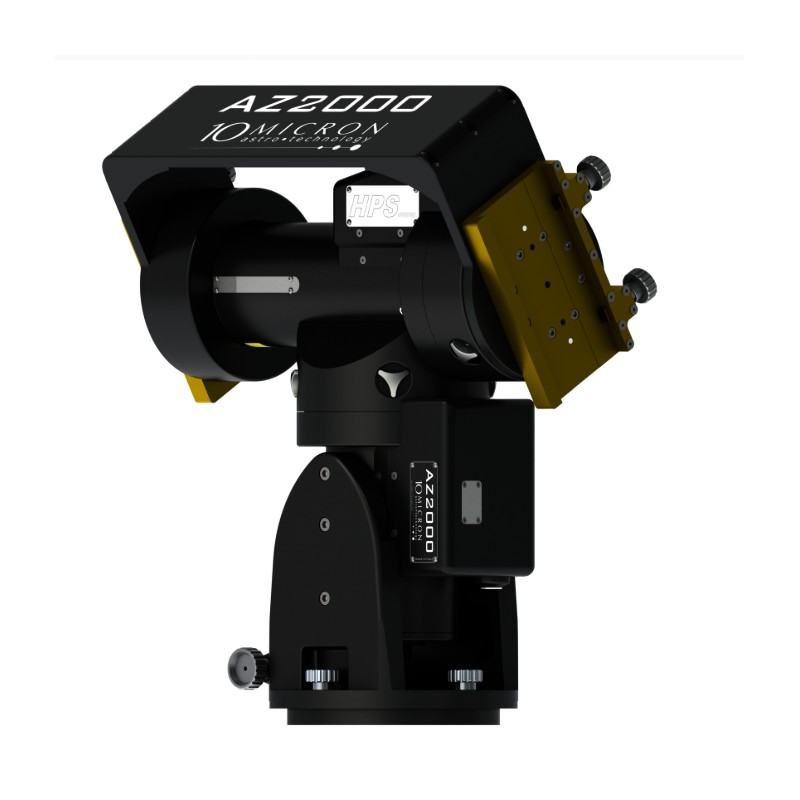

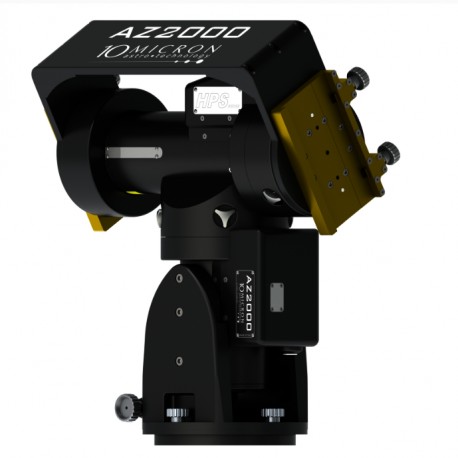

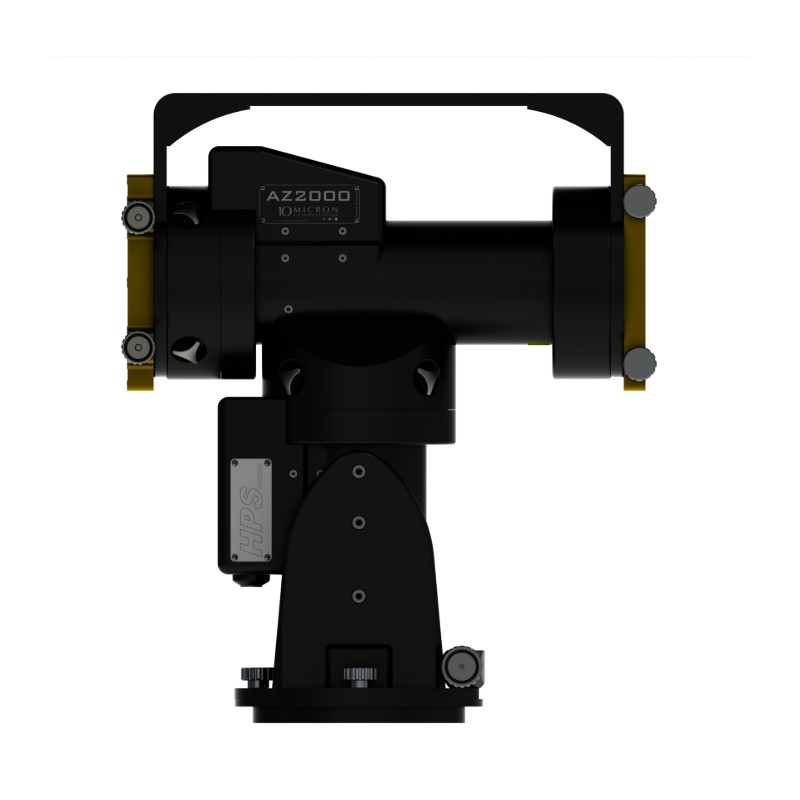

10Micron AZ 2000 HPS Combi Mount with DT Set
AZ 2000 HPS Combi with DT kit, absolute encoders and Linux control. Dual-telescope support (50 + 35 kg), internal cabling, Wi-Fi ready. Rugged foam-lined carton. Power supply and counterweights not included.
10Micron AZ 2000 HPS Combi Mount with DT Set
Description
The AZ 2000 HPS Combi is the latest version of the AZ2000 series, based on GM2000 mechanics with altazimuth design. It includes an additional locking system for permanent installations, enhancing long-term stability. Users can convert it back into a portable split mount by removing the locking screws.
The mount retains identical specs and dimensions as the previous AZ2000 HPS model.
A versatile research-grade mount, it is suitable for satellite tracking, photometric/astrometric measurements, LiDaR applications, etc. As an alt-az mount, it requires a field derotator for astrophotography (we recommend PlaneWave IR90 or Optec Gemini).

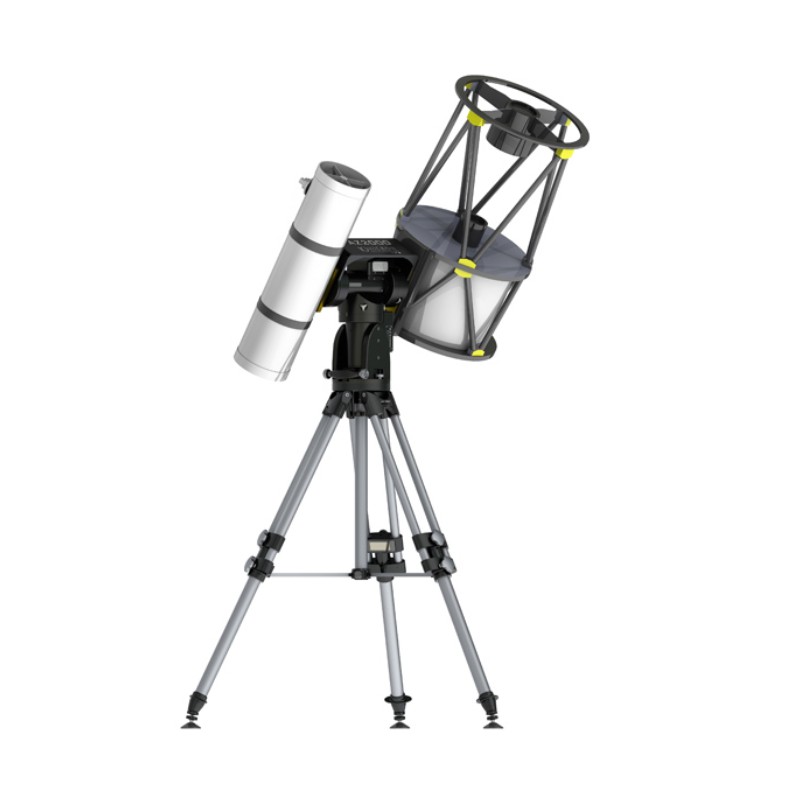

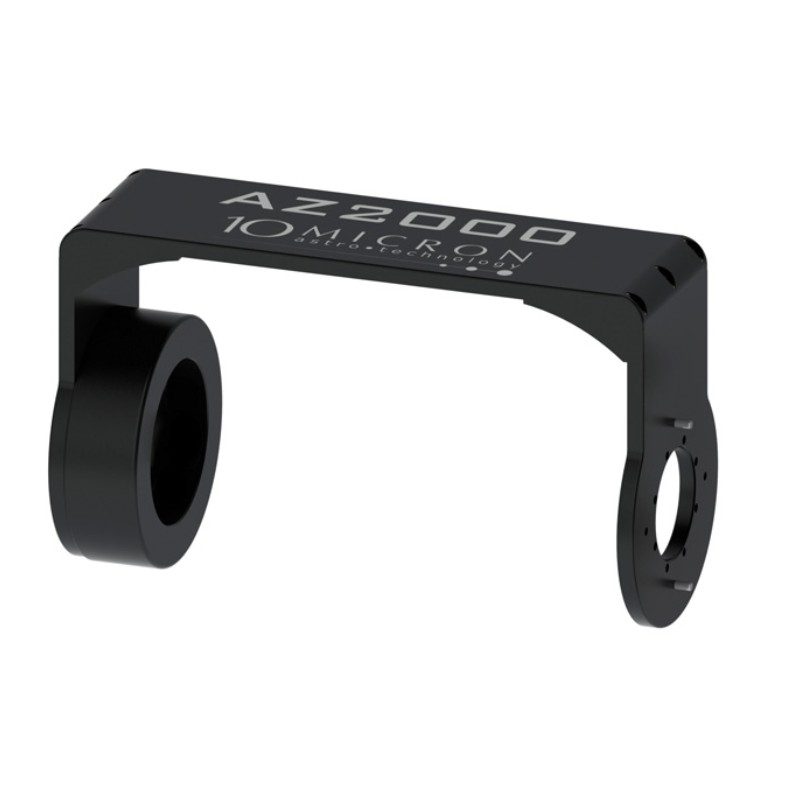

The standard version supports single-side optics with a short counterweight bar. A perfect counterbalance is not required—counterweights equaling 50 % of the payload are sufficient. This version includes the DT dual telescope upgrade kit (#1452905), compatible with GM2000 series dual plates such as Loduel and Maxidual, enabling up to four instruments (two per side). The DT set is CNC machined from high-strength aluminum alloy for superior rigidity.
Technical specifications:
• Name: AZ 2000 HPS
• Mount type: Altazimuth
• Weight: 30 kg
• Payload: 50 kg (single), 50 + 35 kg (DT configuration)
• Bearings: Preloaded tapered roller
• Worm wheels: 215 teeth (Ø 172 mm), B14 bronze
• Worm screw: Ø 24 mm, hardened and lapped
• Drive: Backlash-free timing belt, auto-compensated
• Motors: 2-axis brushless servos
• Power: 24 V DC
• Consumption: ~0.7 A tracking, ~3 A full speed, ~5 A peak
• Slew speed: 2°/s to 20°/s
• Pointing accuracy: < 20" (multi-star model)
• Tracking accuracy: < ±1" over 15 min (< 0.7" RMS)
• Software stops: ±150° AZ, ±95° ALT
• Mechanical stops: ±155° AZ, ±100° ALT
• Temperature (standard): −15 °C to +35 °C
• Optional range: −35 °C to +35 °C
• Storage: −40 °C to +50 °C
• Ports: RS-232, GPS (PS2), ST-4 autoguider, Ethernet
User interface:
• Heated graphic hand pad with 5 lines
• 2-/3-star alignment, up to 100 stars
• Model Maker auto alignment software
• Multiple models stored
• Flexure, orthogonality and refraction compensation
• Sidereal, solar, lunar tracking
• Time by GPS or manual input
• Configurable meridian flip and horizon limits
• Assisted balance, dome control via RS-232
• Multilingual interface
• Comet/asteroid filters
• Internet remote support
Additional information:
• Fully CNC machined, no cast parts
• Internal wiring
• Standalone operation without PC
• Remote control via RS-232 or Ethernet
• Firmware/orbit updates via RS-232 / Ethernet
• Compatible with proprietary ASCOM and Meade protocol
• Supplied with: AZ2000 HPS Combi mount, absolute encoders, V3 control box (Linux), heated keypad, cables, short counterweight bar, DT upgrade kit
• Counterweights and power supply not included
• Packaging: rugged carton box with foam
• Only certified 10Micron power supplies are allowed. Using third-party units voids warranty.
10Micron AZ 2000 HPS Combi DT
Specific References
- UPC
- 1452902
