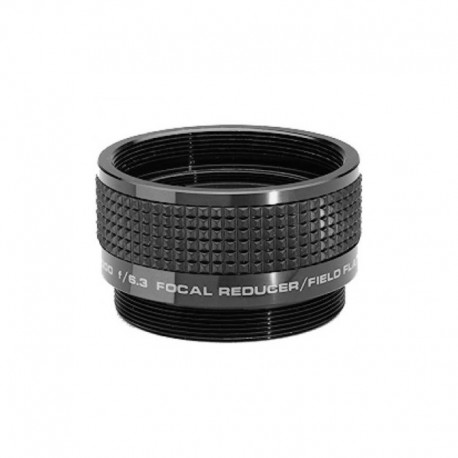

Meade f/6.3 Focal Reducer / Field Flattener

Réduct. focale Meade (MD-07545)

New product

Meade f/6.3 Focal Reducer / Field Flattener

More details

Delivery subject to availability at the supplier. Please contact us for more information.

145.00 CHF tax incl.

More info

Meade f/6.3 Focal Reducer / Field Flattener

  •     f/6.3 Focal Reducer / Field Flattener
  •     Increases field of view
  •     Reduces magnification for visual applications
  •     Improves edge-of-field correction
  •     For Meade Schmidt-Cassegrain (SC) models
  •     Not suited for Advanced Coma Free (ACF) models
  •     One year UK warranty

Outline
Meade f/6.3 Focal Reducer/Field Flattener #07545. For Meade Schmidt-Cassegrain models. Improves edge-of-field correction and reduces exposure times by close to 50%. Threads into rear cell of any Meade SCT. May be used to increase field of view and reduce magnification for visual applications.

An important advancement in high-resolution focal reduction systems, the Meade 4-element, multi-coated f/6.3 Focal Reducer/Field Flattener threads on to the rear cell of any LX90, LX200 or other Schmidt-Cassegrain or Advanced Coma-Free model and is typically used with an Off-Axis Guider or T-Adapter. Reduces the telescope's focal ratio by a factor of 0.63: f/10 telescopes are converted to f/6.3. Simultaneously, the 41mm-diameter lens system helps flatten the field of Schmidt-Cassegrain models, significantly improving edge-of-field corrections.

This handy accessory enables a reduction of photographic exposure times by about 50%, while producing an actual field diameter of 1.5" at the film plane. Use of this focal reducer is not recommended for 35mm photography or larger CCD chips with Meade Advanced Coma-Free (ACF) models as field correction is not needed.

Product carries full one year Meade UK factory limited warranty.

Notice
We are constantly checking the accuracy of the technical data. We are prepared to provide more detailed information on request. Technical data is subject to change without notice.
