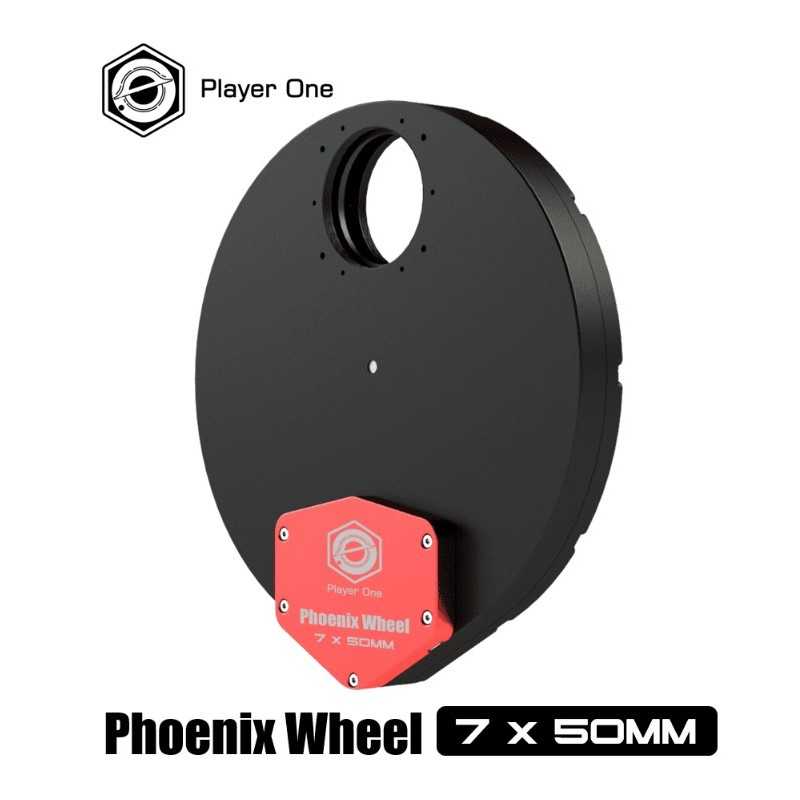

Player One Phoenix 7 x 50 mm Filter Wheel

Description

Designed for astrophotography systems using large unmounted filters, the Player One Phoenix 7 x 50 mm Filter Wheel provides seven positions dedicated to 50 mm unmounted filters.

It is compatible with Player One Poseidon, Zeus, Artemis and Ares series cameras, as well as Uranus PRO and Apollo PRO models.

With a body manufactured from 6061-T6 aluminium and a physical thickness of only 21 mm, it helps maintain a compact imaging train while providing a large optical aperture.

Seven Positions for 50 mm Unmounted Filters

The Phoenix 7 x 50 mm is designed exclusively for 50 mm unmounted filters.

Its clear aperture diameter is 49 mm. Player One states that this opening is larger than that of the Phoenix 7 x 2-inch wheel, helping to reduce vignetting when used with full-frame cameras.

Hall Sensor Positioning

Traditional filter wheels generally use an infrared sensor combined with a positioning hole. Positioning accuracy therefore depends directly on the size of this hole.

The Phoenix uses a different system. A magnet installed on the filter plate is detected by a Hall sensor, which identifies its centre precisely.

According to Player One, this solution provides better positioning accuracy than a conventional infrared sensor system.

Hybrid Stepper Motor

The filter plate is driven by a particularly thin hybrid stepper motor.

This motor provides smooth filter changes with very little vibration when moving between positions.

USB Type-C Connection

Data communication uses a USB Type-C port.

The compact dimensions of this connector contribute to the slim electronic section of the wheel and help maintain its physical thickness at only 21 mm.

M54 Threads on Both Sides

The body features an M54 × 0.75 thread on both sides.

This configuration simplifies integration into imaging trains using compatible cameras and accessories based on the same mechanical standard.

Player One Camera Compatibility

The Phoenix 7 x 50 mm is designed for use with the following Player One product ranges:

• Poseidon series

• Zeus series

• Artemis series

• Ares series

• Uranus PRO

• Apollo PRO

Technical Specifications

• Manufacturer : Player One Astronomy

• Model : Phoenix Filter Wheel 7 x 50 mm

• Type : Motorised filter wheel

• Filter positions : 7

• Filter type : Unmounted

• Filter diameter : 50 mm

• Clear aperture : 49 mm

• Camera-side thread : M54 × 0.75

• Telescope-side thread : M54 × 0.75

• Positioning system : Hall sensor

• Motor : Hybrid stepper motor

• Data connection : USB Type-C

• Material : Aluminum 6061-T6

• Physical thickness : 21 mm

• Compatibility : Poseidon, Zeus, Artemis and Ares series, Uranus PRO and Apollo PRO

Package Contents

• Phoenix 7 x 50 mm filter wheel

• Mounting accessories supplied by Player One





  Hall Sensing Technology

  Traditional infrared sensor scanning positioning hole to locate position, this way positioning accuracy depends on the size of the positioning hole, the smaller the hole, the higher the accuracy, but the diameter of the hole must have at least 1mm diameter, otherwise it is difficult to manufacture.  But if use magnet on filter plate, Hall sensor will detect the center of the magnet, the positioning accuracy is better than infrared sensor.



  Hybrid stepping motor

  This super thin hybrid stepping motor can provide very smooth rotation, almost no vibration when change the filter position



  Type-C data port

  Using USB Type-C port can reduce the thickness of red piece.



  Support filters

  Filter Positions of Phoenix Wheel 7x50mm support 50mm unmounted filter. Clear path diameter is 49mm which is bigger than 7×2″ wheel, can give less vignetting when using full-frame cameras.

•
