Wanderer Astro M68x1 Adapter for FETA M92
89.00
Tax included
Usually available from the supplier. Please contact us for more information.
Available payment methods
i
PayPal
Secure payment. Additional fees may apply.
PayPal
i
Bank transfer
Pay comfortably from home. After confirming your order, you will receive all the information required to make a bank transfer.
Bank transfer
i
Pay in store
Pay directly in our shop in Givisiez, in cash or by card. Your order can be collected after confirmation.
Pay in store
i
PimPay
A payment system with no fees. Simply top up your PimPay account before completing your purchase. No fees are charged to either the buyer or the merchant.
PimPay
i
HeyLight
Credit for up to 12 months or payment in 3 instalments. For payment in 3 instalments, the displayed price includes a 3.74% surcharge applied by Astromanie to cover the service fees associated with this payment method.
HeyLight

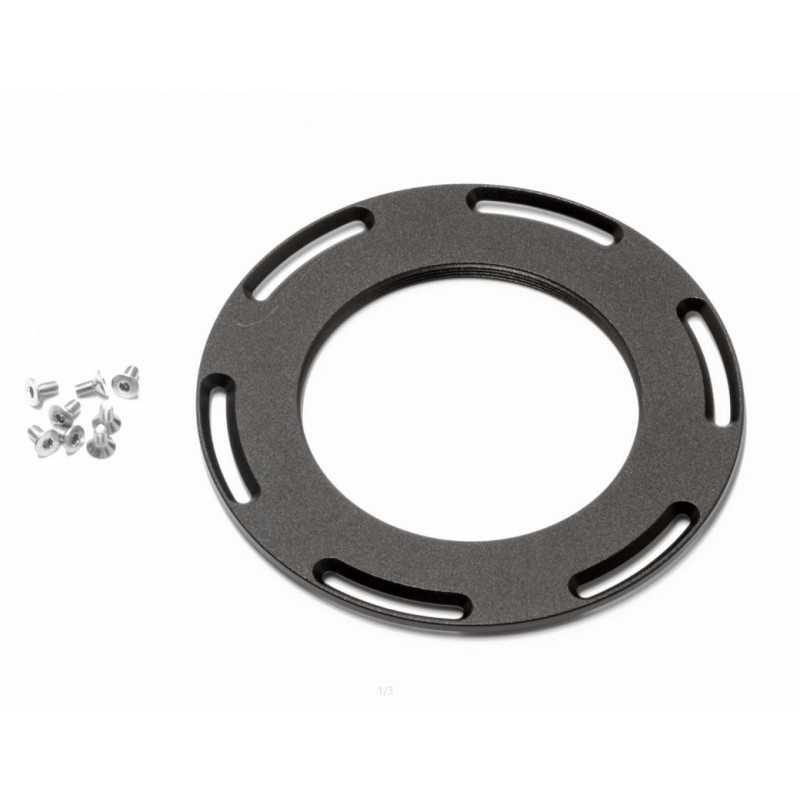

Designed specifically for the Wanderer FETA M92, this adapter converts either side of the system to an M68x1 female interface. M3 screw mounting and curved adjustment slots provide full 360-degree rotational positioning before locking.
Designed to integrate the Wanderer FETA M92 into imaging trains using the M68 standard, this adapter converts either side of the system into an M68x1 female thread.
Installation is performed directly on the FETA M92 using the M3 screws supplied with the adapter. Six curved slots distributed around the adapter allow its rotational position to be adjusted before the screws are fully tightened.
This design provides 360-degree orientation adjustment, making it possible to position the imaging-train connections precisely before locking the adapter in place.
When M68 female interfaces are required on both sides of the FETA M92, two adapters are required. With both adapters installed, each side of the FETA M92 provides an M68x1 female thread while maintaining an effective backfocus of 20 mm.
With an outside diameter of 108.8 mm and a specified maximum thickness of 5 mm, the adapter retains a compact mechanical profile consistent with the space-saving design of the FETA M92.
Designed purely as a mechanical interface, it simplifies integration of the FETA M92 with compatible correctors, rotators, cameras, filter wheels and other astrophotography components using an M68x1 connection.
Technical Specifications
• Manufacturer: Wanderer Astro
• Product: M68 Adapter for FETA M92
• Compatibility: Wanderer FETA M92
• Function: Converts one side of the FETA M92 to M68 female
• Thread: M68x1 female
• Installation on side 1: Yes
• Installation on side 2: Yes
• Quantity required for M68 female on both sides: 2
• Mounting: M3 screws
• M3 screws: Included
• Orientation adjustment: Yes
• Rotational adjustment before locking: 360 degrees
• Adjustment system: 6 curved slots
• Outside diameter: 108.8 mm
• Specified maximum thickness: 5 mm
• Effective FETA M92 backfocus with two adapters installed: 20 mm
Wanderer FETA M92 to M68
