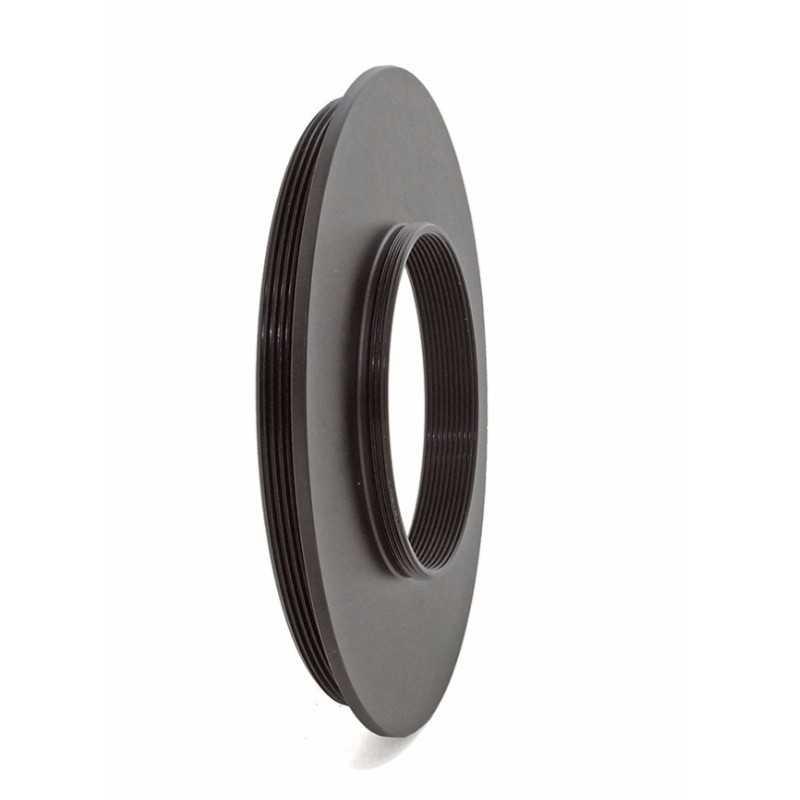

TS-Optics M82x1 to M48x0.75 Adapter
44.00
Tax included
Available payment methods
i
PayPal
Secure payment. Additional fees may apply.
PayPal
i
Bank transfer
Pay comfortably from home. After confirming your order, you will receive all the information required to make a bank transfer.
Bank transfer
i
Pay in store
Pay directly in our shop in Givisiez, in cash or by card. Your order can be collected after confirmation.
Pay in store
i
PimPay
A payment system with no fees. Simply top up your PimPay account before completing your purchase. No fees are charged to either the buyer or the merchant.
PimPay
i
HeyLight
Credit for up to 12 months or payment in 3 instalments. For payment in 3 instalments, the displayed price includes a 3.74% surcharge applied by Astromanie to cover the service fees associated with this payment method.
HeyLight
Designed to connect an M82x1 female thread to accessories or cameras with an M48x0.75 female thread, this TS-Optics adapter adds only 2 mm of effective optical length. It is suitable, among others, for the APM Riccardi 0.75x reducer and corrector.
Designed for imaging configurations where every millimeter of backfocus matters, this TS-Optics adapter converts an M82x1 female connection into an M48x0.75 male interface.
Its extremely short construction limits the effective optical length to only 2 mm, excluding the external threads. This makes it particularly useful when only minimal mechanical spacing can be added to the imaging train.
On the telescope side, a 5 mm long M82x1 male thread provides the connection. It can, for example, be screwed directly into the M82x1 female thread of the APM Riccardi 0.75x reducer and corrector.
On the camera side, a 4 mm long M48x0.75 male thread allows adapters, rings or imaging equipment with an M48x0.75 female thread to be attached.
This configuration therefore provides a direct transition between M82x1 and M48x0.75 while adding very little mechanical length to the optical train.
Technical Specifications
• Manufacturer: TS-Optics
• Type: Thread adapter
• Telescope-side connection: M82x1 male
• M82x1 thread length: 5 mm
• Camera-side connection: M48x0.75 male
• M48x0.75 thread length: 4 mm
• Effective optical length: 2 mm
• Specified compatibility: M82x1 female thread
• Mentioned application: APM Riccardi 0.75x Reducer and Corrector
• Function: M82x1 to M48x0.75 conversion
TS M82x1M - M48x075M
Designed to connect an M82x1 female thread to accessories or cameras with an M48x0.75 female thread, this TS-Optics adapter adds only 2 mm of effective optical length. It is suitable, among others, for the APM Riccardi 0.75x reducer and corrector.
