ZWO D70-M54F Adapter

ZWO D70-M54F Adapter

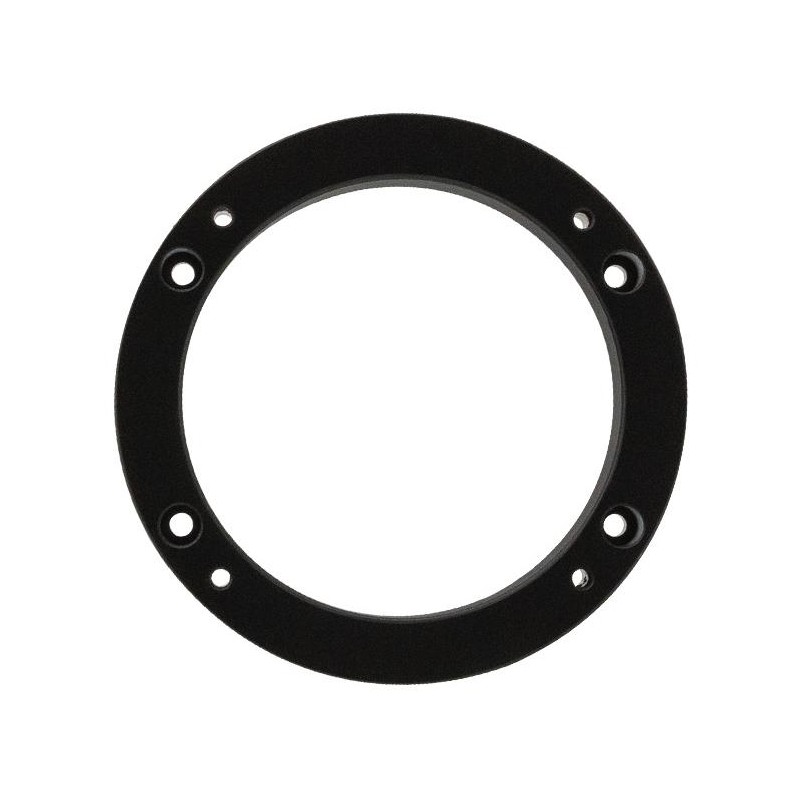

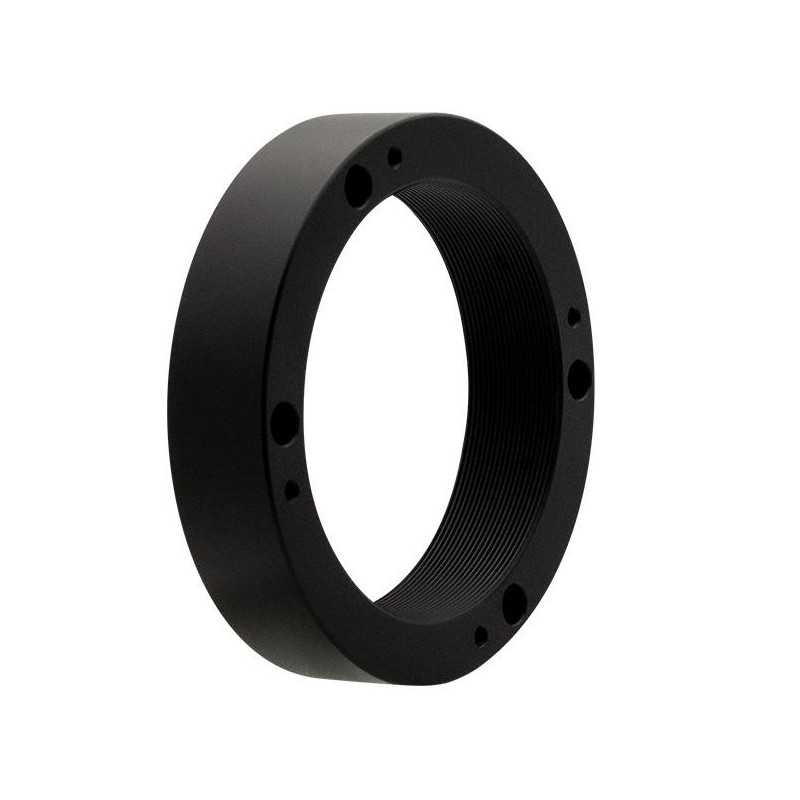

Description

The ZWO D70-M54F adapter is a dedicated accessory designed for imaging configurations using the ZWO OAG-L off-axis guider. It is required when the OAG-L is used without an EFW electronic filter wheel and enables the 55 mm back focus required by many optical correction systems.

In a standard configuration, the optical train consists of the telescope, ZWO tilt adapter, OAG-L, D70-M54F adapter and a cooled ZWO full-frame or APS-C camera.

Its robust mechanical design minimizes flexure and deformation, helping maintain precise optical alignment throughout the imaging system. This rigidity is especially important when using heavy cooled cameras and complex imaging trains.

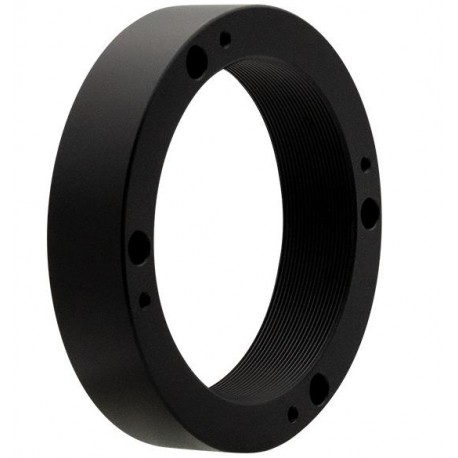

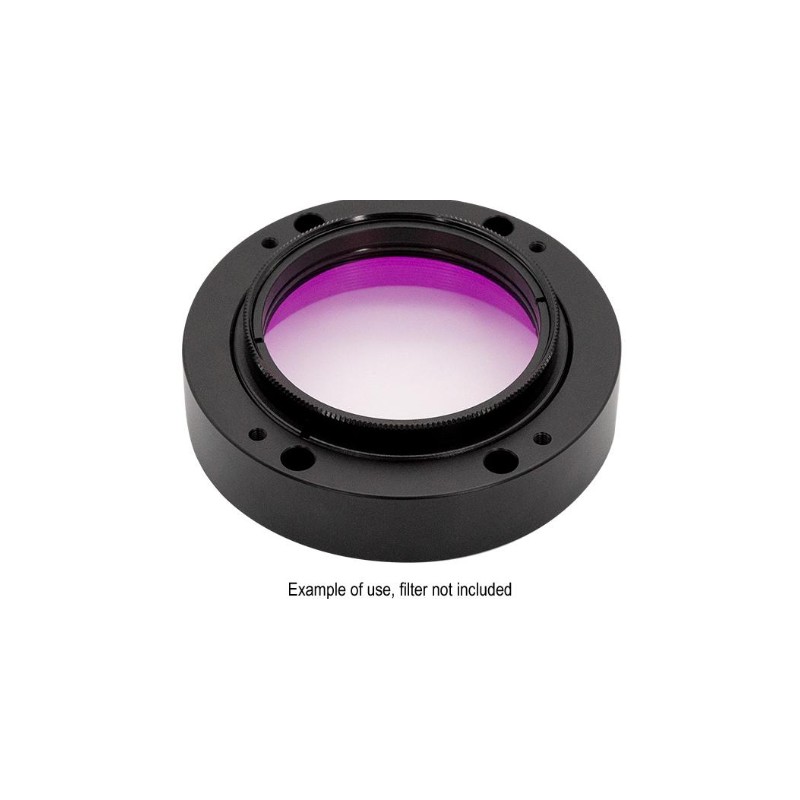

The adapter is supplied with an additional adapter that allows the use of mounted 2-inch filters.

For full-frame and APS-C cameras, achieving a 55 mm back focus requires a 5 mm tilt adapter together with a 17.5 mm OAG-L.

For full-frame 24 × 36 cameras, 1-inch sensors and smaller sensors, achieving a 55 mm back focus requires a 5 mm tilt adapter, a 17.5 mm OAG-L and an 11 mm T2 tilt plate.

The D70-M54F adapter provides a dedicated solution for astrophotographers seeking a stable and optimized OAG-L imaging configuration.

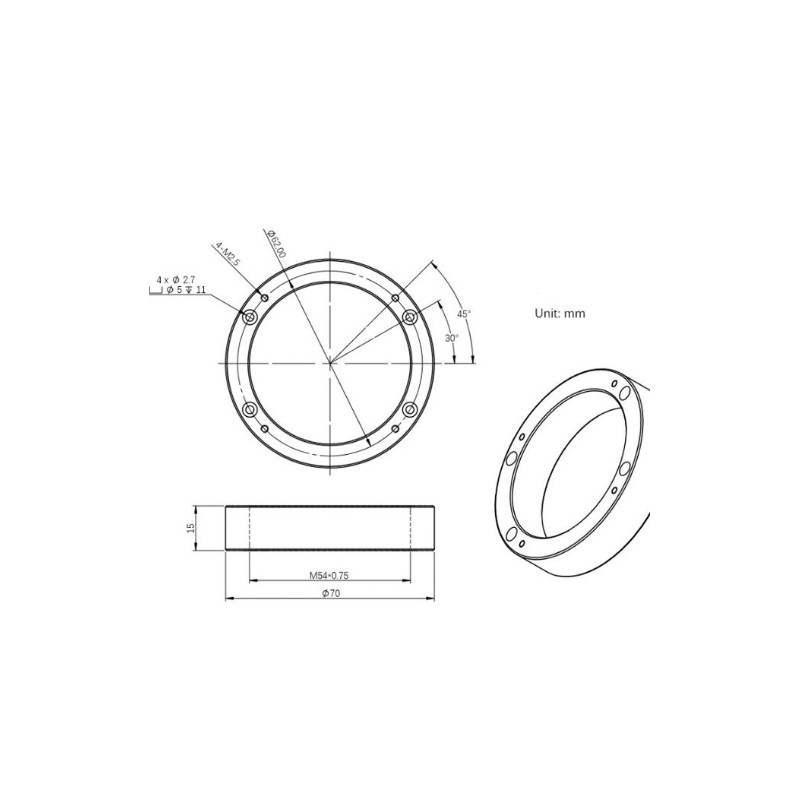

Technical Specifications

• Manufacturer: ZWO
• Model: D70-M54F
• Type: astrophotography adapter
• Primary compatibility: ZWO OAG-L
• Designed for use without EFW filter wheel
• Enables 55 mm back focus
• Compatible with cooled ZWO full-frame cameras
• Compatible with cooled ZWO APS-C cameras
• Compatible with 1-inch sensors
• Compatible with smaller sensors
• Rigid mechanical construction
• Designed to prevent flexure
• Designed to prevent mechanical deformation
• Includes 2-inch filter adapter
• Compatible with 5 mm ZWO tilt adapter
• Compatible with 17.5 mm OAG-L
• Compatible with 11 mm T2 tilt plate
• Designed for astronomical imaging systems
• Optimized for precise optical alignment
