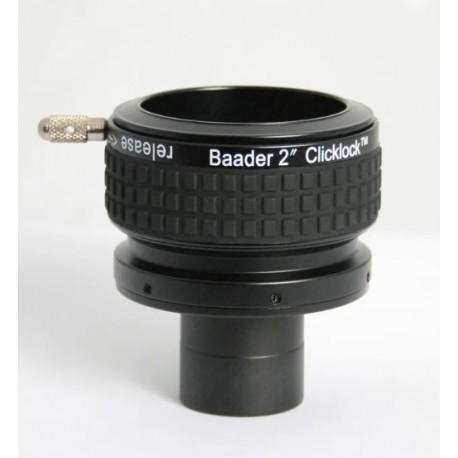

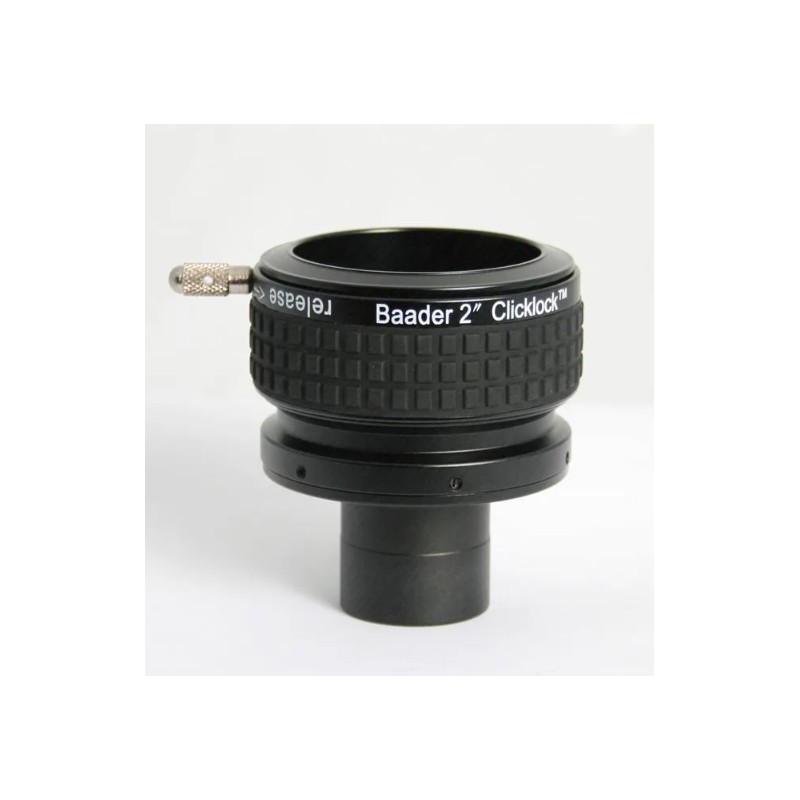

Baader ClickLock 1.25 to 2 inch Expansion Adapter

Baader ClickLock 1.25 to 2 inch Expansion Adapter

Description

The Baader ClickLock 1.25 to 2 inch expansion adapter enables the use of 2 inch eyepieces in 1.25 inch focusers and diagonals. It provides a versatile mechanical solution within the Baader Astro T2 system.

The ClickLock mechanism allows fast and secure locking without the need for tightening screws, using a lever system that ensures uniform pressure and reliable holding of accessories. The 1.25 inch nosepiece is threaded for standard 1.25 inch filters, allowing direct integration of filters.

Internal surfaces are fully baffled to reduce stray light reflections and improve contrast in both visual and imaging applications. The modular construction enables multiple configurations. The 1.25 inch nosepiece can be removed to reveal an internal T2 thread compatible with Baader Astro T2 accessories. Additionally, the T2 threaded ring can be removed to expose a 2 inch SCT thread.

The optical path length is 49 mm and the weight is 6.7 oz. This product corresponds to Baader part numbers CLEXA 2 and 2956215. No additional data is available based on the provided information.

Technical specifications

• Manufacturer: Baader
• Type: ClickLock adapter
• Function: 1.25 inch to 2 inch conversion
• Input compatibility: 1.25 inch
• Output compatibility: 2 inch
• Filter thread: 1.25 inch
• Internal thread: T2
• Secondary thread: 2 inch SCT
• Design: modular
• Internal treatment: full baffling
• Optical length: 49 mm
• Weight: 6.7 oz
• Manufacturer references: CLEXA 2 2956215
