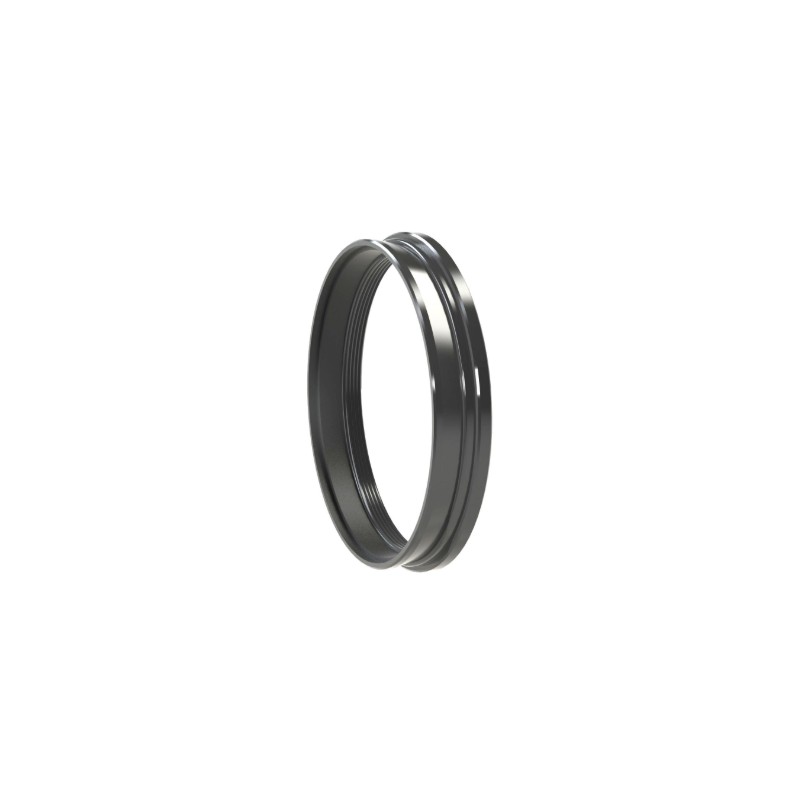

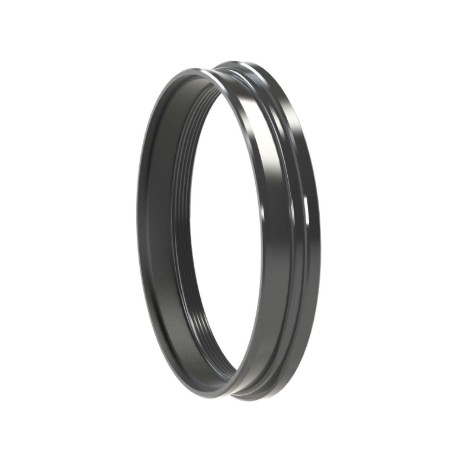

Baader Planetarium Adapter S52 to M48

Baader Planetarium Adapter S52 to M48

Description

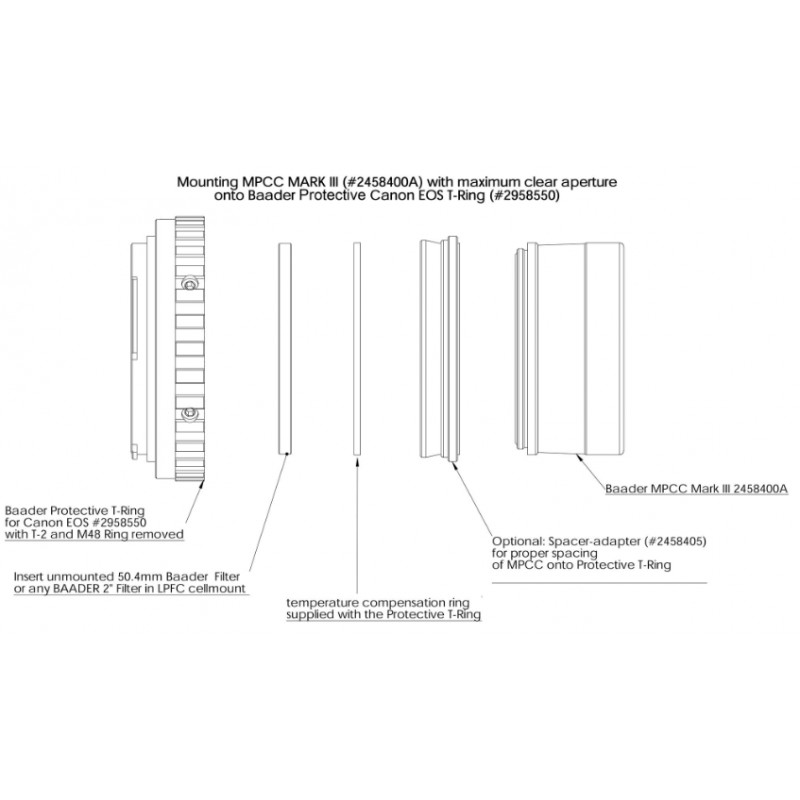

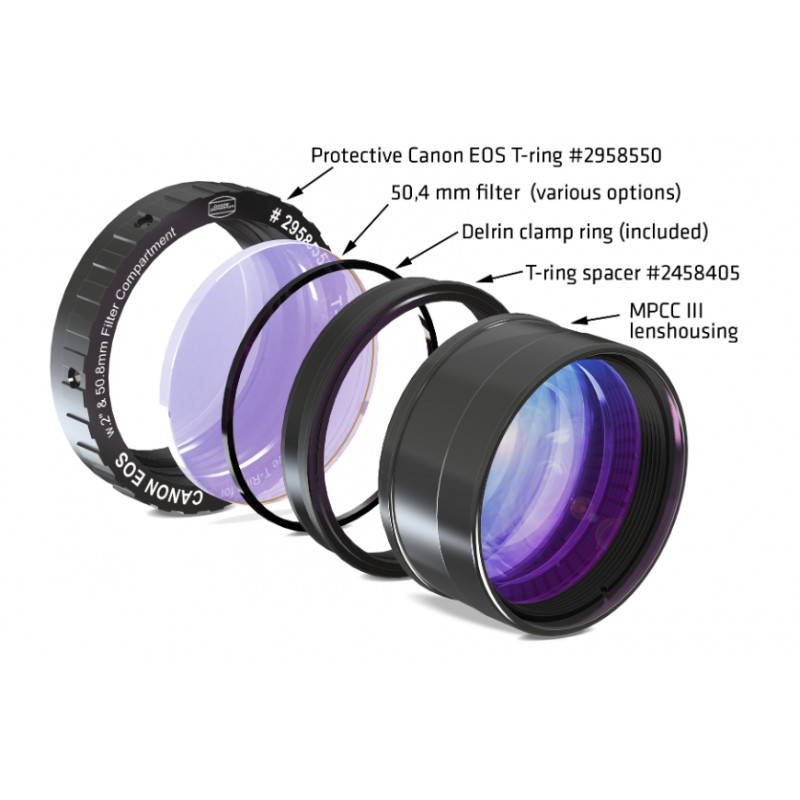

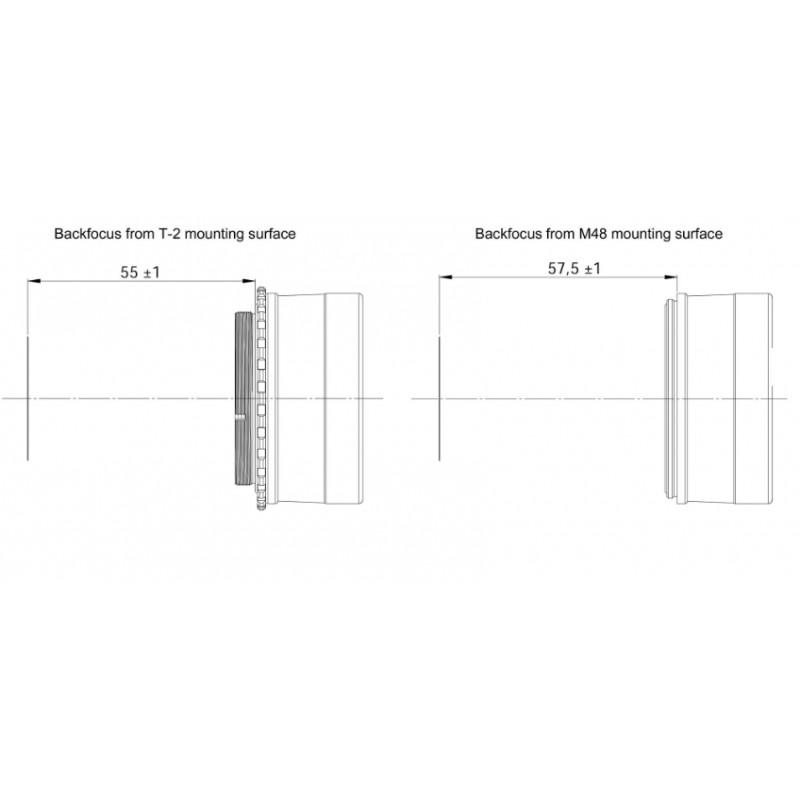

The Baader Planetarium S52 to M48 adapter is a precision spacer ring designed to connect the MPCC Mark III coma corrector directly to the Baader Protective Canon EOS T-ring. It maintains the required 55 mm optical spacing and utilizes the full unvignetted M48 aperture.
Built with Baader’s renowned precision, this adapter provides a perfect mechanical and optical fit between the S52 and M48 interfaces. Belonging to the Baader M48 System family, it features a clear inner diameter of 47 mm and an optical length of 2 mm.
This compact adapter enables users to fully benefit from the optical performance of the MPCC Mark III and the Protective T-ring system, ensuring stability and accurate alignment for high-quality astrophotography.

Technical Specifications

• Manufacturer: Baader Planetarium

• Product: Adapter S52 to M48

• Type: spacer ring for MPCC / Protective T-ring

• Optical length: 2 mm

• Inner connection: M48 (camera side)

• Outer connection: S52 (lens side)

• Clear aperture: 47 mm

• Outer diameter: 54 mm

• Compatible systems: MPCC Mark III / Canon EOS Protective T-ring

• Adapter family: M48 System

• Material: anodized aluminium (Baader construction)

• Net weight: 0.01 kg

• Manufacturer reference: 2458405

• EAN code: 4047825029331
