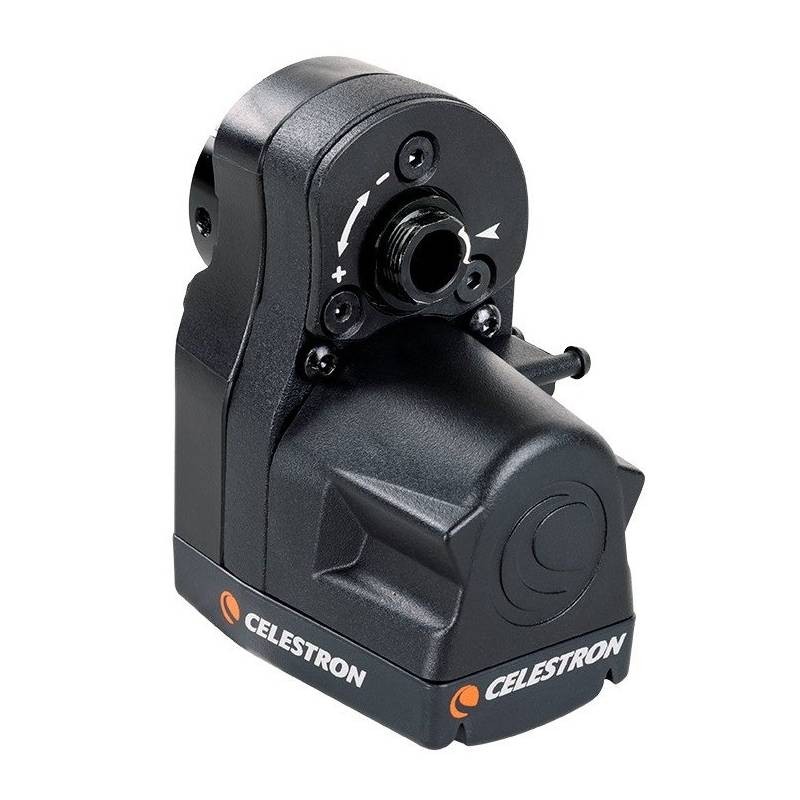

Celestron Focus Motor V2 for SCT EdgeHD RASA

Celestron Focus Motor V2 for SCT EdgeHD RASA

Description

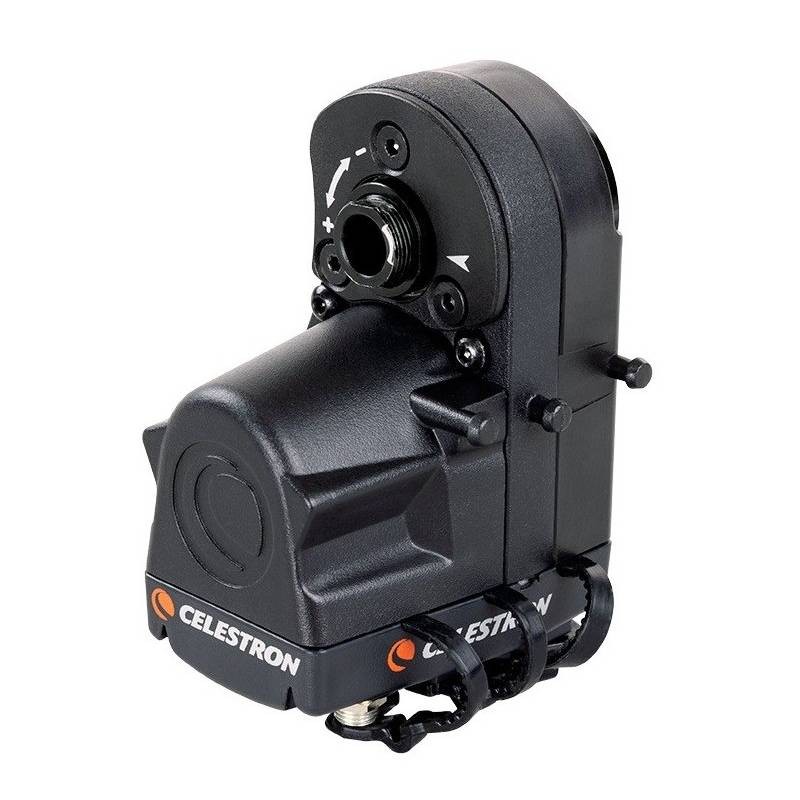

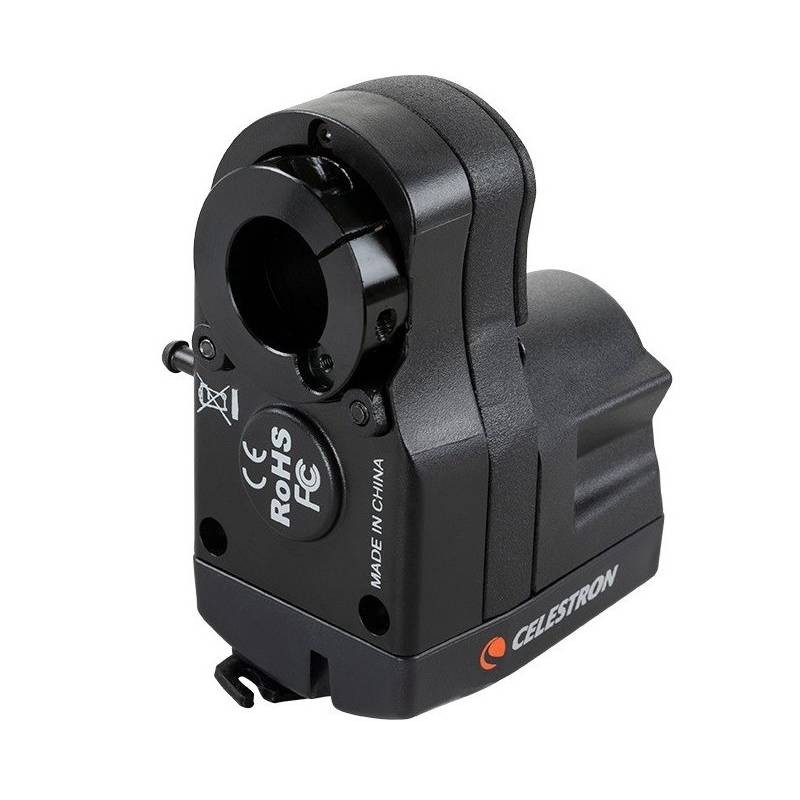

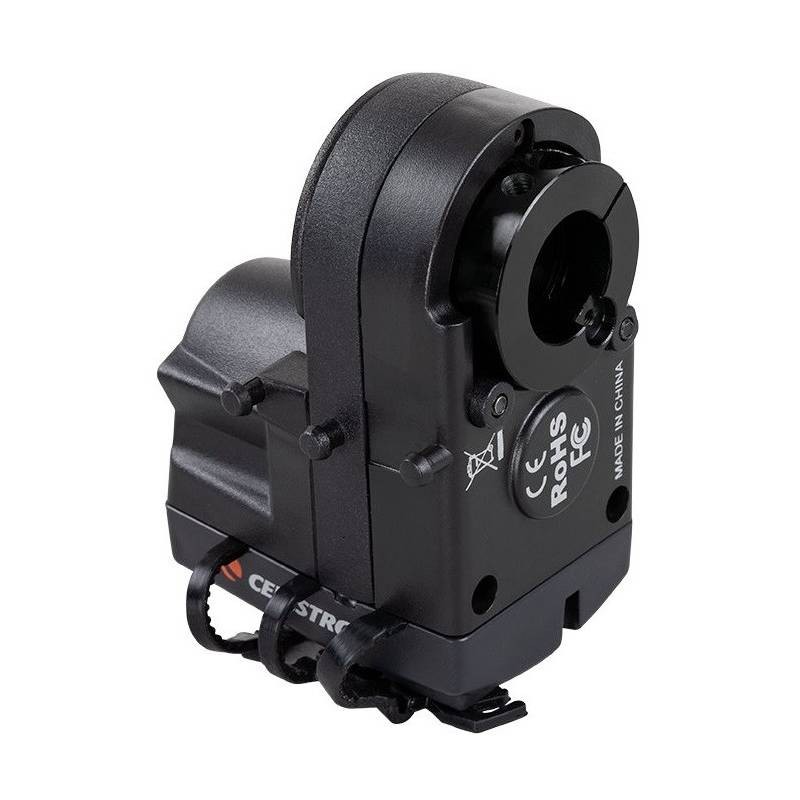

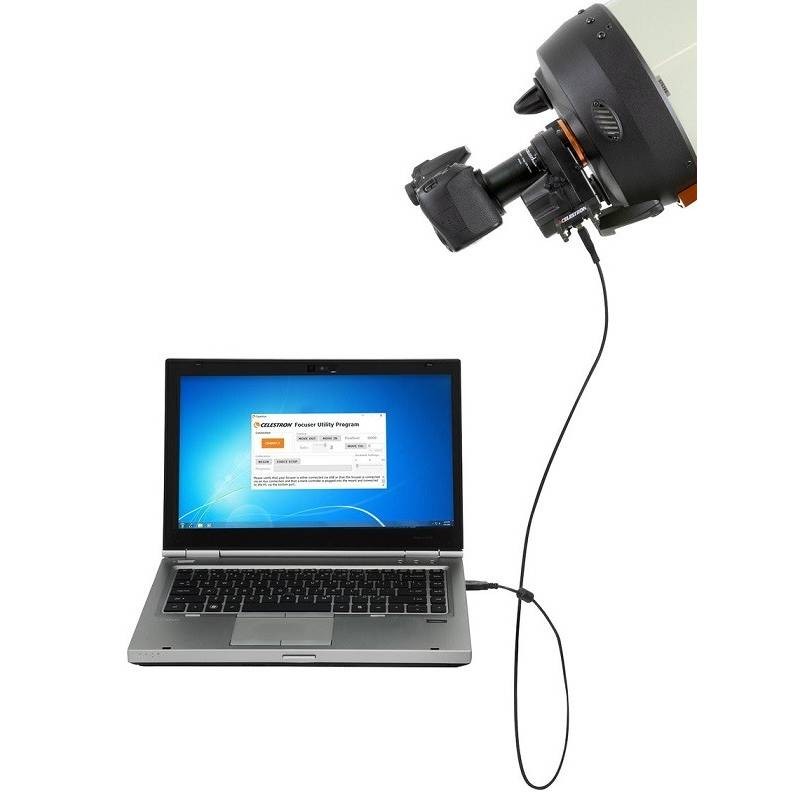

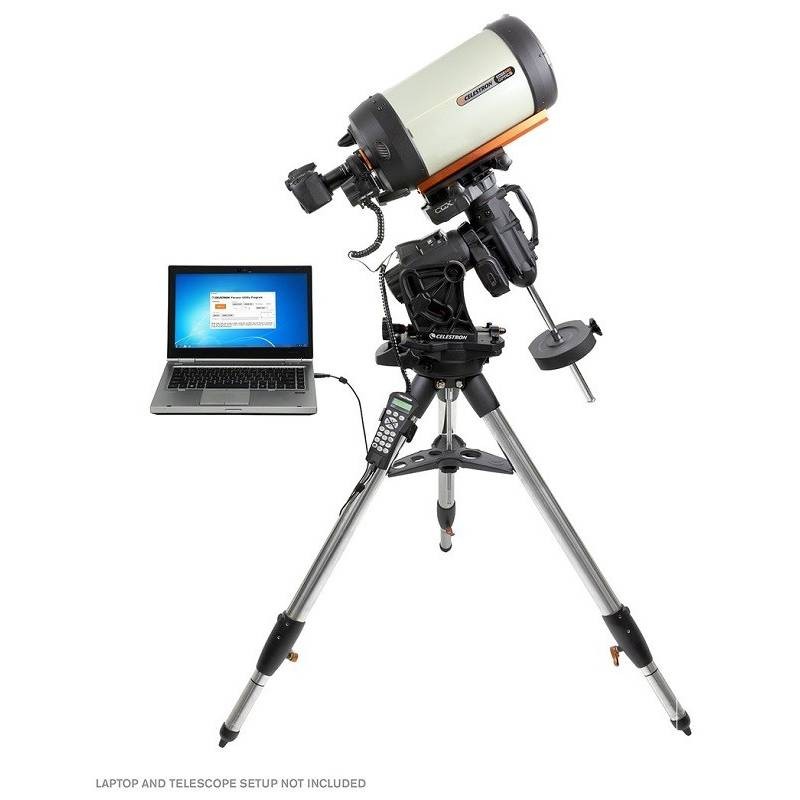

The Celestron Focus Motor V2 provides precise and repeatable electronic focusing for Schmidt Cassegrain, EdgeHD, RASA and compatible Maksutov Cassegrain telescopes. It connects directly to a Celestron mount via the AUX port or to a computer via USB, without requiring an external power supply in most configurations.

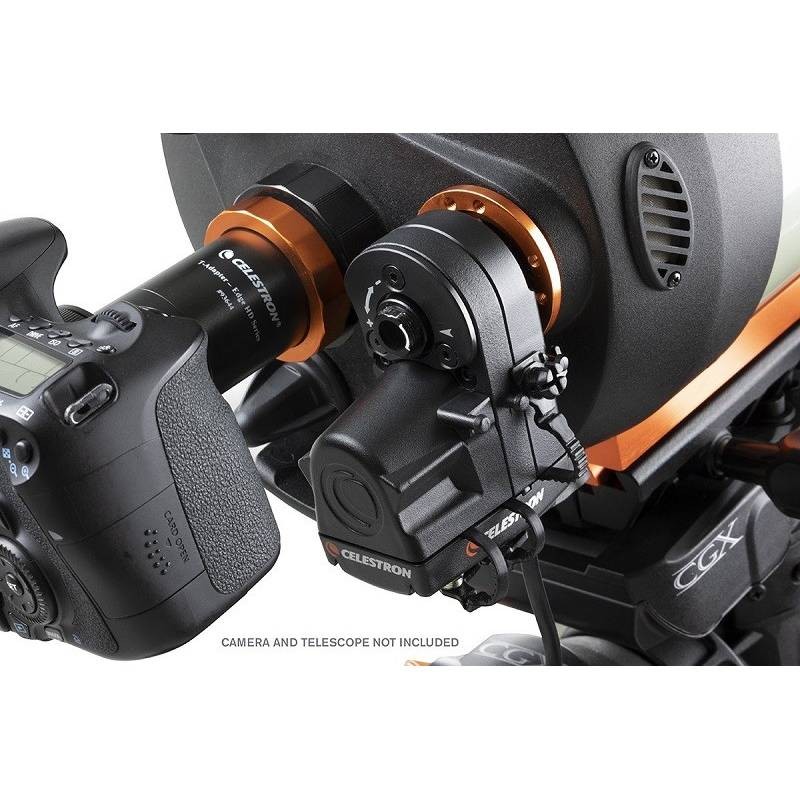

This system is particularly suited for astrophotography and setups requiring fine and stable focusing, especially for remote operation. It features backlash compensation, indexed positioning to return to a previous focus point, and multiple speed settings for accurate adjustment.

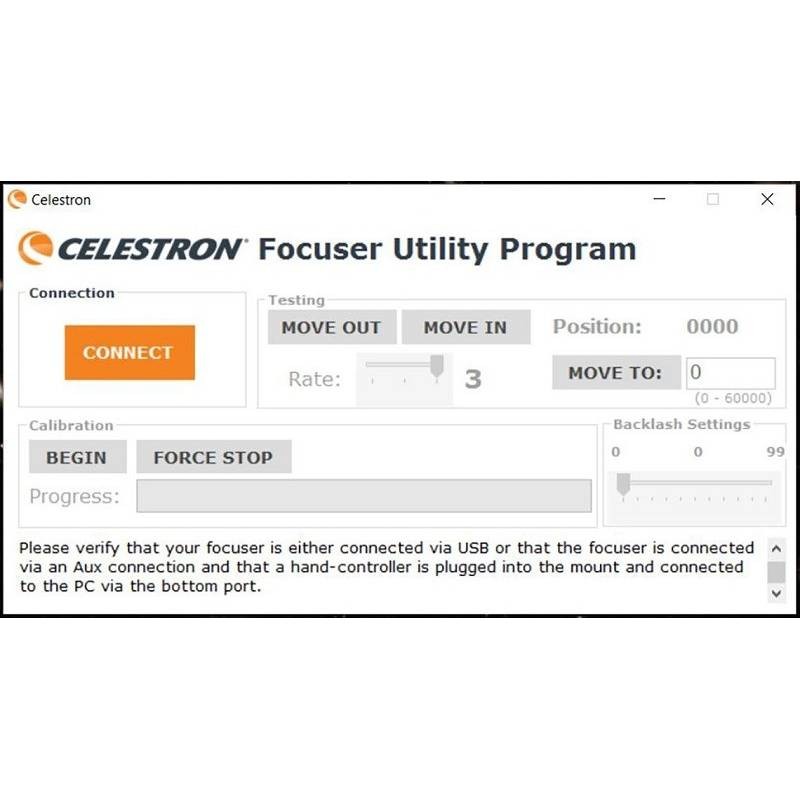

The motor is compatible with Celestron Focuser Utility, Celestron PWI and third party software via ASCOM driver. An integrated port cover prevents loss. It is compatible with EdgeHD 9.25 and supports a wide range of instruments.

This product is offered as used in good working condition. The original retail value is 284 CHF VAT included and it is offered at 170 CHF VAT included.

Technical specifications

• Manufacturer: Celestron
• Model: Focus Motor V2
• Type: motorized focuser
• Motor: DC servo
• Gears: brass 1:1 35.2 mm 42 teeth

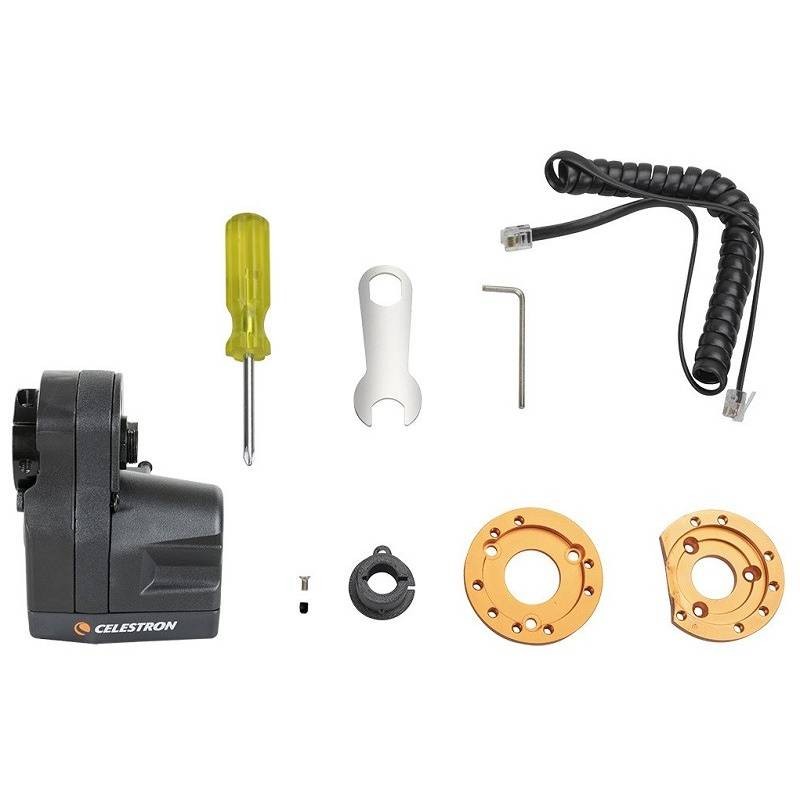

• Shaft coupler: aluminium
• Microprocessor: NXP Kinetis Core Cortex M4

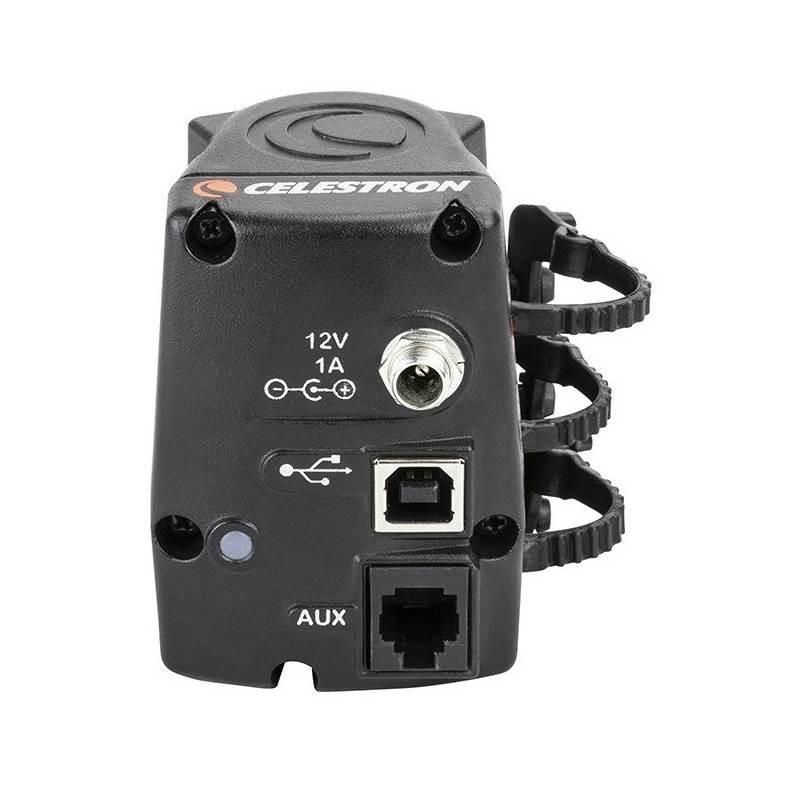

• AUX power: via Celestron mount cable included
• USB power: USB 2 or 3 minimum 900 mA
• Optional external power: 12V DC 1A 5.5 mm 2.1 mm plug
• Rotation speeds: 8 deg per second 32 deg per second 128 deg per second
• Resolution: 1000 steps per revolution
• Weight: 420 g
• Compatibility:
  • SCT 6 to 14 inch models after 2006 except 5
  • EdgeHD all sizes
  • EdgeHD 9.25 compatible
  • RASA 8 inch and 36 cm
  • RASA 11 V2 direct compatibility
  • RASA 11 requires adapter kit
  • Mak Cass 7 inch
• Incompatibility:
  • C5
  • Simultaneous use with off axis guider on SCT 6 inch
• Condition: used
• New value: 284 CHF VAT included
• Selling price: 170 CHF VAT included
