10Micron GM1000 HPS Used (Ref. 1451000)

GM1000 HPS Occasion

Used

10Micron GM1000 HPS Used (Ref. 1451000)

Used astrophotography setup: 10Micron 1000HPS mount, Sky-Watcher pier, Baader 6 kg counterweight, 2 Pelican cases (mount / counterweights + electronics incl. Control Box II, hand controller and cables). Private sale, no warranty. Pickup at Astromanie.ch. Price: CHF 6,500.

More details

More info

10Micron GM1000 HPS Used (Ref. 1451000)

Sales Description – High-End Astrophotography Setup (Used Equipment)

We are offering for sale, as a private sale, a used high-end astrophotography setup, composed of equipment known for its accuracy, reliability, and durability.

Setup includes

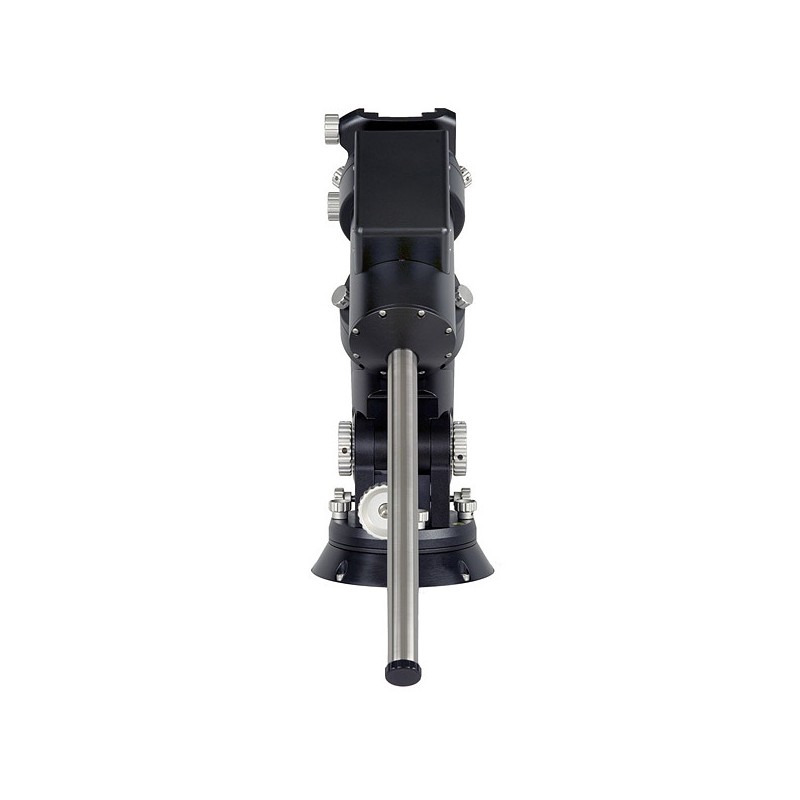

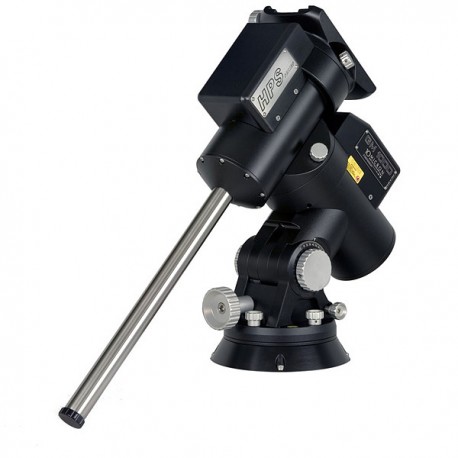

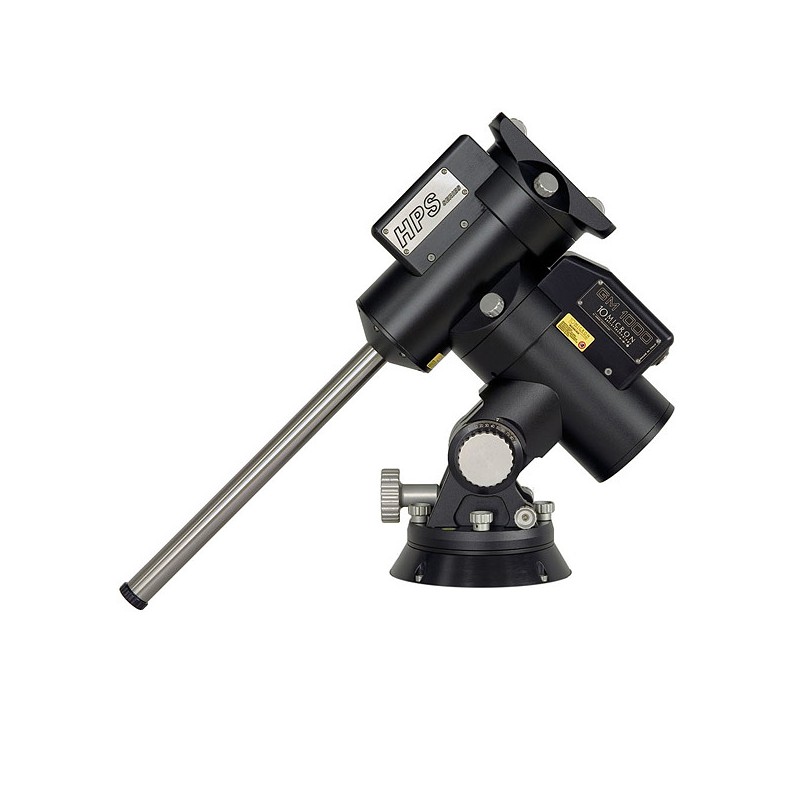

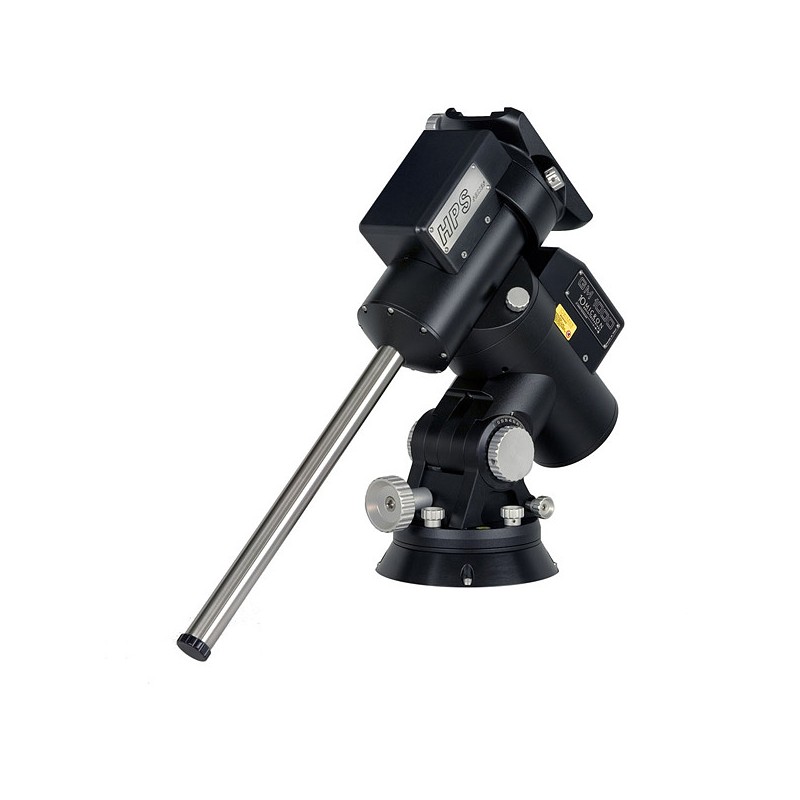

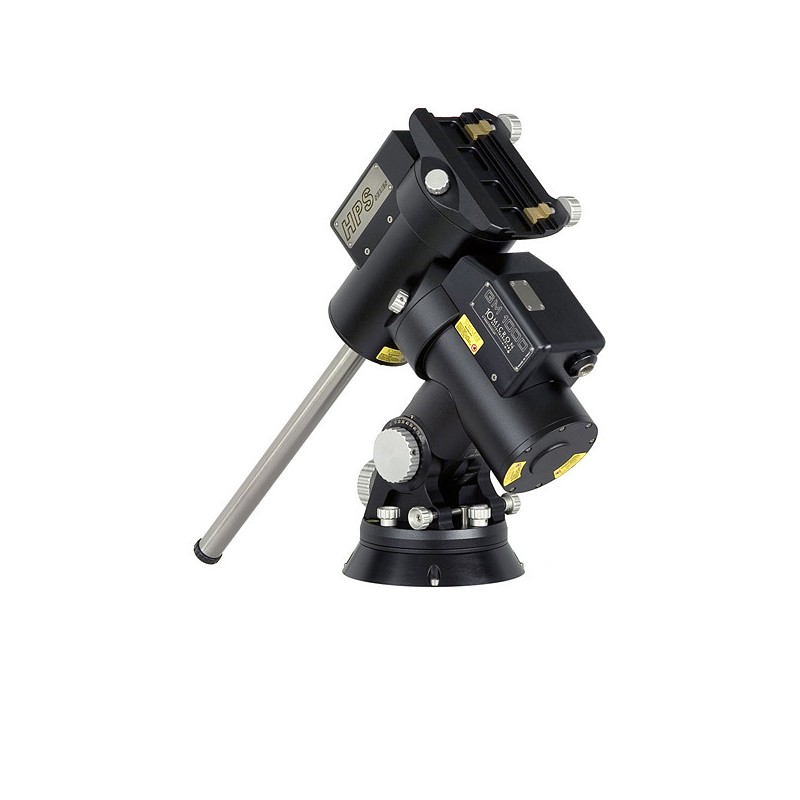

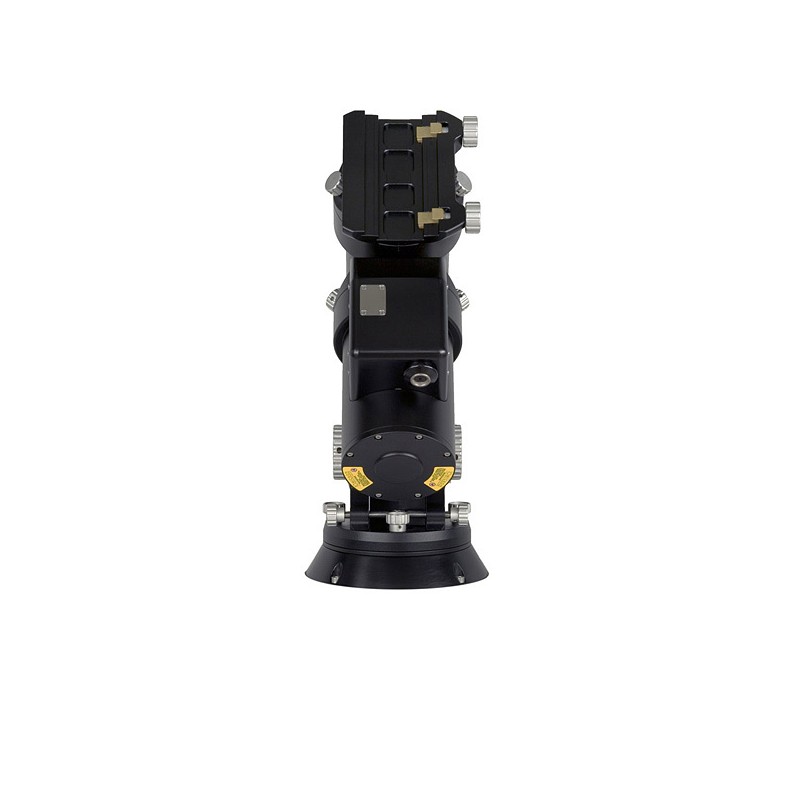

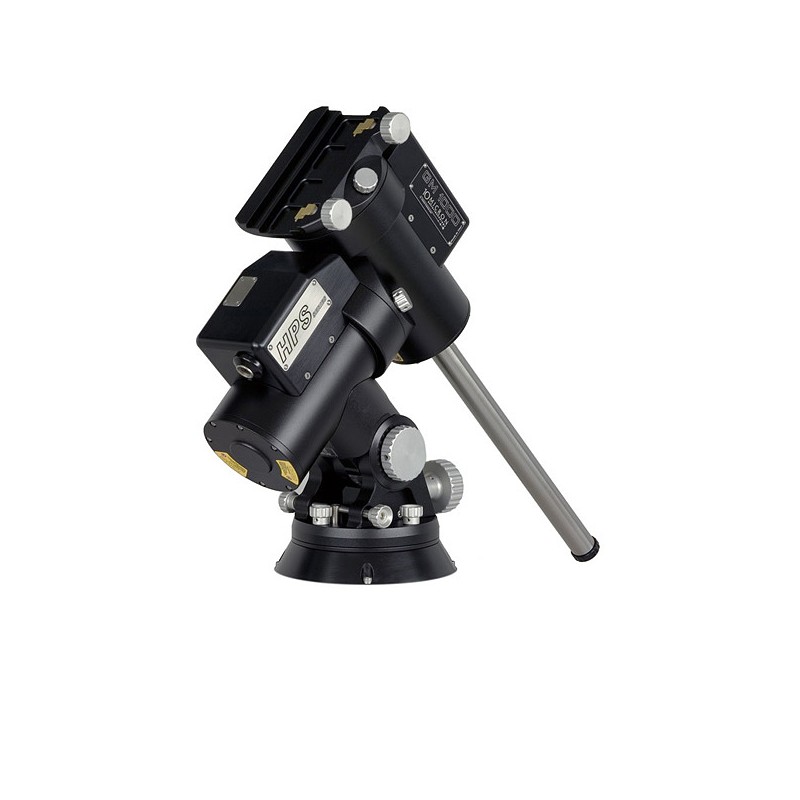

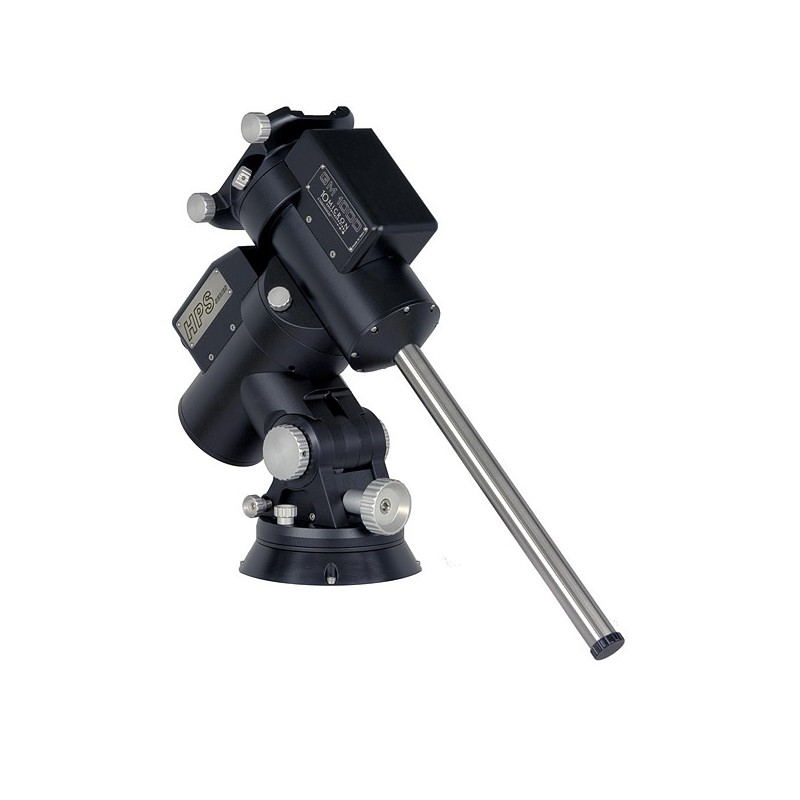

  • 10Micron 1000HPS Equatorial Mount
    High-precision mount equipped with high-resolution absolute encoders, providing extremely accurate and reliable tracking.

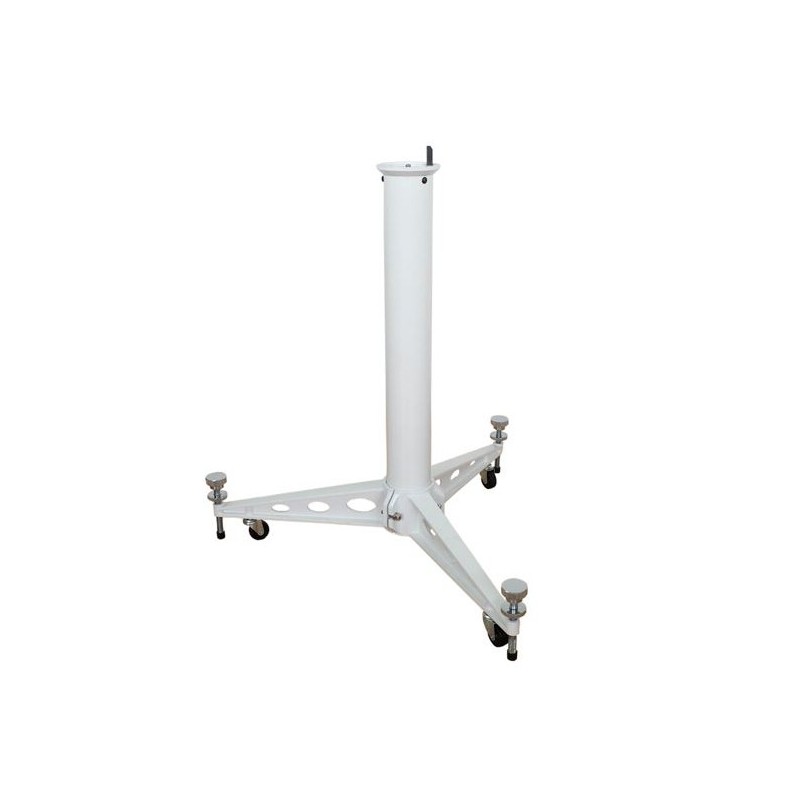

  • Sky-Watcher Pier
    Rigid and stable pier, suitable for permanent or semi-permanent installations.

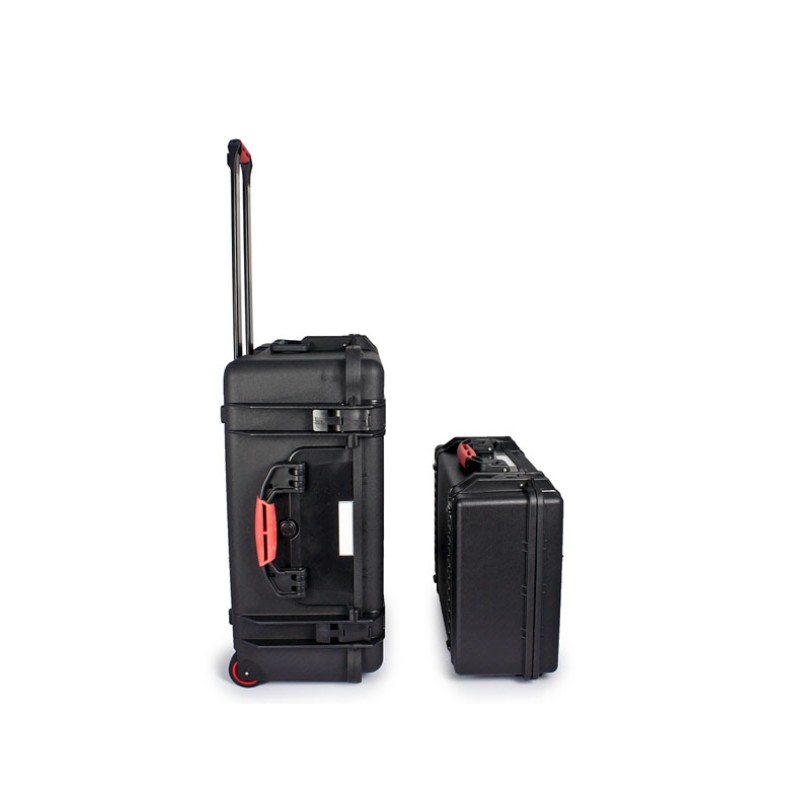

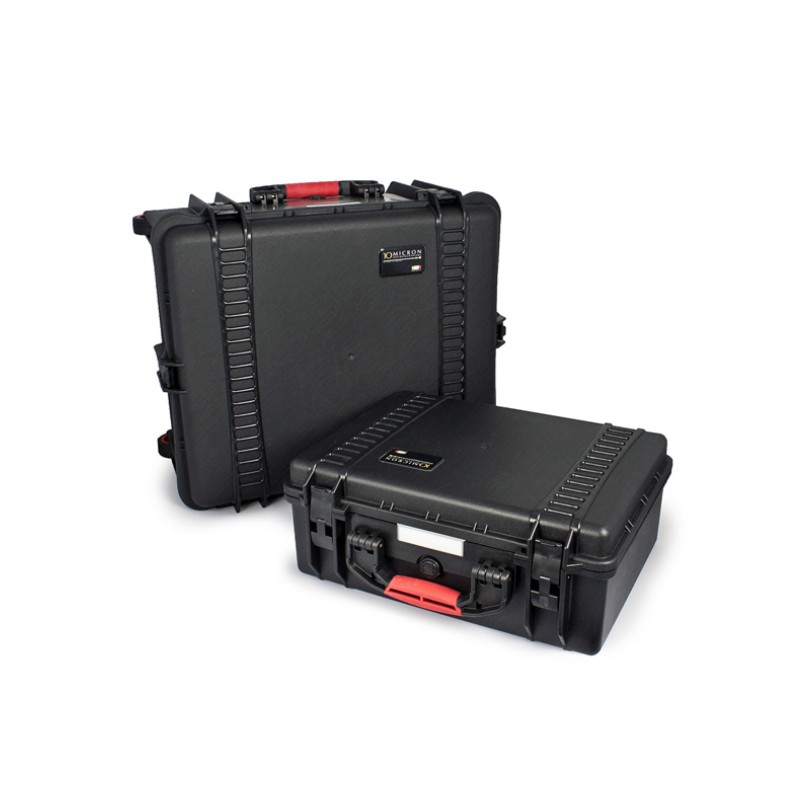

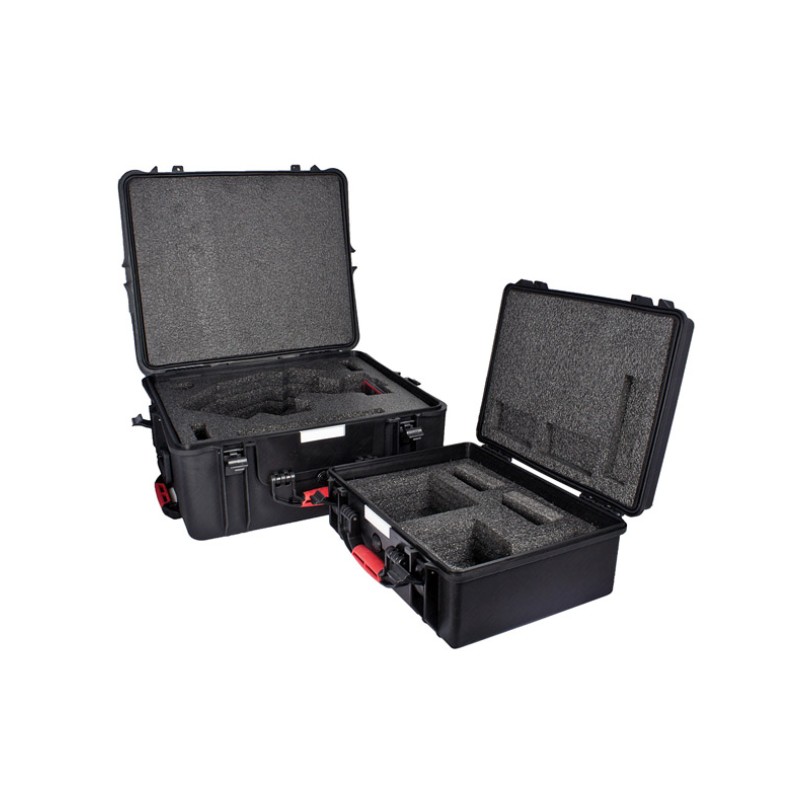

  • Two Pelican transport cases

    • Case 1: dedicated to the mount

    • Case 2: dedicated to the counterweights and electronics, including the Control Box II, hand controller, and all connecting cables

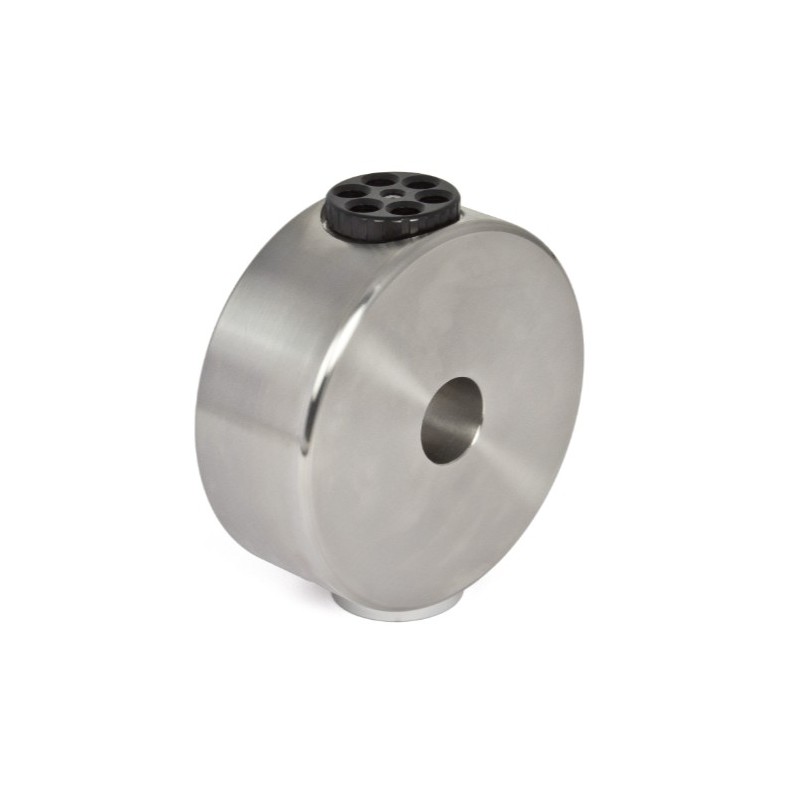

  • 6 kg Counterweight by Baader Planetarium

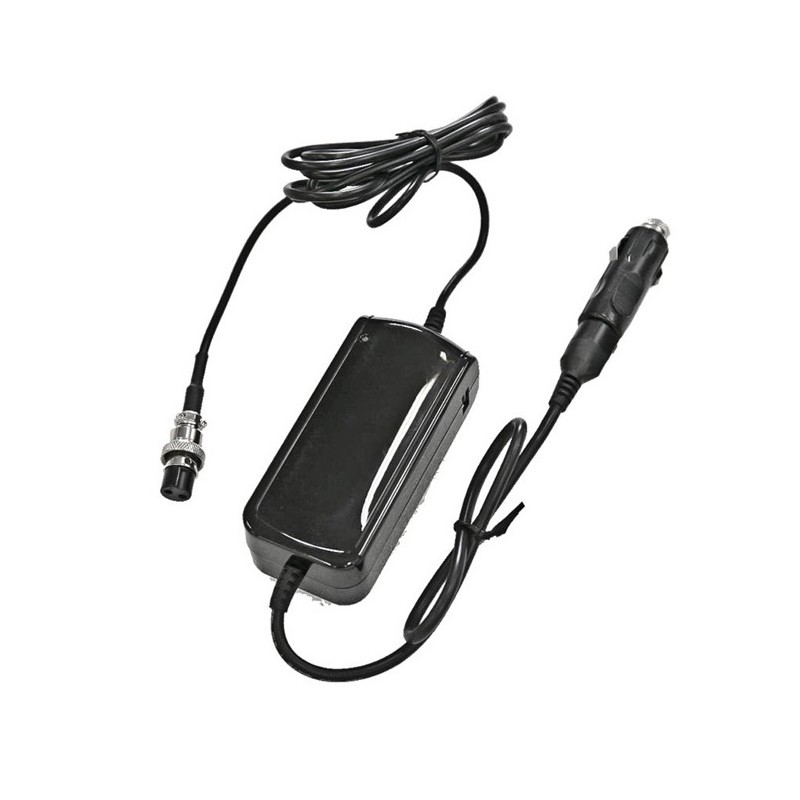

  • Original portable stabilized 12V/24V power supply (Baader Planetarium)

Sale conditions

  • Used equipment

  • Private sale

  • No warranty, no returns

  • Pickup on site at Astromanie.ch

Price

  • Estimated new value: ~CHF 12,000

  • Sale price: CHF 6,500, payable in cash on site

Complete, fully operational setup, offered at a very attractive price.

Advanced features

  • Up to 100-star modeling

  • Memory for multiple configurations

  • Direct dome control via serial

  • Park in user-defined positions

  • Tracking of moving objects (satellites, comets, asteroids)

  • Electronic balance system

Technical specifications

  • Mount type: German equatorial

  • Payload: 25 kg

  • Weight: 19.5 kg (without bar)

  • Motors: Servo brushless, timing belt

  • Encoders: Absolute on both axes

  • Worm wheels: 125 mm bronze, 250 teeth

  • Worms: 20 mm hardened steel

  • Axes: 30 mm steel

  • Tracking accuracy: under 1 arcsecond

  • Pointing accuracy: under 20 arcseconds RMS

  • Max speed: 15 degrees per second

  • Guiding: ST-4, serial, Ethernet

  • Power: 24 V DC, 0.5 A tracking, 3 A max

  • Latitude range: 0 to 82 degrees (90 optional)

  • Interfaces: RS-232, Ethernet, ST-4, GPS (optional)

  • Included: hand controller, cables, counterweight bar
