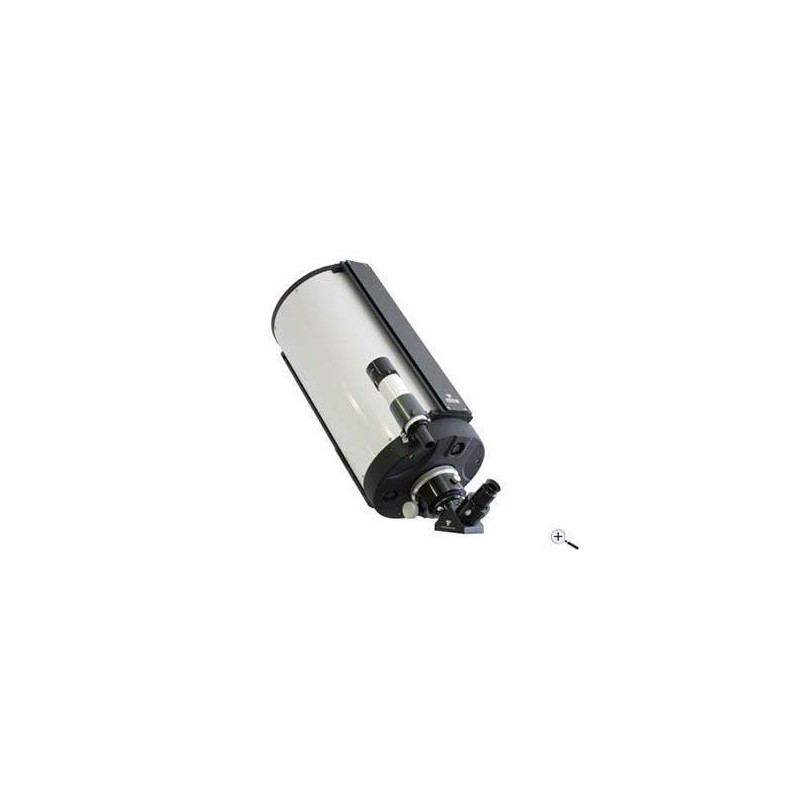

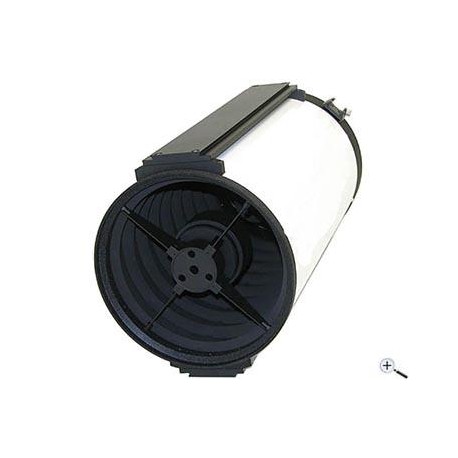

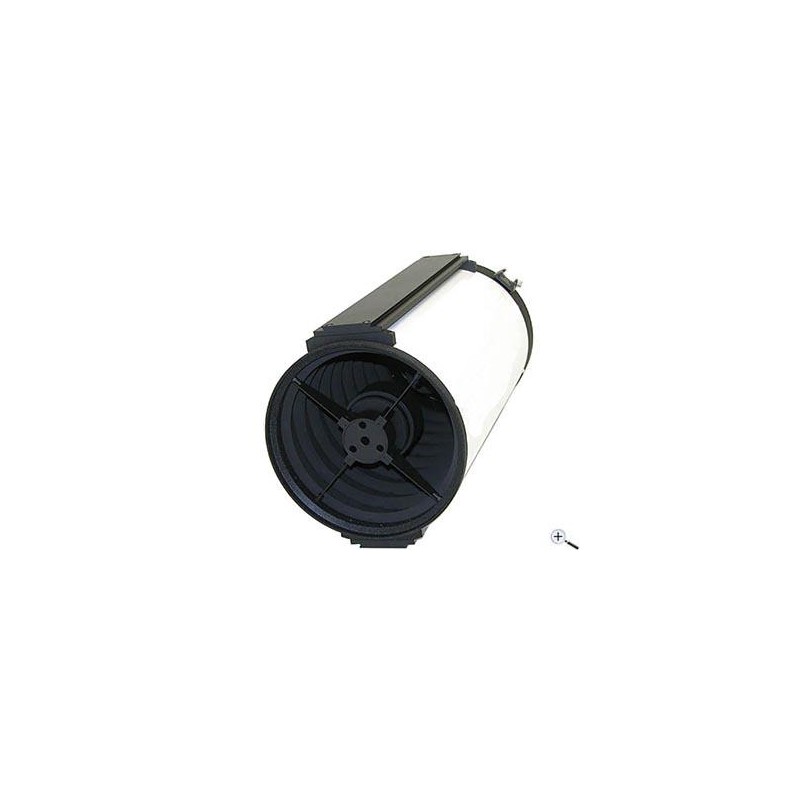

GSO Ritchey-Chrétien 10"
(demo item, no warranty on this item)
1 Item Items
Warning: Last items in stock!
Most large professional telescope are constructed according to the RC principle. Until recently, these telescopes were unaffordable for amateurs. RC telescopes from Teleskop Service are primarily aimed to amateur astronomers with photographic interest. These telescopes are perfectly suited for high-resolution astrophotography. Of course, an RC can also be used for visual observing. Here, the large corrected field of view is noticeable, too. In total, the stars are sharper than, for example, in a Schmidt-Cassegrain.
♦ Hyperbolic primary and secondary mirror for a large fully illuminated field of view.
♦ Astrophotography with camera sensors up to 30 mm diameter possible without corrector. For larger sensors, like full-frame size, Teleskop-Service offers ready-to-use corrector solutions.
♦ 99% dielectric high-reflectivy coating on main and secondary mirror for an even brighter image.
♦ Significantly shorter cooling down time through open construction and active primary mirror ventilation.
♦ Internal baffles in the tube for even more contrast.
♦ High back focus for correctors, reducers and also binoviewers.
♦ High-quality 3" MONORAIL focusers with M69x1 connection thread and 2"/1.25" receptacles.
Due to the large corrected field of view, you can, for example, use a DSLR up to APS-C format without corrector. Thus the RC is a pure mirror system for astrophotography. The images become ultrasharp. For imaging dirctly in the focus, you will need the M117x1 extension tubes which are supplied. They are threaded between telescope and focuser, thus reducing back-focus.
The generous back-focus also allows attaching correctors which we recommend when using sensors of at least full-frame size. You can also attach a focal reducer, thus further increasing the speed of the RC.
You can connect the camera via 2" receptacle or thread it via the female M69x1 thread of the focuser. Suitable adapters can be found in the accessories section.

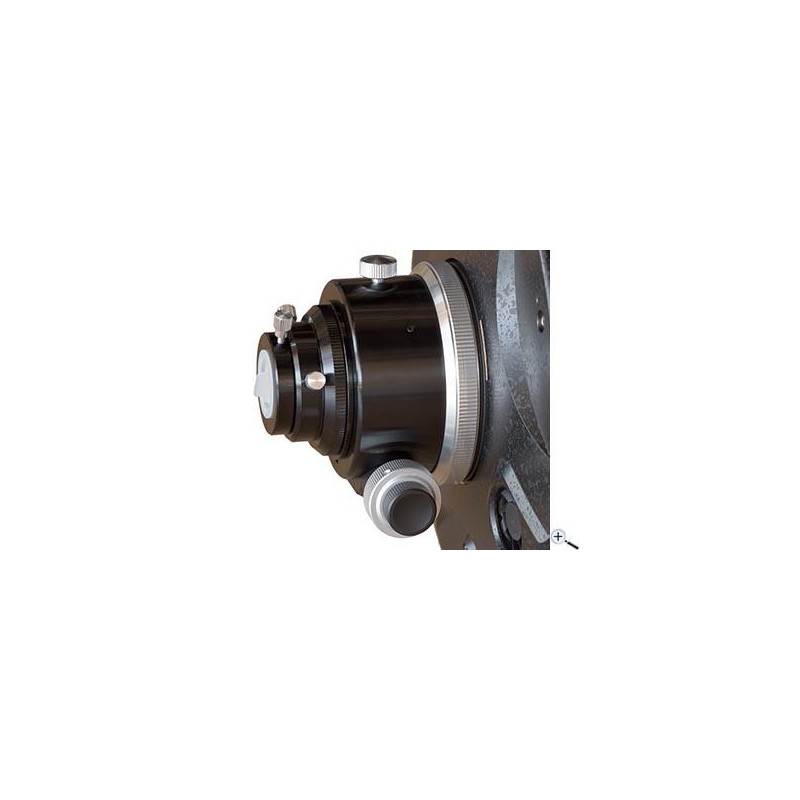

The Monorail focuser combines the ease of movement of a Crayford focuser with the stiffness of a rack-and-pinion focuser. Thus astrophotography becomes a success.
♦ Massive stainless steel rail instead of small ball bearings for more stiffness.
♦ No tilting anymore when locking the drawtube.
♦ 360° rotation for optimal object alignment
♦ Female M69x1 thread for threaded adaptions
♦ 2" and 1.25" compression rings for push adaptions
♦ 1:10 dual speed for accurate focusing
♦ Motor focus can easily retrofitted
♦ Lined scale for quick retrieving of the focus.
♦ Easy operation
Quartz glass does not change its dimensions if temperature changes. When the temperature changes slowly during an exposure, other mirror substrates, like Pyrex, tend to a deformation of the mirror and thus to a shift of the focus. This problem does not exist for mirrors of quartz glass. Thus the focus is better maintained which is very important for long exposures. Both mirrors are coated with 99% reflectivity. The image is obviously brighter than the one of telescopes with only 90% or 94% reflection layer.
The TS RC astrographs are true Ritchey-Chrétien telescopes. Maksutovs and Schmidt-Cassegrains have spherical mirrors and need correctors for making a large field usable. With Schmidt-Cassegrains, you can see the aberrations in the field even when working visually. Most times, Maksutov-Cassegrains are so slow that they are not suitable for astrophotography. RC telescopes have hyperbolical primary and secondary mirrors. They are more difficult to manufacture, but offer a significantly sharper field with less aberrations throughout the field.
Celestron EHD or Meade ACF telescopes need a corrector. Additionally, these telescopes have a Schmidt plate at the front side which is prone to dew. The RC is a pure reflection system without lenses in the light path. Thus you can use the complete light even in the infrared range. The image is brighter and the exposure times get shorter. The field of an RC telescope is coma-free by design and relatively flat.
Telescopes with focusing via movable primary mirror often suffer from the "shifting problem". The image shifts while focusing or even jumps. By now, Meade and Celestron have the problem under control, but the effect is noticable nonetheless. TS RC telescopes do not have this problem, as their primary mirror is fixed. Focusing is done via a high-quality focuser. An additional advantage is the optimal distance from primary to secondary mirror. This gives you the guarantee of the best possible image. If the primary mirror moves relatively to the secondary, you will practically never have the optimal distance.
|Optical Design:||True RC with a hyperbolic primary and secondary mirror.|
|Aperture:||10" / 254 mm|
|Focal Length:||2000 mm|
|Mirror material:||fused quartz primary and secondary mirrors|
|Primary Mirror:||Hyperbolic concave|
|Secondary Mirror:||Hyperbolic convex|
|Surface Quality:||1/12 lambda|
|Reflectivity:||99% reflectivity non-tarnishing dielectric mirror coatings|
|Back Focus:||250 mm from tube backplate|
|Tube:||Metal Tube with 2x dovetail - Losmandy style|
|Tube Weight:||15.7 kg|
|Tube Diameter:||294 mm|
|Total Obstruction by Secondary:||112 mm (85 mm pure mirror diameter)|
|Focuser:||3" M-LRN dual speed Monorail focuser|
|Connection at Eyepiece Side:||M69x1 female, 2" and 1.25"|
