Lodual 3″ Dual Female Saddle Plate for 10Micron Mounts (Ref. 10M2105)

Lodual 3″ Dual Female Saddle Plate for 10Micron Mounts (Ref. 10M2105)

Description:

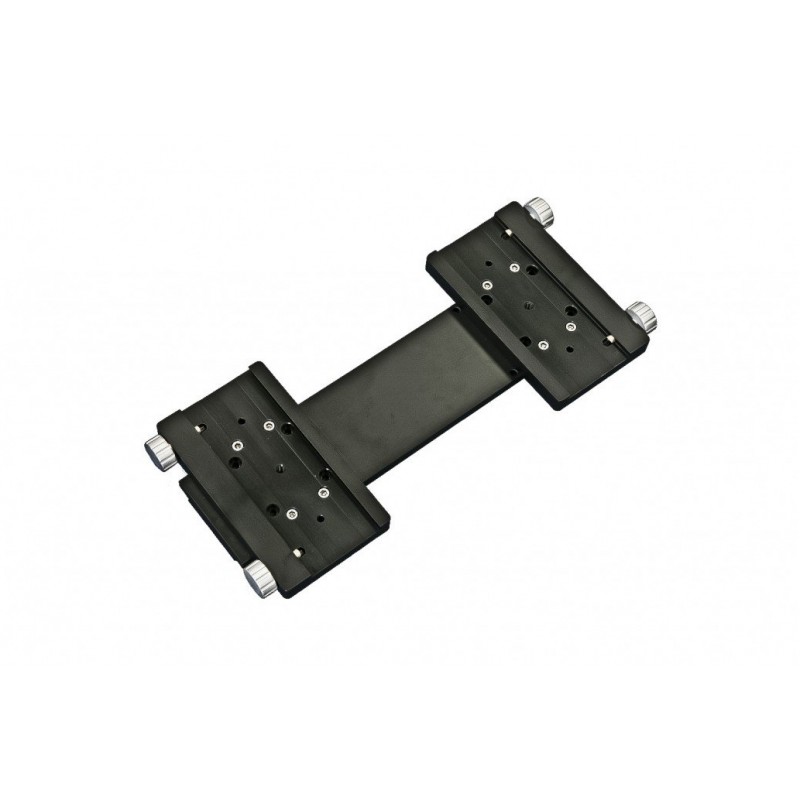

Model 10M2105 is a dual-saddle adapter plate that allows the parallel installation of two optical tubes using 3″ Losmandy-style dovetail bars. The plate includes two Lodual 3″ female interfaces mounted on a rigid aluminum platform.

It is designed to attach securely to the 400 mm long Lodual 3″ male dovetail bar (ref. 10M2301), which fits 10Micron GM2000 mounts and other compatible models.

Machined from black anodized aluminum and assembled at the factory, this system ensures stability, durability, and precision. Perfect for dual-scope astrophotography or guiding applications.

Technical specifications:

• Precision-machined black anodized aluminum

• Compatible with Lodual 3″ male bar (ref. 10M2301, 400 mm)

• Two Lodual 3″ female interfaces

• Weight: 4 kg

• Factory-assembled and aligned

Additional information:

• For parallel telescope mounting on GM2000

• Easy and secure installation

• High-precision Italian engineering
