Focuser robotique à profil bas ESATTO 2" LP (PLLEST2LP) View larger

ESATTO 2" LP low profile robotic focuser (PLLEST2LP)

Focuser robotisé ESATTO low

New product

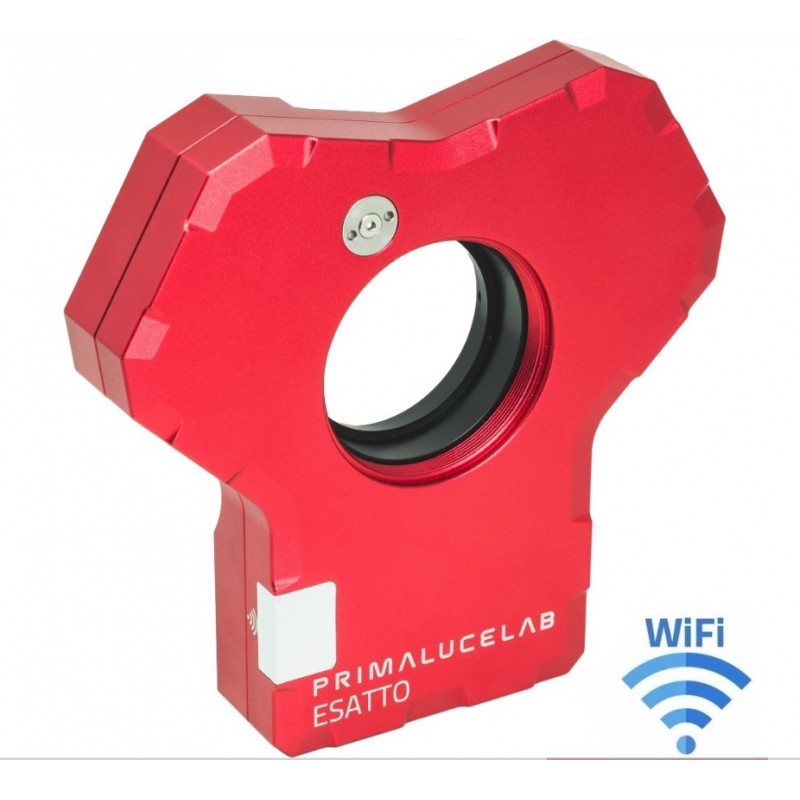

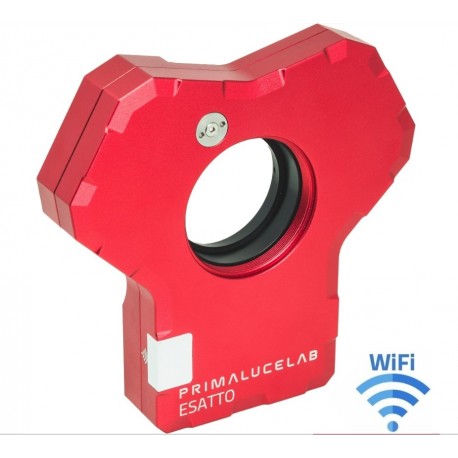

ESATTO 2" LP low profile robotic focuser

Various adapters and accessories are available to allow the assembly of this item on your instrument, see PDF attached to this page.
Please contact us to find out availability and prices.

More details

Subject to availability from the supplier. Please contact us for more information.

807.00 CHF tax incl.

More info

ESATTO 2" LP low profile robotic focuser





 ESATTO 2 LP low profile robotic focuser





ESATTO 2” LP low profile robotic focuser - main features:

- Special low profile design for high load capacity (up to 5 kgs) and precision.

- Low profile with only 32mm thickness.

- 10mm focuser travel with an incredible resolution of 0.03 microns per step!

- Special optional adapters to easily connect to many different telescopes.
Remotely controlled from EAGLE or any Windows computer, it's also provided with ASCOM driver.
USB-C connector offering greater reliability and can be connected to any USB type port thanks to the included cable.
- It works also with PLAY astrophotography software, much more than a standalone program.
- Remote control with WiFi from any smartphone, tablet or computer and ESATTO Virtual HandPad app for visual use!

-Many threaded camera adapters with stop ring on the camera side to rotate and keep the camera in the optical axis.

- ARCO port to easily connect the ARCO camera rotator and field de-rotator to the ESATTO without the need for additional USB or 12V power cables.

- Weight: 730 gr.





PrimaLuceLab





The most compact low profile robotic focuser

The ESATTO 2” low profile robotic focuser is compact and lightweight; it's special design allow you to connect it also to Celestron EdgeHD 8" telescope without touching the primary mirror lock knobs and the manual focus knob. This way, with a body thickness of just 32mm, you can take advantage of a motorized focuser with 50.9mm free aperture that is able to carry up 5 kg of imaging accessories.





 ESATTO 2 LP low profile robotic focuser





Designed to give your telescopes the best performances for astrophotography

ESATTO 2" LP low profile focuser comes with USB-C port to let you easily connect to the EAGLE or standard Windows computer, ARCO port to let you add our rotator and field de-rotator, 12V power port, temperature probe port, WiFi connectivity to let you control it through the Virtual HandPad and dimmable status LEDs.





 ESATTO 2 LP low profile robotic focuser





It comes with PLAY, the Prima Luce AstrophotographY software.

ESATTO 2” LP comes with PLAY, the astrophotography software developed by PrimaLuceLab in order to record beautiful pictures of the night sky in the simpler way and with the telescope, mount and other accessories you prefer! PLAY includes many features needed for astrophotography and it allows you to configurate your telescope by selecting OTA and mount provided with ASCOM drivers (tested with ASCOM platform 6.5 and later), control focus with ESATTO or SESTO SENSO 2 and camera rotation with ARCO. In order to use PLAY you have to have at least ESATTO focuser or SESTO SENSO 2 focusing motor and, if you install PLAY in the EAGLE computer, it automatically adds more advanced features!





ESATTO 2 LP low profile robotic focuser





Designed to fit also Celestron EdgeHD 8" telescope

Special design of ESATTO 2” low profile robotic focuser allows you to connect it also to Celestron EdgeHD 8" telescope without touching the primary mirror lock knobs and the manual focus knob. This way, even if you add the optional 0.7x reducer (that reduces backfocus from 133mm to 105mm) you still have a lot of space to connect camera and accessories, also if you want to add our ARCO 2" camera rotator and field de-rotator!





 ESATTO 2 LP low profile focuser





Connect with a single cable to ARCO to remotely control also the camera rotator and field de-rotator

ESATTO includes a special port allowing ARCO, the camera rotator and field de-rotator, to be directly connected. With ARCO, you can remotely control the rotation angle of your camera in order to achieve perfect framing of the object you want to record. If you have an alt-az mount, you can use ARCO to de-rotate the field without the need of an equatorial wedge! By connecting ESATTO 2” LP to ARCO 2” you will have a rotating focuser in just 54.2mm of thickness and 50.9mm of free aperture.





 ESATTO 2 LP low profile focuser
