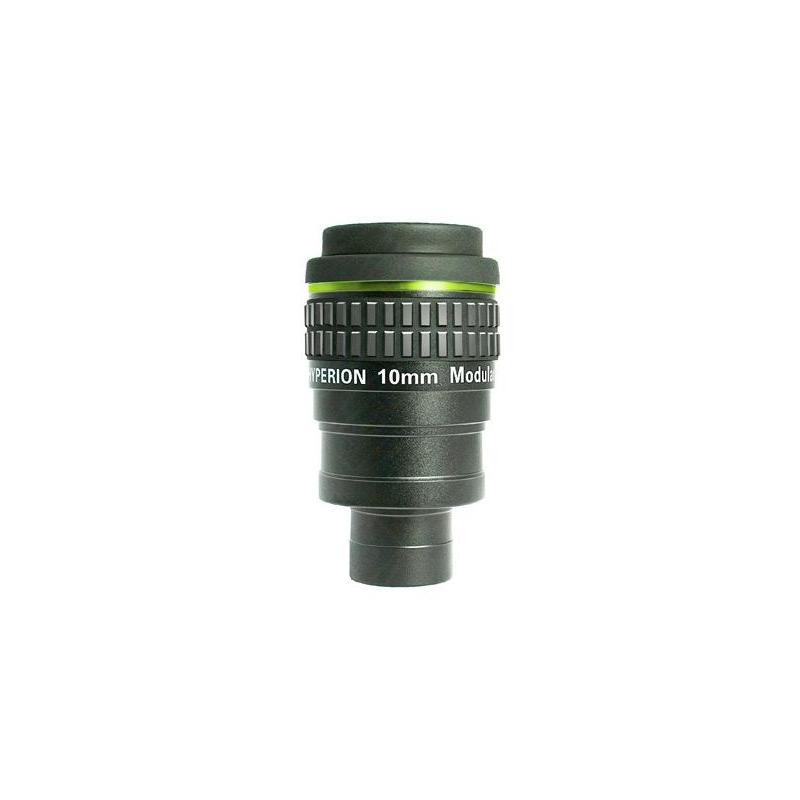

EYEPIECE BAADER / Hypérion 10 mm View larger

Baader Hyperion 10 mm 68° Modular Eyepiece

BAADER / Hypérion 10 mm

New product

Baader Hyperion 10 mm 68° Modular Eyepiece

Provides a 68° field of view and 10 mm focal length, perfect for comfortable high-magnification observing. Comes with both 1¼" and 2" barrels, supports afocal and classical projection, and connects to cameras. Phantom Group-Coating ensures maximum contrast with no reflections.

More details

4 Items

Available.

143.00 CHF tax incl.

More info

Baader Hyperion 10 mm 68° Modular Eyepiece

DESCRIPTION

The Baader Hyperion 10 mm 68° eyepiece is a versatile optical tool combining high contrast, precision, and modularity. With a 68° apparent field and 22 mm eye relief, it's ideal for lunar, planetary, and deep-sky observation at high magnification. The 8-element, 5-group optical layout delivers edge-to-edge sharpness.

Baader’s Phantom Group-Coating, applied to every optical surface, minimizes stray light and maximizes light transmission, especially around 520 nm – where night-adapted vision is most sensitive. The coating is nearly colorless, ensuring the most natural view possible.

This eyepiece includes 1¼" and 2" interchangeable barrels, both threaded for filters. It features two camera-adaptable threads (M43 and SP54) for direct afocal or classical projection. Focal length can be modified using Baader’s 14 mm and 28 mm fine tuning rings, without adding optical elements.

It can also be used with Zeiss Diascope spotting scopes via the Baader bayonet adapter (not included). An optional stop ring (#2958097) helps maintain perfect focus when switching eyepieces in 2" setups.

TECHNICAL SPECIFICATIONS

  • Brand: Baader Planetarium

  • Series: Hyperion

  • Focal length: 10 mm

  • Apparent field: 68°

  • Eye relief: 22 mm

  • Optical design: modular, 8 lenses in 5 groups

  • Coating: Phantom Coating® Group

  • Barrel sizes: 1¼" and 2"

  • Filter threads: yes (1¼" and 2")

  • Camera threads: M43, SP54

  • Inner thread (lens side): M28.5, M48

  • Outer thread (lens side): ø 1¼", ø 2"

  • Outer thread (camera side): M43

  • Eyecup: folding (M43)

  • Included accessories: soft leather bag, 3 dustcaps

  • 1¼" barrel length: 24 mm

  • 2" barrel length: 50.9 mm

  • Field stop diameter: 11.9 mm

  • Field stop offset: -26.9 mm

  • Height above reference plane: 62.1 mm

  • Outer diameter: 58 mm

  • Parfocal: yes

  • Safety undercut: classic

  • Weight: 0.42 kg

  • SKU: 2454610

  • EAN: 4047825025067
