EYEPIECE BAADER / Hypérion 5 mm View larger

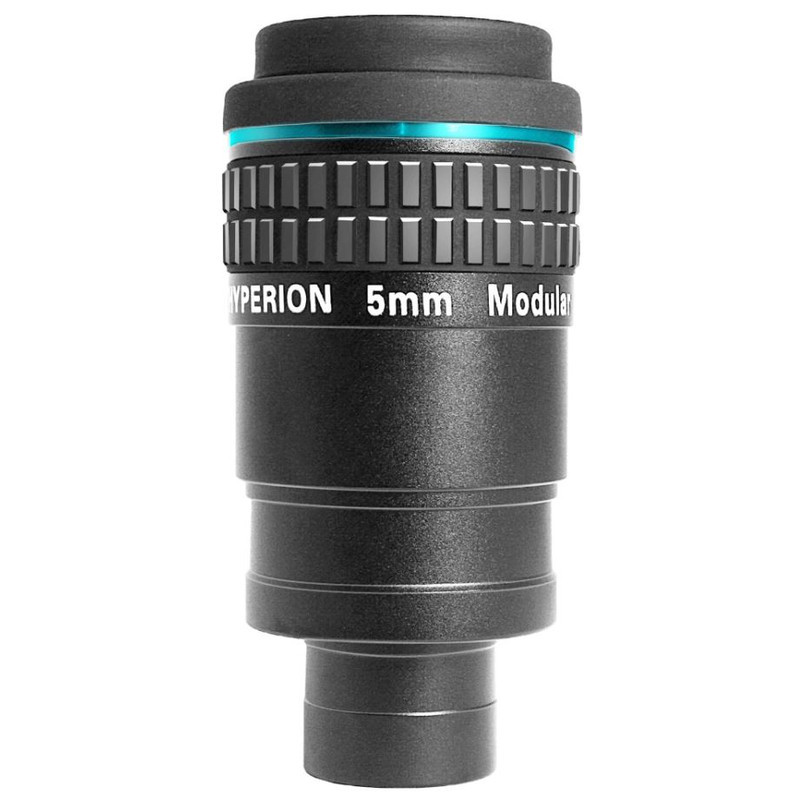

Baader Hyperion 5 mm 68° Modular Eyepiece

BAADER / Hypérion 5 mm

New product

Baader Hyperion 5 mm 68° Modular Eyepiece

The Baader Hyperion 5 mm eyepiece offers a 68° field of view and Phantom Group Coating® for maximum contrast. Supplied with 1¼" and 2" barrels and camera adapter threads.

More details

2 Items

Available.

143.00 CHF tax incl.

More info

Baader Hyperion 5 mm 68° Modular Eyepiece

DESCRIPTION

The Baader Hyperion 5 mm 68° modular eyepiece is designed for excellent performance at high magnification, delivering sharp and comfortable views with a generous 20 mm eye relief. With an apparent field of 68°, it’s suitable for planetary and lunar observation, or detailed deep-sky targets.

Its modular design includes M43 and SP54 threads on the eye side for camera and accessory adaptation. T2 adaptation is possible via the M43/T-2 ring, and digital cameras with fixed lenses can be mounted using the SP54 thread. It is also compatible with Zeiss Diascope spotting scopes using the Baader 2454500 adapter.

Fine-tuning of the focal length is possible using optional 14 mm and 28 mm extension rings. Standard 1¼" astronomical filters can be mounted directly into the barrel. The optional Stop Ring (#2958097) allows repeated insertion with perfect focus in 2" focusers.

The eyepiece features 8 lenses in 5 groups, multi-coated with Baader’s Phantom Group Coating®. Delivered with protective caps, folding eyecup, and a leatherette pouch.

TECHNICAL SPECIFICATIONS

  • Manufacturer: Baader Planetarium

  • Series: Hyperion

  • Focal length: 5 mm

  • Apparent field of view: 68°

  • Eye relief: 20 mm

  • Net weight: 0.42 kg

  • Coating: Phantom Coating® Group

  • Optical design: modular, 8 elements in 5 groups

  • Included barrels: 1¼" (31.75 mm) and 2" (50.8 mm)

  • Camera threads: M43, SP54

  • Internal threads: M28.5, M48

  • Outer thread (eye side): M43

  • Filter thread: yes, for 1¼"

  • Diascope compatible: yes (with 2454500 adapter)

  • Included accessories:

    • 1¼" and 2" dustcaps

    • Folding eyecup (M43)

    • Soft leather bag

  • Eyepiece height above reference: 80.1 mm

  • Field stop diameter: 5.9 mm

  • Field stop displacement: -23.5 mm

  • 1¼" barrel length: 24 mm

  • 2" barrel length: 47.5 mm

  • Slip protect safety: classic undercut
