iOptron HAE69C EC AZ/EQ SWG

iOptron HAE69C EC AZ/EQ SWG

Description

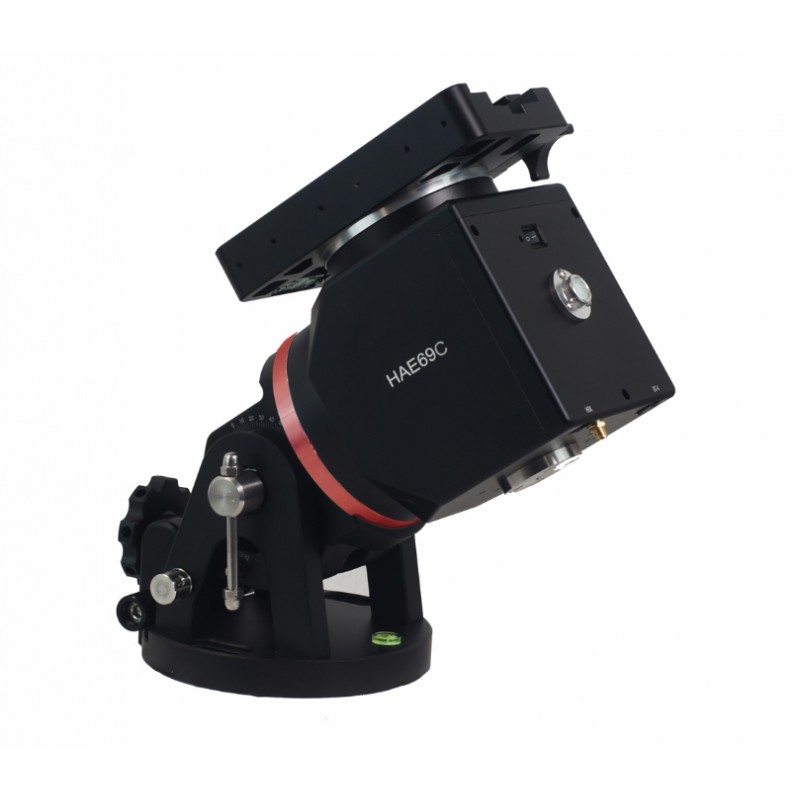

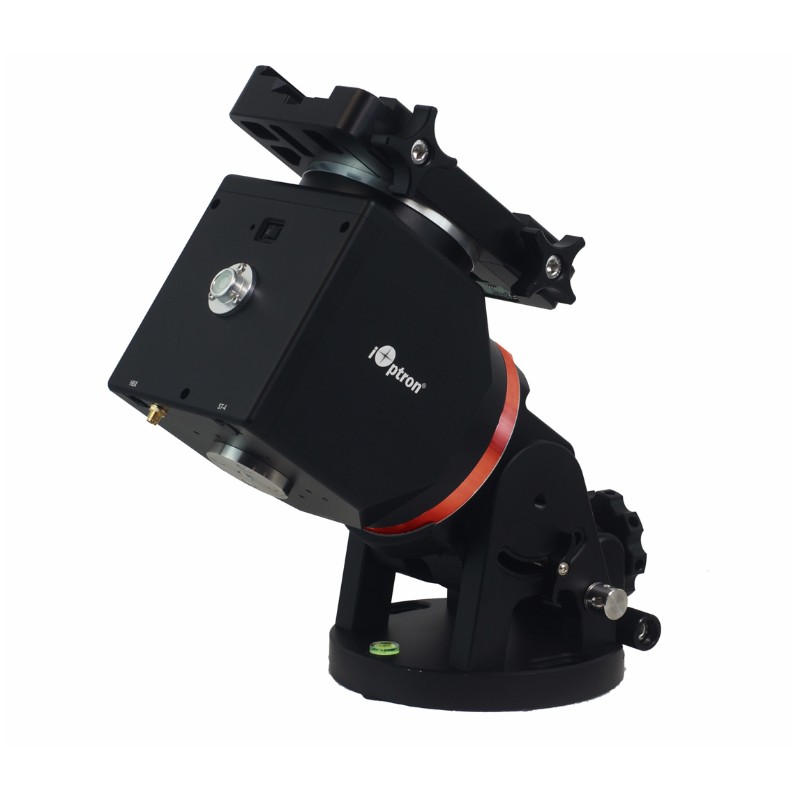

The iOptron HAE69C EC AZ/EQ SWG is a next-generation dual-mode mount using Strain Wave Gear technology on both RA and DEC axes. It achieves an outstanding weight-to-payload ratio, supporting up to 31 kg of payload for a total mount weight of just 9 kg.
Its CNC-machined, all-metal black anodized body provides rigidity and durability. The integrated high-precision RA encoder with real-time periodic error correction (RPEC) ensures smooth and accurate tracking, often eliminating the need for guiding.
This “C” version includes an internal main control board and operates without a handset. USB ports on the mount base and saddle provide direct connection for computer control and firmware updates, while built-in Wi-Fi enables convenient wireless operation.
Other features include an electronic friction brake for safe stopping during power loss, an integrated ST-4 autoguiding port, a dual Vixen/Losmandy-D saddle, and automatic zero position search.
The Go2Nova 8411 OLED handset and iPolar electronic polar scope are available as optional accessories. Combining power, technology, and precision, the HAE69C EC is designed for demanding astrophotographers seeking top-tier performance.

Technical Specifications

• Type: Strain Wave Gear Alt-Az/Equatorial mount

• Payload capacity: 31 kg (69 lb) without counterweight

• Mount weight: 9 kg (19.8 lb) including saddle

• Reduction ratio: RA 800:1 / DEC 800:1

• Gear period: 270 s

• Encoder: Yes (RA, high precision, real-time PEC)

• Periodic error: < ±15 arcsec

• Motor: Stepper motor

• Structure: CNC-machined all-metal aluminum

• Finish: Black anodized

• Brake: Electronic friction brake

• Control: USB / Wi-Fi / Commander

• Handset: Optional Go2Nova 8411 OLED

• Polar scope: Optional iPolar electronic

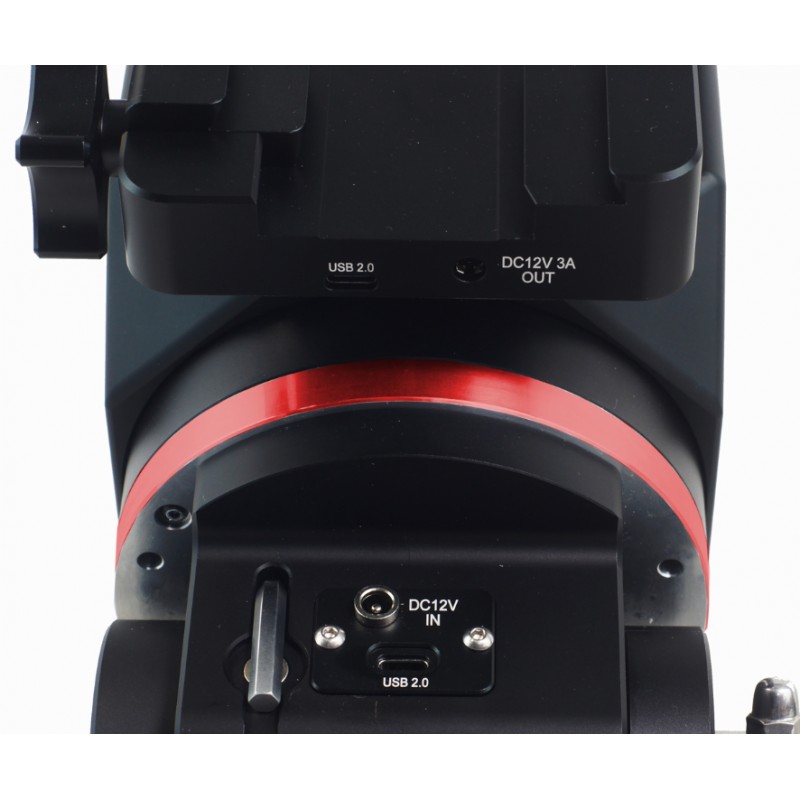

• Ports: USB on base and saddle, DC 12 V output

• Autoguide port: ST-4 compatible

• Communication: USB and Wi-Fi integrated

• Firmware upgrade: Yes (USB via Windows)

• Power supply: 12 V DC, 6 A (5.5 / 2.1 mm plug)

• AC adapter: 100 – 240 V included (indoor use only)

• Power consumption: 1 A (tracking), 1.6 A (GoTo)

• Max slew speed: 4.5°/s

• Azimuth adjustment: ±8°

• Latitude adjustment: 0°–90°

• Level indicator: Bubble

• Operating temperature: –20 °C to +45 °C

• Accessories: Aluminum carrying case

• Warranty: 2 years
