iOptron HAE69C AZ/EQ SWG with Handset and iPolar

iOptron HAE69C AZ/EQ SWG with Handset and iPolar

Description

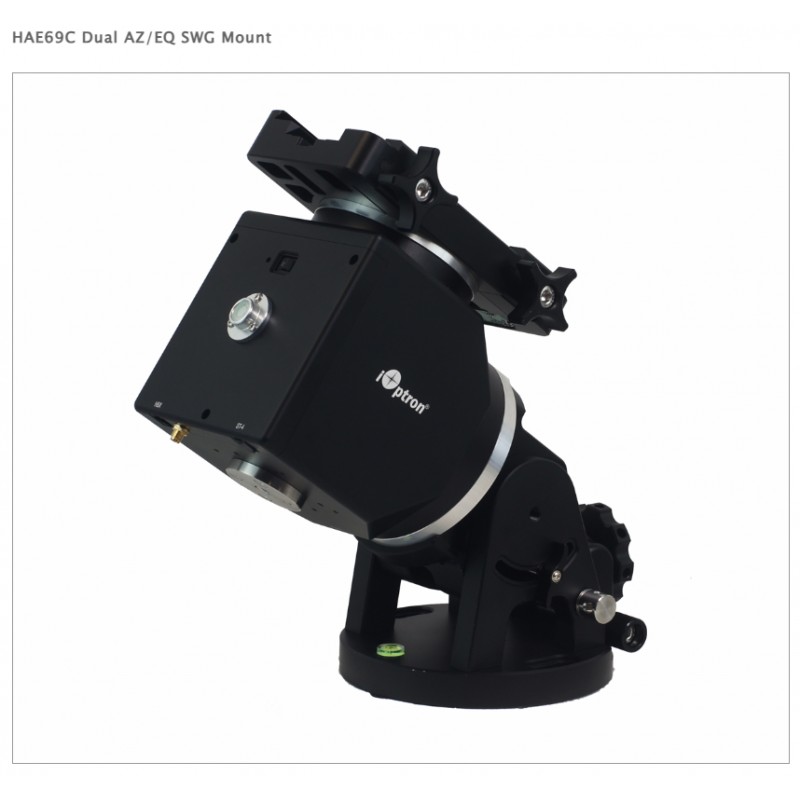

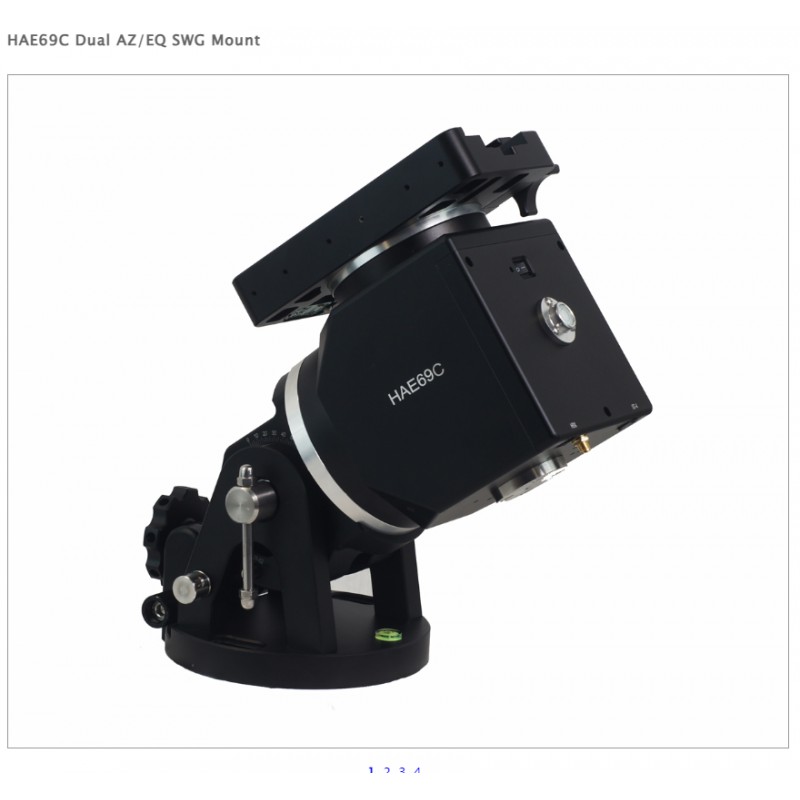

The iOptron HAE69C AZ/EQ SWG with Handset and iPolar is part of iOptron’s latest Strain Wave Gear series. It achieves an outstanding balance between compactness, precision, and performance, supporting up to 31 kg of payload for only 9 kg of mount weight.
Utilizing Strain Wave Gear drives on both RA and DEC axes, it provides smooth tracking with periodic error under ±15 arcsec. Its CNC-machined, black anodized metal body ensures mechanical stability and long-term durability.
The mount includes an electronic friction brake, a built-in ST-4 autoguide port, dual Vixen/Losmandy-D saddle, and both USB and DC ports for connectivity. It also features Wi-Fi for direct wireless control and firmware updates via USB.

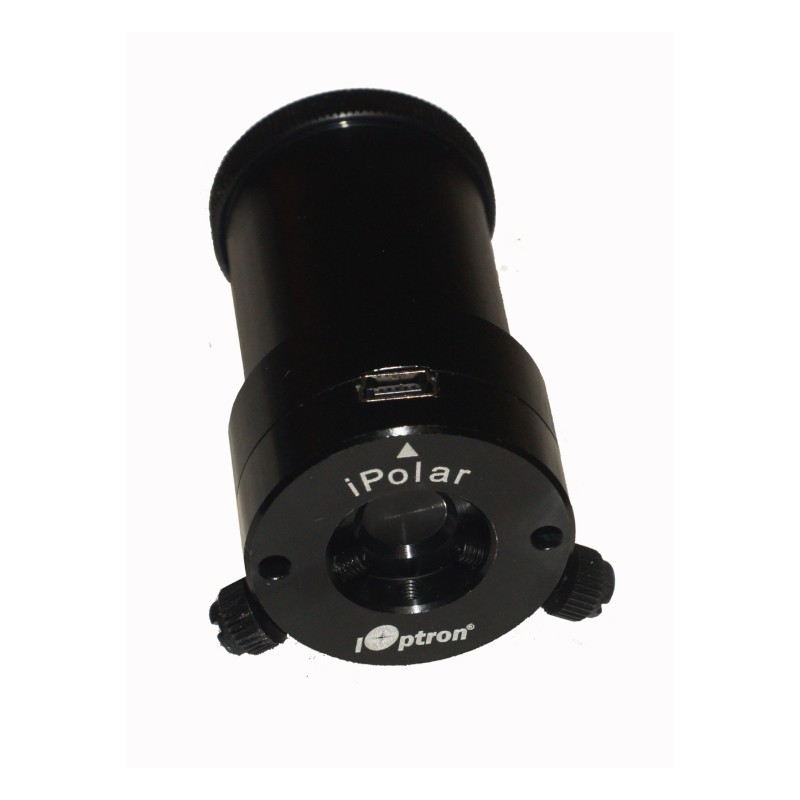

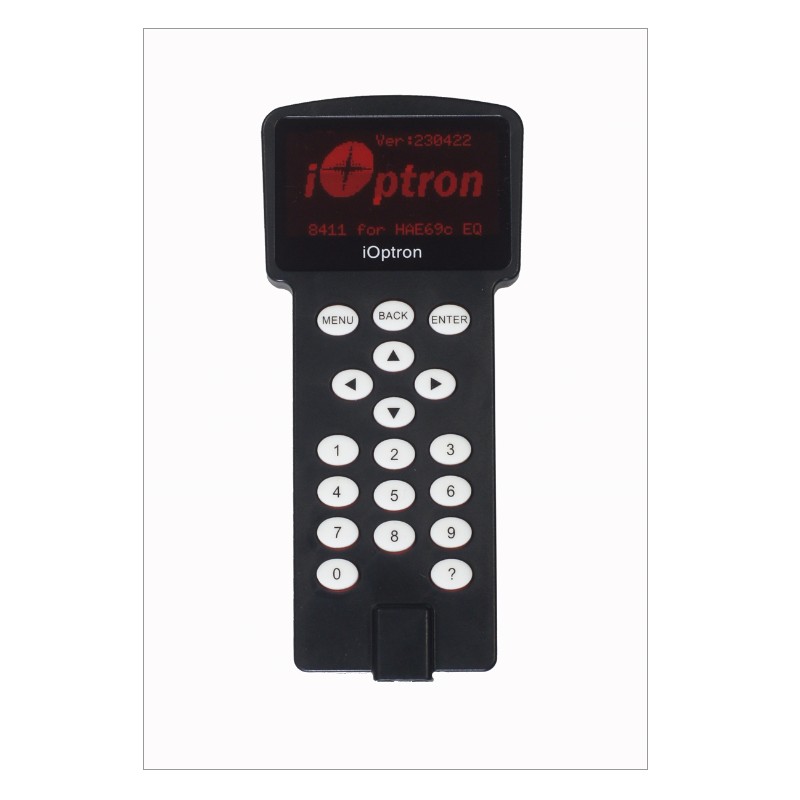

The included Go2Nova 8411 OLED handset offers precise GoTo functionality and an extensive celestial database. The iPolar electronic polar scope provides fast and accurate polar alignment.
With advanced engineering, solid construction, and easy connectivity, the HAE69C with handset and iPolar is a perfect solution for demanding astronomers who value performance and reliability.

Technical Specifications

• Type: Strain Wave Gear Alt-Az/Equatorial mount

• Payload capacity: 31 kg (69 lb) without counterweight

• Mount weight: 9 kg (19.8 lb) including saddle

• Payload/mount ratio: 3.44

• Reduction ratio: RA 800:1 / DEC 800:1

• Gear period: 270 s

• Periodic error: < ±15 arcsec

• Motor: Stepper motor

• Structure: All-metal CNC machined aluminum

• Finish: Black anodized

• Brake: Electronic friction brake

• Control: Go2Nova 8411 OLED handset / Wi-Fi / USB

• Polar scope: iPolar electronic polar scope included

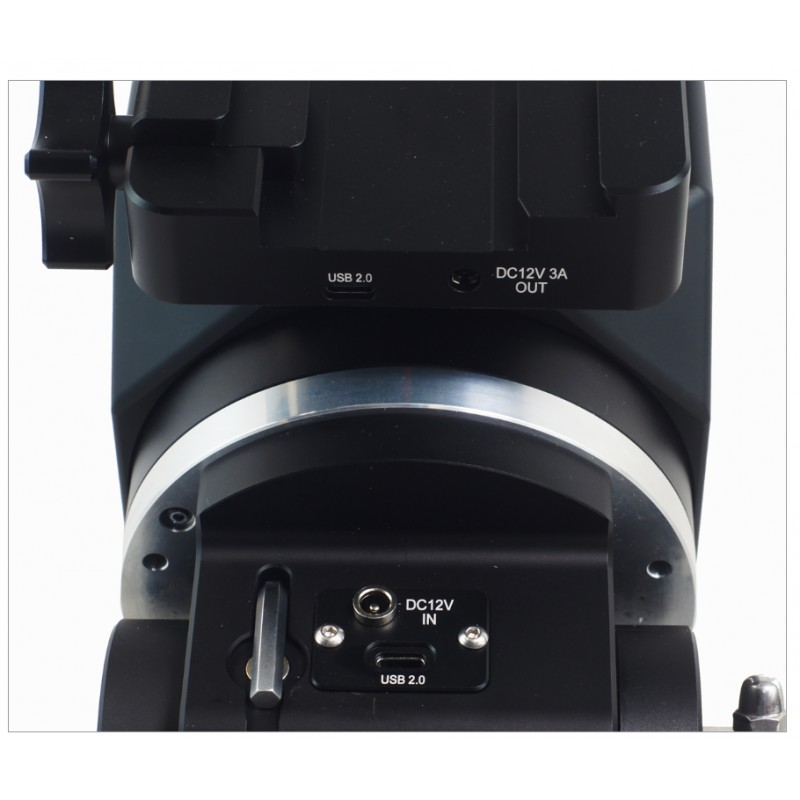

• Ports: USB on base and saddle, 12 V DC output

• Communication: USB and Wi-Fi

• Autoguide port: ST-4 compatible

• Saddle: Dual Vixen / Losmandy-D

• Firmware upgrade: Yes (USB via Windows)

• Power supply: 12 V DC, 6 A (5.5 / 2.1 mm plug)

• AC adapter: 100 – 240 V included (indoor use)

• Power consumption: 1 A (tracking), 1.6 A (GoTo)

• Max slew speed: 4.5°/s

• Azimuth adjustment: ± 8°

• Latitude adjustment: 0°–90°

• Level indicator: Bubble

• Operating temperature: –20 °C to +45 °C

• Accessories: Aluminum carrying case

• Warranty: 2 years
