iOptron HAE16C AZ/EQ mount with GoTo handset and IPolar
Compact hybrid AZ/EQ mount with harmonic drive, built-in Wi-Fi, USB-C ports and Go2Nova 8411 handset included. 8.2 kg payload capacity without counterweights.
iOptron HAE16C AZ/EQ mount with GoTo handset and IPolar
Description

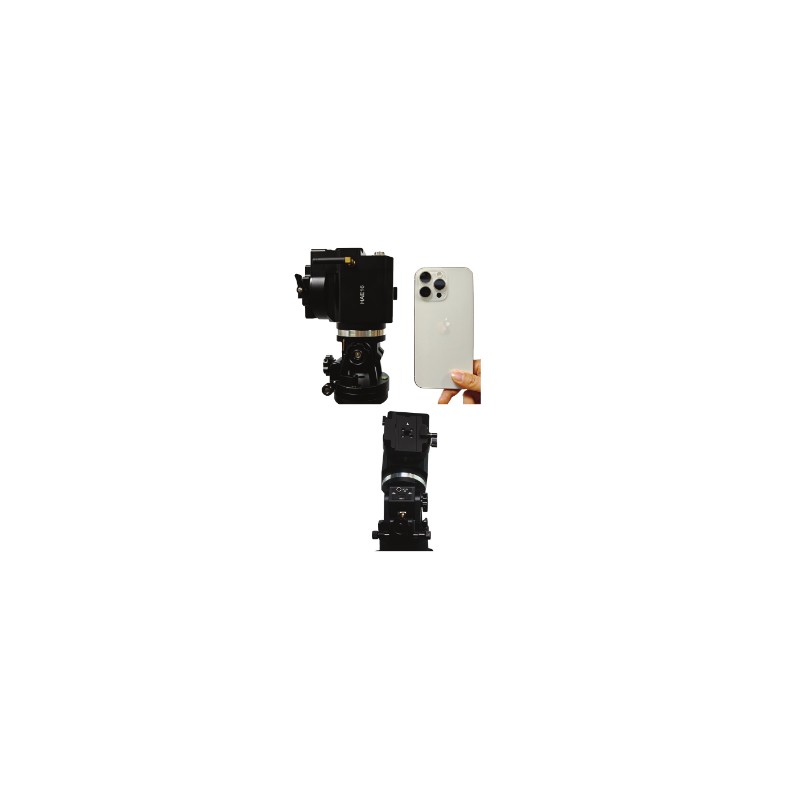

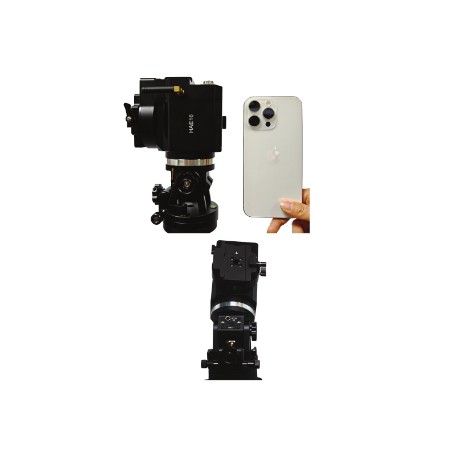

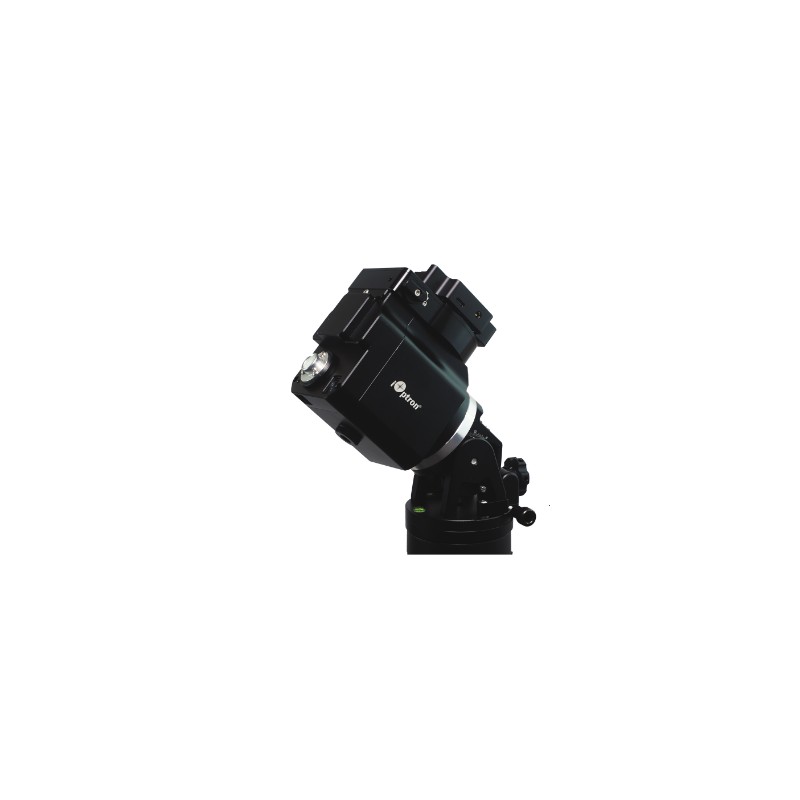

The iOptron HAE16C mount offers an exceptional combination of lightweight portability, advanced engineering and precise tracking. Designed for mobile astronomers or compact observatory setups, it features a strain wave gear (harmonic drive) on the RA axis and a backlash-free belt system on the DEC axis. Despite weighing only 2.6 kg, the HAE16C can carry up to 8.2 kg without a counterweight.

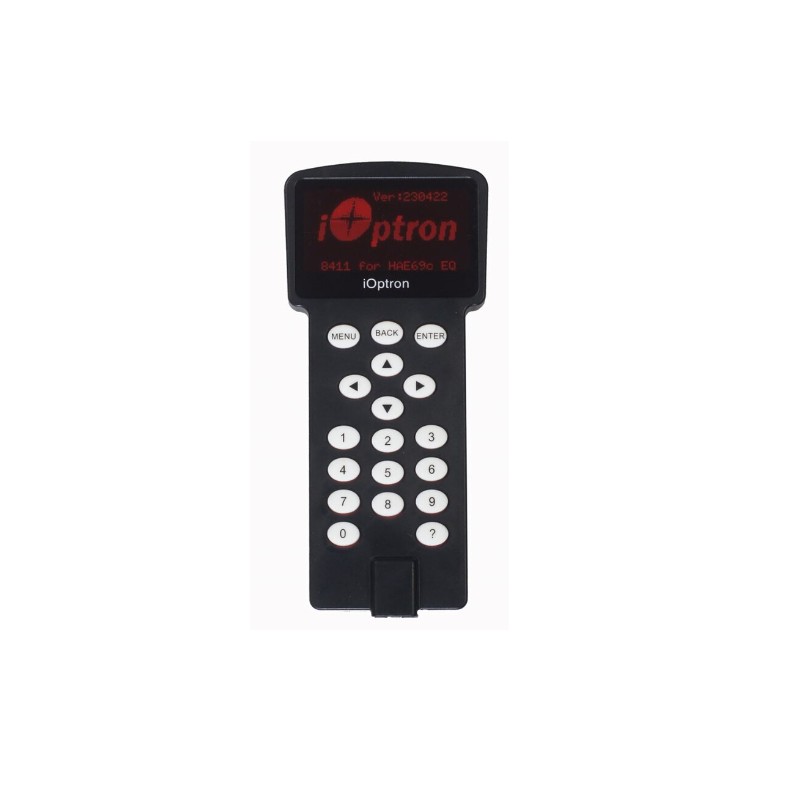

This version includes the Go2Nova 8411 hand controller with OLED display, giving full access to a comprehensive GoTo system and thousands of celestial objects. Built-in electronics include an electronic friction brake on the RA axis, zero position sensors on both axes, dual USB-C ports for firmware and control, and onboard Wi-Fi for wireless operation via PC or smartphone.
Its precision-machined all-metal housing ensures long-term reliability and stability. The mount can be used in both equatorial and alt-azimuth modes, making it a flexible and powerful solution for visual observers and traveling astrophotographers.
Technical specifications
Mount type: Hybrid AZ/EQ
RA drive system: StrainWave 14 harmonic gear
DEC drive system: Backlash-free worm/belt
RA gear ratio: 360:1
Payload capacity without CW: 8.2 kg
Payload capacity with CW: 12 kg
Mount weight: 2.6 kg
Payload-to-weight ratio: 3.17
Structure: Precision-machined metal
Drive motors: Stepper motors
Hand controller: Go2Nova 8411 with OLED display (included)
Tracking: Automatic
Tracking speeds: 1x, 2x, 8x, 16x, 64x, 128x, 256x, 512x, MAX (6°/s)
Emergency brake: Electronic friction brake on RA
Zero position sensors: On both RA and DEC
Ports: 2x USB-C, built-in Wi-Fi
Polar alignment: External iPolar scope (included)
Latitude range: 0° to 90°
Azimuth range: ±6°
Leveling: Integrated bubble level
Power supply: 12 V DC, 5 A
Power consumption: 0.6 A (tracking), 1 A (GoTo)
AC adapter: 100 V – 240 V (indoor use only)
Interfaces: ASCOM, INDI, iOptron Commander
Dovetail saddle: Vixen-type
Counterweight: 2.05 kg optional (#3006-05)
Counterweight shaft: Ø20 mm x 200 mm (#P-SGP-CWS)
Tripod interface: 3/8"-16 thread
Optional tripod: Carbon fiber tripod #8061A
Optional MiniPier: #8041
Optional AZ-leveling MiniPier: #8042 (requires #8061A)
Operating temperature: -20 °C to +40 °C (handset: -10 °C to +40 °C)
Warranty: 2 years
Additional information
The HAE16C is ideal for fast deployment and mobile use, offering full GoTo control with excellent tracking accuracy. Its no-counterweight design and compact form make it a powerful tool for astronomers on the move.
