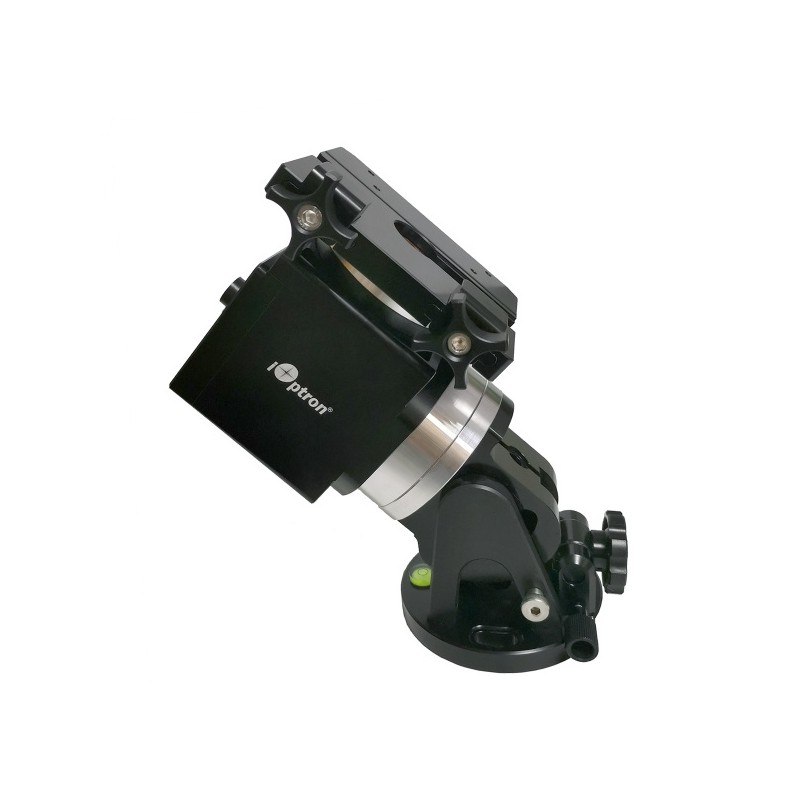

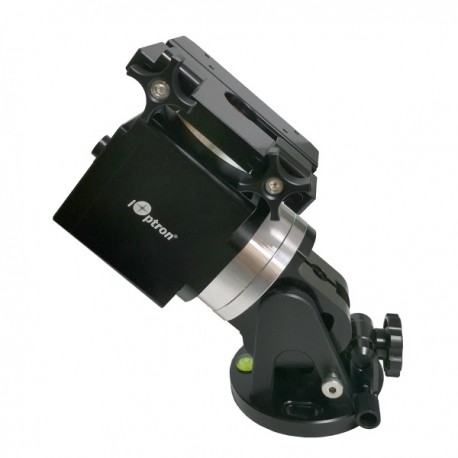

iOptron HAE29C AZ/EQ dual SWG with iPolar (Ref. HE292C)
Compact hybrid mount with strain wave gear and integrated iPolar. USB and Wi-Fi control. Payload capacity: 13.5 kg without counterweights.
iOptron HAE29C AZ/EQ dual SWG with iPolar (Ref. HE292C)
Description:
The HAE29C with iPolar offers an ideal solution for mobile astrophotographers seeking compactness, performance, and digital precision. With strain wave gear on both axes, the mount delivers smooth, backlash-free tracking and reduced mechanical complexity.
The included iPolar electronic polar scope allows for fast, computer-assisted alignment without the need for a traditional optical finder. Control is handled entirely via USB or Wi-Fi—no hand controller is required. The mount supports up to 13.5 kg without counterweights, or 18 kg with optional shaft and weights.
This version does not include a RA axis encoder, distinguishing it from the EC model. It is still highly suitable for portable imaging setups.
Technical specifications:
Mount: Strain Wave Altazimuth / Equatorial Mount
RA gear system: Strain Wave Gear
DEC gear system: Strain Wave Gear
Reduction ratio: RA 480:1, DEC 360:1
Payload w/o CW: 29.7 lbs (13.5 kg)
Mount weight: 8.15 lbs (3.7 kg with dovetail saddle)
Payload / Mount weight: 3.65
Payload with CW*: 40 lbs (18 kg)
Period: 360 second
PE: < 36 arcsec (< ± 18 arcsec)
Drive motor: Stepper motor
Structure Material: All metal, CNC machined
Exterior finish: Anodized black
Level indicator: Level bubble
Control system: GOTONOVA / Commander
Handset: Not included
Tracking: Automatic
Maximum slew speed: 6°/sec
Power consumption: 0.6A (Tracking), 1A (GOTO)
Power: DC12V–5A (5.5/2.1mm DC plug)
AC adapter: 100V ~ 240V (included, indoor use only)
Power off brake: Electronic friction brake
Wi-Fi: Built-in
Communication port: Yes (Wi-Fi and USB)
Autoguide port: Yes (ST–4 compatible)
Firmware upgrade: Yes
Dovetail saddle: Vixen & Losmandy
Tripod: Optional
Counterweight Shaft: SS Ø20x200mm, 3/8"-16 thread (Optional)
Counterweight: 10 lbs (4.5 kg) (Optional)
Operating temperature: –20°C ~ +45°C
Warranty: Two year limited
Additional information:
The iPolar module enables precise polar alignment via PC without needing a hand controller. The mount is ideal for lightweight setups using refractors up to 115 mm or compact Newtonians. Compatible with iOptron MiniPier, Tri-Pier, and LiteRoc tripods. The Polar Align routine can also be accessed through iOptron Commander.
