Sale! ZWO ASI120MM-S Monochrome CMOS Astrophotography Camera View larger

ZWO ASI120MM-S Monochrome CMOS Astrophotography Camera


New product

ZWO ASI120MM-S Monochrome CMOS Astrophotography Camera

More details

9 Items


161.1 CHF tax incl.


179.0 CHF tax incl.

More info

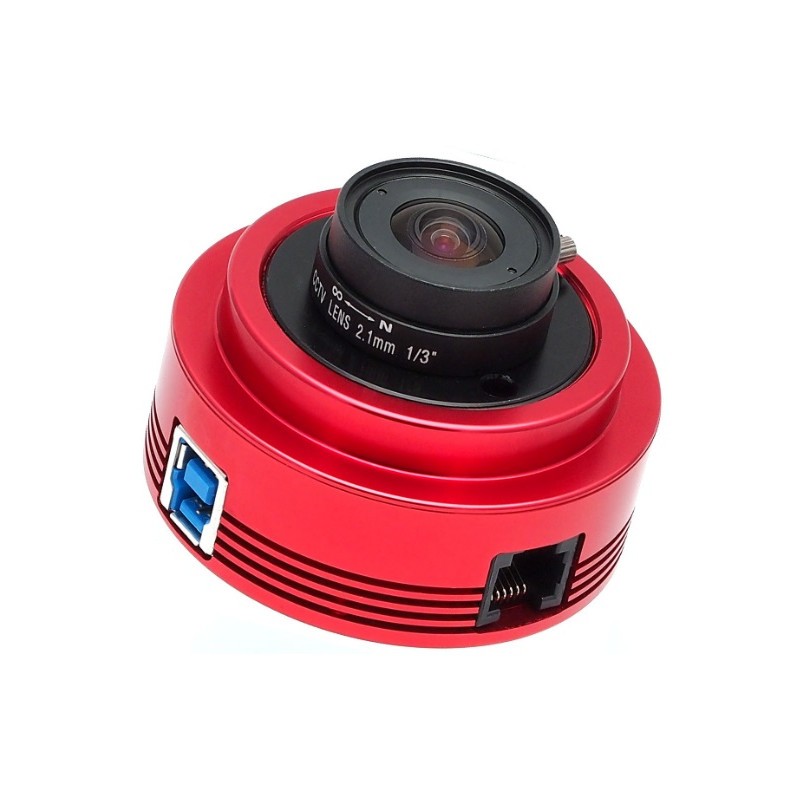

ZWO ASI120MM-S Monochrome CMOS Astrophotography Camera

  • The ZWO ASI120MM-S Super Speed Camera is a perfect choice for lunar and planetary astrophotography! It features a CMOS sensor, sensitive enough to capture bright deep-sky objects. An ideal choice for the serious beginner or intermediate astrophotographer.

    The ZWO ASI120MM-S Specs at a Glance

    Experience the ZWO ASI120MM-S Monochrome Camera

    Accelerated Performance

    Switch from planetary to deep space imaging without having to weigh down your set up. The ZWO ASI120MM produces frames with 254 per second with reduced resolution or 60 frames per second at full resolution.Download your images at lightning speed with the USB 3.0 connection.

    Optimum Design

    Encamped in a vibrant, metallic red aluminum housing andwith both a USB and ST4 autoguider port, the ZWO ASI120MM-S is convenient and versatile. Easily attach a wide variety of camera mounts and tripods with its one-fourth-inch-20 threadin the center bottom of the camera or any of its four M4 threads along the outside edge.

    Prioritized Mechanics

    • Built on a one-third inch CMOS AR0130S monochrome sensor. Spectacular details are revealed in high-resolution black and white. Pair with a filter wheel to capture each color or narrowband and stack images as you choose.
    • The pixel array of 1280 x 960 and a pixel size of 3.75-micron square make this camera capable of capturing moderately wide fields when used with the included 150-degree wide-angle lens adapter.
    • Peak QE is 75% with absolutely no fixed pattern noise. Protecting the sensor is an IR-cut window.

     OPT Product Number: ZWO-ASI120MM-S


  • specifications

    ADC 12 bit
    Back Focus 12.5 mm
    Camera Connection Female M42x0.75
    Color or Mono Monochrome
    Cooled Uncooled
    Dynamic Range 11.6 Stops
    Free Shipping Yes
    Full Rez Frame Rate 60fps
    Full Well 20ke
    Max Frame Rate 254fps
    Mega Pixels 1.2 mp
    Peak QE 78%
    Pixel Array 1280 x 960
    Pixel Size 3.75 microns
    Read Noise 6.6e
    Sensor Diagonal 6 mm
    Sensor Type CMOS
    Sensor On Semi AR0130CS
    Weight 0.2 lbs
  • included items

    • ZWO ASI120MM-S Monochrome 1.2 Mega Pixel Astronomy Camera.
    • 150-degree Lens Adapter for use as an all-sky camera.
    • M42 to 1.25-inch nosepiece.
    • 1.25-inch IR-cut window.
    • 2 m long USB cable.
    • 2 m long ST4 guider cable.
    • Driver and Extra Software CD.
