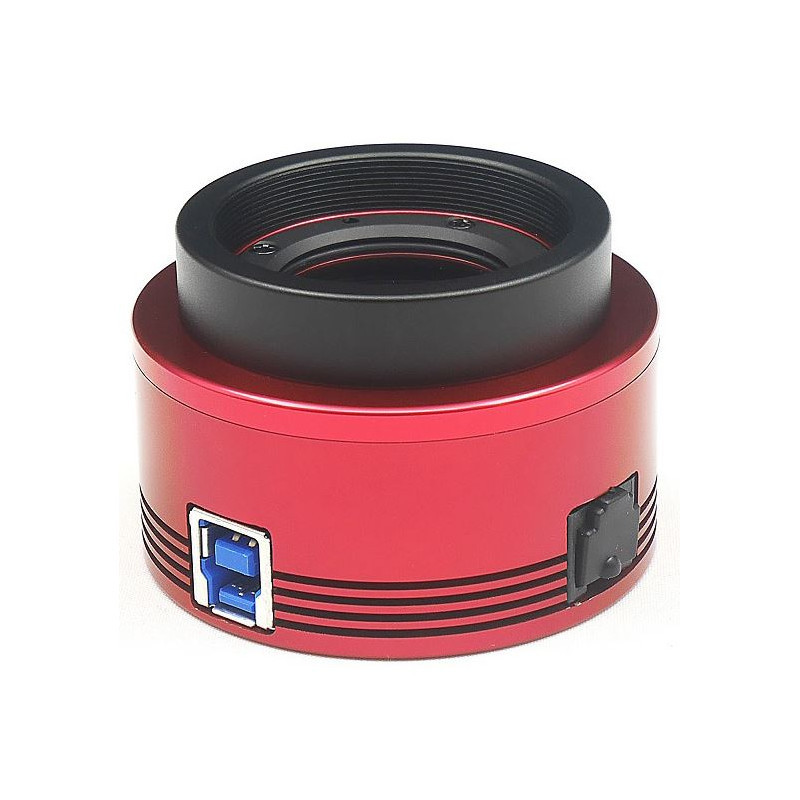

ZWO Camera ASI 183 MC Color

Product description:

ASI183 has much potential, and each feature means a new posibility! This camera is suitable for a wide range of astronomical application.

The ASI 183 camera series is the most sensitivie cameras in ZWO history. Peak Q.E. of the mono sensor reaches 84%!

Astrophotography Performance

In the astronomic application field, Sony IMX183CLK-J (monochrome) and IMX183CQJ-J (color) sensors uses a very high sensitivity back-illuminated structure with high resolution 2.4 μm square unit pixel. The ASI183 cameras have a very large full well capacity (15000e) for such small pixel size, 1.6e read noise @ 30DB, and 12 stops dynamic range @ Gain=0. The ASI183 cameras also utilize firmware features to minimize amplifier glow for maximum performance in astrophotography.

Sony’s back-illuminated Exmor R technology is giving it excellent Deep Sky performance. ASI183 QE peak reaches a remarkable 84%. In Ha channel, QE is still over 60%. Having high QE means more of the light that enters your telescope and reaches the sensor is actually used. The ASI183 will utilize a high percentage of the light that reaches it, improving your signal quality.

High Speed

Fast FPS can be used in solar and lunar imaging, as well as for live viewing/EAA. The high speed readout may also be used for real-time focusing, true lucky imaging of double stars and other small objects, planetary imaging of the major planets in the solar system, and much more.

Possible framerates:

10Bit ADC

  • 5496×3672 19fps
  • 3840×2160 41.04fps
  • 1920×1080 80.10fps
  • 1280×720 117.30fps

12bit ADC

  • 5496×3672 19fps
  • 3840×2160 36.12fps
  • 1920×1080 70.48fps
  • 1280×720 103.23fps

ST4 Port: Can be used to connect with the auto guide port of your mount, for guiding.

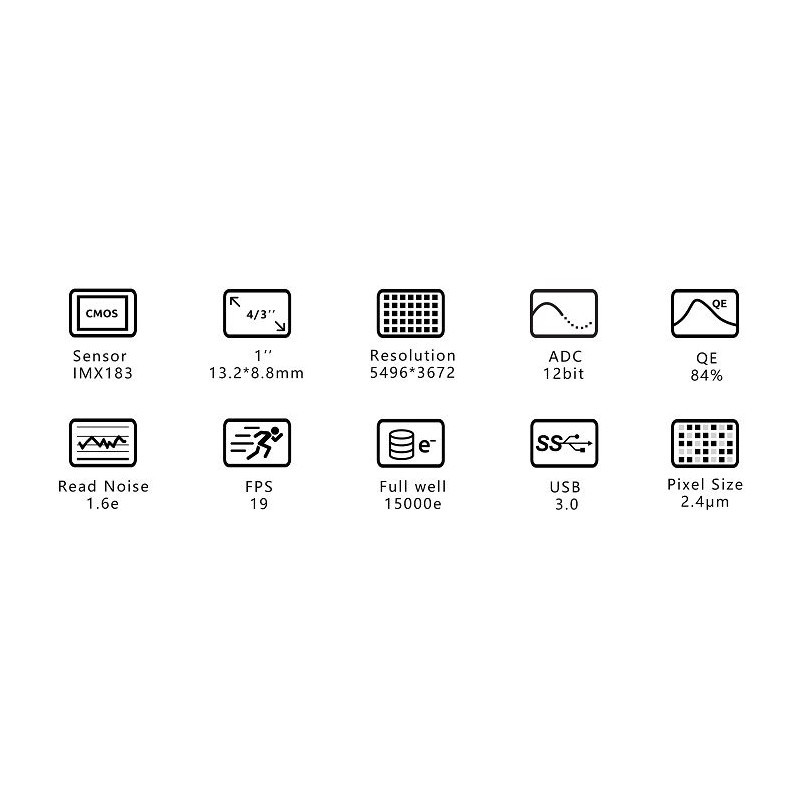

Specifications:

Capacity

Sensor type CMOS Chip (Sony IMX183)
Size of chip (mm) 13,2 x 8,8
Megapixel 20,18
Pixel size 2,4
Resolution Photograph (Pixel) 5496 x 3672
Bit depth (Bit) 12
Active cooling no
Interfaces USB 2.0, USB 3.0, ST-4
Connection (to the telescope) 1,25" & 2" & T2
Colour camera yes
Operating temperature -5 - 45
Max. exposure time (min) 33,3
Min. exposure time 32µ
Images per second 19
Reading noise 1,6
Full Well Capacity 15.000
Flange focal distance (mm) 6,5
Power supply 5 (via USB)
Chip - Diagonal (mm) 15,9

Equipment

Filter wheel no

General

Weight (g) 120
Series ASI 183
Diameter (mm) 62
Length (mm) 36

Area of application

AllSky, Meteore no
Autoguider yes
Moon & Planets yes
Nebulae & galaxies yes
