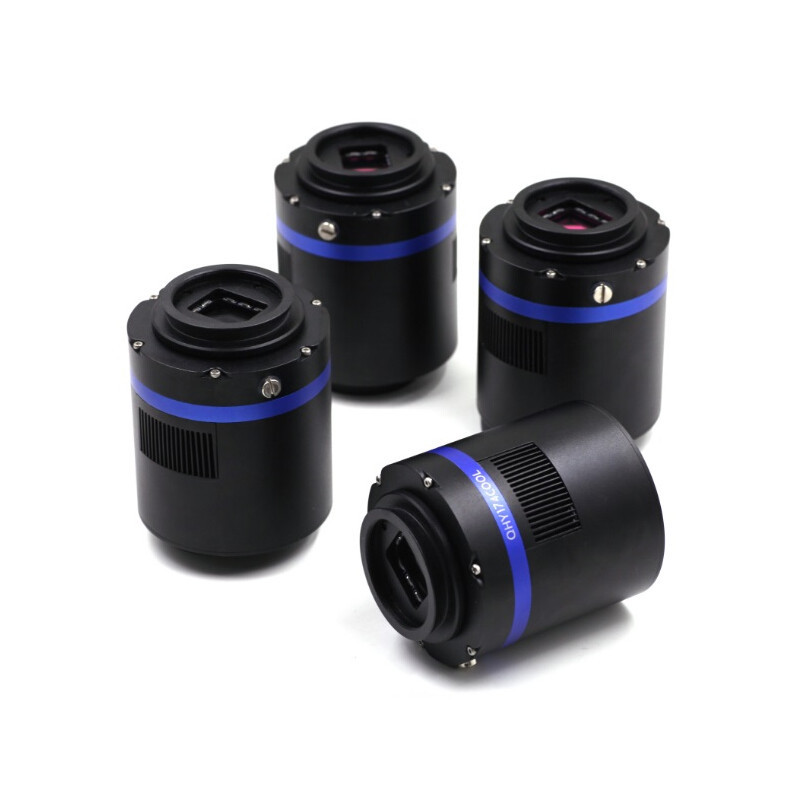

QHY 163 couleur
New product
1 Item Items
Available.
Warning: Last items in stock!
Availability date:
The QHY 163C is a high end full color CMOS camera with an inbuilt cooling system, capable of producing very high end images of a wide range of celestial objects! This is a full color CMOS imaging system with many fine features worth boasting over- ranging from a high power dual stage TEC cooling system to remarkably low baseline read noise. These solid features are only parts of the whole in the end though, single components of the standard expected of each and every component in these top notch cameras. The end result of a wide array of high quality components used to create a single high functioning whole? This beautiful peace of work, capable of astro-imaging at a glorious 4k resolution with 30 FPS, and ideally suited for planetary and lunar imaging while retaining the capacity for deep sky imaging as well!
To get a bit more in depth, lets start with a closer look at one of the core facets of this marvelous imaging device: the two stage Thermo-Electric cooling system that keeps the cameras internal temperature regulated smoothly and cleanly, reducing dark noise interference and all around improving your imaging experience. This powerful cooling system is capable of attaining a cooling delta of -40 degrees celsius lower than the average temperature of the cameras environment. This is of particular value on a warm summer night, where higher temperatures could cause dewing or other sources of internal interference in the cameras mechanisms. In general the lower temperatures attainable through high power cooling are a great boon to quality imaging. Speaking of dewing, this camera has another potent countermeasure to prevent that from even being a possibility worth considering, in the form of a fully vacuum sealed sensor chamber combined with both a silicon gel tube socket and a window heater that all combine to keep everything perfectly dry within that chamber.
Moving on to another exemplary trait of this splendid camera, lets talk about the inbuilt 128MB DDRII image buffer that is another excellent component of this camera. This buffer exists to safeguard you from unexpected drops in transmission, and to ensure that every pixel that you've captured after a long night of imaging can be safely transferred to your computer for processing without data loss in transit. This frame buffer accomplishes this all by storing image data in the camera itself until they can be safely transmitted. This can also help your data run more smoothly on slower computers when linked to them.
In summary this camera is designed to clear away as many obstacles as possible between you, and capturing the most beautiful full color images of the starry night skies possible. We're comfortable saying that its likely to do a good job of it to boot, with the heavy duty cooling and numerous other high quality features of this camera combining to make your hobby as easy as it could be. And due to it being of a CMOS format rather than CCD, all this top notch quality and advanced technology is being offered at a supremely affordable price!
Manufacturer Product Number: QHY163C
QHY163M/C Camera Specification
|
|
CMOS Sensor
|
4/3 inch 16 Megapixel CMOS Sensor (Color/Mono)
|
Effective Pixels
|
4656 x 3522
|
Pixel Size
|
3.8um x 3.8um
|
Effective Area
|
17.7mm x 13.4mm
|
Shutter
|
Electronic Rolling Shutter.
|
FullWell
|
18-20ke Typical
|
QE
|
TBD
|
Readout Noise
|
2.4e@low gain 1e@high gain
|
System Gain
|
TBD
|
Unity Gain
|
TBD
|
Frame Rate (on 8bit)
|
22.5FPS@16MP, 30FPS@4K HD Video
57FPS@1920*1080, 60FPS@1280*1024
80FPS@1024*768, 100fps@800*600
|
ROI Support
|
Yes. Any Area ROI
|
Exposure Time
|
50us - 1800 sec
|
AD Sample Depth
|
10-bit/12-bit (8-bit/12-bit output)
|
In Camera Image Buffer
|
Yes, 128MB DDRII Buffer
|
Cooling
|
2-stage TEC, -40C below Ambient, typical.
Temperature Regulated
|
Power
|
USB Powered for camera and +12V powered for TEC
|
Anti Dew Control
|
Air Connector for removable silicon gel tube
Heat board for optic window of airproof CCD chamber
|
Computer Interface
|
USB 3.0 Super Speed
|
Telescope Interface
|
M42/0.75 & 2-inch adapter. Optional C-mount adapter
|
Color Wheel Port
|
4-pin QHYCFW2 socket
|
Guide Port
|
6-pin RJ11 Guide Port
|
Optic Window
|
AR+AR (Mono) IR+AR(Color)
|
Power consumption
|
TBD
|
Weight
|
450g
|
