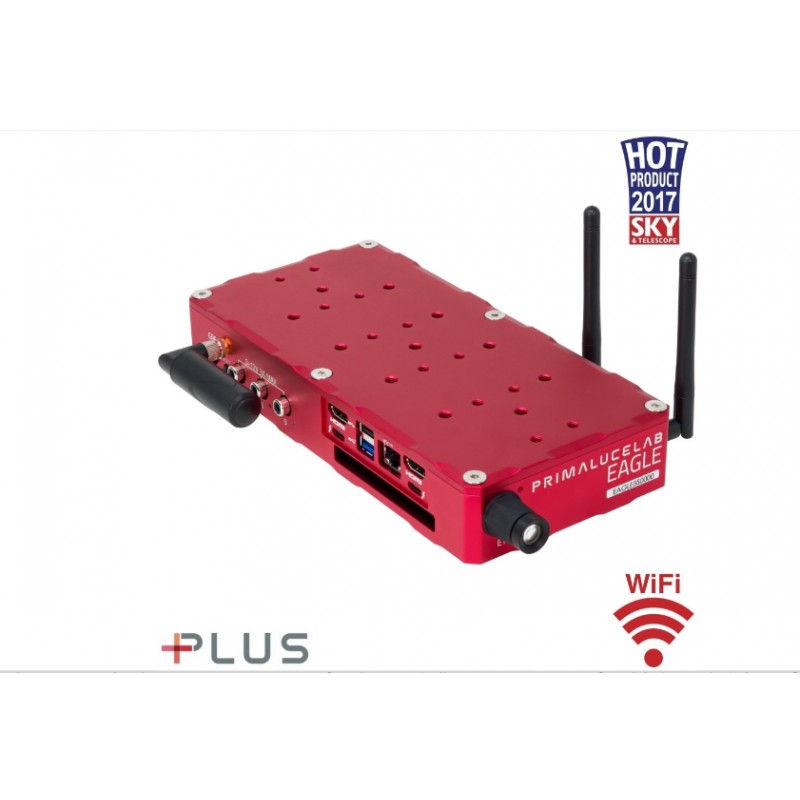

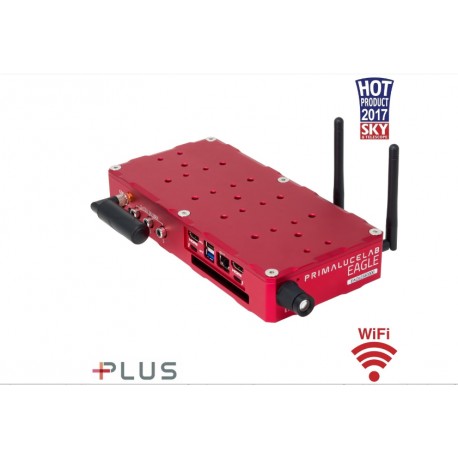

EAGLE6 S powerful computer for telescopes and astrophotography

EAGLE6 S powerful computer for telescopes and astrophotography

Description:
The EAGLE6 S is an optimized version of the EAGLE6. Its Intel Core i3 6-core processor, 8 GB RAM, and 256 GB NVMe SSD provide strong performance with controlled power consumption. The machined aluminum chassis integrates advanced sensors (GPS, EYE, inclinometer, motion detector) and functions like DARK and GHOST modes, Lights-out Management, and Observatory Actions. WiFi 6E and Thunderbolt 4 connectivity facilitate device control and management.

Technical specifications:

• Windows 11 Enterprise

• Intel Core i3 1315U (13th Gen, 6 cores, 15W)

• 8 GB DDR4 3200 MHz RAM

• 256 GB NVMe SSD

• 10-port USB hub (USB 3.2, USB 4 Thunderbolt 4, USB 2.0)

• 4 remote ON/OFF 12V outputs, 3 variable 0-12V outputs

• GPS, EYE, inclinometer, motion detector sensors

• DARK and GHOST modes

• WiFi 6E (802.11ax)

• Lights-out Management via dedicated Ethernet port

• Machined aluminum chassis, M5/M6 mounting holes

• Weight 1.2 kg

Additional information:
Optimized cable management and low consumption enable extended observation sessions.

Scope of delivery:

• EAGLE6 S computer

• 2 WiFi antennas

• 1 GPS antenna

• 12V power cable (250 cm)

• Various M5/M6 screws

• Quick guide
